Basic Information

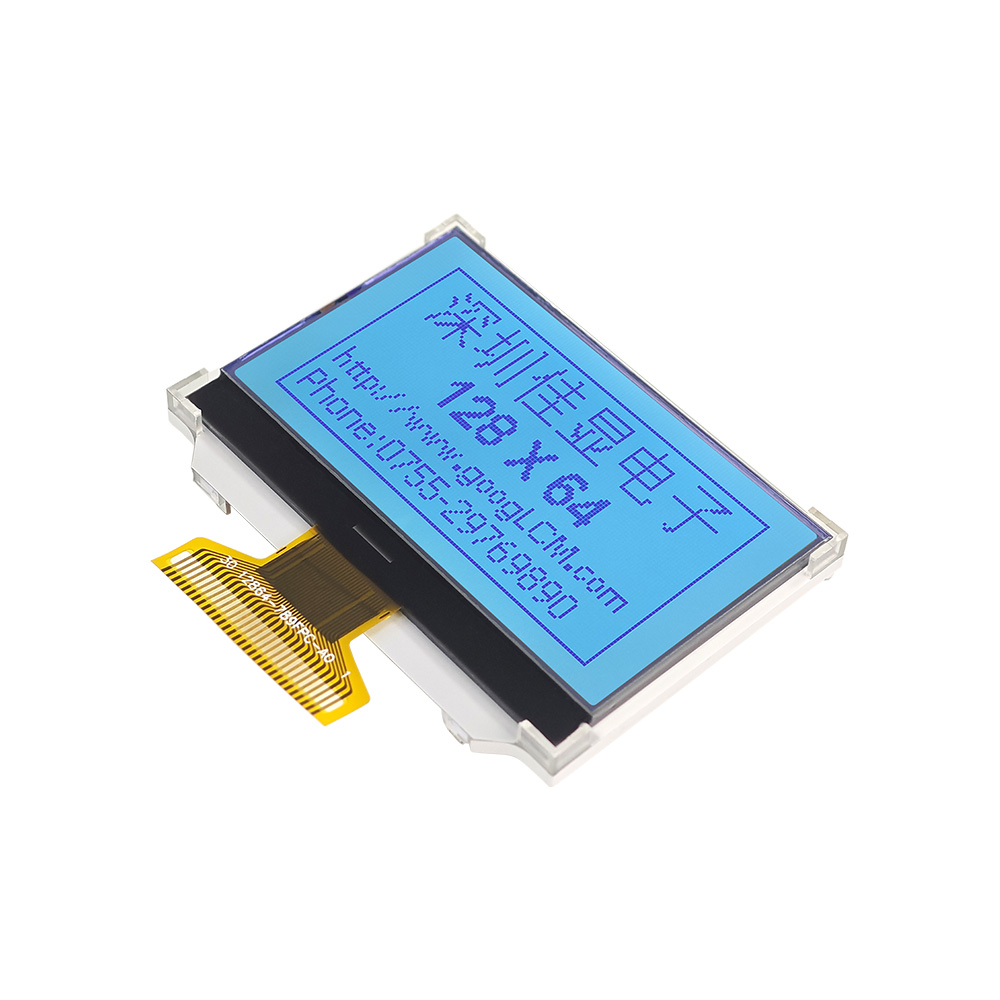

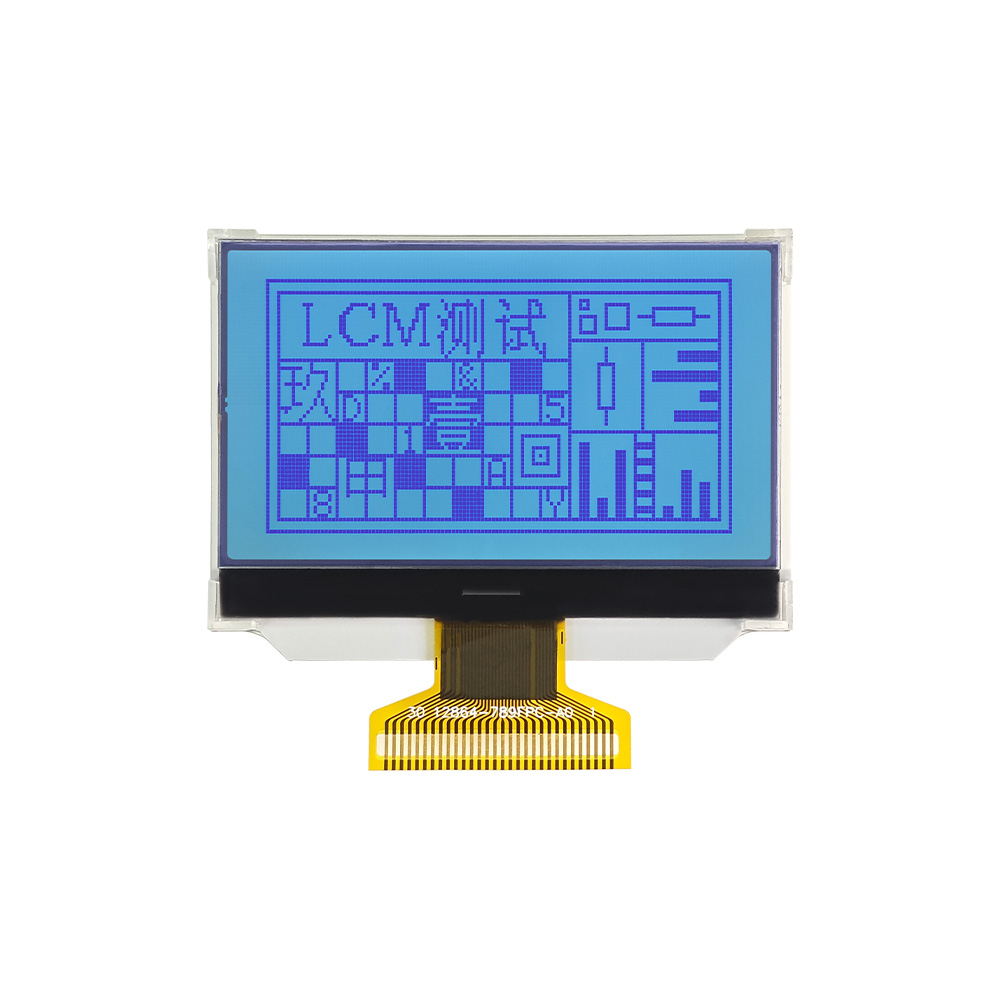

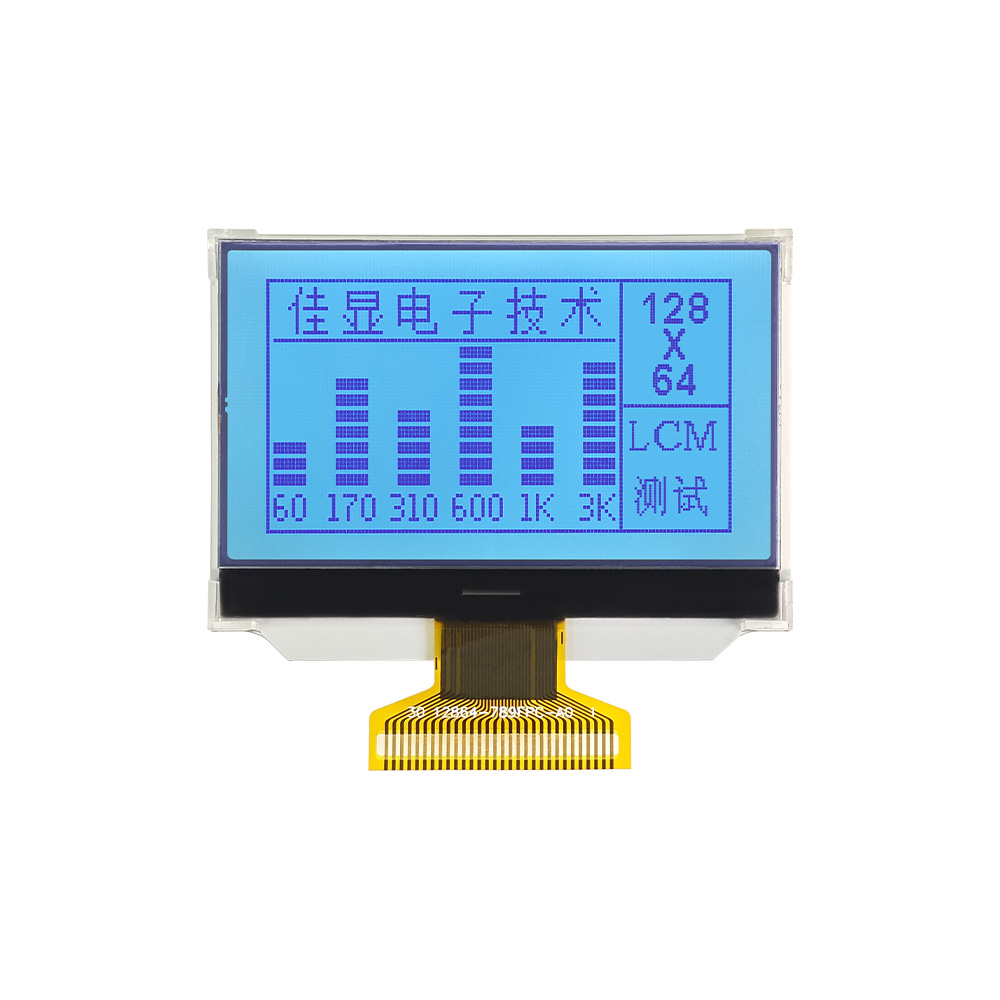

The COG LCD Display Manufacturer SJXD12864-09 is a high-quality chip-on-glass graphical display solution designed for industrial-grade electronic applications. It is developed to support manufacturers and system integrators who require reliable COG LCD modules with stable performance and flexible integration capability. This module combines 128x64 dot matrix resolution with compact COG construction, making it suitable for embedded systems that demand both clarity and space efficiency.
Parameters:
| Character Type | Customized |
| Model | SJXD12864-09-LCD STN |
| Model Size | 60.2×44.2×2.8mm |
| VA Size | 54×31mm |
|
Connector
|
COG+FPC |
|
Display Mode
|
STN/Gray/Transflective/Positive |
|
Drive Method
|
1/64 Duty,1/7 Bias,Vop=9.5±0.2V，VDD=3.3V
|
|
Top
|
-20°C~+70°C
|
| Tst |
-30°C~+80°C
|
|
Drive IC
|
ST7565R |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This COG LCD display manufacturer module features a 128×64 dot matrix layout that enables clear rendering of text, symbols, and simple graphics. The chip-on-glass structure integrates driver circuitry directly onto the glass substrate, reducing overall module thickness and improving mechanical stability. It delivers high contrast and sharp pixel definition, ensuring readable output under standard lighting conditions. The display operates at low voltage, making it compatible with energy-efficient electronic systems and portable devices. It is engineered for low power consumption, supporting continuous operation with minimal energy usage. The module maintains stable optical performance across a wide temperature range, ensuring reliable visibility in diverse environments. Its compact design allows seamless integration into industrial instruments, handheld devices, and embedded control systems. Fast response behavior ensures smooth graphical updates without flicker or delay, supporting real-time data visualization and interface responsiveness.
Design Standards
The module is manufactured according to strict COG LCD production and manufacturing standards to ensure consistent quality and long-term reliability. Chip-on-glass bonding technology enhances structural integrity and reduces external connection complexity. High-quality liquid crystal materials are selected to maintain uniform optical performance and stable pixel behavior. Circuit design is optimized to minimize electromagnetic interference and ensure stable signal transmission in electronic systems. Each unit undergoes rigorous inspection to verify display uniformity, pixel accuracy, and electrical stability. Reinforced structural design improves resistance to mechanical stress, temperature variation, and continuous operational conditions. Energy-efficient engineering principles are applied to enhance durability and operational efficiency.
Applications
The COG LCD display manufacturer module is widely used in industrial automation equipment, medical devices, smart meters, embedded controllers, and consumer electronics. It is also suitable for portable diagnostic instruments, data terminals, instrumentation panels, and custom graphical interfaces. Its combination of reliable manufacturing capability, stable COG performance, and high-resolution display output makes it an effective solution for advanced embedded display applications requiring consistent quality and visual precision.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
