Basic Information
The COG LCD Display Supplier SJXD12864-09 is a professional-grade chip-on-glass graphical LCD module designed to meet the demands of manufacturers seeking stable, high-quality display components for embedded and industrial applications. It combines a 128x64 dot matrix resolution with compact COG architecture, offering a reliable and space-efficient solution for modern electronic devices. This module is well-suited for system integrators who require consistent supply capability and customizable display performance.

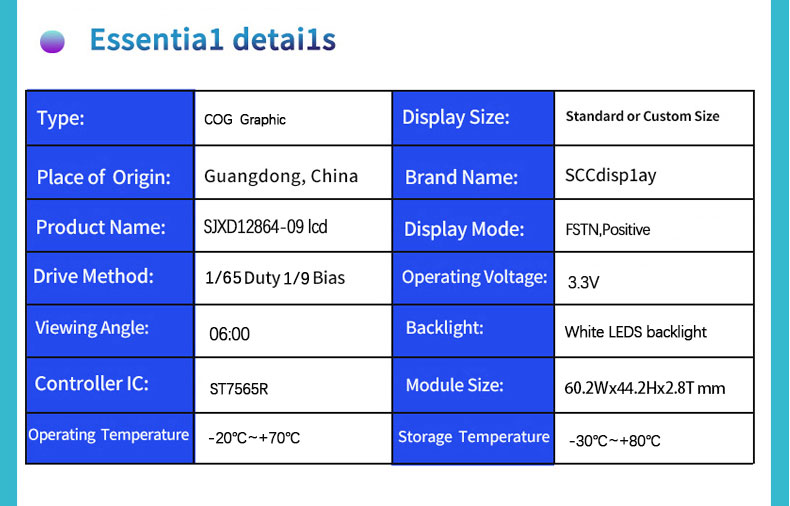

Parameters:
| Character Type | Customized |
| Model | SJXD12864-09-LCD FSTN |
| Model Size | 60.2×44.2×2.8mm |
| VA Size | 54×31mm |
|
Connector
|
COG+FPC |
|
Display Mode
|
STN/Gray/Transflective/Positive |
|
Drive Method
|
1/64 Duty,1/7 Bias,Vop=9.5±0.2V，VDD=3.3V
|
|
Top
|
-20°C~+70°C
|
| Tst |
-30°C~+80°C
|
|
Drive IC
|
ST7565R |

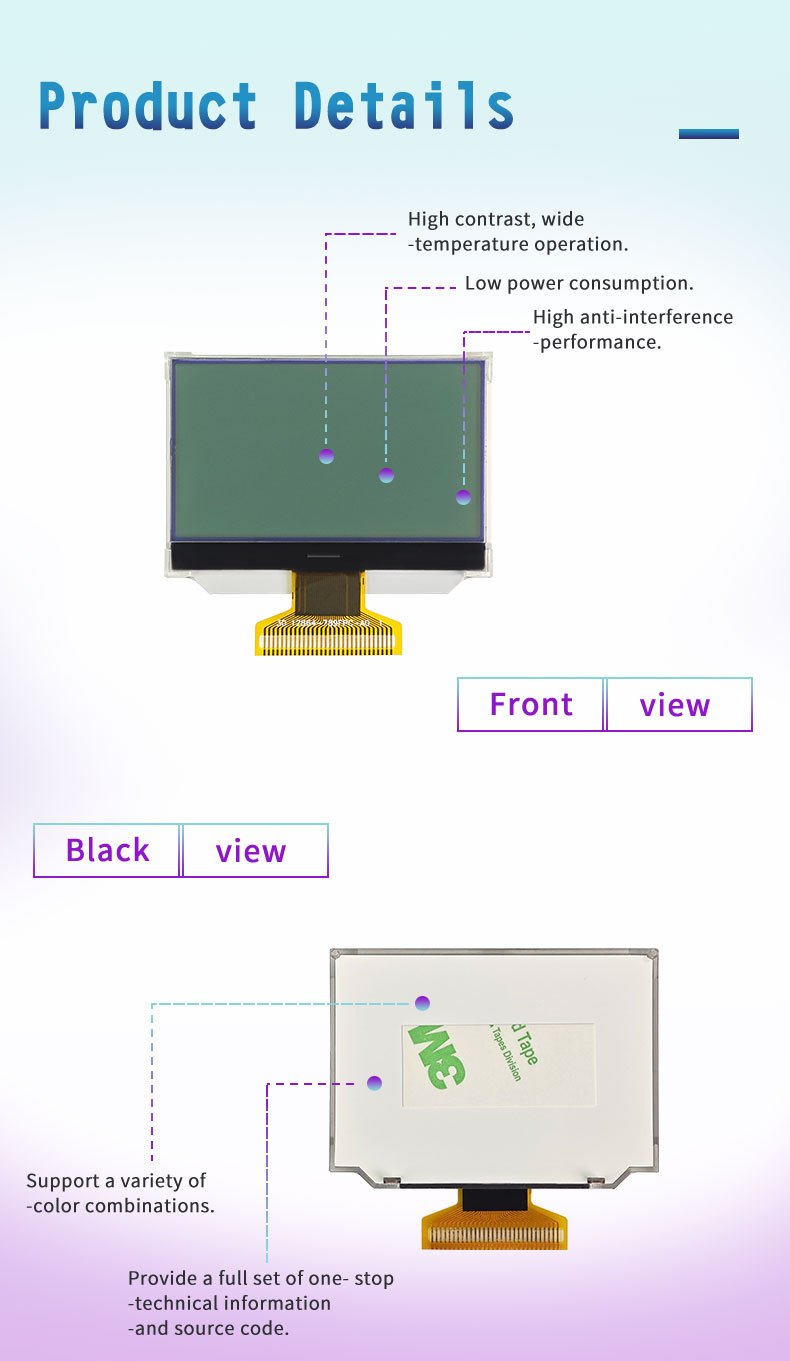

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This COG LCD display supplier module features a 128×64 dot matrix format that supports clear presentation of text, icons, and simple graphics. The chip-on-glass integration embeds driver circuitry directly onto the glass substrate, reducing external components and improving overall mechanical stability. It delivers strong contrast and precise pixel definition, ensuring readable output in standard lighting environments. The display operates at low voltage, making it compatible with energy-efficient embedded systems and portable electronic devices. It is designed for low power consumption, supporting long-term continuous operation with minimal energy requirements. The module maintains stable optical performance across a wide temperature range, ensuring reliable visibility in diverse working conditions. Its compact structure allows easy integration into industrial control systems, handheld instruments, and embedded electronic products. Fast response characteristics ensure smooth refresh of graphical content without flicker or delay, supporting real-time data visualization and user interface responsiveness.
Design Standards
The module is manufactured under strict COG LCD supplier standards to ensure consistent quality, reliability, and long-term operational stability. Chip-on-glass bonding technology enhances structural integrity and reduces assembly complexity. High-quality liquid crystal materials are used to maintain uniform optical performance and stable pixel behavior. Circuit design is optimized to minimize electromagnetic interference and ensure stable signal transmission in electronic systems. Each unit undergoes comprehensive inspection to verify display uniformity, pixel accuracy, and electrical reliability. Reinforced construction improves resistance to mechanical stress, temperature variation, and continuous operation. Energy-efficient design principles are applied to enhance durability and reduce overall power consumption.
Applications
The COG LCD display supplier module is widely used in industrial automation systems, medical instruments, smart meters, embedded controllers, and consumer electronics. It is also suitable for portable diagnostic devices, instrumentation panels, data terminals, and custom graphical interfaces. Its combination of stable supply capability, COG integration, and high-resolution display performance makes it an ideal solution for manufacturers requiring dependable embedded LCD display sourcing and integration.

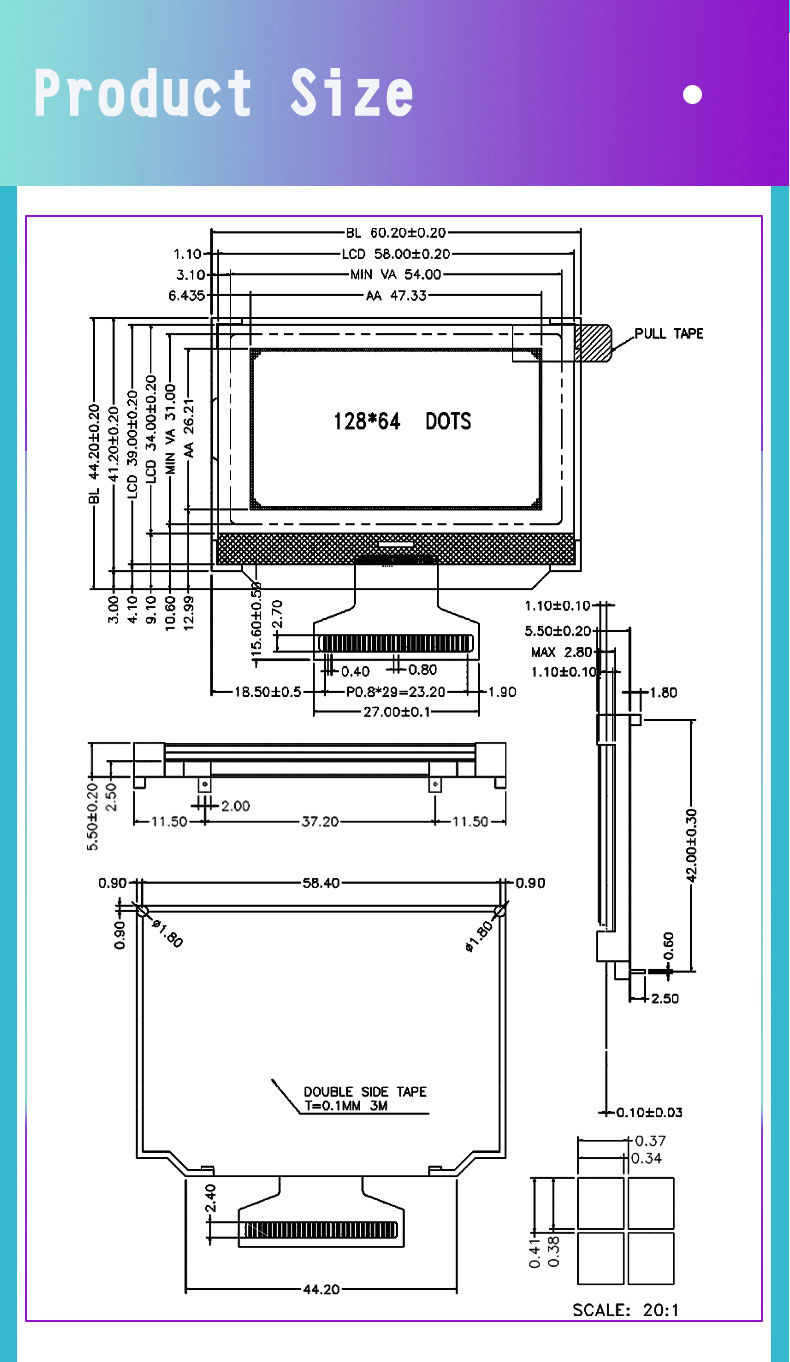

Product Size
FAQ
Q: How long does it take to ship this screen after purchase?
A: Generally, it takes 1-3 days for the purchase to be shipped.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
