Basic Information

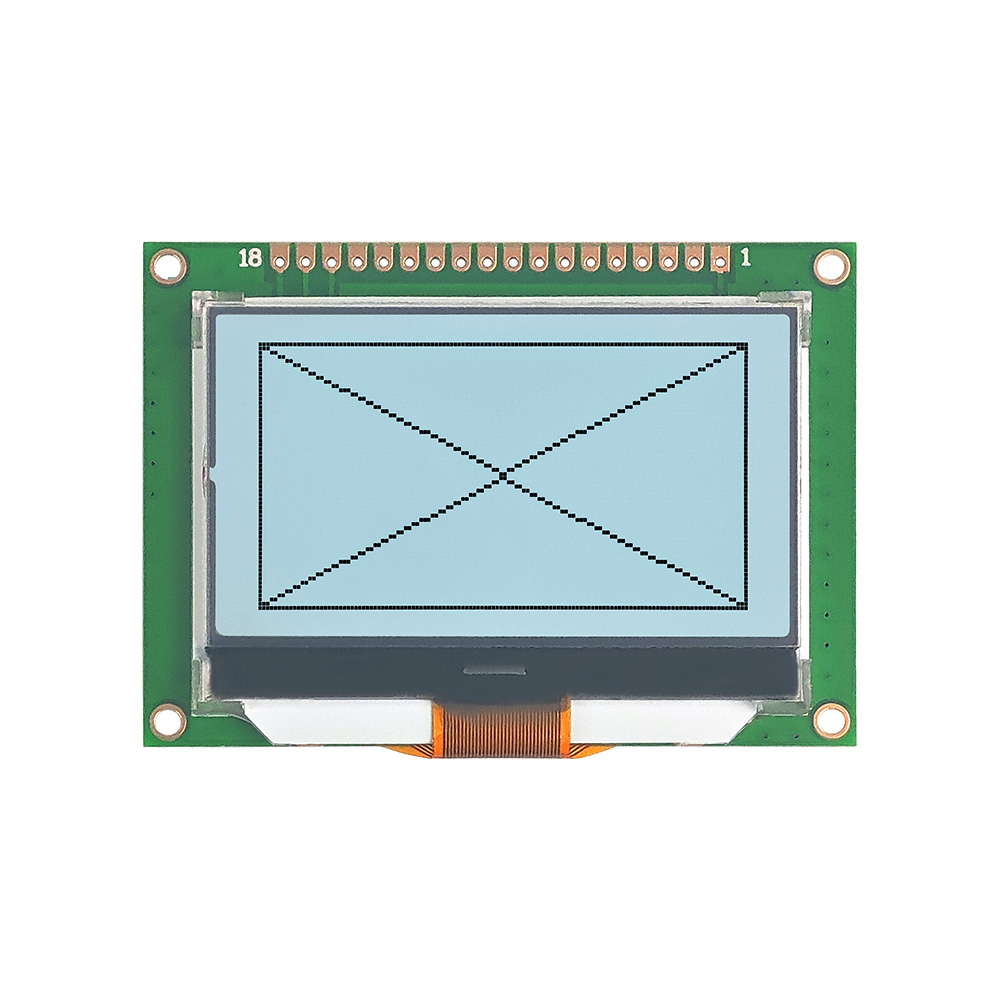

The COG LCD Display 128x64 SJXD12864-09 LCM is a specialized chip-on-glass graphical display module designed for embedded systems that require both standard 128x64 resolution and customized structural design. This model combines COG integration with a special-shaped LCD configuration, enabling flexible mechanical adaptation while maintaining high-quality dot matrix display performance. It is suitable for advanced electronic products that require unique display layouts and compact system integration.
Parameters:
| Character Type | Customized |
| Model | SJXD12864-09-LCM FSTN |
| Model Size | 70×52.5×9.5mm |
| VA Size | 54×31mm |
|
Polarizer
|
Transflective/Positive |
|
Display Mode
|
FSTN |
|
Drive Method
|
1/64D;1/9B
|
|
Working Temp
|
-20°C~+70°C
|
| Storage Temp |
-30°C~+80°C
|
|
Working Voltage
|
+3.3V |

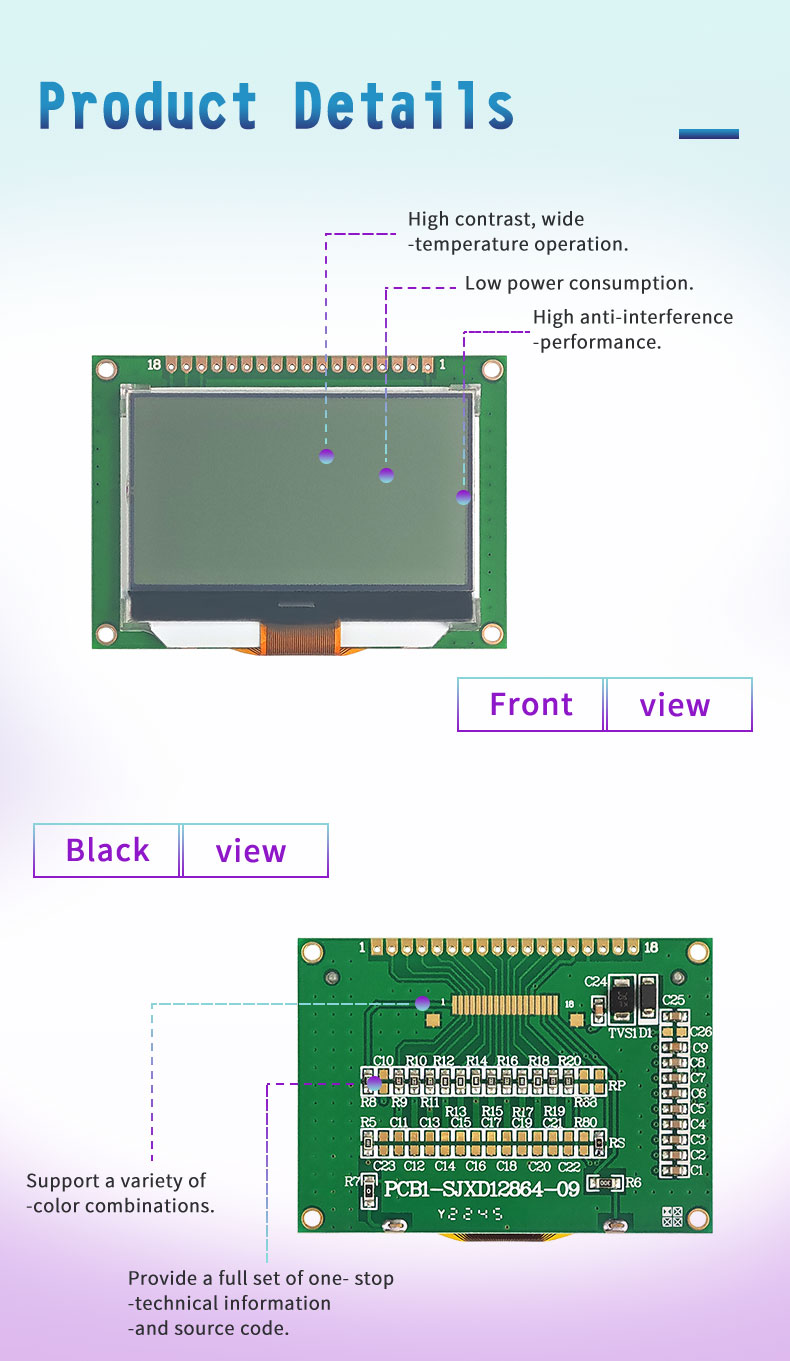

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This COG LCD Display 128x64 features a 128×64 dot matrix structure that supports detailed graphical output, including text, icons, and custom interface elements. The chip-on-glass technology reduces module thickness and improves structural reliability by integrating driver circuitry directly onto the glass substrate. It delivers high contrast and stable pixel performance, ensuring clear readability of information under standard operating conditions. The display operates at low voltage, making it compatible with energy-efficient embedded systems and portable electronic devices. It is engineered for low power consumption, supporting long-term continuous operation with minimal energy usage. The module maintains consistent optical performance across a wide temperature range, ensuring reliable visibility in different environmental conditions. Its customized and special-shaped design allows flexible integration into non-standard device structures, expanding its application possibilities. Fast response characteristics ensure smooth graphical updates without delay or flicker, supporting real-time data visualization and interactive interface performance.
Design Standards
The module is manufactured according to strict COG LCD engineering and customization standards to ensure durability, precision, and long-term operational stability. Chip-on-glass bonding technology enhances structural integrity while reducing external connection complexity. High-quality liquid crystal materials are used to maintain uniform optical performance and stable pixel behavior. Circuit design is optimized to minimize electromagnetic interference and ensure stable signal transmission in electronic systems. Each unit undergoes comprehensive inspection to verify display uniformity, pixel accuracy, and electrical reliability. Reinforced structural design improves resistance to mechanical stress, temperature variation, and continuous operation. Energy-efficient design principles are applied to enhance performance stability and extend product lifespan.
Applications
The COG LCD Display 128x64 is widely used in industrial automation systems, medical devices, smart instrumentation, embedded controllers, and consumer electronics. It is also suitable for portable diagnostic equipment, custom interface panels, specialized measurement devices, and smart monitoring systems. Its combination of COG integration, high-resolution graphics, and customizable shape design makes it an effective solution for advanced embedded display applications requiring both flexibility and reliable visual performance.

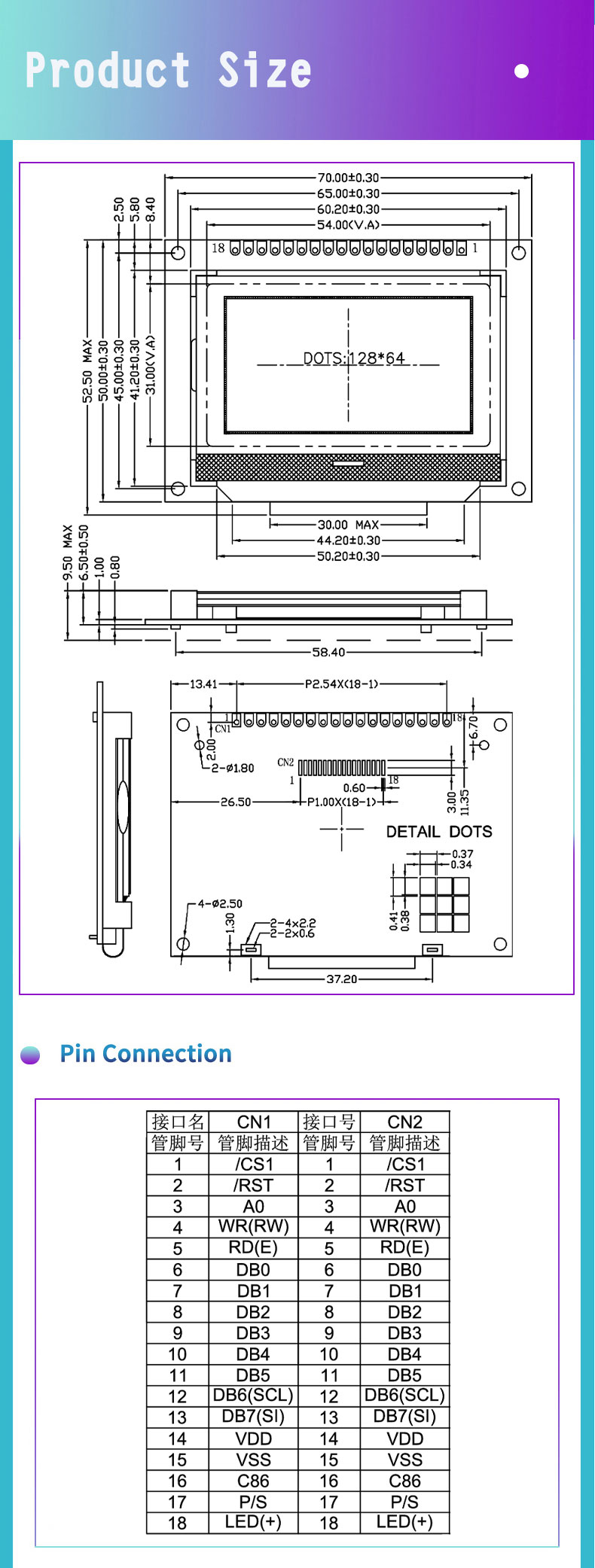

Product Size
FAQ
Q: What is the driver for this screen?
A: This screen uses ST7565R driver
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
