Basic Information

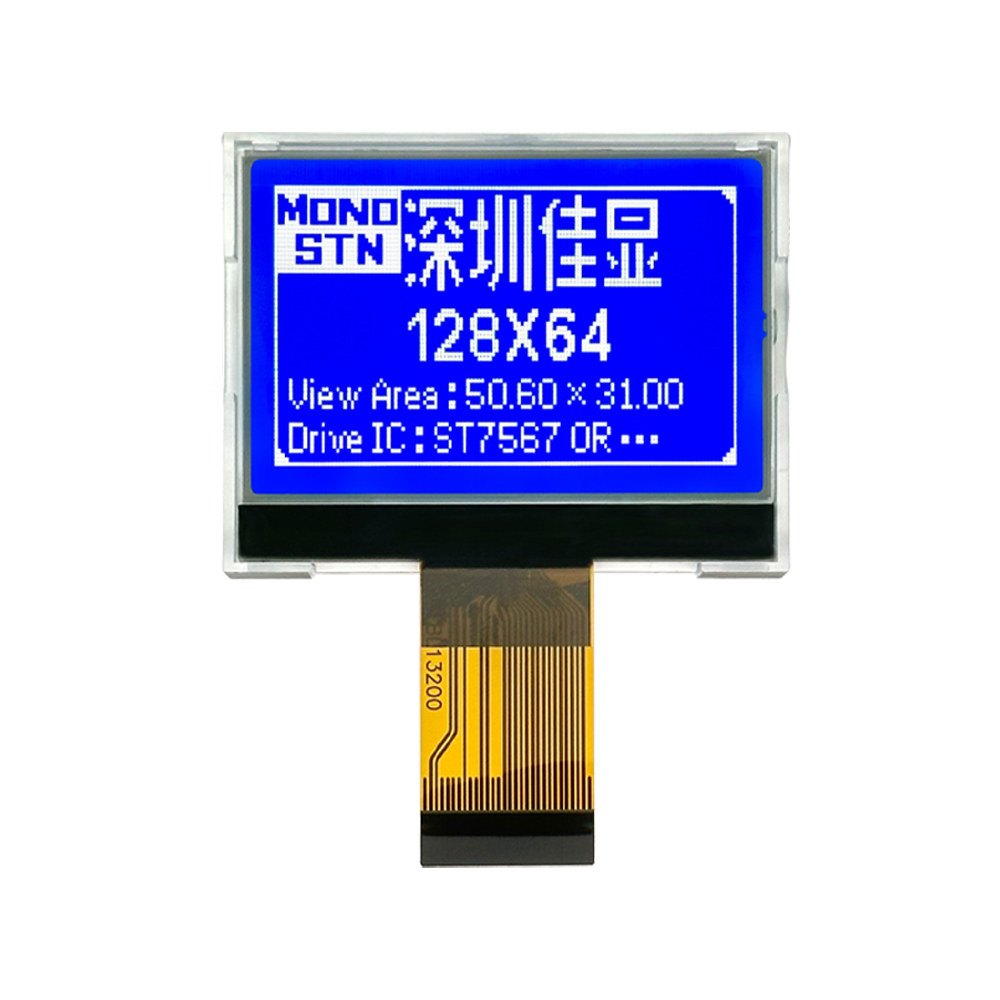

The Custom Glass LCD Display SJXD12864-653-B is a specialized segmented and graphic display solution built on a precision glass substrate, designed for OEM electronic systems that require customized visual interfaces. It integrates flexible display architecture with durable glass construction, providing a stable and reliable output platform for industrial and embedded applications. This module is suitable for devices that demand tailored display structures and long-term operational consistency.
Parameters:
| Model | SJXD12864-653-B |
| Model Size | 50.0×39.2×2mm |
| Field of View Size | 44×29mm |
| Drive lC | ST7567A |
| Display Mode | STN blue / Negative. |
|
Viewing Angle
|
6 o'clock
|
|
Drive Mode
|
1/64 Duty1/9Bias,Vop=8.6V，Vdd=3.0V. |
|
Backlight Type
|
2PCS WHITE SIDE LEDS,IF=30MA & VF=3.0±0.10V
|
|
Top
|
-30°C~+80C
|
| Tst |
-35°C~+85°C.
|
|
Connector
|
COG+FPC. |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This Custom Glass LCD Display features a 128×64 dot matrix configuration that supports clear rendering of text, icons, and simple graphical elements. The glass-based structure enhances optical stability and improves mechanical strength, ensuring consistent performance over extended use. It operates at low voltage, making it compatible with energy-efficient embedded systems and portable electronic devices. The module is designed for low power consumption, supporting continuous operation with minimal energy demand. It delivers stable contrast performance and uniform pixel definition, ensuring readable output under typical indoor lighting conditions. Its compact design allows easy integration into industrial controllers, smart meters, handheld instruments, and custom electronic devices. The display maintains reliable optical and electrical characteristics across a wide temperature range, ensuring consistent functionality in diverse environments. Fast response behavior enables smooth updates of displayed content without flicker or delay, supporting real-time data visualization and interface responsiveness.
Design Standards
The module is manufactured according to strict glass LCD engineering and customization standards to ensure durability, precision, and long-term reliability. High-quality liquid crystal materials are used to maintain uniform optical behavior and stable segment performance. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in electronic systems. The reinforced glass substrate improves resistance to mechanical stress, vibration, and temperature variation. Each unit undergoes full inspection to verify display uniformity, pixel accuracy, and electrical stability. Energy-efficient design principles are applied to enhance operational efficiency and extend product lifespan.
Applications
The Custom Glass LCD Display is widely used in industrial automation systems, medical devices, smart meters, embedded controllers, and consumer electronics. It is also suitable for portable instruments, testing equipment, instrumentation panels, and customized graphical interfaces. Its combination of glass-based stability, flexible customization, and reliable performance makes it an effective solution for OEM display applications requiring durable and precise visual output.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
