Basic Information

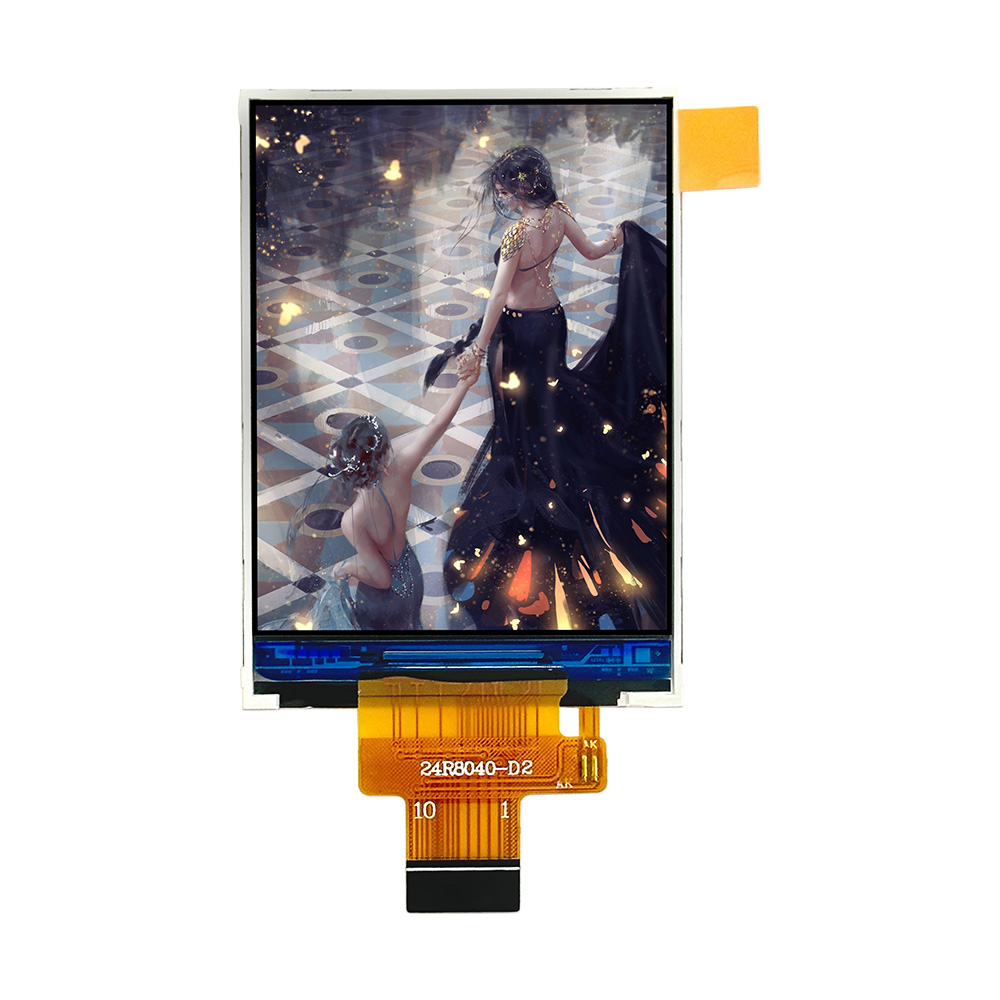

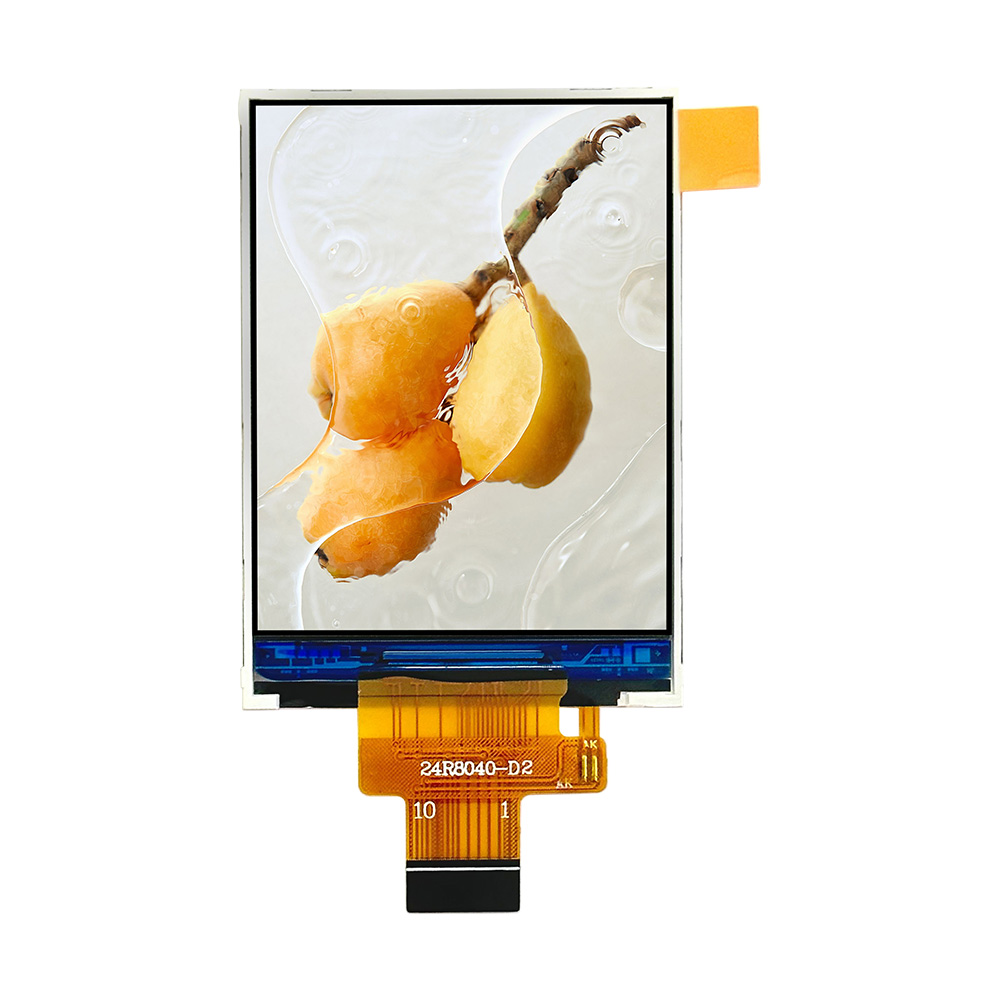

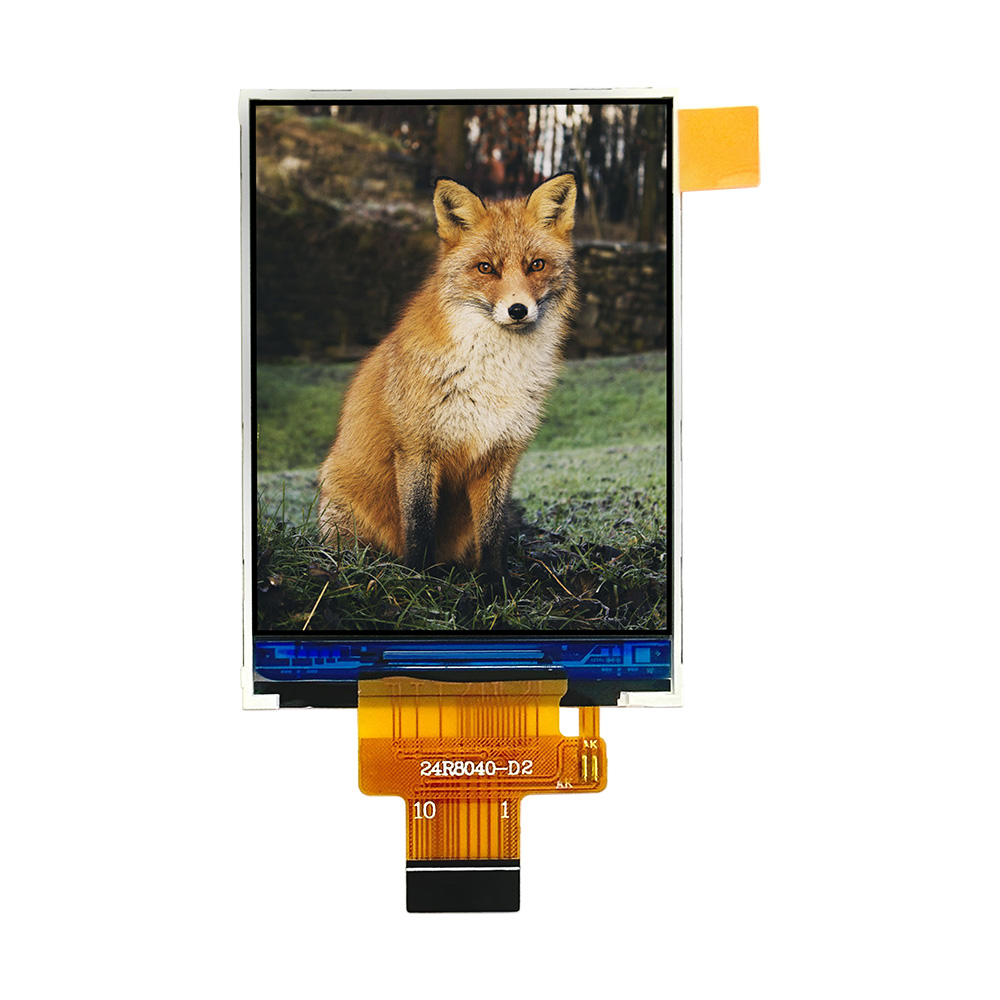

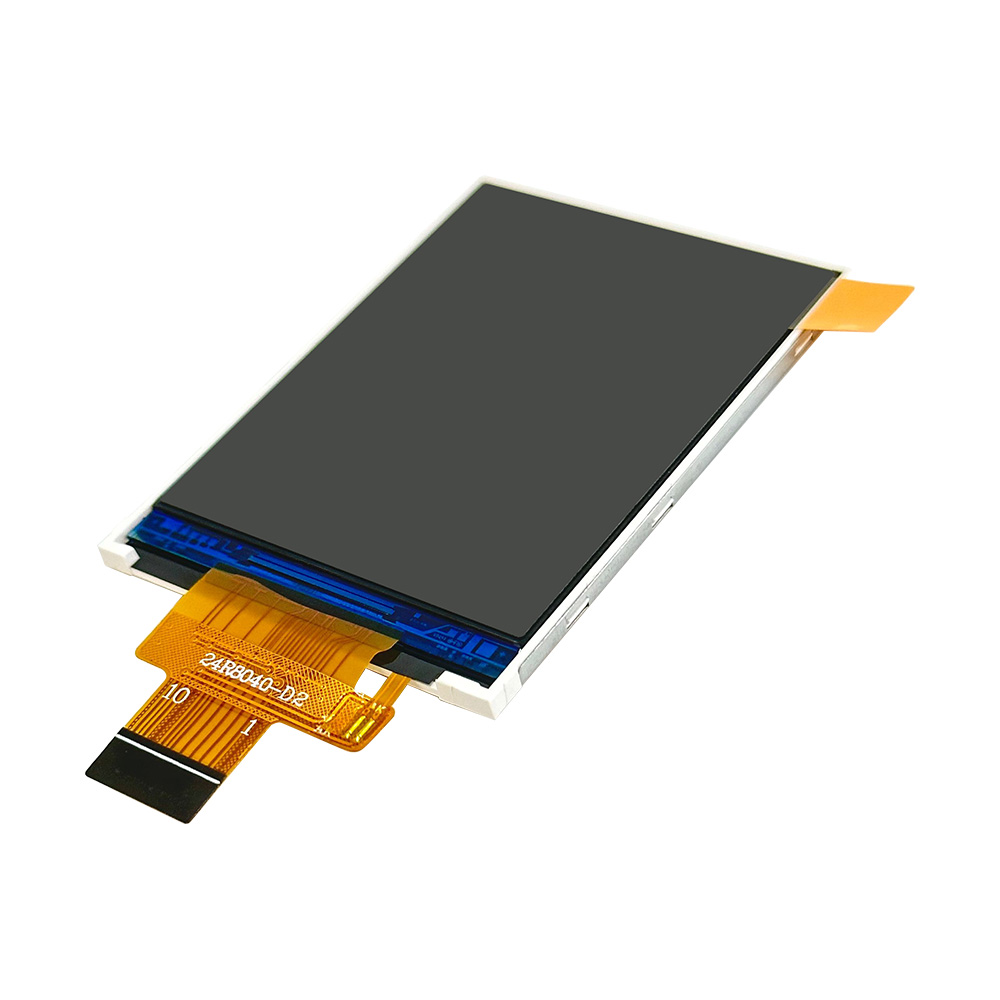

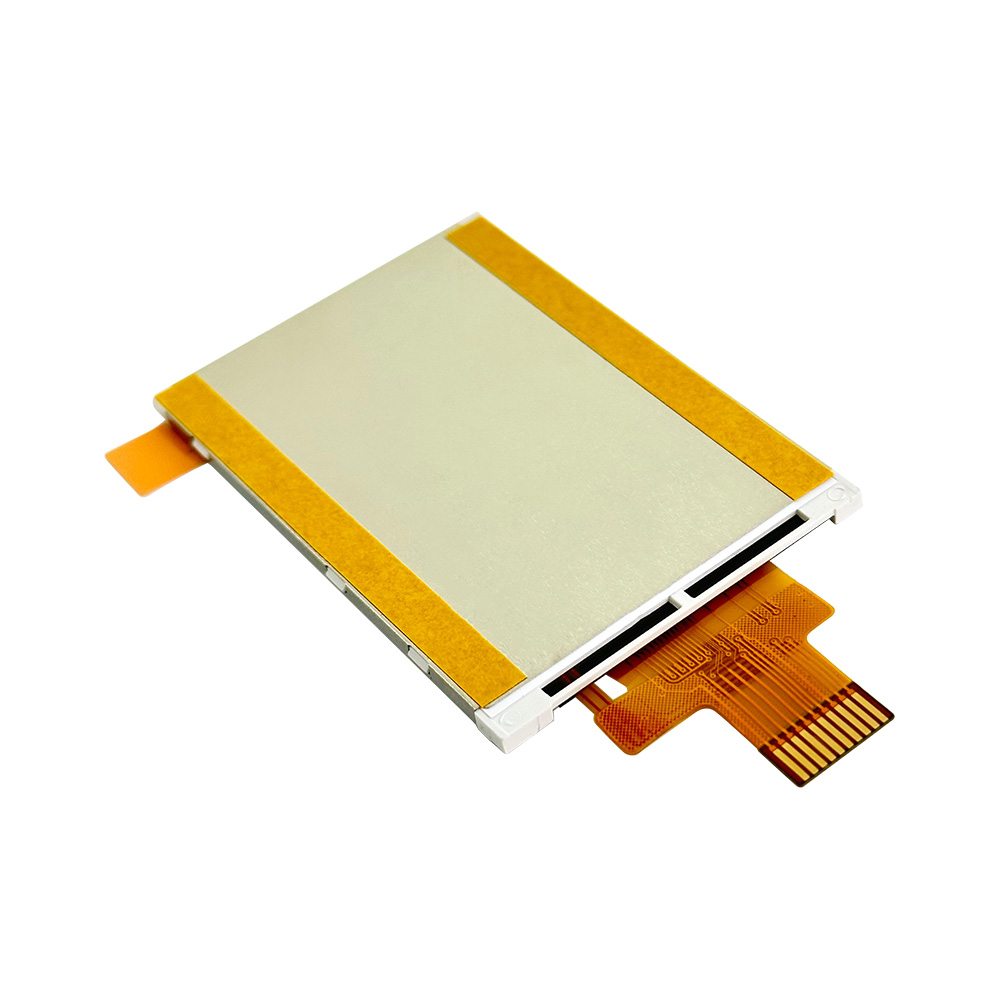

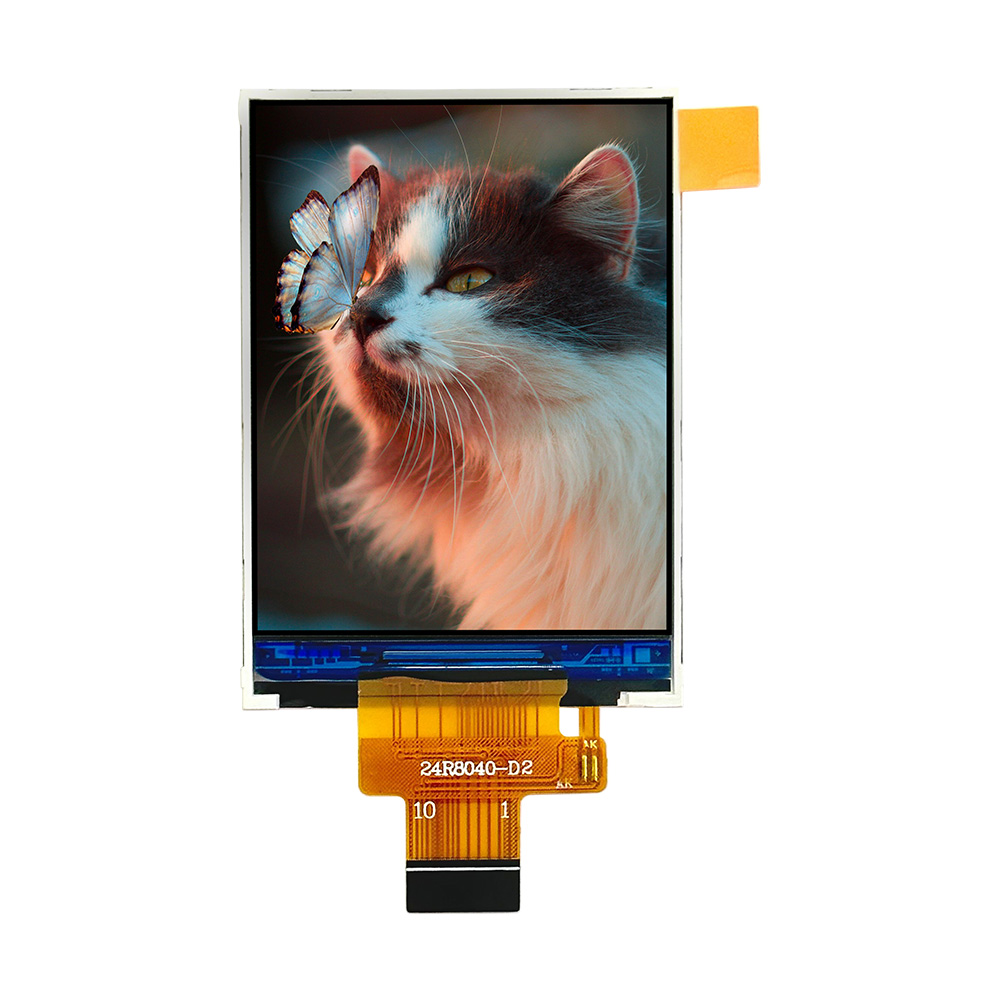

The 2.4 Inch Lcd TFT Display SJXD24-C7040 is a compact color screen solution designed for embedded systems requiring clear visualization and stable performance. With its small footprint and vivid color output, it is well-suited for handheld devices and space-limited electronic products. The display delivers smooth image rendering and reliable operation, making it a practical choice for modern industrial and consumer applications where efficient user interaction is essential. Its design focuses on balancing visual clarity, energy efficiency, and integration flexibility.

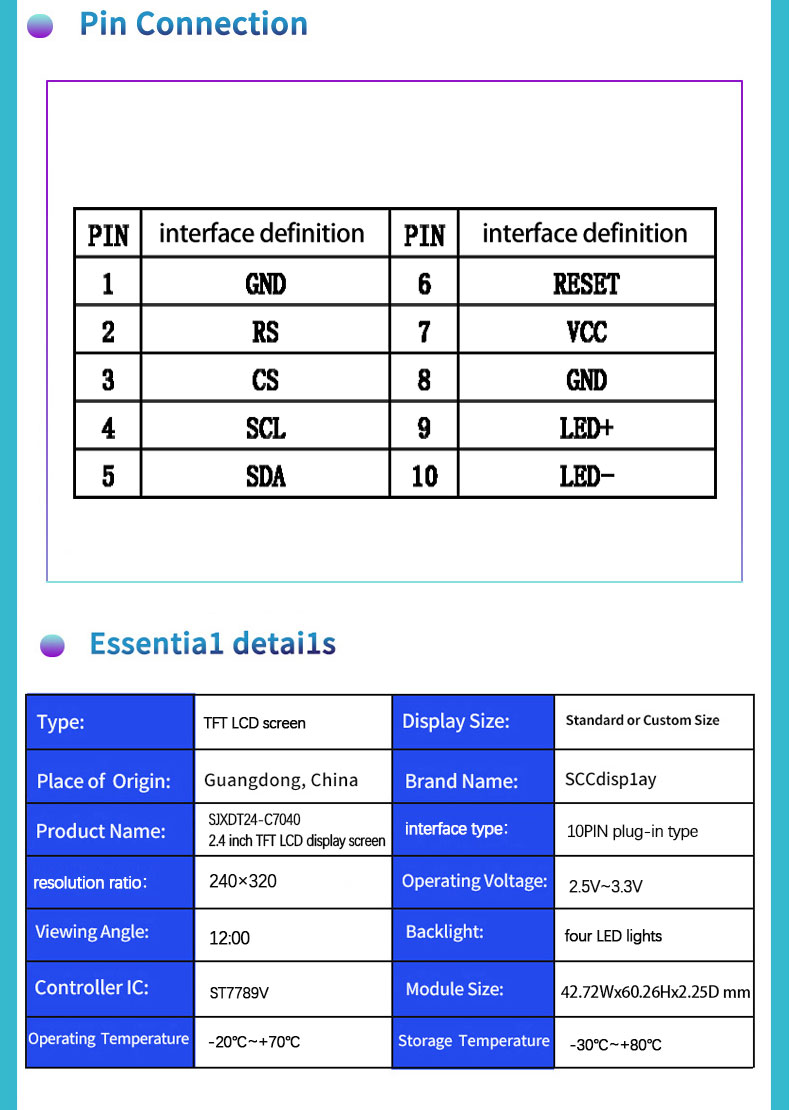

Parameters:
| Type | 2.4 Inch TFT LCD |
| Model | SJXD24-C7040 |
| Model Size | 42.72×60.26×2.25 mm |
| VA Size | 36.72×48.96mm |
| Drive IC | ST7789V |
| Drive Voltage | 3.3V |
| Interface | SPI4 |
| LED Backlight | 4 die White side LED |
| Working Temperature |
-10°C - +60°C
|
|
Storage Temperature
|
-20°C - +70°C |
|
Luminance
|
320-370 cd/m2 (TYP) |

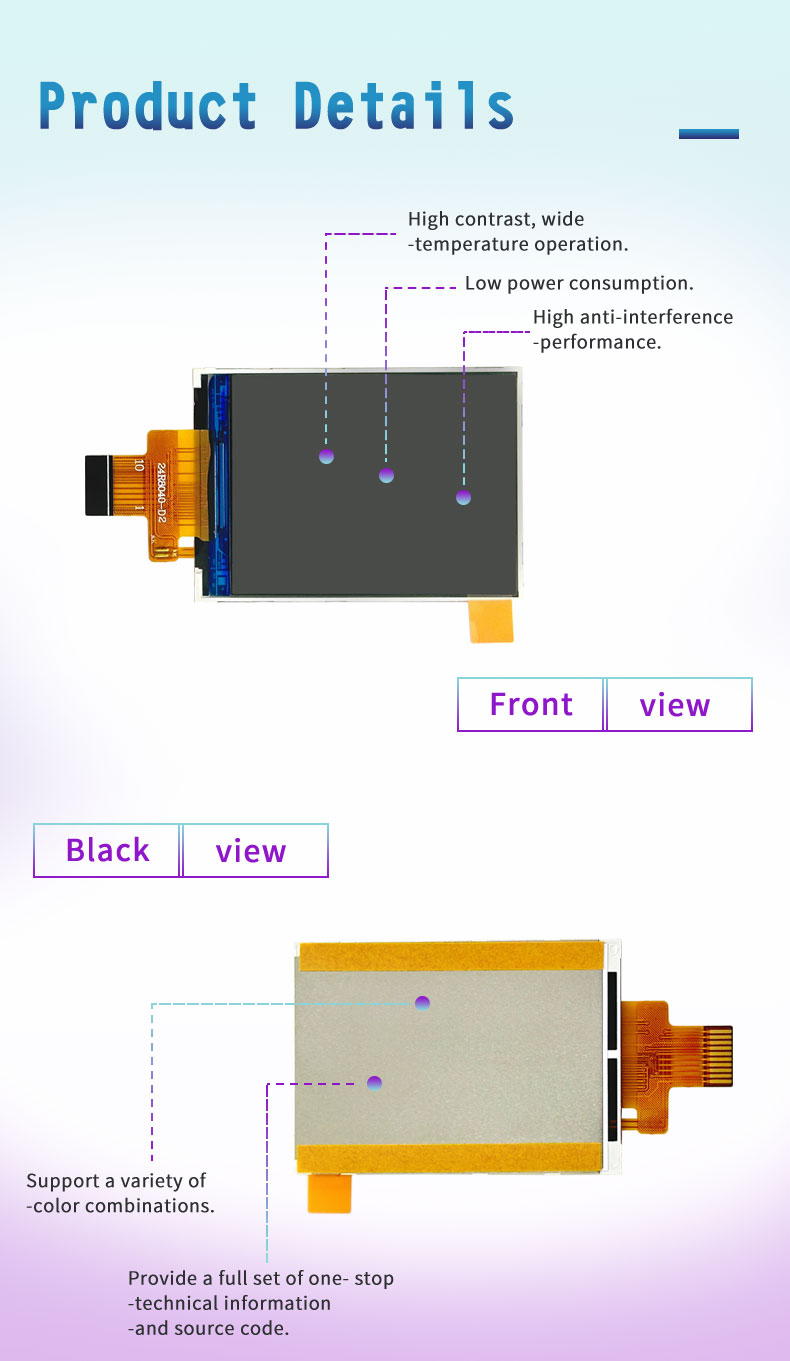

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This 2.4 Inch Lcd TFT Display features a TFT active matrix panel that supports full-color graphical output with strong contrast and brightness. The 2.4-inch screen size provides an optimal balance between readability and compact design. It is compatible with standard embedded communication interfaces, enabling easy connection with microcontrollers and development platforms. LED backlight technology ensures uniform illumination while maintaining low power consumption and extended operational life. The module is engineered to support stable refresh rates for smooth interface performance and real-time display updates. It is designed to operate reliably across industrial temperature ranges, ensuring consistent functionality in diverse environments. The display structure is optimized for lightweight and compact integration into portable electronic systems.
Design Standards
The module is manufactured under strict industrial-grade quality and reliability standards. The TFT panel is built using high-quality materials to ensure stable color reproduction and long-term optical durability. Circuit design is optimized to minimize electromagnetic interference and enhance signal stability during continuous operation. The mechanical structure supports secure installation and vibration resistance, making it suitable for embedded systems used in demanding conditions. Low power design principles are applied to reduce energy consumption and heat generation, ensuring efficient performance in battery-powered devices. These design standards contribute to long-term stability and dependable operation in various applications.
Applications
The 2.4 Inch Lcd TFT Display is widely used in handheld instruments, portable measurement devices, medical equipment, smart sensors, communication modules, and compact embedded control systems. It is also commonly integrated into consumer electronics and industrial interfaces requiring color display functionality. Its combination of compact size, reliable performance, and vivid visual output makes it an ideal solution for applications that demand efficient space usage and clear graphical presentation in modern electronic design.

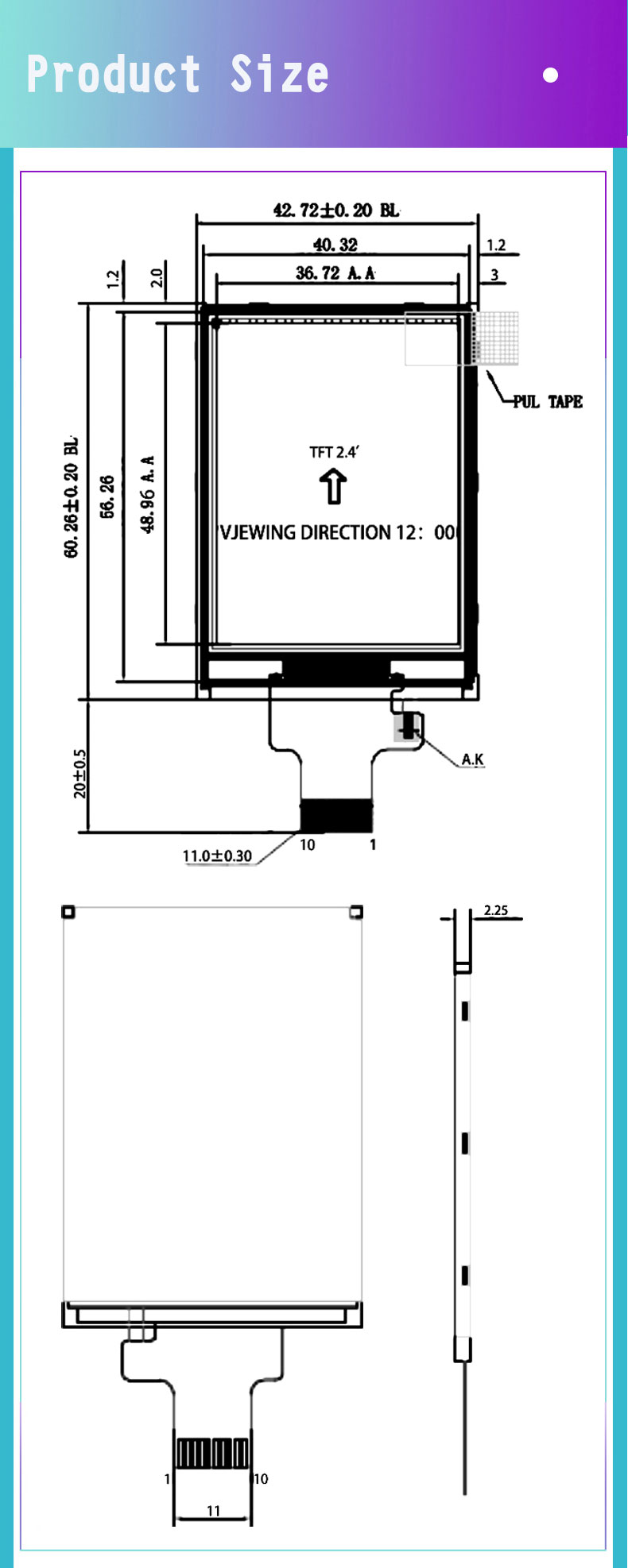

Product Size
FAQ
Q: Is it genuine?
A: Sure，We are a manufacturing company that produces and sells high-quality products on our own.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
