Basic Information

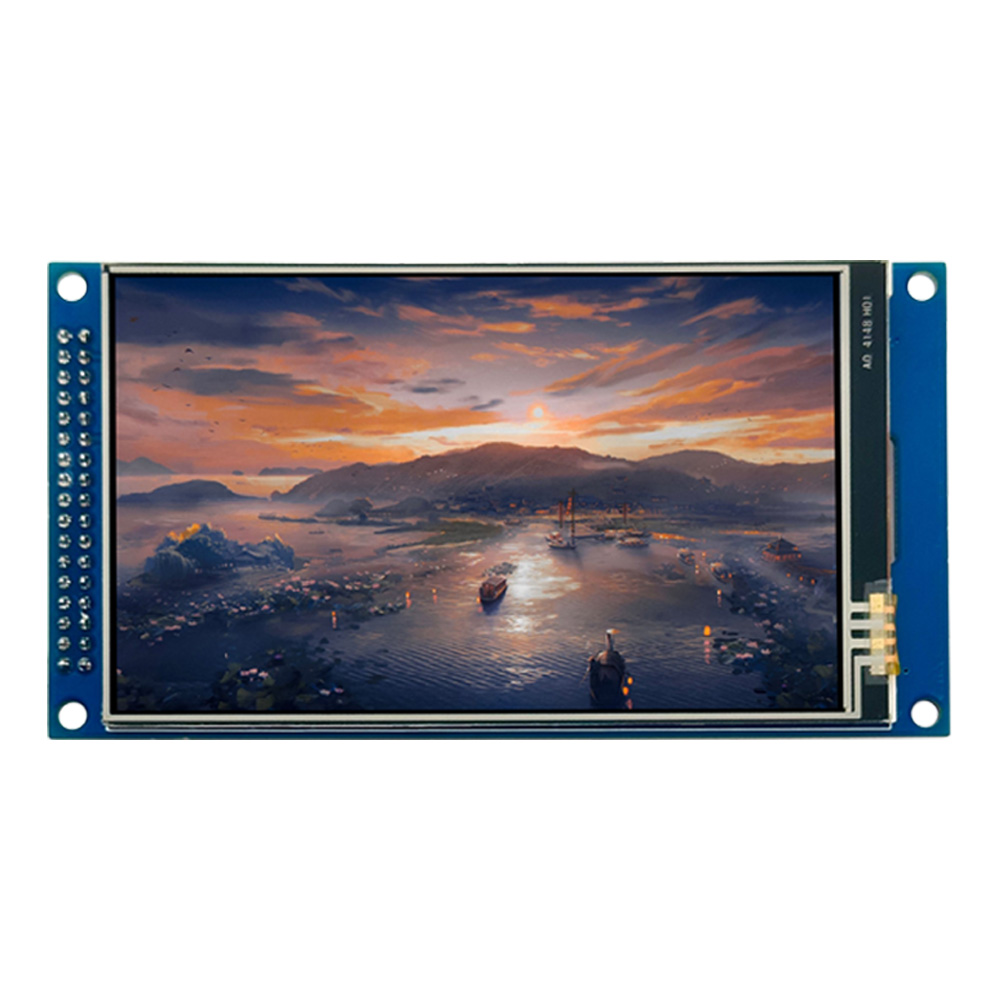

The China Display LCD TFT SJXD3-97 LCM-RT is a high-performance thin-film transistor display module designed for modern embedded and industrial applications. It delivers vibrant color reproduction and high-resolution visual output, making it suitable for advanced user interfaces and smart device integration. Built for reliability and efficiency, this TFT module ensures smooth image rendering and stable operation in continuous-use environments. Its compact design and advanced display technology make it an excellent choice for systems requiring clear, dynamic, and visually rich information presentation.
Parameters:
| Type | 3.97 Inch TFT LCD | |
| Model |
|
|
| Model Size | 56.74x96.35(mm) | |
| Drive IC | NT35510 | |
|
3.3V | |
| Active Area | 51.84x86.40(mm) | |
| Working Temperature | -10℃~60℃ | |
| Storage Temperature | -20℃~70℃ | |
| Module Interface |
8&16Bit parallel interface
|
|
|
Resolution
|
800*480(Pixel) |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This China Display LCD TFT module features a high-quality TFT active matrix structure that supports full-color display output with excellent brightness and contrast. It is designed to operate with standard embedded system voltages, ensuring compatibility with a wide range of control boards and processors. The module supports fast response times for smooth video and graphical transitions. LED backlight technology provides uniform illumination and energy-efficient performance. The display is engineered to maintain stable operation across industrial temperature ranges, ensuring consistent performance in both indoor and demanding environmental conditions. Its interface design supports efficient data transmission for real-time display updates.
Design Standards
The module is manufactured according to strict industrial-grade standards, focusing on durability, optical performance, and long-term reliability. The TFT panel is constructed using high-quality materials to ensure color stability and resistance to environmental stress. The circuit design minimizes electromagnetic interference and enhances signal integrity for stable operation. The mechanical structure is optimized for secure installation and vibration resistance, making it suitable for industrial equipment. Low power consumption design principles are applied to improve overall system efficiency and reduce thermal output during extended operation periods.
Applications
The China Display LCD TFT is widely used in industrial automation systems, medical equipment, smart control panels, communication devices, and measurement instruments. It is also commonly integrated into human-machine interface (HMI) systems, embedded controllers, and portable electronic devices. Its ability to deliver high-quality color graphics and stable performance makes it ideal for applications requiring intuitive user interaction and advanced visual display capabilities in professional and industrial environments.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
