Basic Information

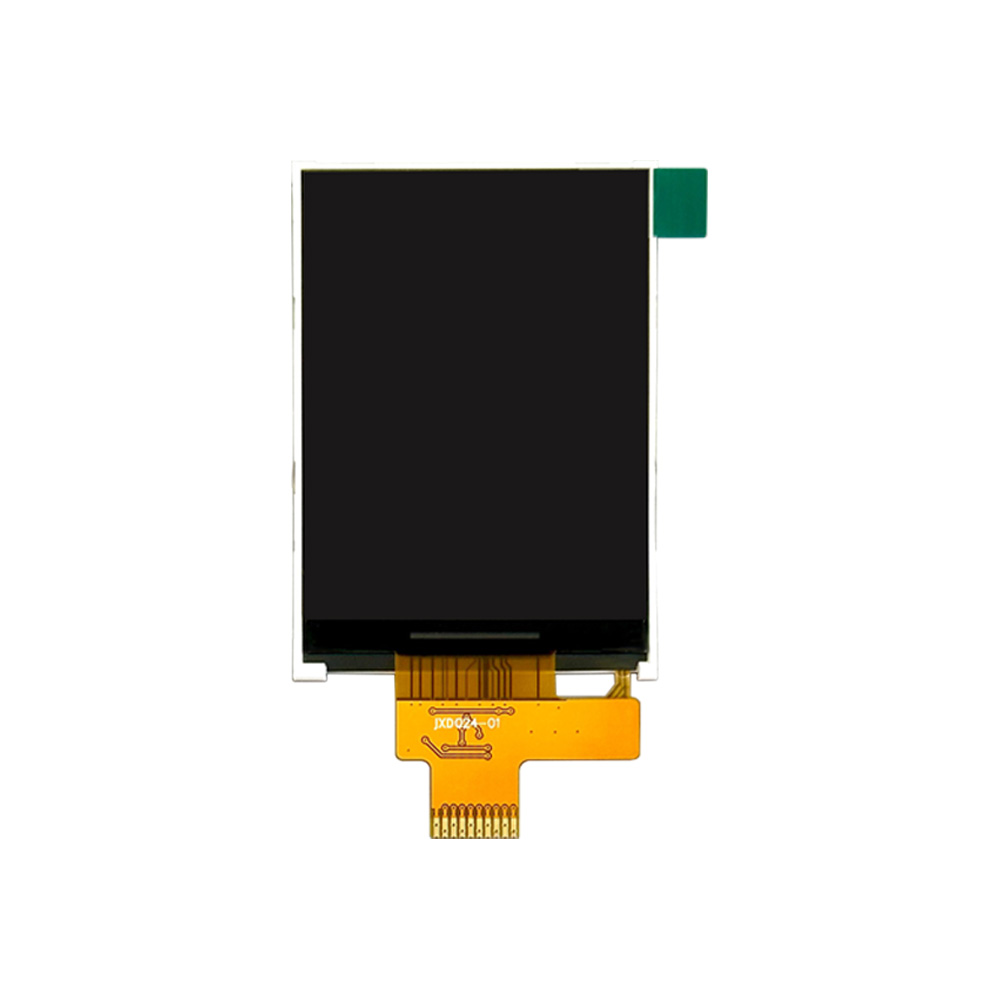

A 2.4-inch SPI TFT LCD display is a widely used solution for compact electronic projects, especially those built with microcontrollers such as Arduino and Raspberry Pi. It provides stable color performance, clear image output, and reliable communication through SPI interface. The display also features good temperature tolerance, ensuring stable operation in different environments. With its compact size and efficient design, it is suitable for handheld devices, embedded systems, and various DIY electronic applications requiring clear visual output.
Parameters:
| Type | 2.4 Inch TFT LCD |
| Model | SJXD24-C7040 |
| Model Size | 42.72×60.26×2.48 mm |
| VA Size | 36.72×48.99mm |
| Drive IC | ST7789T3-G4 |
| Drive Voltage | 2.8V |
| Interface | 4-line-8bit serial I/F Ⅱ |
| LED Backlight | 4 die White side LED |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
|
Luminance
|
320-370 cd/m2 (TYP) |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
2.4 SPI TFT LCD Display SJXDT24HJ features a compact 2.4-inch TFT panel with SPI communication interface, providing efficient data transfer and stable image output. It delivers clear color graphics, strong brightness, and reliable contrast for embedded systems. The display supports fast response time and low power consumption, ensuring smooth performance in portable and industrial applications. Its compact structure makes it suitable for integration into space-limited electronic devices.
Design Standards
2.4 SPI TFT LCD Display is manufactured under strict industrial-grade standards to ensure durability, stability, and long-term reliability. The TFT panel is designed with high-quality materials to maintain consistent color performance and wide viewing angles. It supports stable SPI signal transmission with strong anti-interference capability. Reinforced structural design ensures resistance to vibration and environmental stress, while standardized interface compatibility allows easy integration with microcontroller-based systems.
Applications
2.4 SPI TFT LCD Display is widely used in handheld devices, industrial control equipment, testing instruments, and embedded electronic systems. It is also suitable for consumer electronics, DIY microcontroller projects, and smart terminal interfaces requiring compact color display solutions. With stable performance and flexible integration capability, it supports OEM customization across various industrial and commercial application scenarios.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
