Basic Information

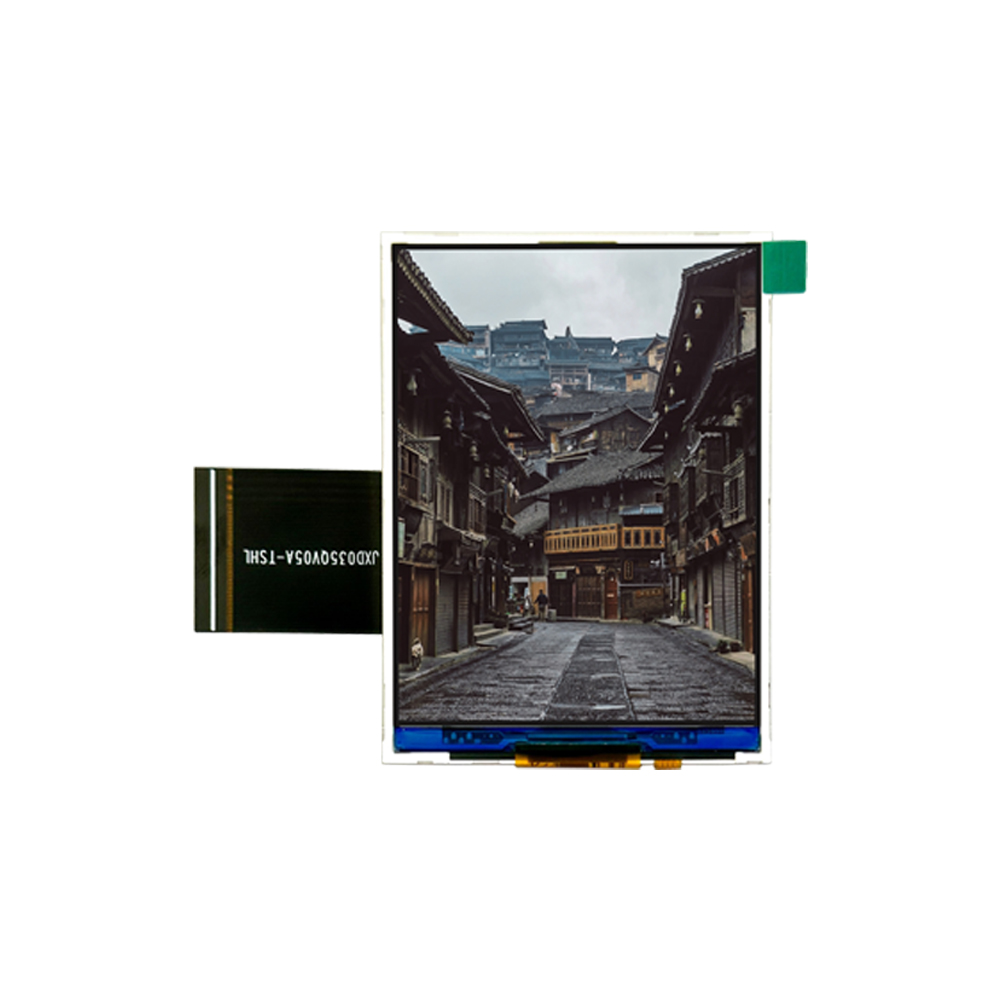

The 3.5 Inch TFT LCD Display Monitor Module SJXDT35HJ is a compact and efficient display solution designed for embedded systems and industrial control applications. It delivers sharp color visuals in a small form factor, making it ideal for devices that require space-saving design without compromising display clarity. With stable performance and responsive image rendering, this module supports modern human-machine interface applications and provides a reliable visual output for real-time monitoring and control systems.
Parameters:
| Type | 3.5 Inch TFT LCD |
| Model | SJXDT35HJ |
| Model Size | 60×81.5×3.6 mm |
| VA Size | 53.56×71.08mm |
| Drive IC | ST7789V2 R EQUIVALENT |
| Drive Voltage | 2.8V |
| LED Backlight | WHITE LED,ILED=80MA,VLED=5.8V~7.0V |
| Working Temperature | -20°C - +70°C |
| Storage Temperature |
-30°C - +80°C
|

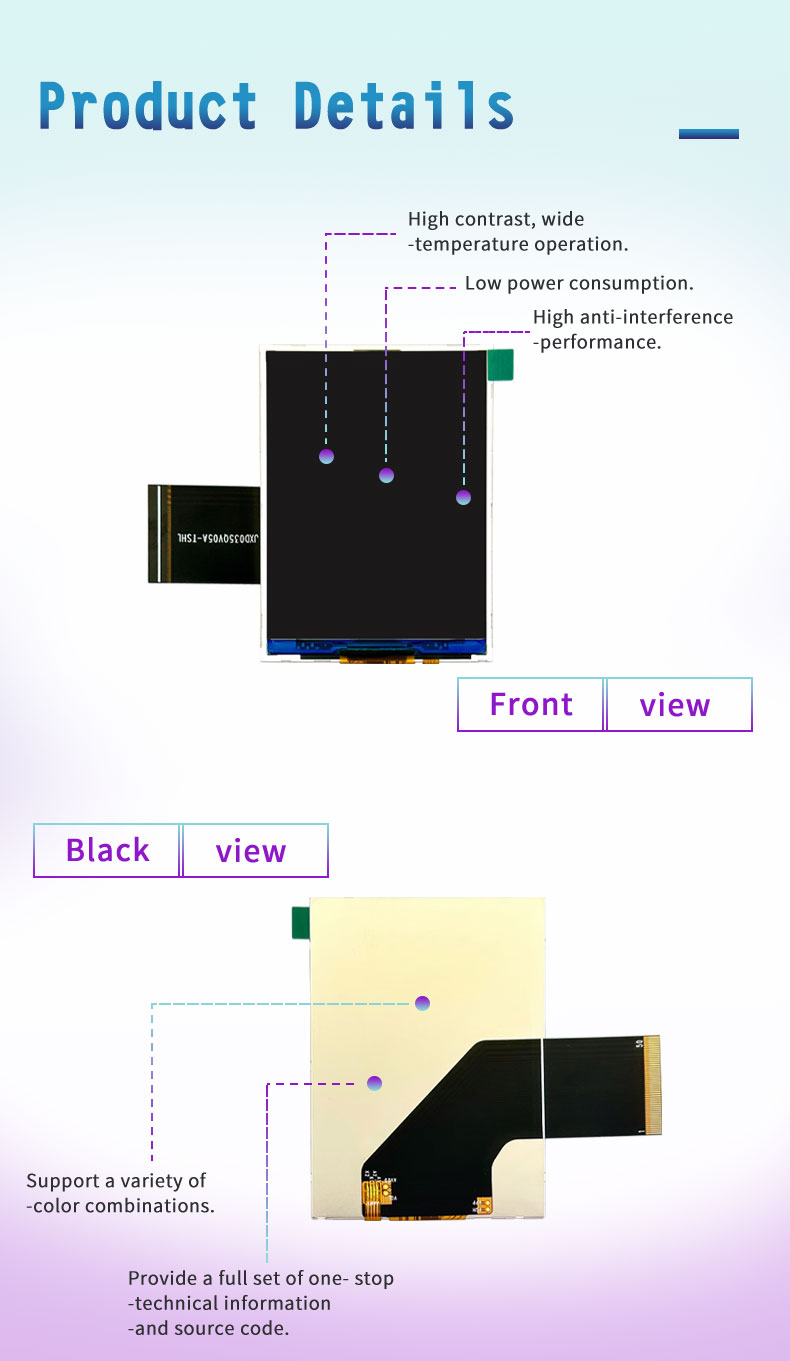

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This 3.5 Inch TFT LCD Display Monitor Module features a high-quality TFT active matrix panel that supports vibrant color reproduction and clear image detail. The display is designed with a 3.5-inch diagonal screen size, optimized for compact embedded integration. It typically supports standard resolution suitable for detailed interface layouts and icon-based navigation. LED backlight technology ensures uniform brightness while maintaining low power consumption and long operational life. The module is compatible with common embedded controller platforms and supports stable signal transmission for smooth visual performance. It is engineered to operate across industrial temperature ranges, ensuring reliability in diverse environmental conditions. Fast response time enables fluid screen updates and interactive interface control.
Design Standards
The module is manufactured under strict industrial-grade quality standards to ensure durability, stability, and consistent optical performance. The TFT panel is built using high-quality materials to guarantee color accuracy and resistance to environmental stress. Circuit design optimization reduces electromagnetic interference and enhances signal integrity during continuous operation. The mechanical structure is designed for secure mounting and vibration resistance, making it suitable for embedded systems used in demanding environments. Low power design principles are applied to improve energy efficiency and reduce heat generation, supporting long-term stable operation in compact electronic devices.
Applications
The 3.5 Inch TFT LCD Display Monitor Module is widely used in industrial automation systems, portable measurement devices, medical equipment, smart control panels, and communication terminals. It is also commonly integrated into human-machine interface (HMI) systems, embedded controllers, and handheld electronic devices. Its compact size and reliable performance make it an excellent choice for applications requiring clear visual output, intuitive user interaction, and efficient system monitoring in both industrial and commercial environments.

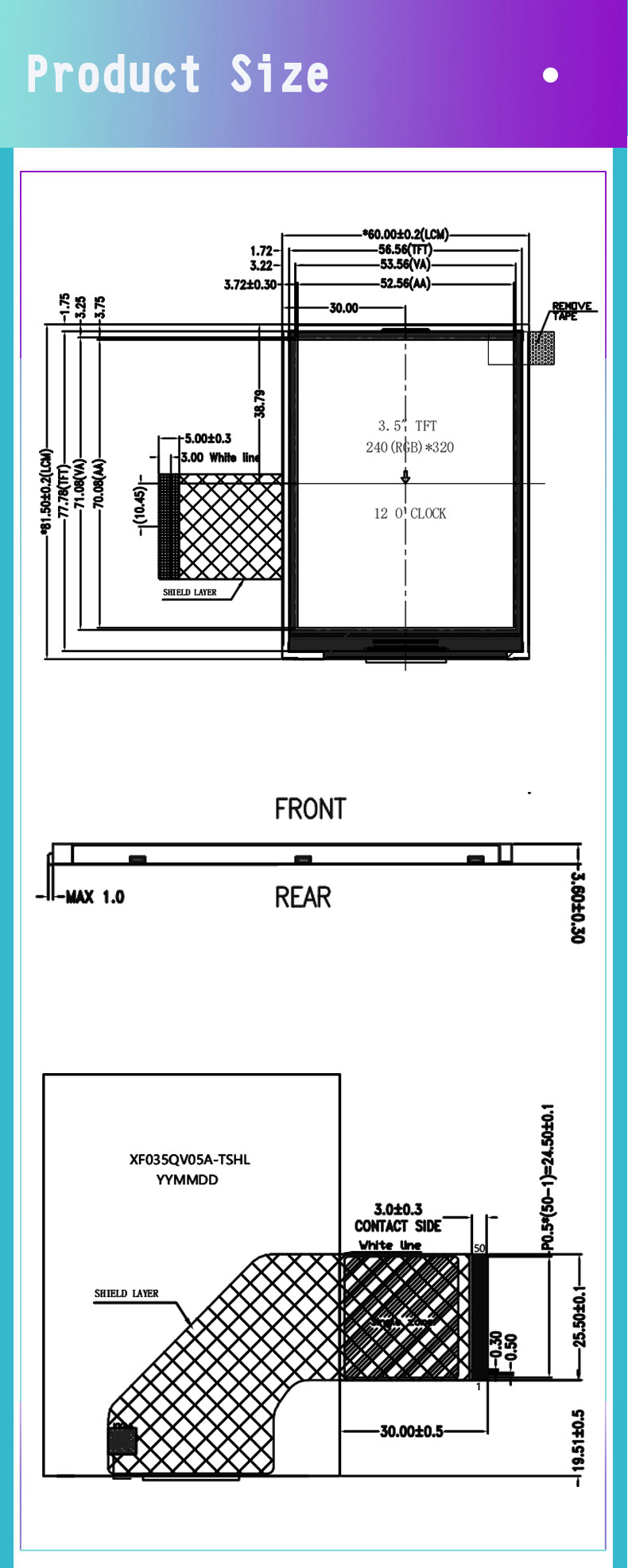

Product Size
FAQ
Q: Can we customize packaging and logo?
A: Can support customization of outer packaging and logo.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
