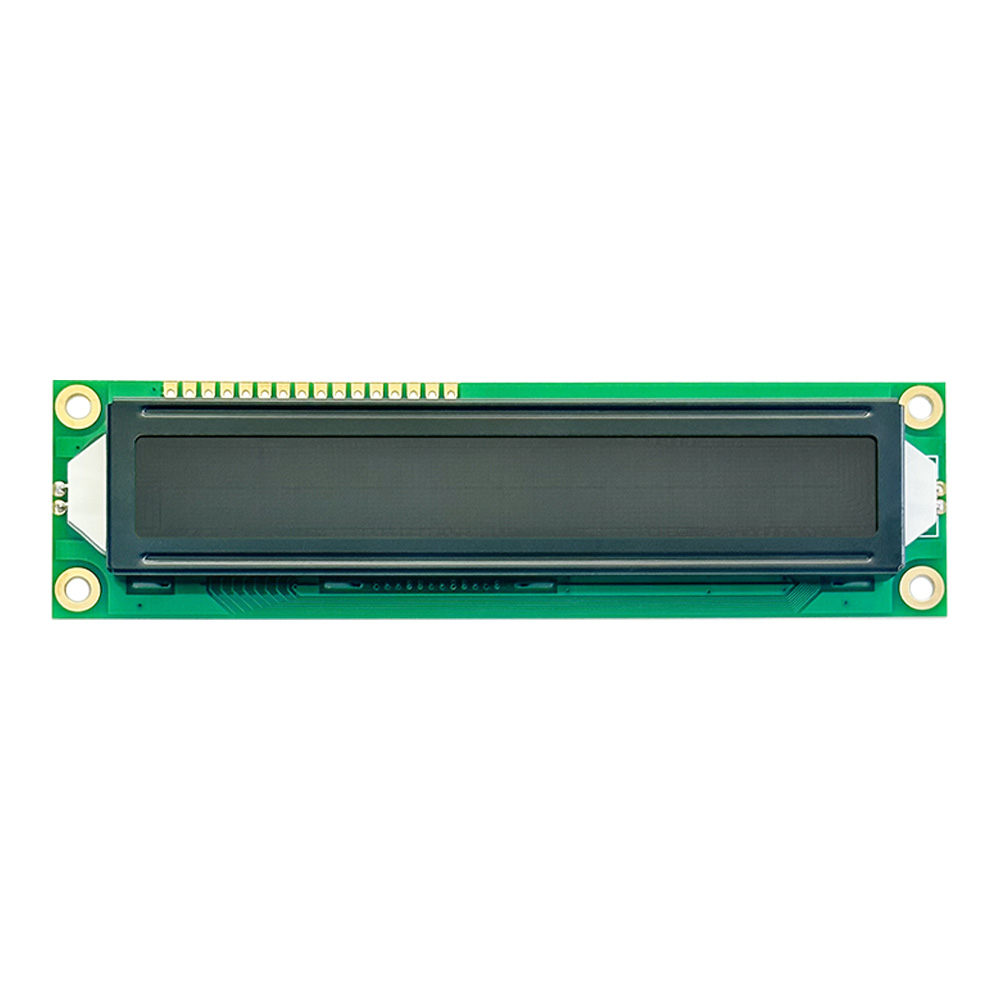

High Quality LCD Display Modules SJXD1601A-1 provide a compact 16×1 text window for labels, values, counters, warnings, and device prompts. The module uses a 122.0×33.0×13.0 mm outline, 99×13 mm viewing area, DFSTN negative LCD type, white LED backlight, and AIP31066/ST7066 driver IC. With 3.3V/5.0V drive support, multiple viewing angles, wide temperature performance, low power operation, and customization flexibility, it suits meters, handheld tools, access terminals, appliances, and embedded devices.
Parameters:
| Character Type | 16×1 |
| Model | SJXD1601A-1 |
| Model Size | 122.0×33.0×13.0 mm |
| VA Size | 99×13 mm |
|
Drive Voltage
|
5.0V or 3.3V
|
|
Drive IC
|
AIP31066/ST7066
|
|
Backlight
|
white LED backlight
|
|
LCD Type
|
DFSTN Negative
|
|
Interface
|
16 double interfaces
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
High Quality LCD Display Modules SJXD1601A-1 use a 16×1 character layout for short messages, status labels, numeric values, and simple symbols. The module has a 122.0×33.0×13.0 mm structure with a 99×13 mm viewing area, giving compact devices a clear single-line display window. It supports 5.0V or 3.3V drive voltage, AIP31066/ST7066 driver IC, DFSTN negative LCD type, white LED backlight, 16 double interfaces, and optional 6:00, 9:00, or 12:00 viewing angles.
Design Standards
High Quality LCD Display Modules are developed for sharp contrast, reliable signal response, and stable operation in compact equipment interfaces. The DFSTN negative display mode presents bright characters on a darker background, helping the screen stand out in product panels. Its wide-temperature structure supports operation from -20°C to +70°C and storage from -30°C to +80°C. Low power consumption, anti-interference performance, multiple color combinations, technical documents, source code support, 1-3 day sample service, and customization options support different OEM design needs.
Applications
High Quality LCD Display Modules are suitable for products that only need one clear line of information instead of a larger multi-line display. They can show mode names, short warnings, counters, setting values, product states, and compact user prompts. Typical uses include small meters, handheld instruments, access terminals, power equipment, home appliances, medical electronics, communication devices, industrial controllers, embedded development boards, and other compact devices that need a dependable character display with strong readability.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: Are they all genuine products?
A: Yes, we are a factory store with self operated and self sold products, and the quality is guaranteed.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
