1602 16x2 Character LCD Display Module-SJXD1602A-D (STN Positive)

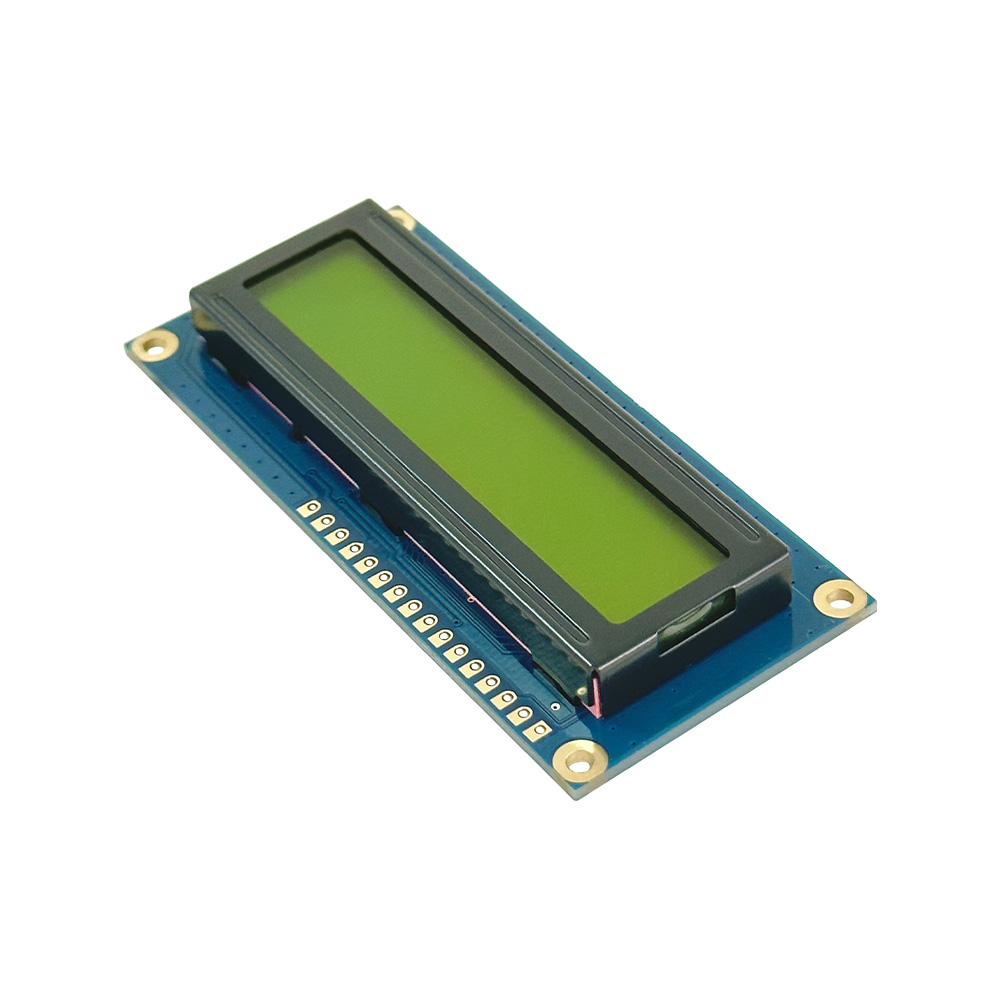

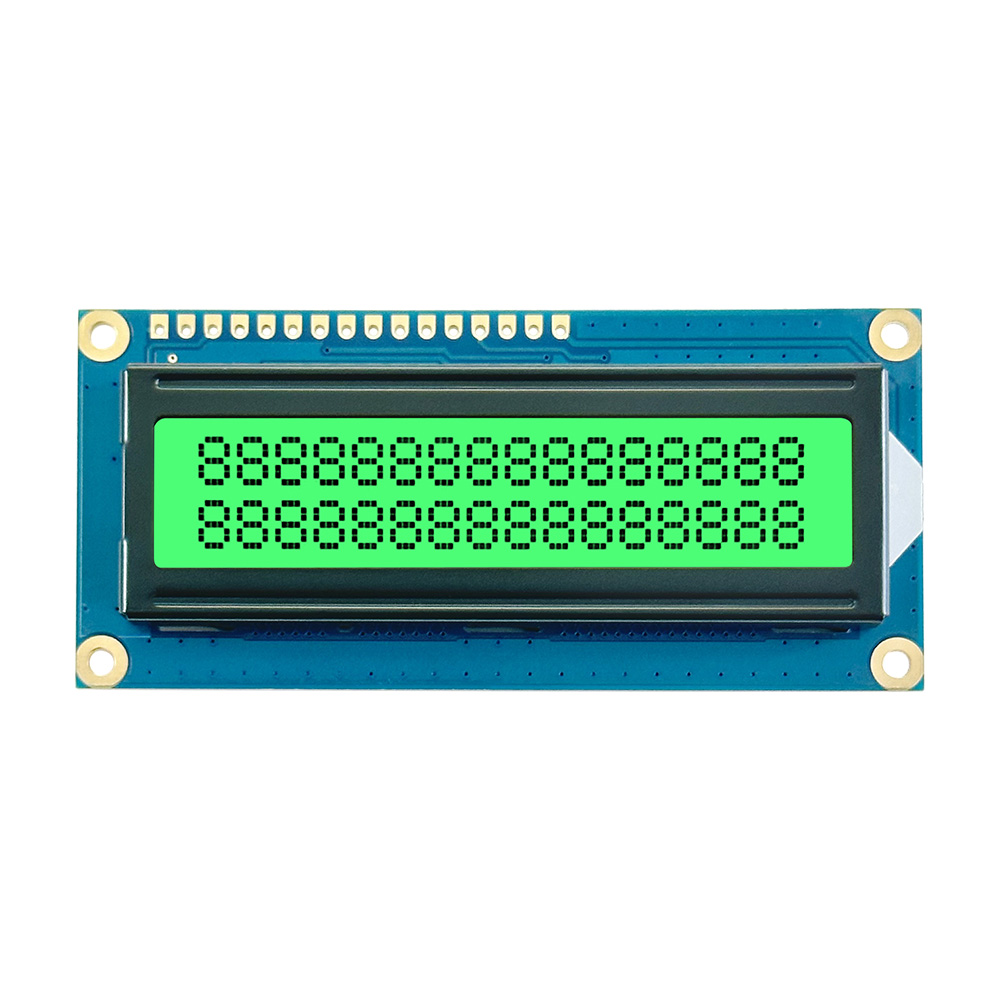

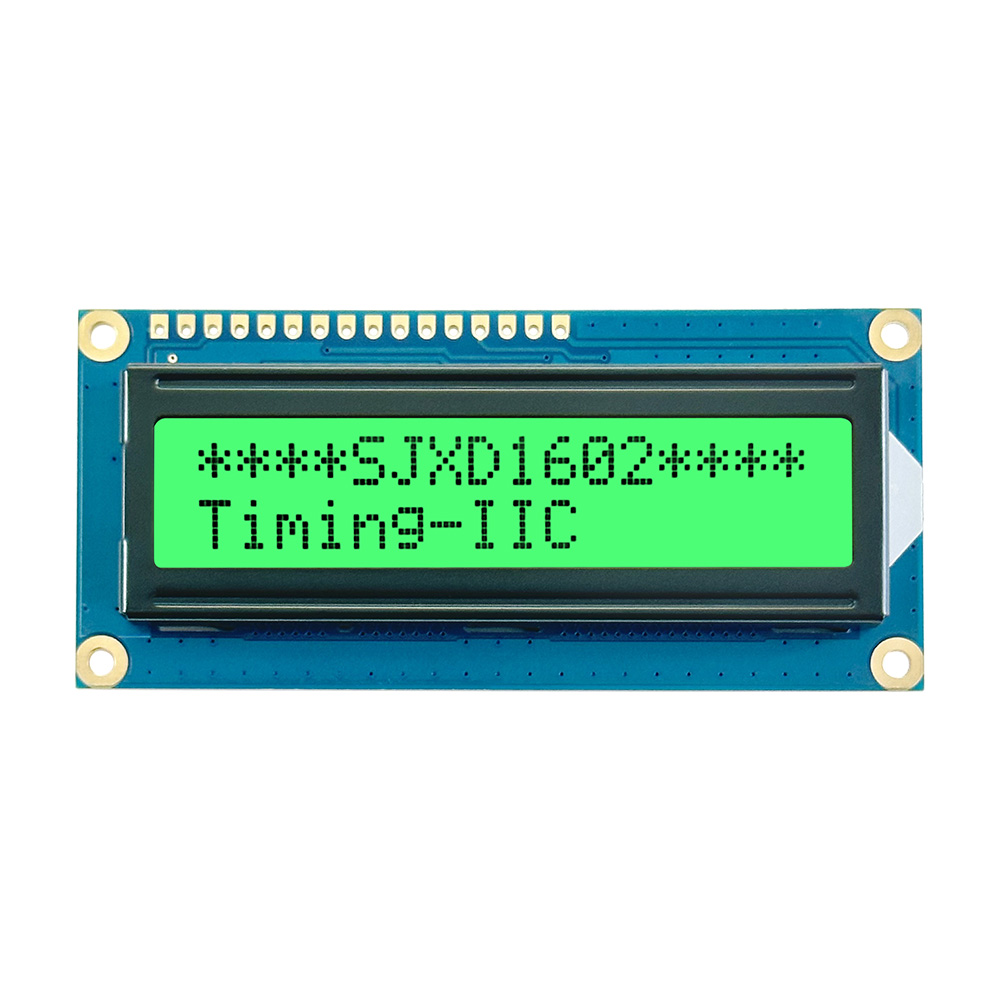

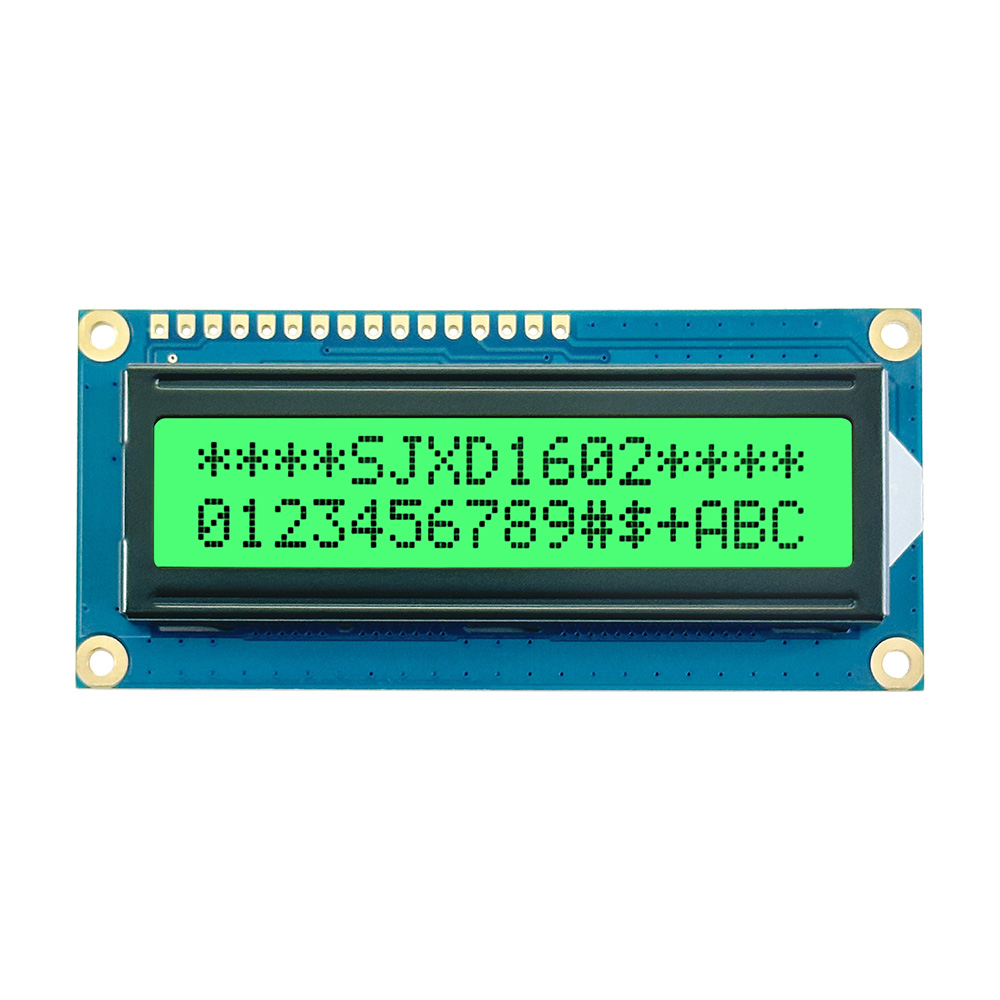

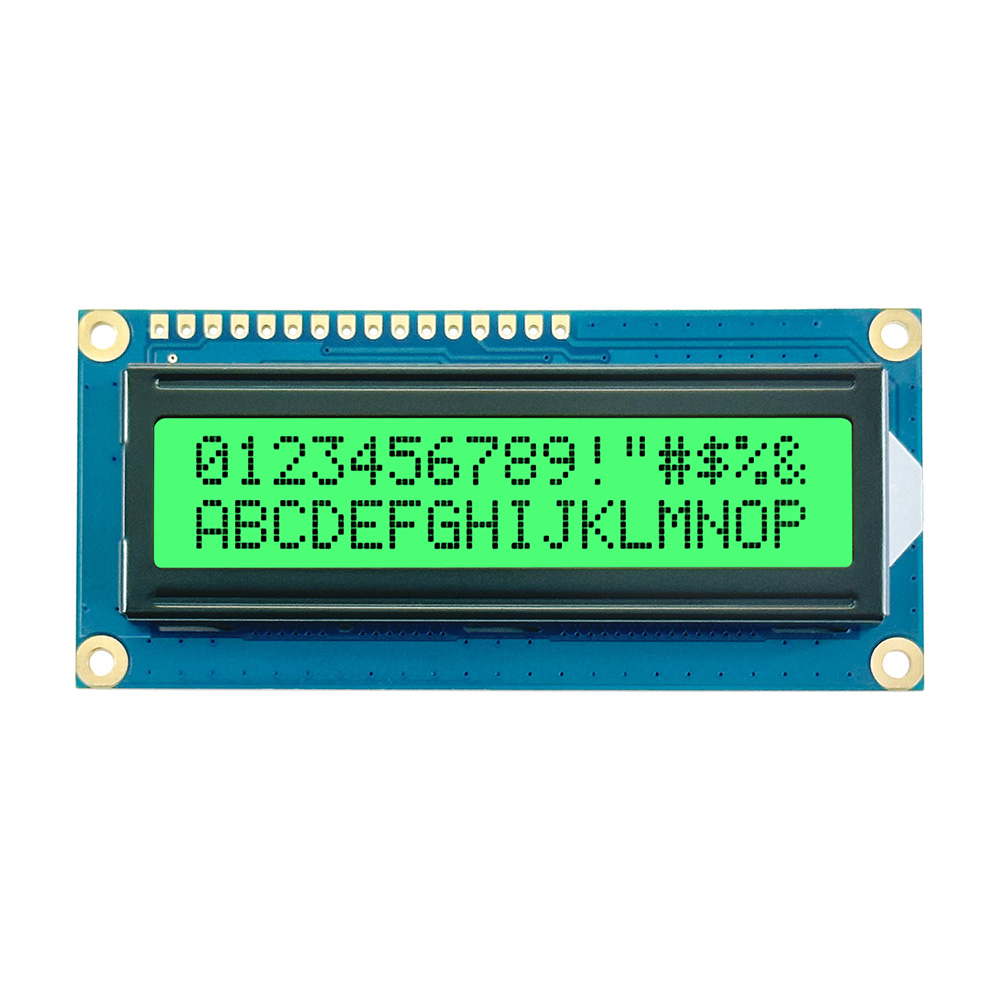

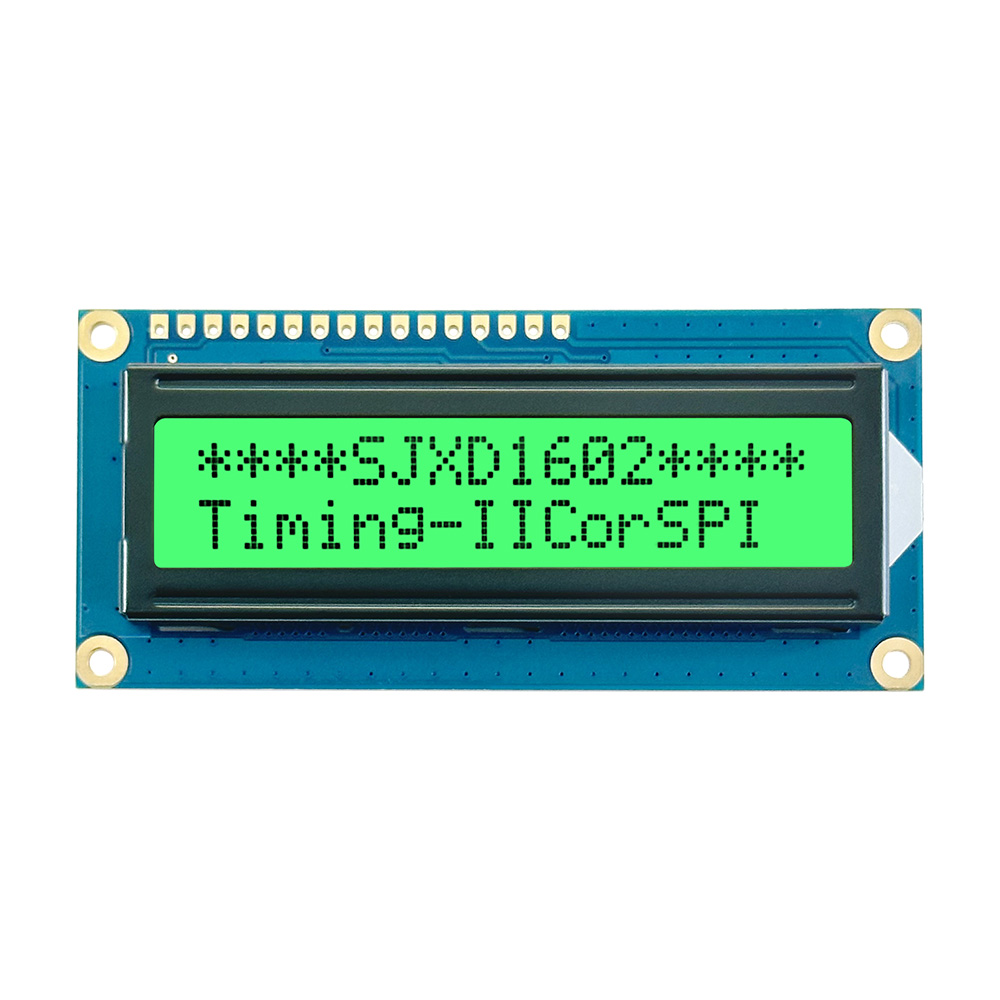

1602 16x2 Character LCD Display Module provides a small 32-character interface for embedded products that need readable text feedback. The SJXD1602A-D version includes an 80.0x36.0x12.0mm outline, 64.5x14.0mm viewing area, 5V/3.3V drive voltage, AIP31068L drive IC, emerald LED backlight, STN positive LCD mode, and SPI or IIC interface choices. It supports menus, readings, alarms, counters, timers, and status messages for meters, appliances, medical equipment, control panels, education boards, and compact devices.

Parameters:

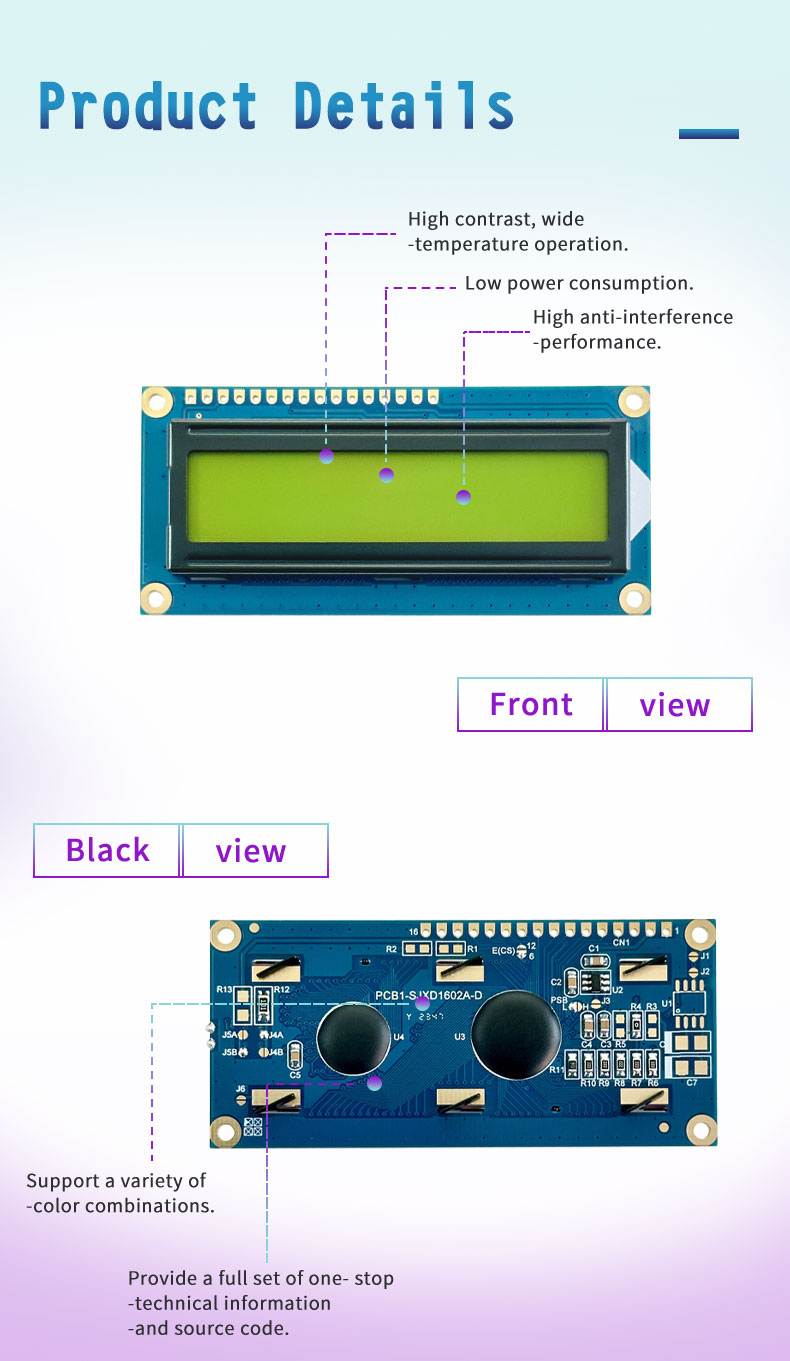

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

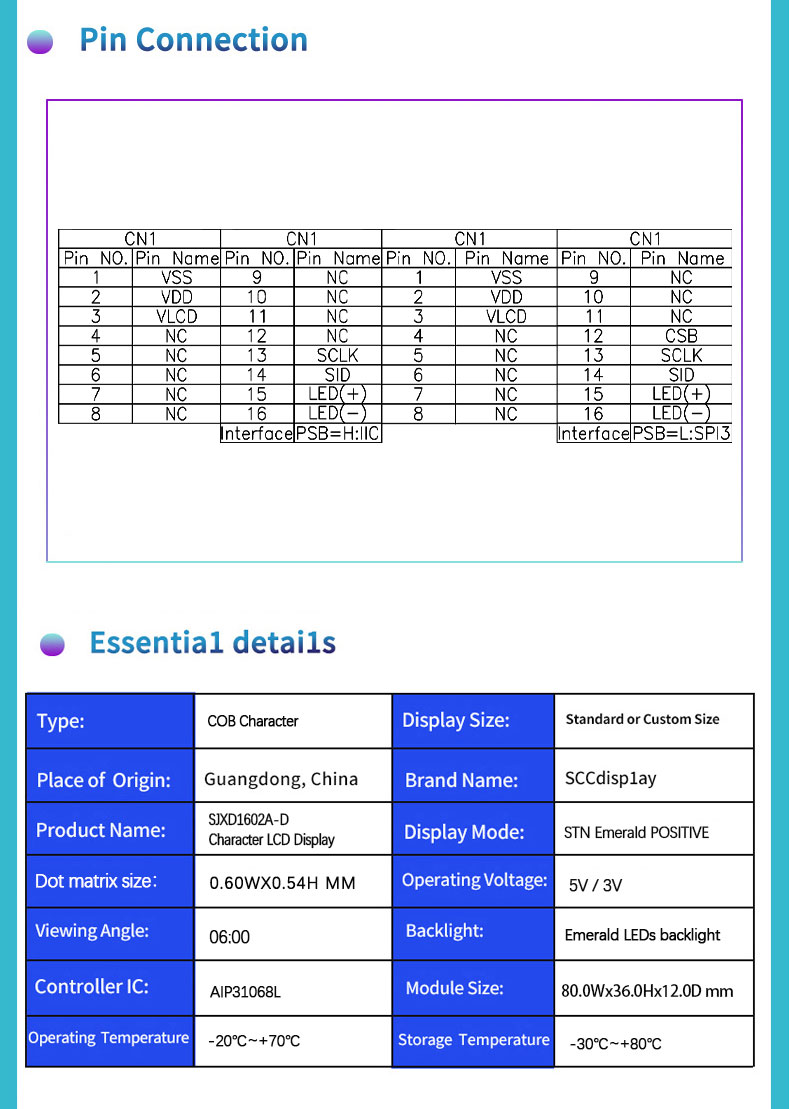

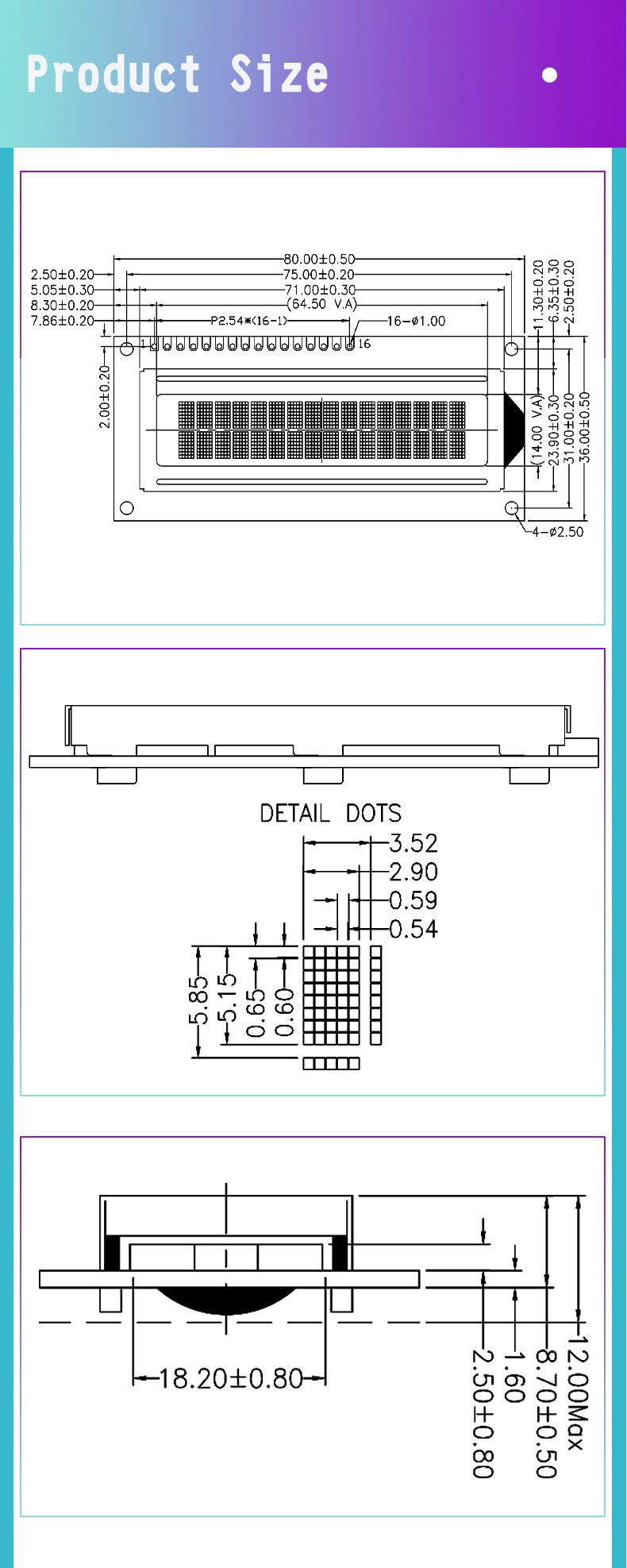

1602 16x2 Character LCD Display Module is a two-row character screen for products that need clear letters, numbers, symbols, and short operating data. The SJXD1602A-D model uses an 80.0x36.0x12.0mm outline size and a 64.5x14.0mm viewing area, allowing up to 32 characters at once. It supports 5.0V/3.3V drive voltage, AIP31068L drive IC, emerald LED backlight, STN positive LCD type, 06:00 viewing angle, and 16 single interfaces with SPI or IIC interface options.

Design Standards

1602 16x2 Character LCD Display Module is designed for readable two-line output, efficient power use, and flexible circuit integration. Its STN positive display structure provides clear character contrast, while the emerald LED backlight gives equipment panels a distinct visual effect. The module supports both SPI and IIC interface options, helping engineers match different PCB layouts and controller resources. It also provides high contrast, wide-temperature operation, low power consumption, anti-interference performance, complete technical data, source-code support, 1-3 day sample supply, and customization for display content, backlight color, shell design, packaging, and other parameters.

Applications

1602 16x2 Character LCD Display Module is suitable for electronic products that need practical two-row information display in a compact space. It can show meter readings, large font numbers, setting menus, alarm codes, timer data, counter results, voltage values, and device status. Typical applications include meters, equipment control panels, information display systems, industrial controllers, home appliances, medical devices, consumer electronics, laboratory instruments, vending equipment, educational kits, DIY electronics, and embedded control boards. Its 16x2 capacity and optional SPI or IIC connection make it useful for both prototype development and production equipment.

Q: Can we customize the outer packaging?
A: Packaging and icons can be modified as needed.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
