1602 16x2 LCD Display Module-SJXD1602A-D (STN Positive)

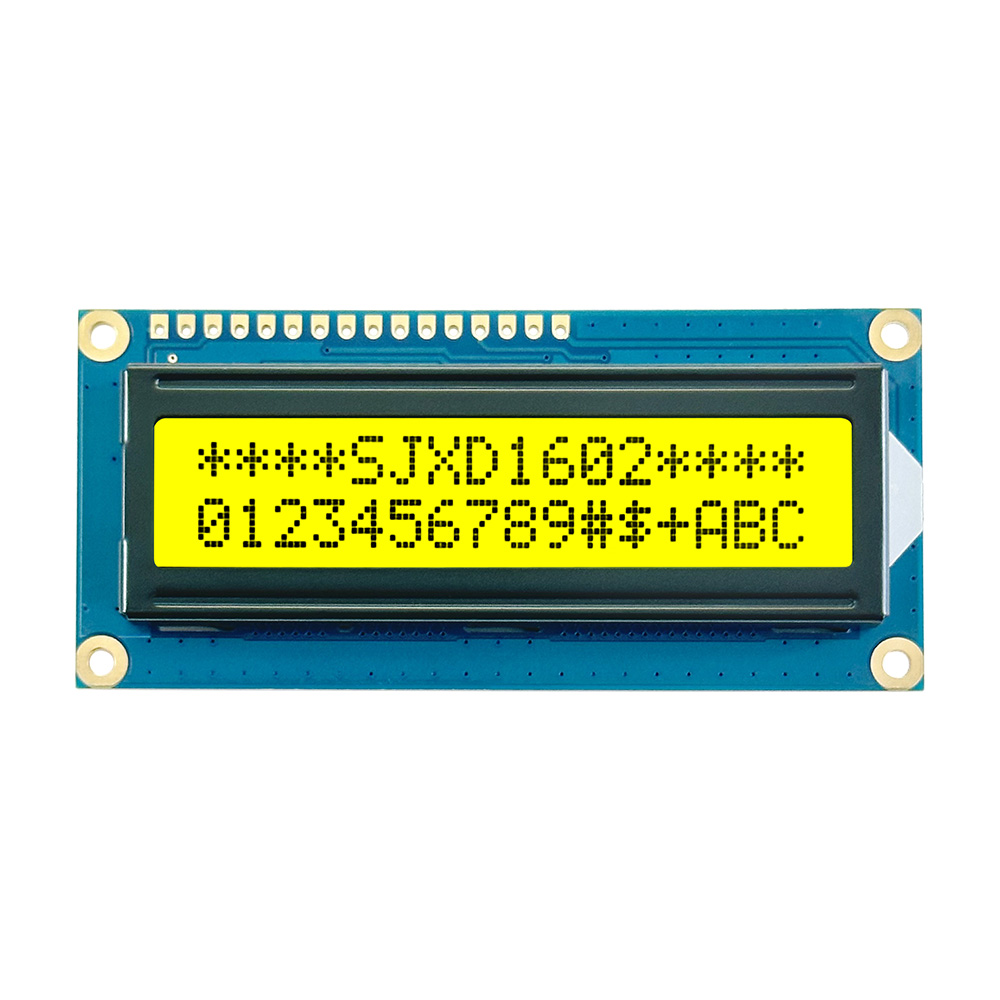

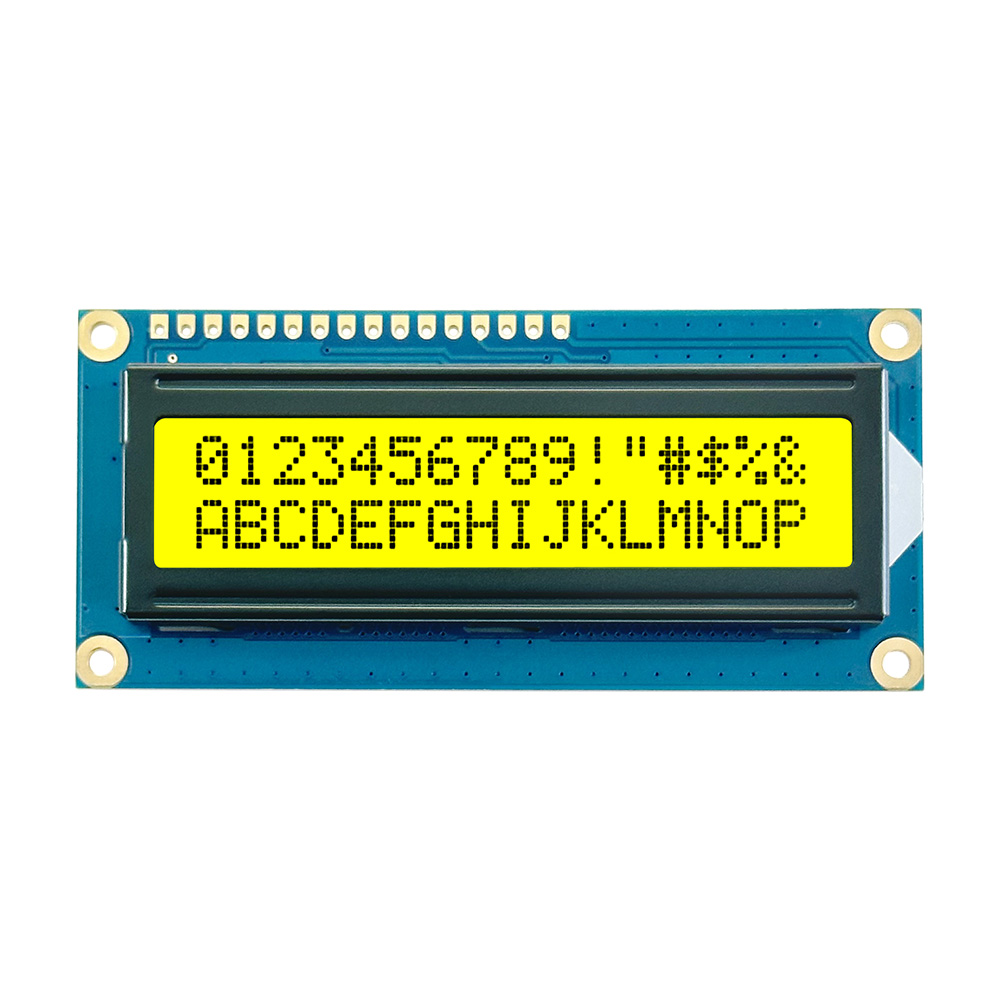

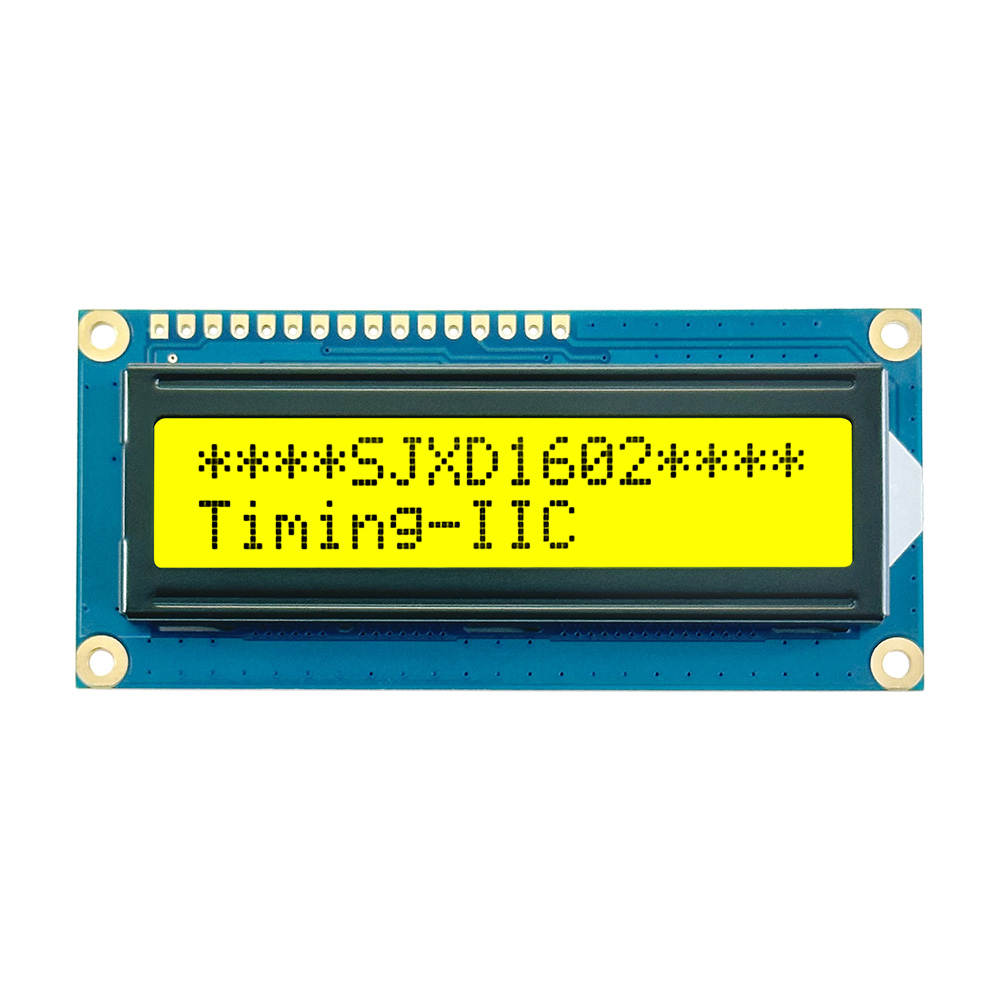

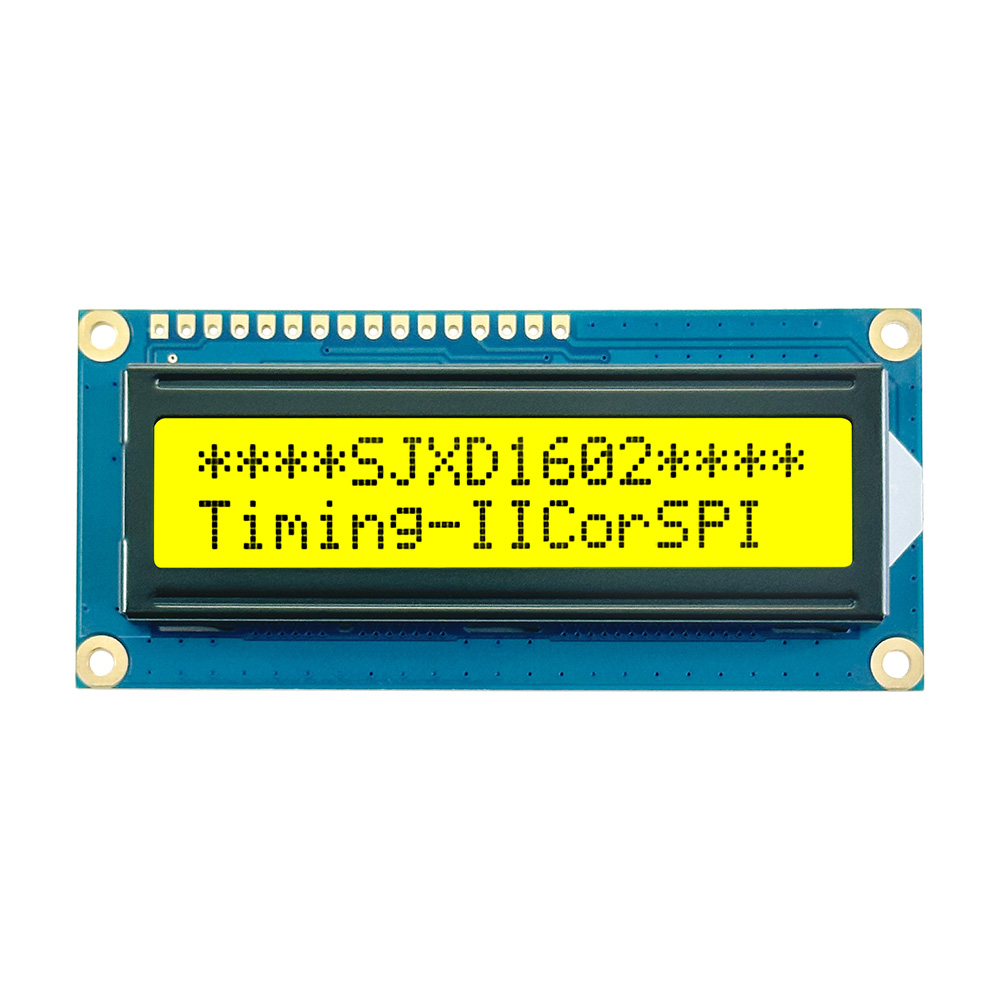

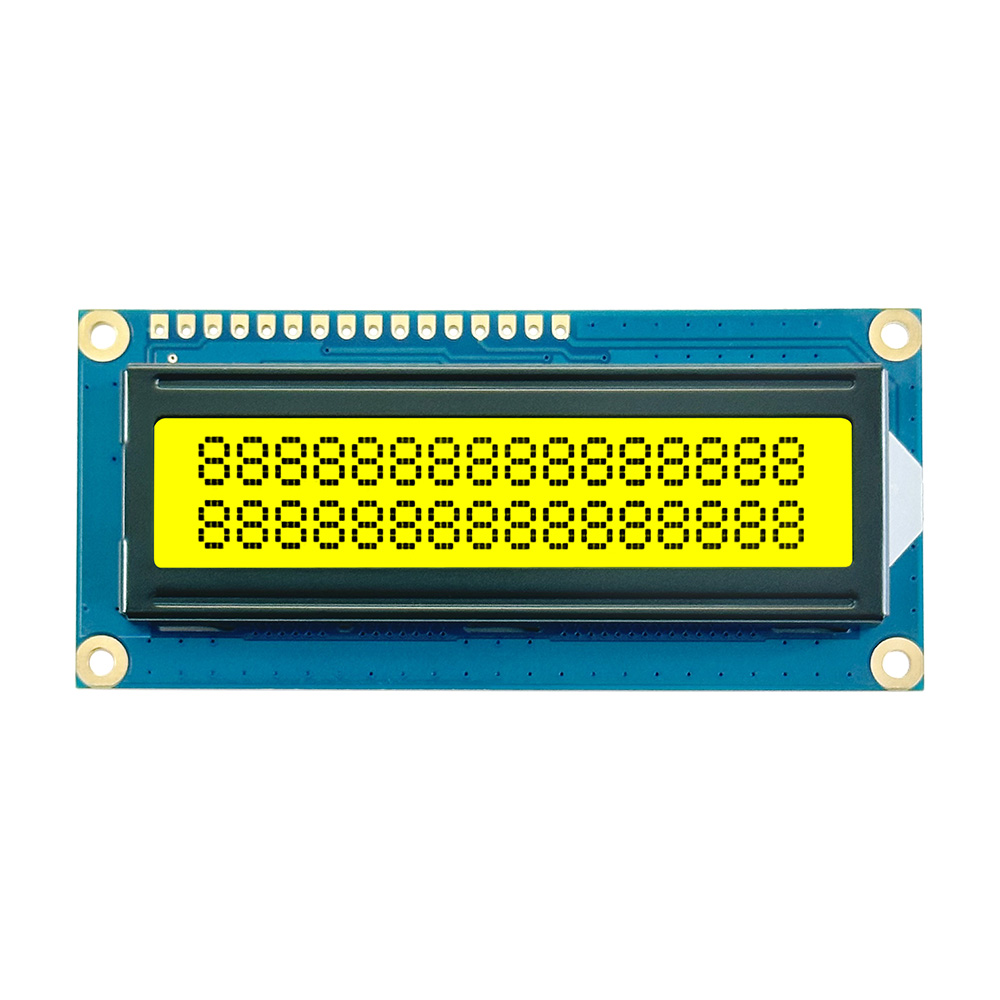

1602 16x2 LCD Display Module is a compact two-line screen for displaying text, numbers, and symbols in embedded products. The SJXD1602A-D model provides an 80.0x36.0x12.0mm outline, 64.5x14.0mm viewing area, 5V/3.3V drive support, AIP31068L drive IC, emerald LED backlight, STN positive LCD type, and SPI or IIC interface options. It can show voltage readings, menus, alarms, timers, counters, and device states in meters, appliances, medical devices, lab instruments, access systems, and control panels.

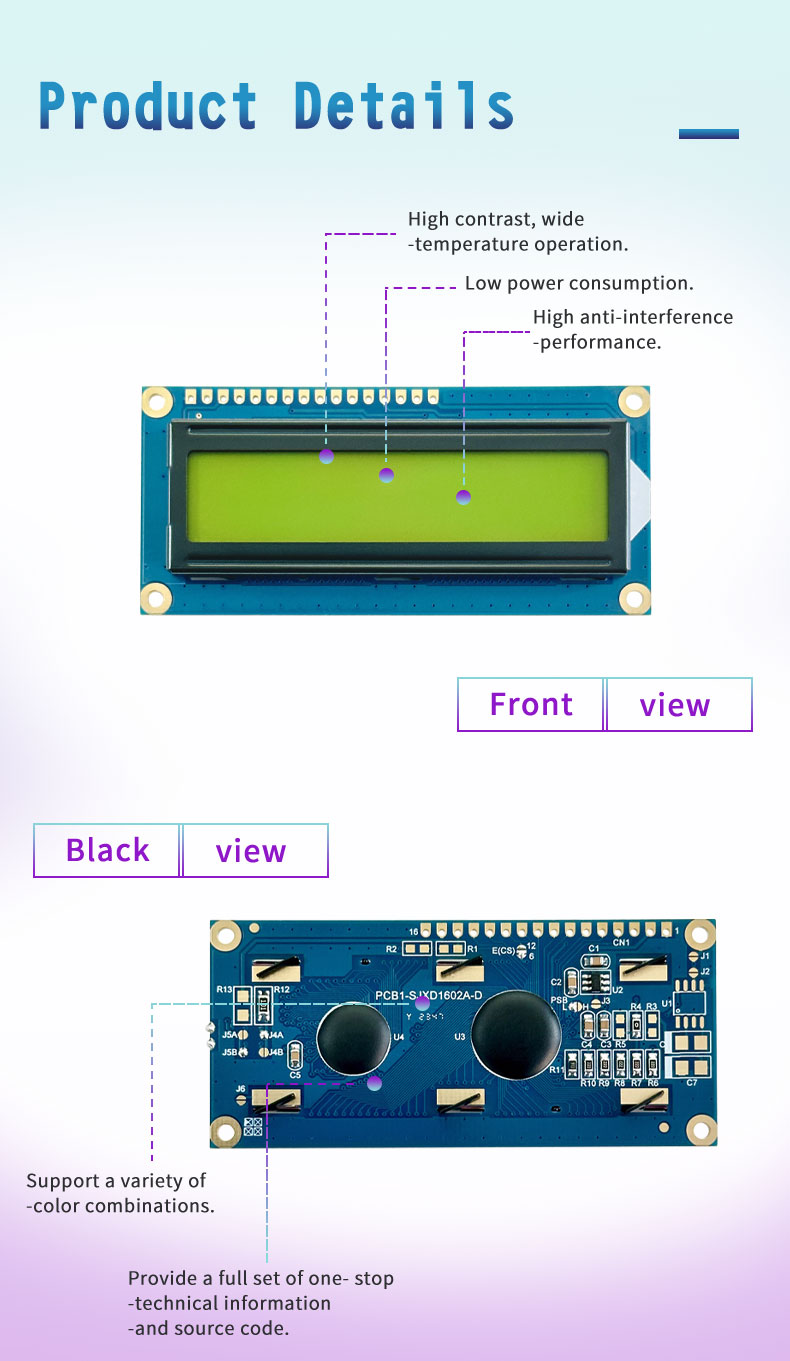

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

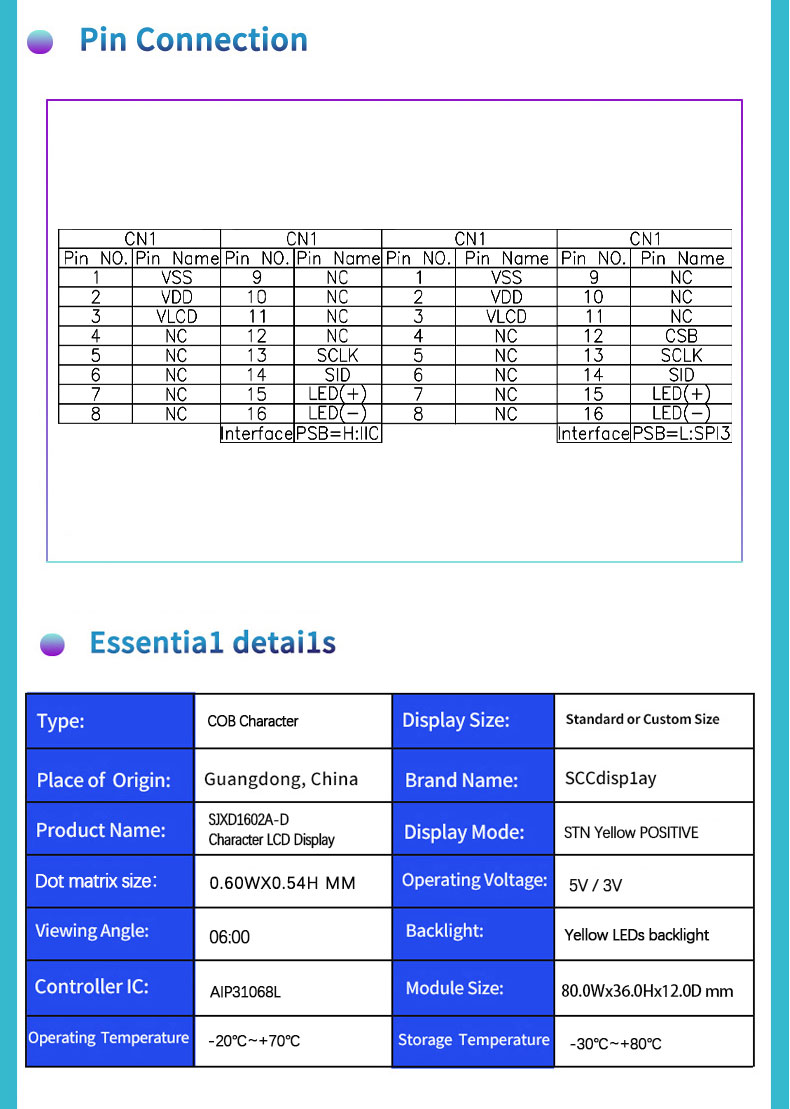

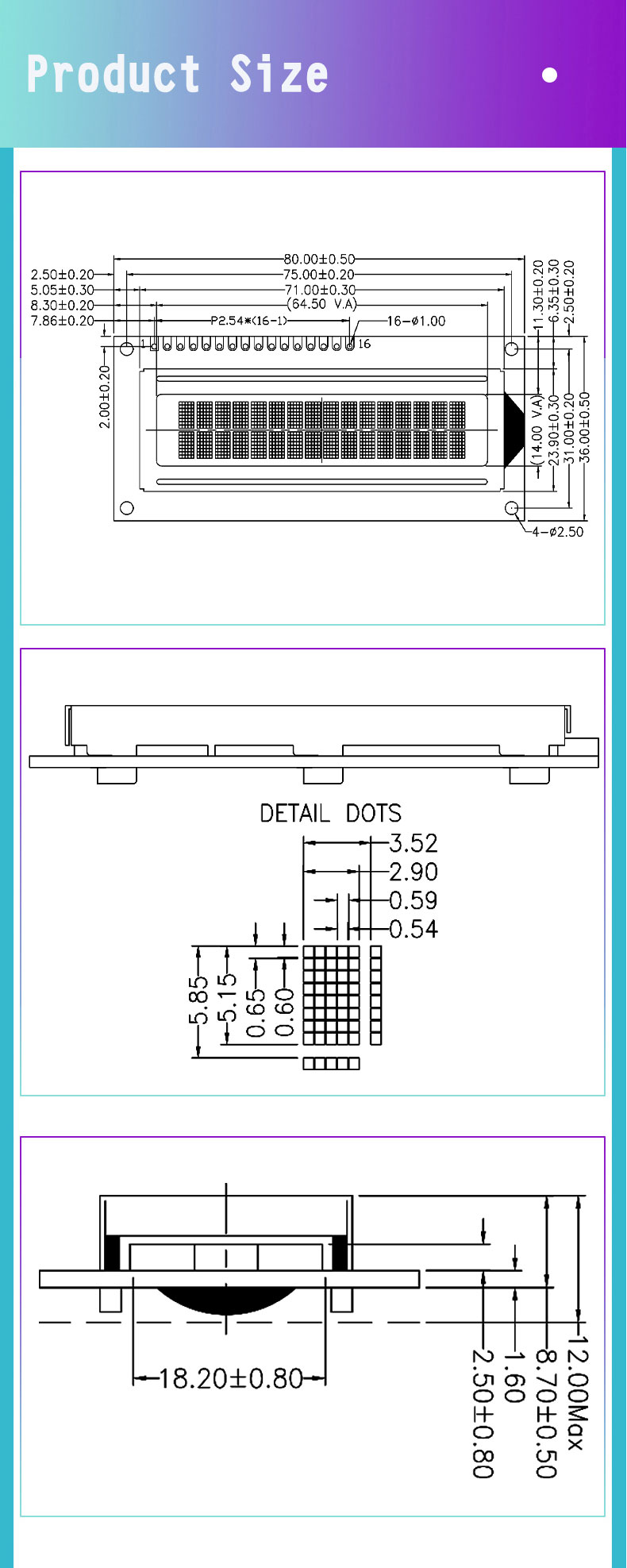

1602 16x2 LCD Display Module is a two-line character display designed for compact electronic products that need clear text, numbers, and symbol output. The SJXD1602A-D model uses an 80.0x36.0x12.0mm outline size and a 64.5x14.0mm viewing area, giving space for 32 characters. It supports 5.0V/3.3V drive voltage, AIP31068L drive IC, emerald LED backlight, STN positive LCD type, 06:00 viewing angle, and SPI or IIC interface options for flexible circuit integration.

Design Standards

1602 16x2 LCD Display Module is designed for readable character output, stable signal response, and efficient use in embedded devices. The STN positive display mode provides a clean viewing effect for values, menus, and status information, while the emerald LED backlight improves visibility in equipment panels and control terminals. SPI or IIC interface options allow engineers to select a connection method based on MCU resources and PCB layout. The module also supports low power operation, anti-interference performance, wide-temperature reliability, technical documentation, sample supply, and customization for display content, backlight color, structure, and application parameters.

Applications

1602 16x2 LCD Display Module is suitable for products that need a compact but practical two-row information display. It can show voltage readings, temperature data, menu settings, alarm codes, timer values, counters, operating modes, and user prompts. Typical applications include industrial meters, equipment control panels, home appliances, medical devices, consumer electronics, laboratory instruments, vending machines, access control units, educational kits, DIY electronics, and embedded controllers. Its 16x2 layout and optional SPI or IIC connection make it useful for both prototypes and production equipment.

Q: Is there a discount for bulk purchases?
A: Determine based on bulk orders.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
