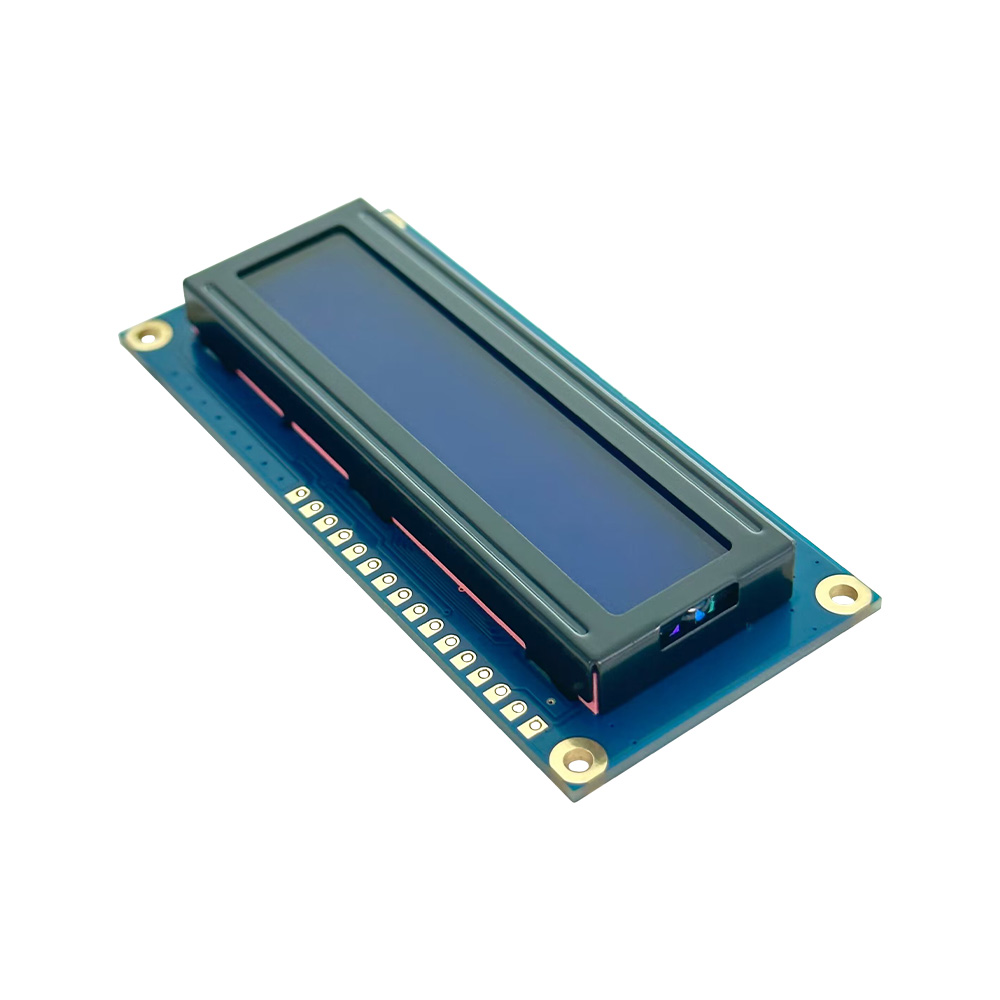

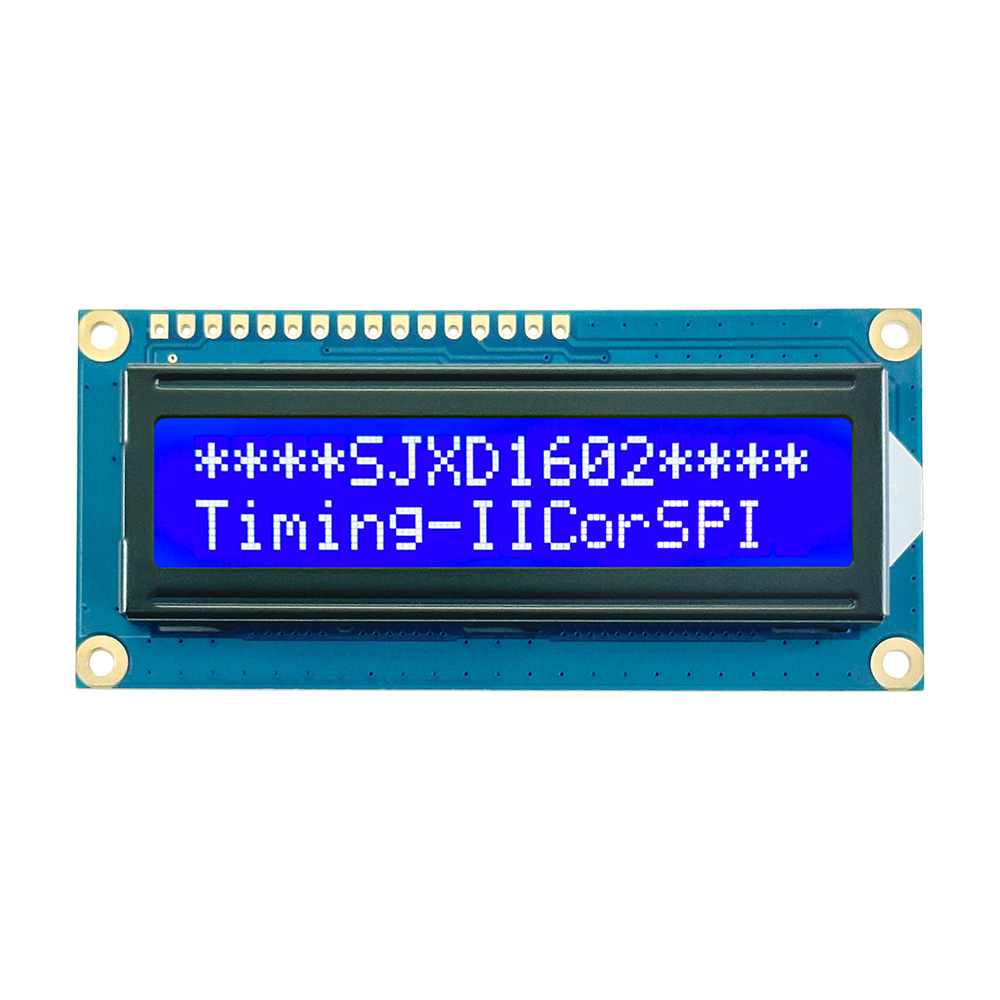

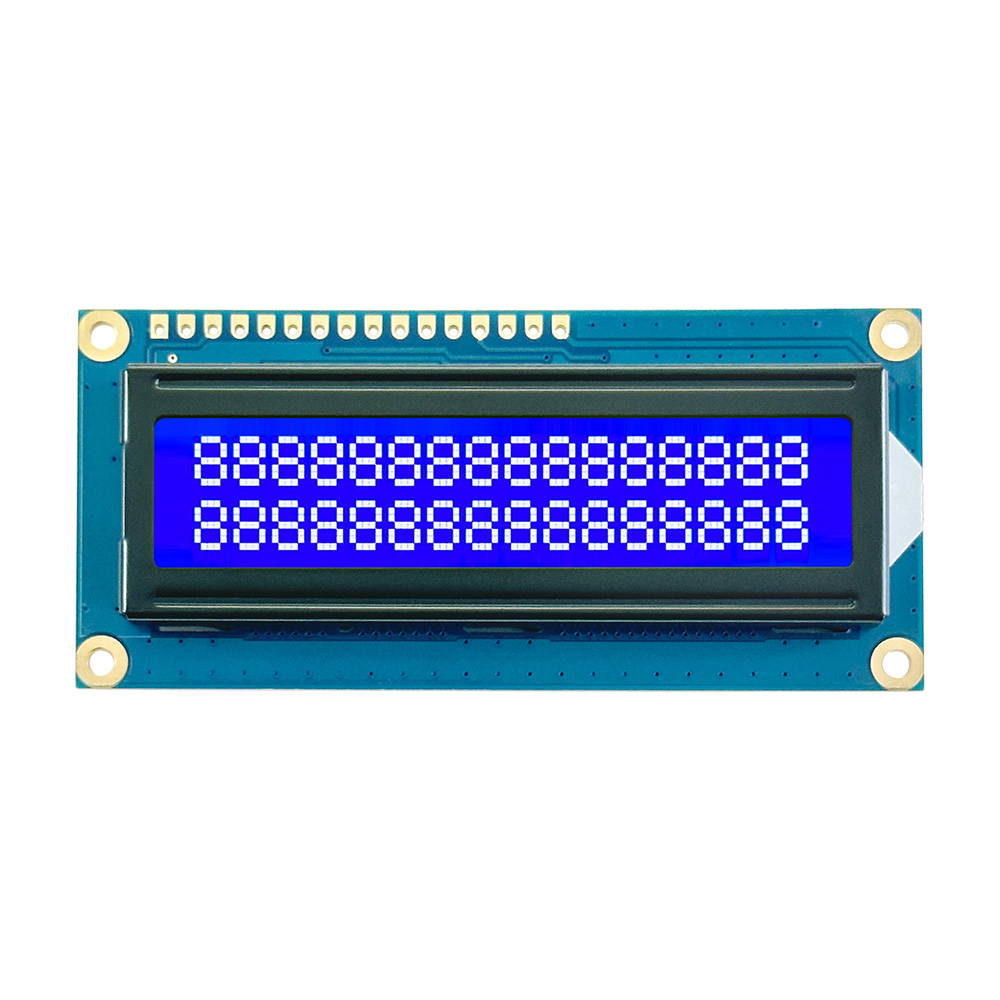

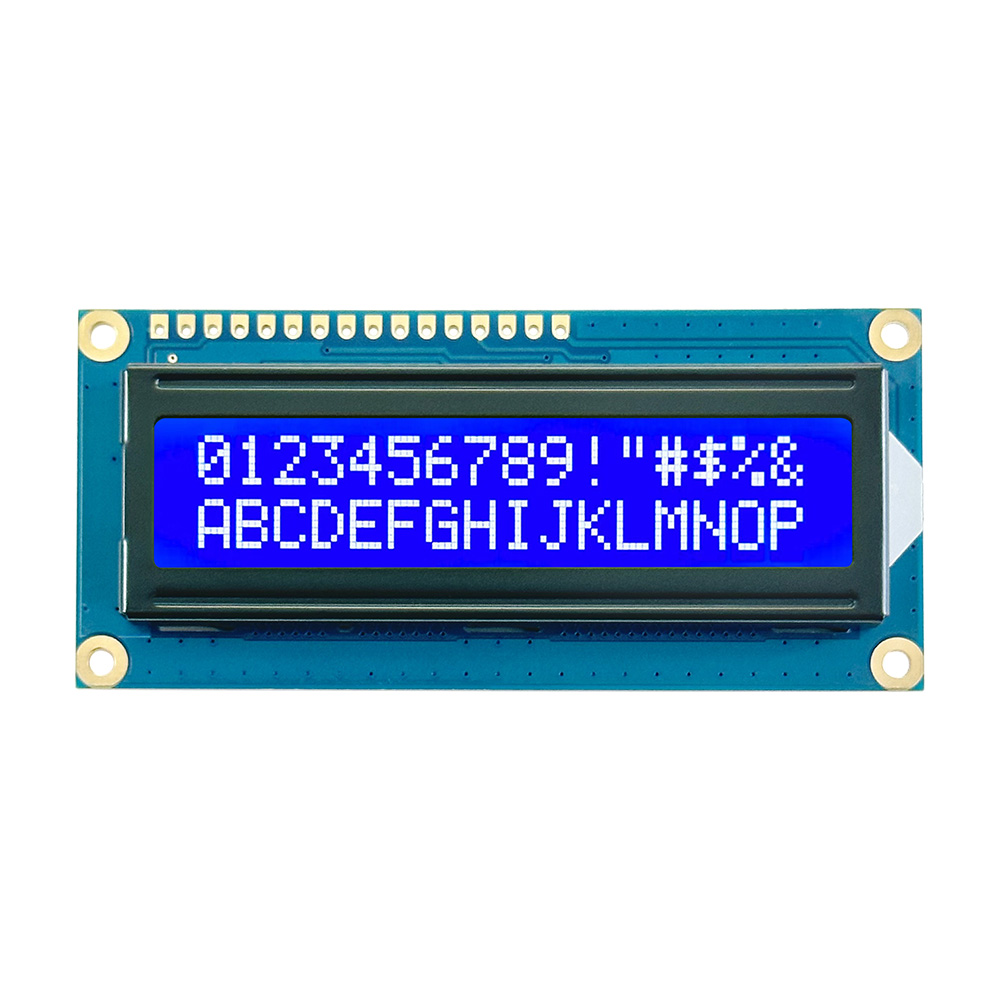

1602 16 2 LCD Display Module Pdf-SJXD1602A-D (STN Negative)

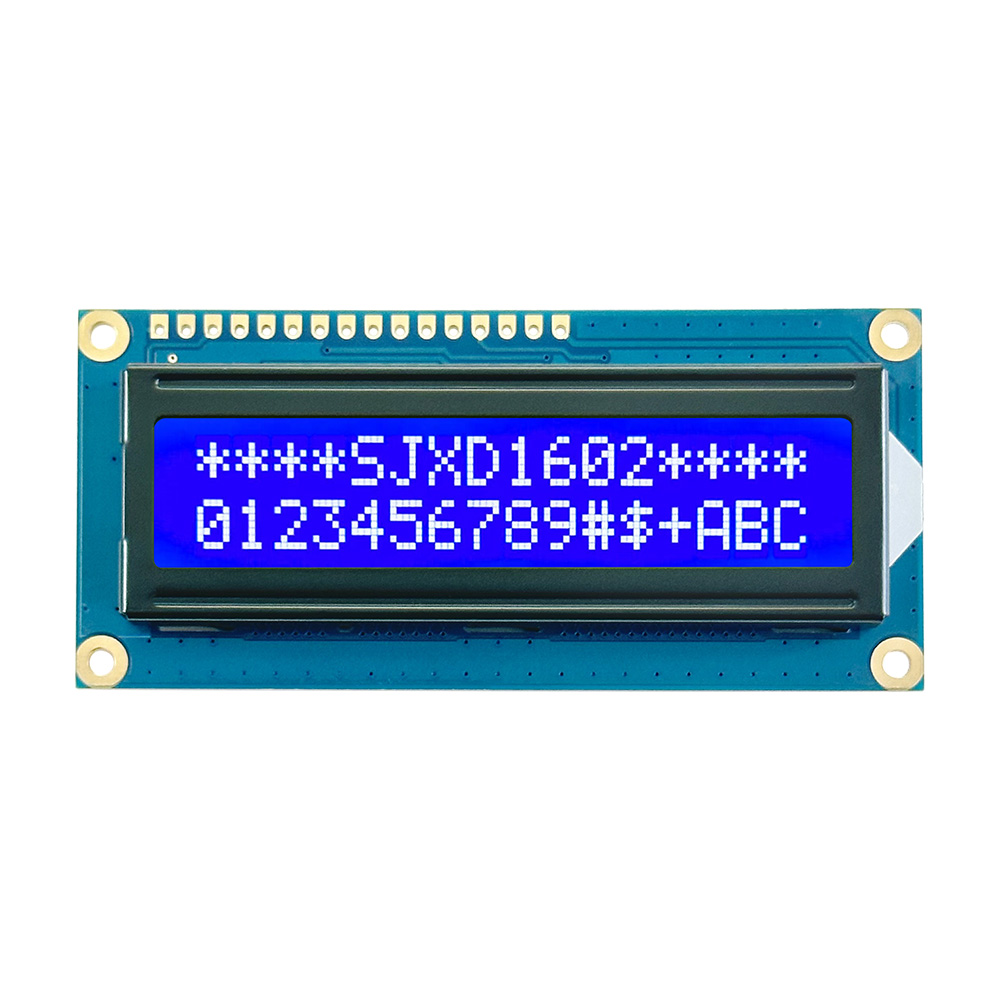

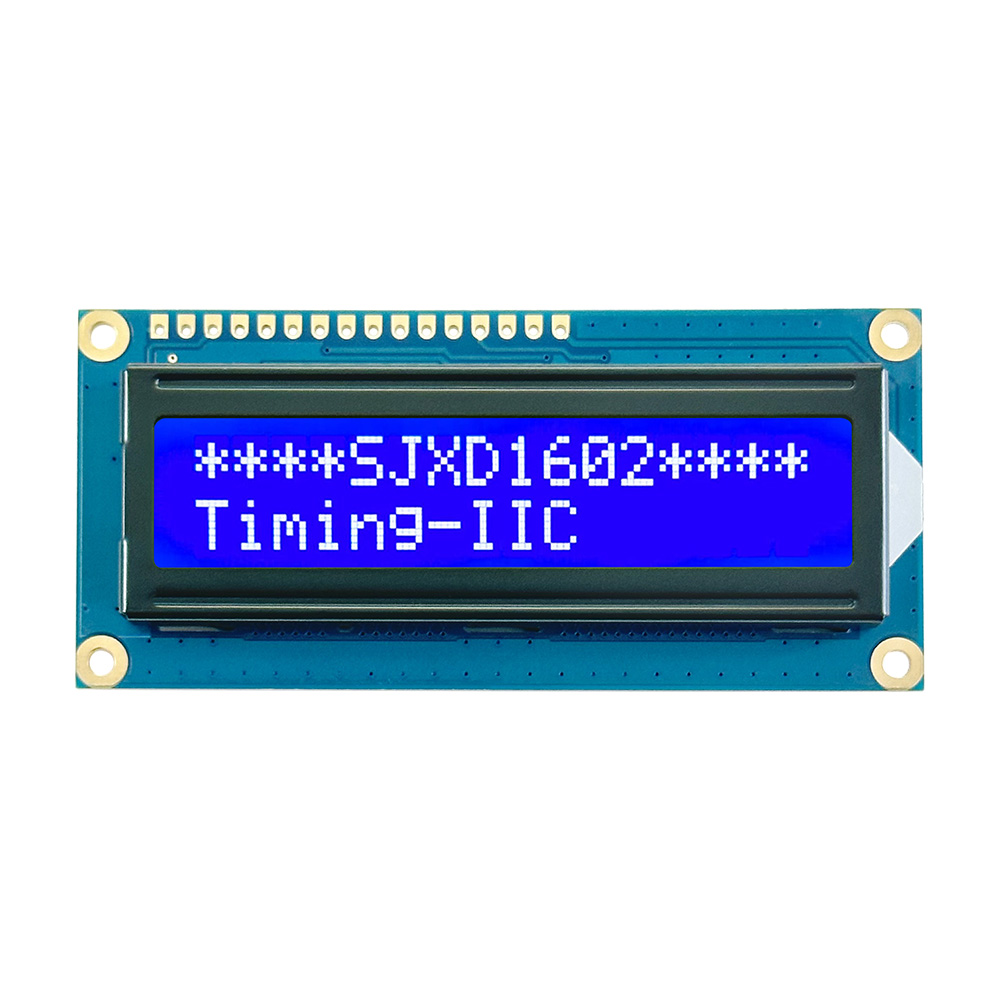

1602 16 2 LCD Display Module Pdf refers to the SJXD1602A-D 16x2 character LCD module for two-line text, value, and symbol display. It features an 80.0x36.0x12.0mm outline, 64.5x14.0mm viewing area, 5V/3.3V drive support, AIP31068L drive IC, white LED backlight, STN negative LCD type, 06:00 viewing angle, and SPI or IIC interface options. It can show readings, menus, alarms, timers, counters, and device status in meters, appliances, medical devices, instruments, vending systems, and embedded controllers.

Parameters:

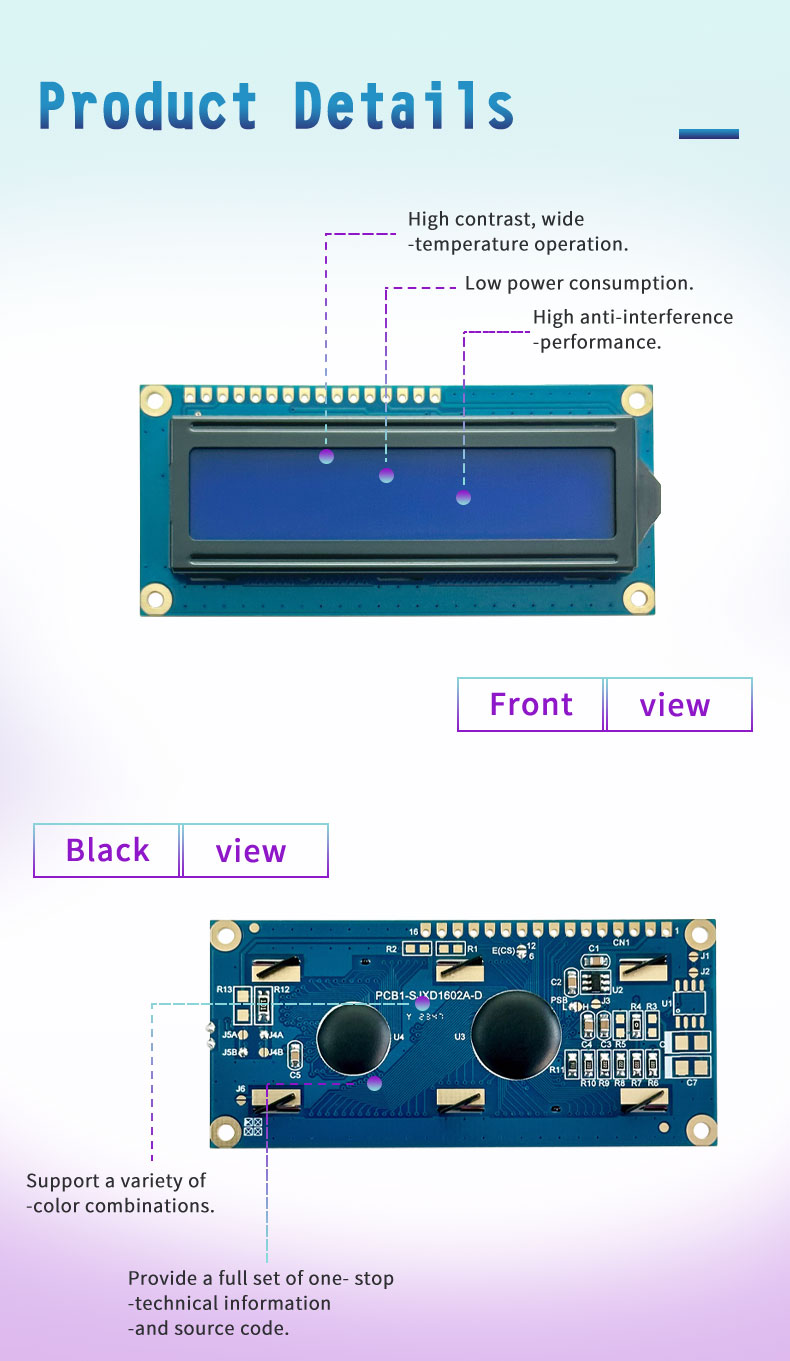

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

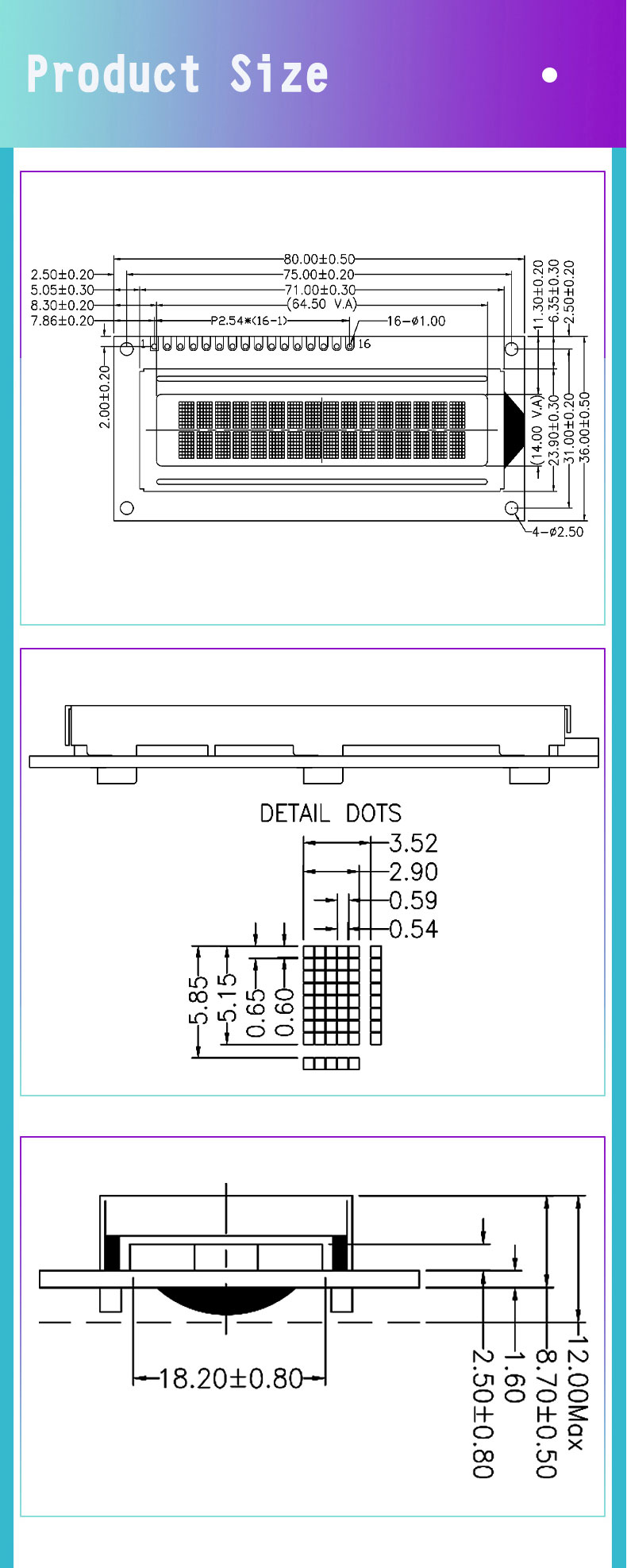

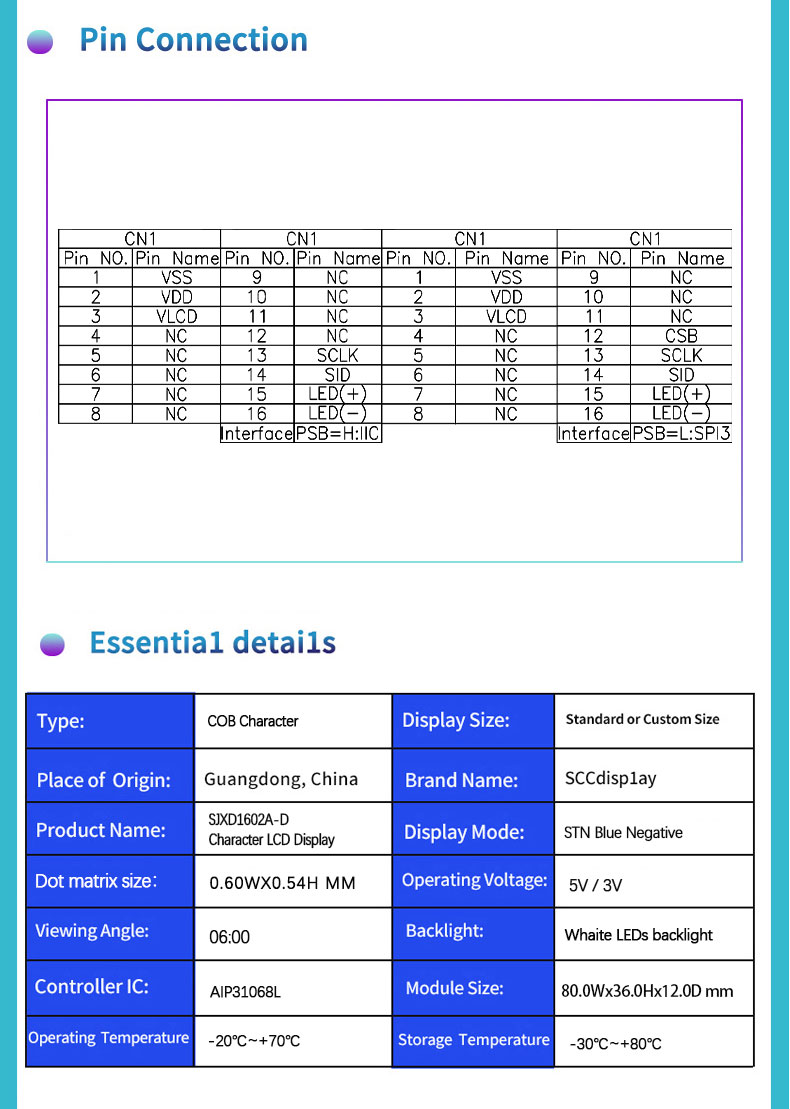

1602 16 2 LCD Display Module Pdf is a 16x2 character LCD module for products that need two-line text, number, and symbol output. The SJXD1602A-D model features an 80.0x36.0x12.0mm outline size and a 64.5x14.0mm viewing area. It supports 5.0V/3.3V drive voltage, AIP31068L drive IC, white LED backlight, STN negative LCD type, 06:00 viewing angle, and 16 single interfaces with SPI or IIC options. The module operates from -20°C to +70°C and stores from -30°C to +80°C.

Design Standards

1602 16 2 LCD Display Module Pdf is designed for engineers who need a practical datasheet reference for compact 16x2 display integration. Its STN negative structure provides strong contrast for values, codes, menus, and short operating messages, while the white LED backlight improves readability in equipment panels. The SPI or IIC interface options give designers more flexibility for different PCB layouts and control systems. The module also supports low power consumption, high anti-interference performance, wide-temperature operation, technical documentation, source-code support, 1-3 day samples, and customization for backlight color, display content, shell design, and application parameters.

Applications

1602 16 2 LCD Display Module Pdf is suitable for electronic products that require clear two-row data display and stable long-term operation. It can show meter readings, voltage data, timer values, alarm codes, setting menus, counter results, system states, and user prompts. Typical applications include meters, equipment control panels, information display systems, industrial controllers, home appliances, medical devices, consumer electronics, laboratory instruments, vending equipment, educational kits, DIY electronics, and embedded control boards. Its 16x2 capacity and flexible interface choices make it practical for both prototype evaluation and batch production.

Q: How long does it usually take to provide samples？
A: It depends on the requirements and can generally be provided within 1-3 days

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
