16 2 LCD Display Module -SJXD1602A-D (DFSTN Negative)

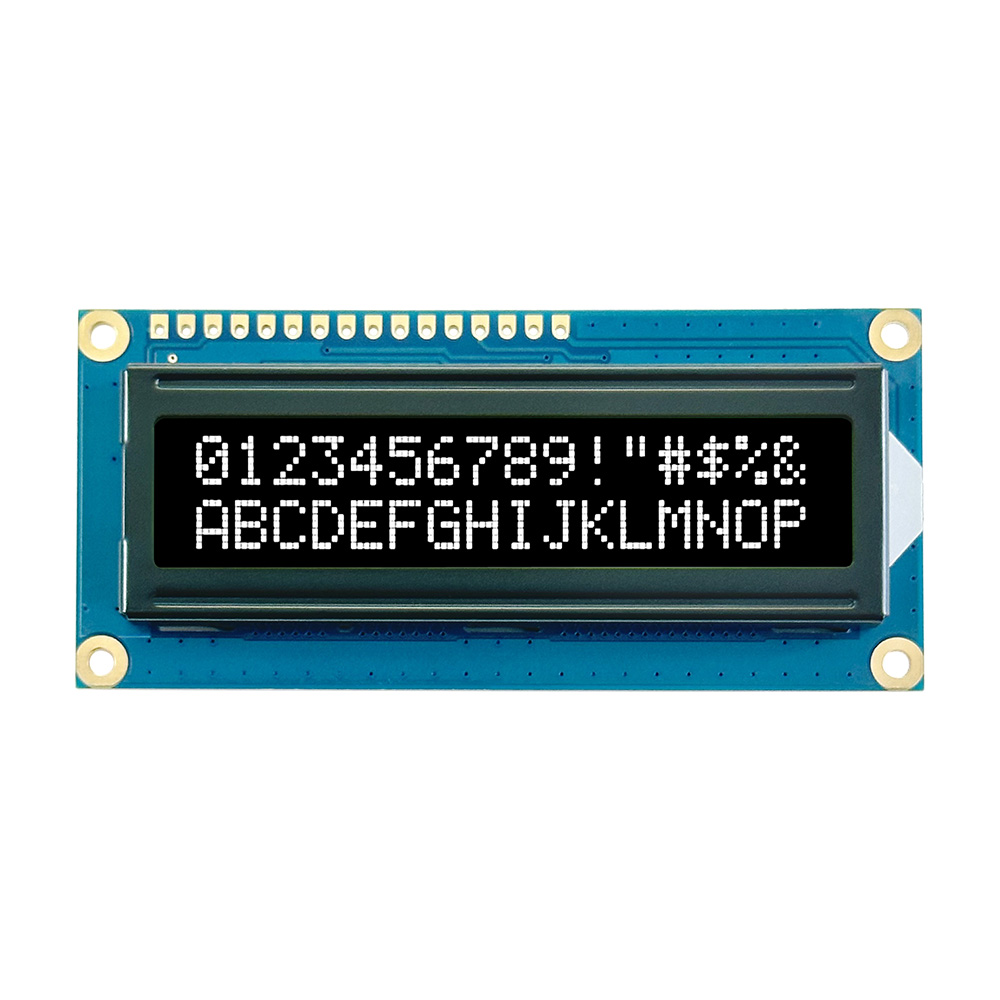

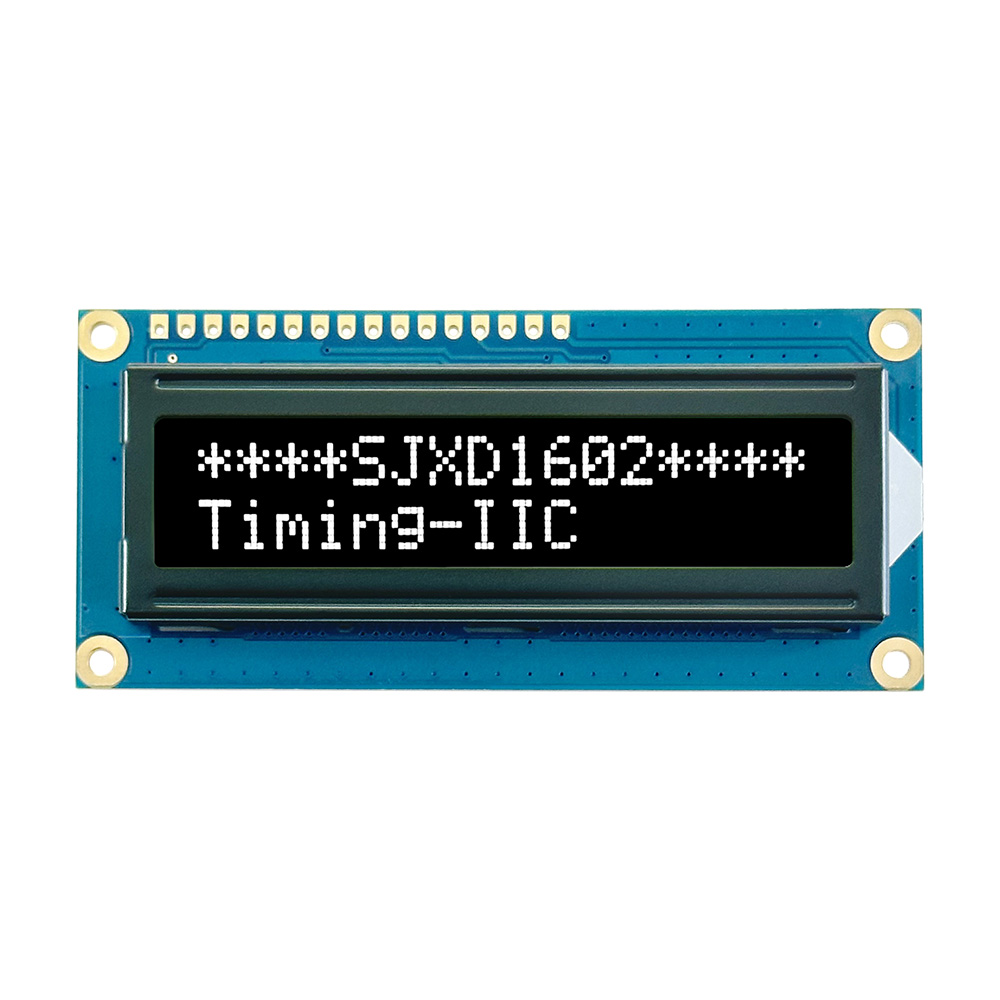

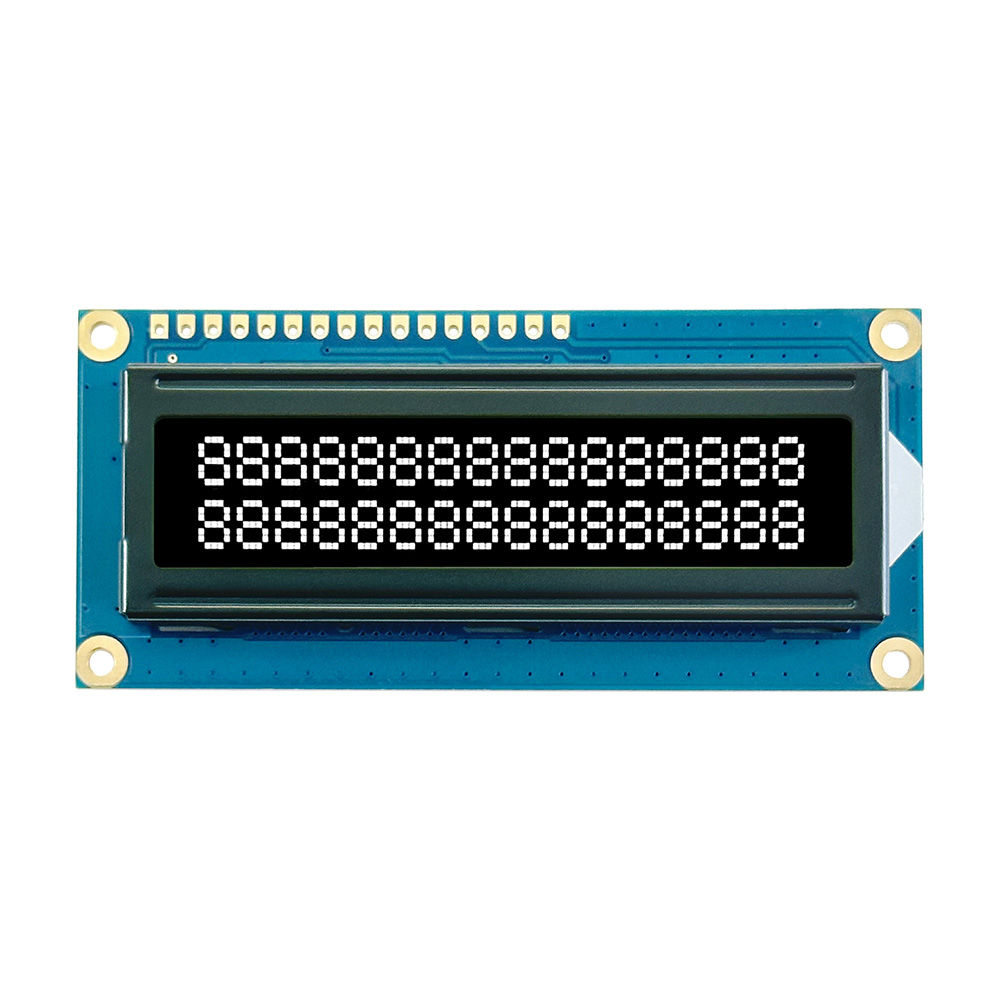

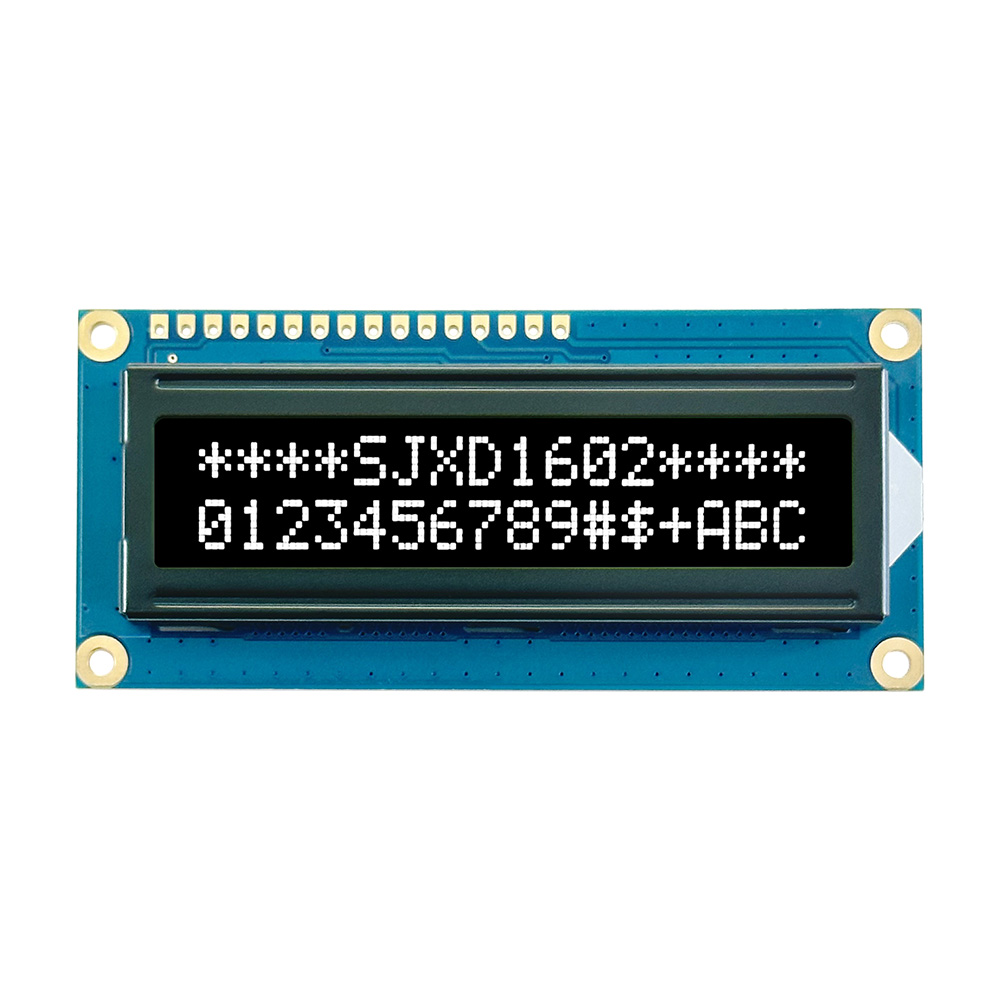

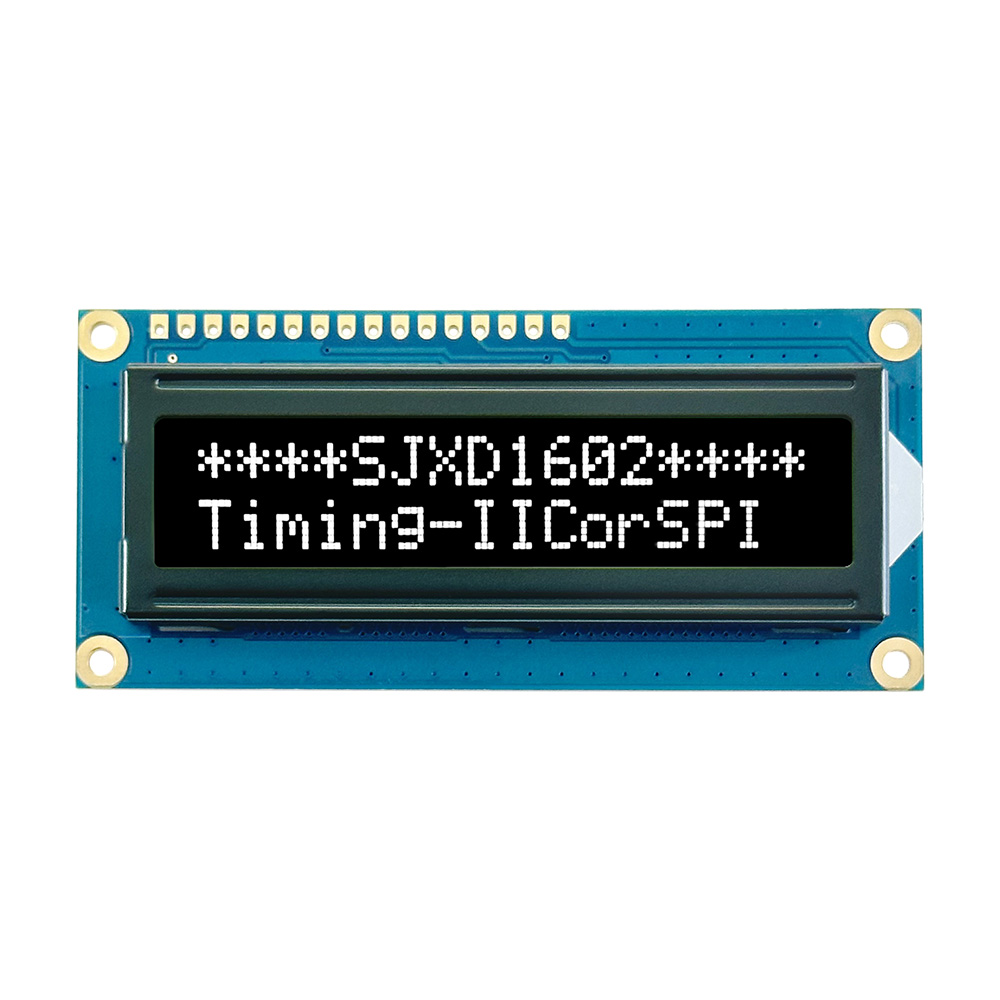

16 2 LCD Display Module is a compact 16x2 character screen for equipment that needs two-line text and numeric output. The SJXD1602A-D model provides an 80.0x36.0x12.0mm outline, 64.5x14.0mm viewing area, 5V/3.3V drive support, AIP31068L drive IC, white LED backlight, DFSTN negative LCD type, 06:00 viewing angle, and SPI or IIC interface options. It can show readings, menus, alarms, timers, counters, and status data in meters, appliances, medical equipment, instruments, access devices, and embedded controllers.

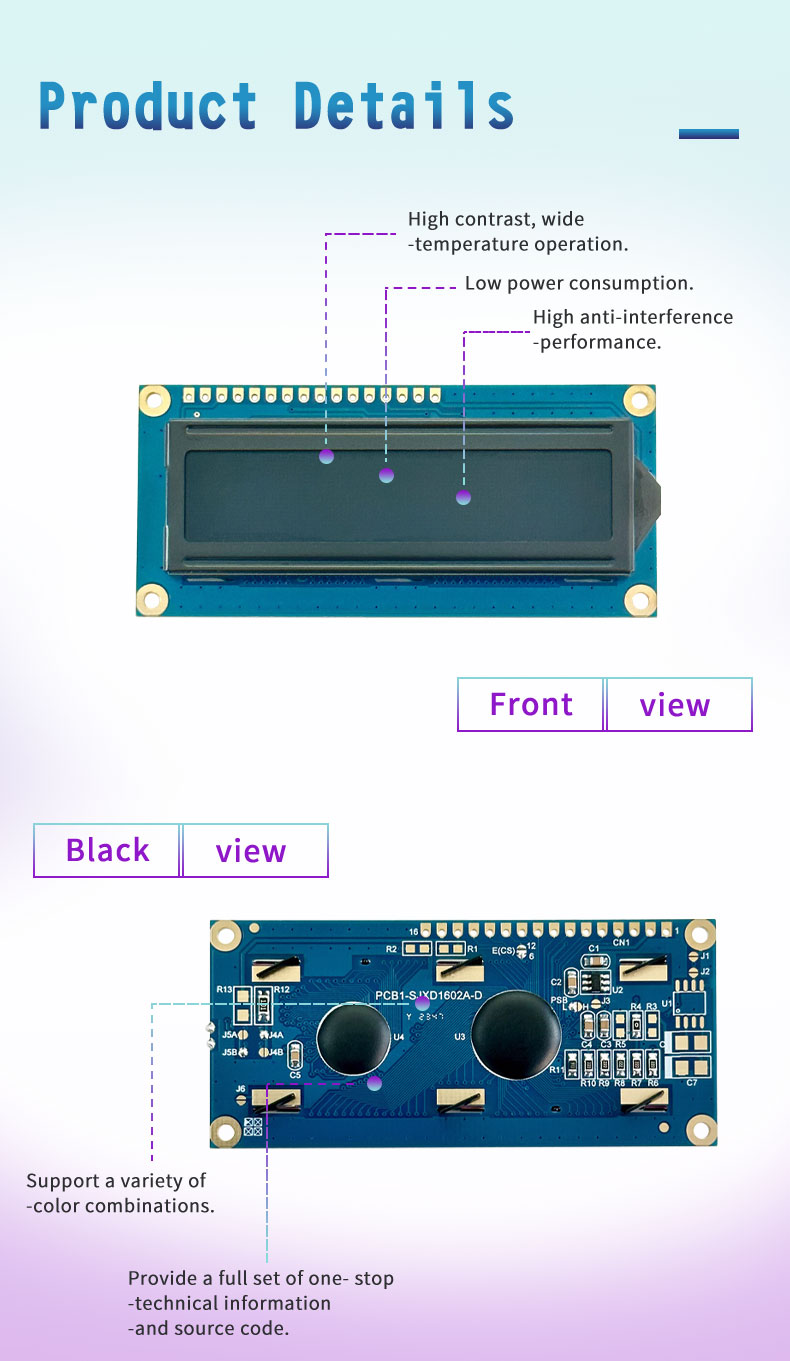

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

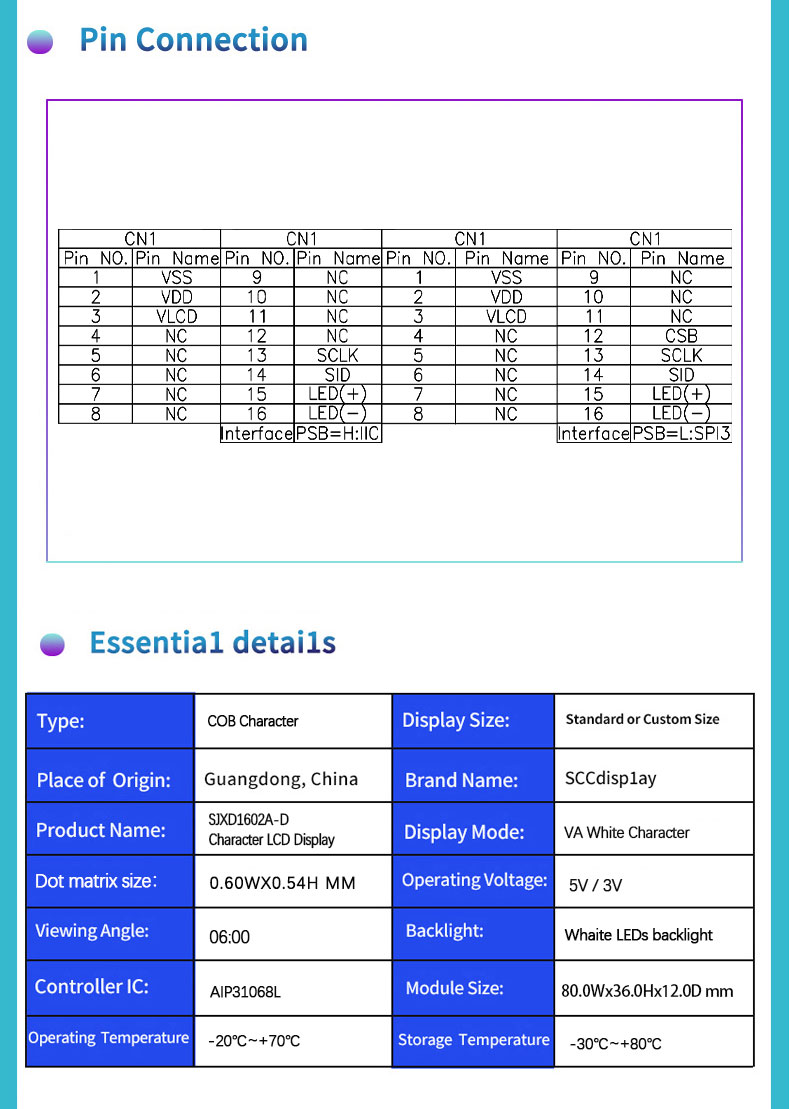

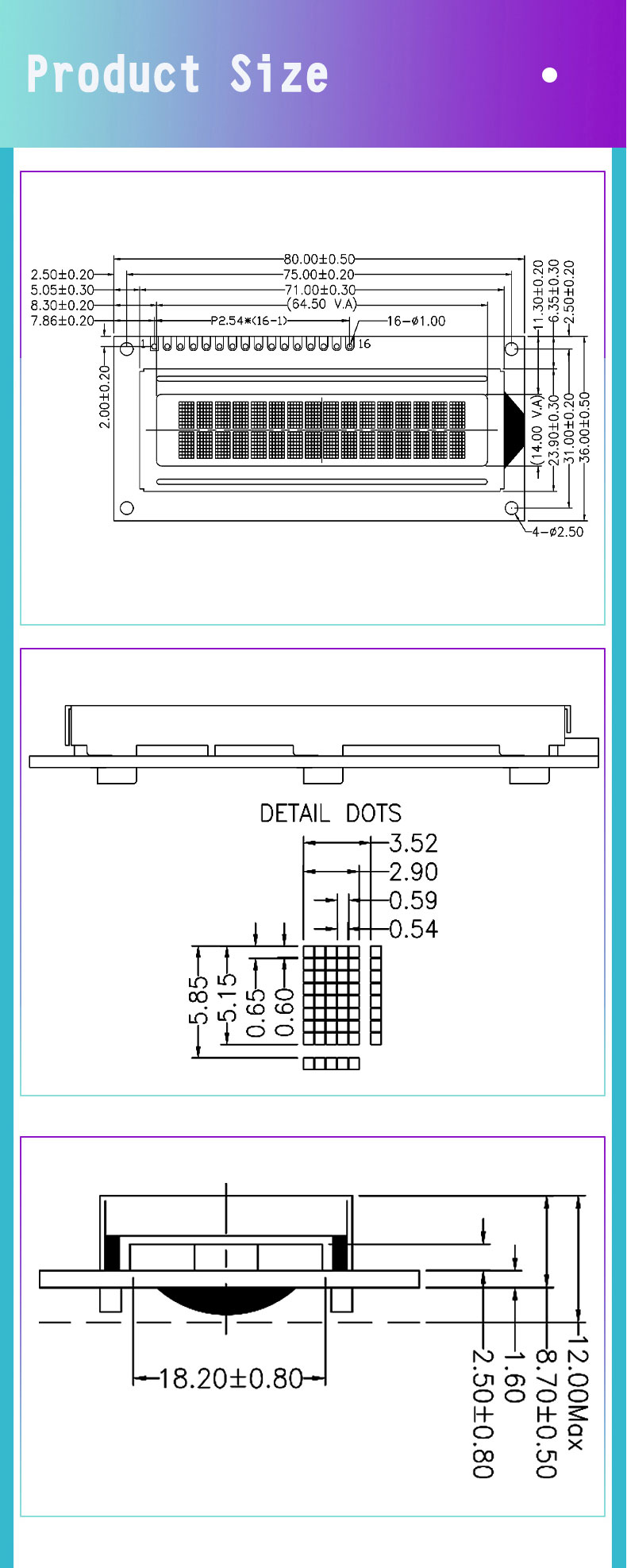

16 2 LCD Display Module is a 16x2 character LCD designed for two-line alphanumeric display in compact electronic equipment. The SJXD1602A-D model features an 80.0x36.0x12.0mm outline size and a 64.5x14.0mm viewing area, offering space for up to 32 characters. It supports 5.0V/3.3V drive voltage, AIP31068L drive IC, white LED backlight, DFSTN negative LCD type, 06:00 viewing angle, and 16 single interface structure with SPI or IIC options.

Design Standards

16 2 LCD Display Module is built for high-contrast readability, stable command response, and flexible embedded system integration. The DFSTN negative display mode provides a sharp visual effect, while the white LED backlight improves visibility for equipment panels and indoor control terminals. Its interface options allow engineers to choose a connection method that fits PCB space, control requirements, and firmware design. The module also supports low power use, anti-interference performance, wide-temperature operation, source-code support, technical documents, sample supply, and customization for backlight color, display content, shell design, and application parameters.

Applications

16 2 LCD Display Module is suitable for products that need clear two-row information without a graphic screen. It can display voltage data, temperature readings, menu settings, alarm codes, timer values, counter results, working states, and user prompts. Common applications include industrial meters, control panels, information display systems, home appliances, medical equipment, consumer electronics, laboratory instruments, vending machines, access control devices, educational kits, DIY electronics, and embedded controller products. Its compact size and 16x2 character capacity make it practical for both prototype testing and batch production.
