Basic Information

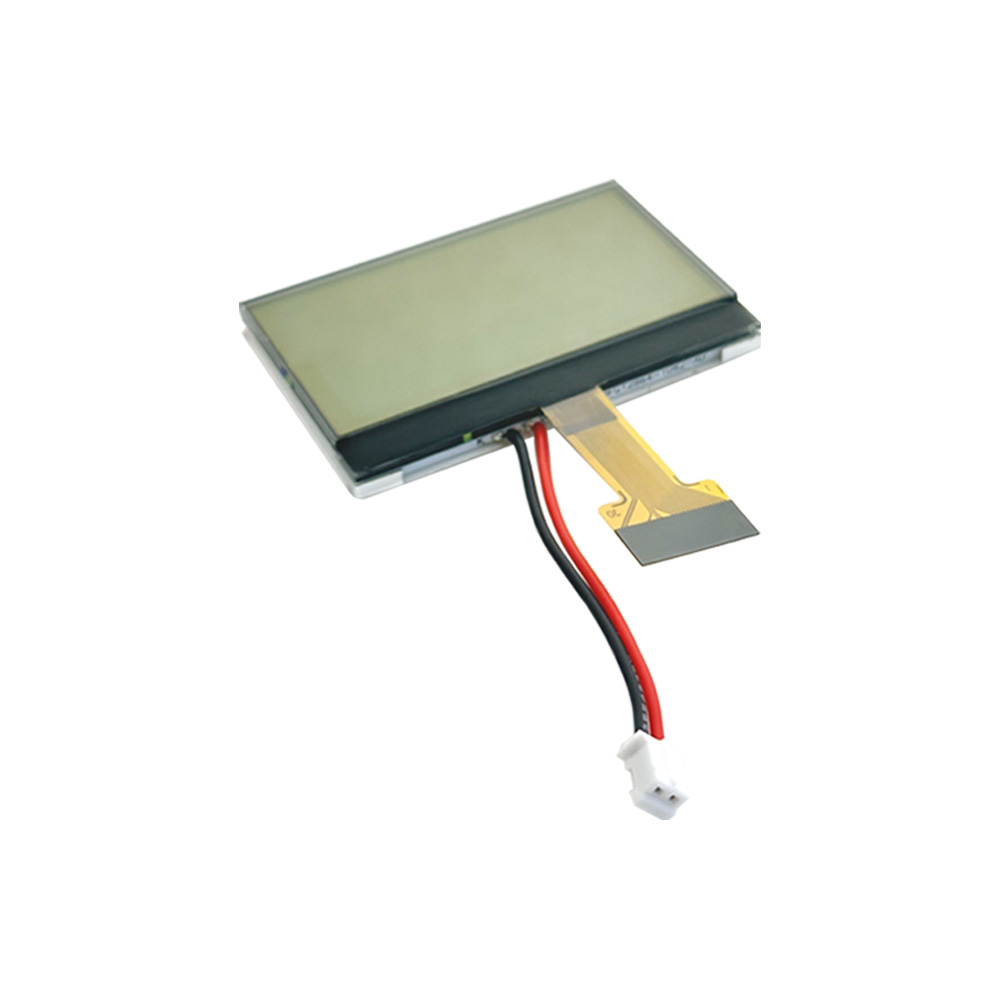

The Wholesale Custom LCD Display Supplier SJXD12864-1062 is a tailored segmented and graphic LCD module designed for large-scale OEM supply and industrial electronic applications. It is developed to support customizable display configurations while ensuring consistent quality and stable performance across mass production. This module is suitable for manufacturers seeking reliable sourcing solutions for embedded systems, industrial instruments, and consumer electronic devices that require flexible visual interface design.
Parameters:
| Model | SJXD12864-1062 |
| Model Size | 56.4×37×6mm |
| Field of View Size | 53.8×28.8mm |
| Drive lC | ST7567(COG) |
| Display Mode | 1/65Duty，1/9Bias，VLCD=10.0±0.2V，VDD=3.0V. |
|
Viewing Angle
|
6 o'clock
|
|
Drive Mode
|
1/64 Duty1/9Bias,Vop=8.6V，Vdd=3.0V. |
|
Backlight Type
|
White,3.0±0.2V,45mA, 3pcs.
|
|
Operating Temp
|
-10C~+60'C.
|
| Storage Temp | -20°C~+70°C. |
|
Connector
|
COG+FPC. |
|
Unmarked Tolerance
|
0.2mm |
|
Requirements On Environmentall Protection
|
RoHS |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This wholesale custom LCD display supplier module features a 128×64 dot matrix structure that enables clear representation of text, symbols, and simple graphical elements. It supports customizable segment layouts, making it suitable for application-specific interface designs. The display operates at low voltage, ensuring compatibility with energy-efficient electronic systems and battery-powered devices. It is engineered for low power consumption, supporting long-term continuous operation with minimal energy usage. The module delivers stable contrast and consistent pixel clarity, ensuring readable output under standard lighting environments. Its compact structure allows efficient integration into industrial controllers, smart meters, handheld devices, and embedded electronic systems. The display maintains stable optical and electrical performance across a wide temperature range, ensuring reliable operation in different working conditions. Fast response behavior ensures smooth updating of displayed content without flicker or delay, supporting real-time data visualization and system interaction.
Design Standards
The module is manufactured under strict wholesale LCD supplier standards to ensure consistent quality and scalable production reliability. High-quality liquid crystal materials are used to maintain uniform optical performance and stable pixel behavior. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in electronic systems. Structural reinforcement improves resistance to vibration, mechanical stress, and temperature variation. Each unit undergoes comprehensive inspection to verify display uniformity, pixel accuracy, and electrical stability. Efficient manufacturing processes support high-volume production while maintaining strict quality control. Energy-efficient design principles are applied to enhance durability and reduce operational power consumption.
Applications
The Wholesale Custom LCD Display Supplier module is widely used in industrial automation systems, medical devices, smart meters, embedded controllers, and consumer electronics. It is also suitable for portable instruments, testing equipment, instrumentation panels, and customized display interfaces. Its combination of scalable supply capability, stable performance, and flexible customization makes it an ideal solution for OEM manufacturers requiring dependable LCD display sourcing and integration.

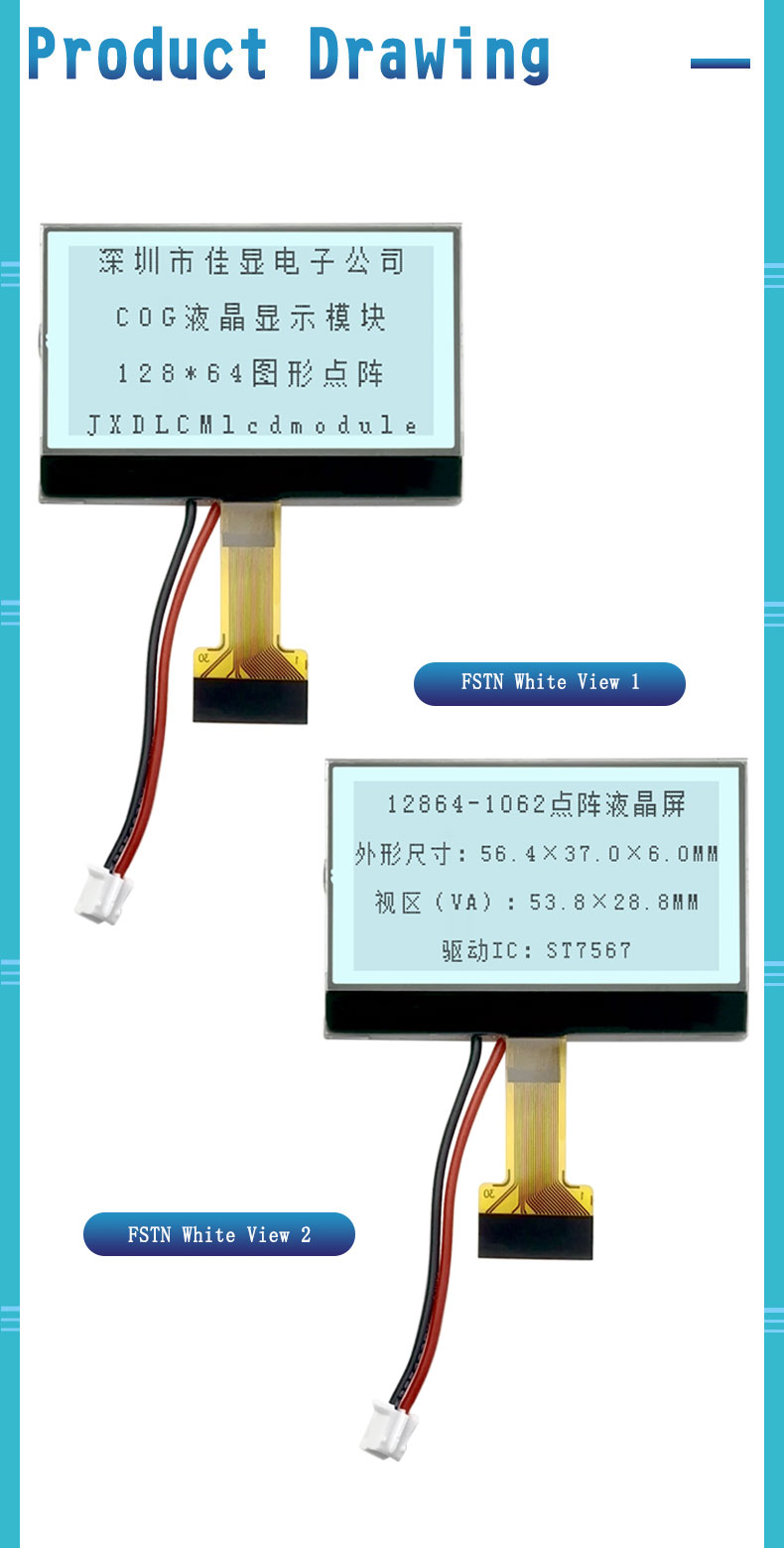

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
