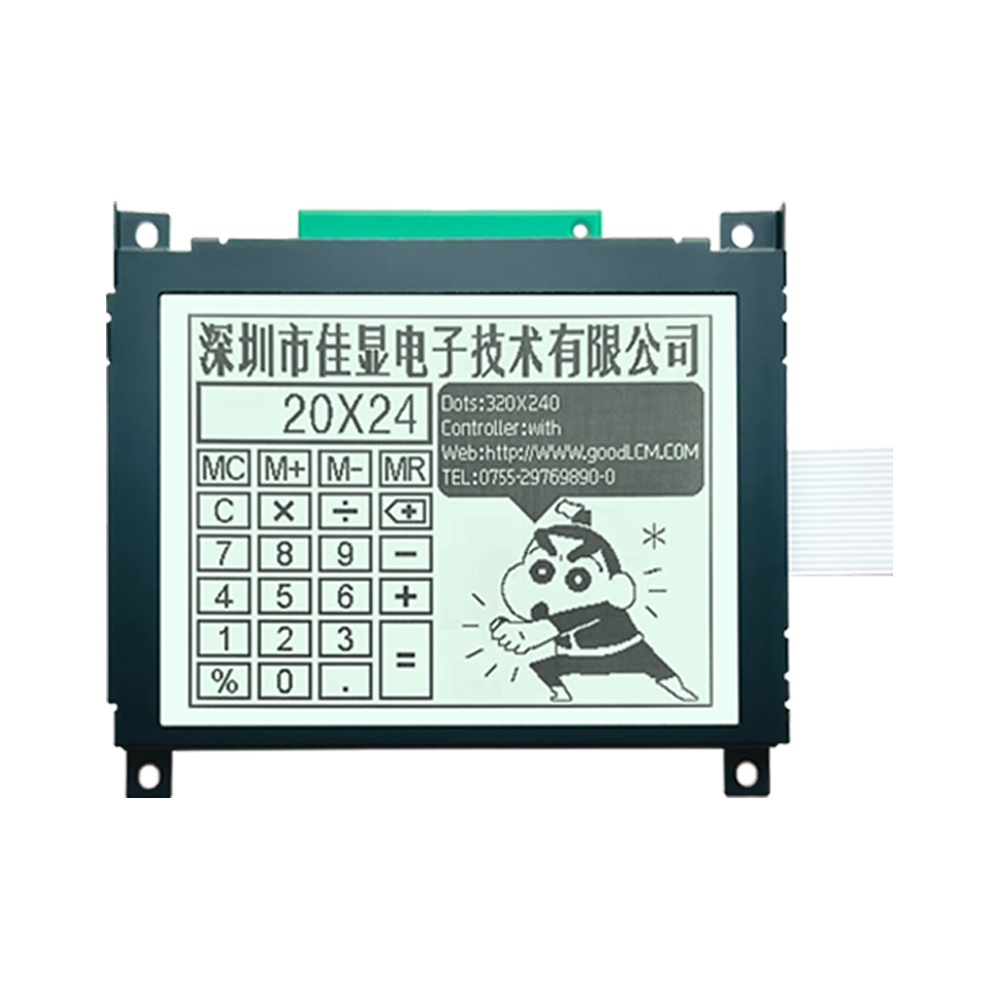

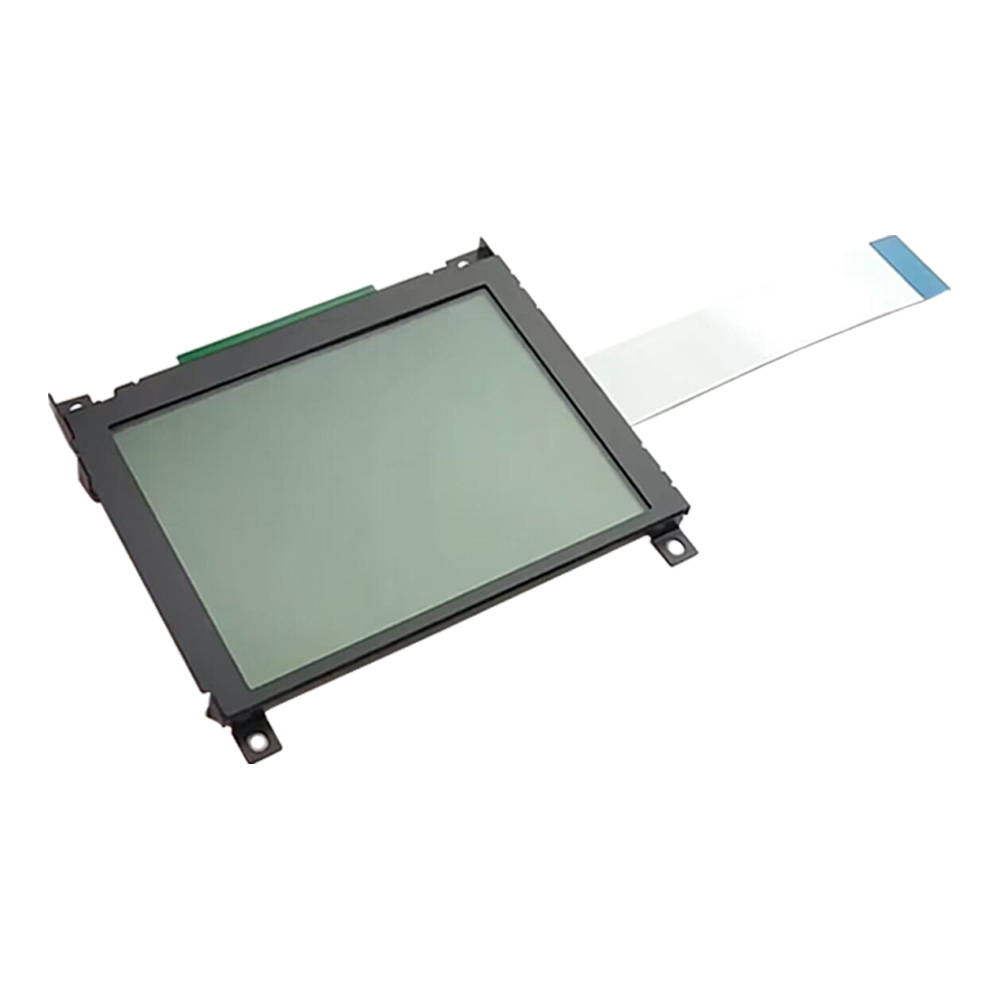

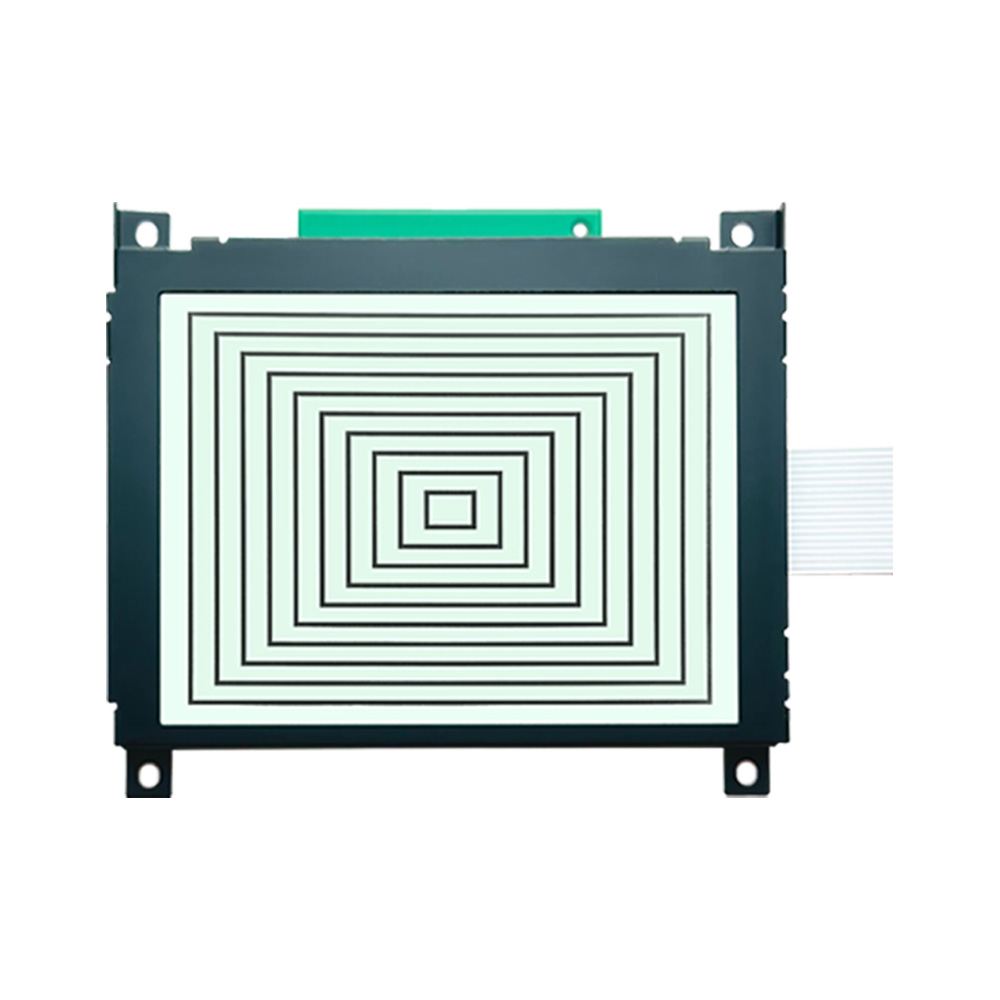

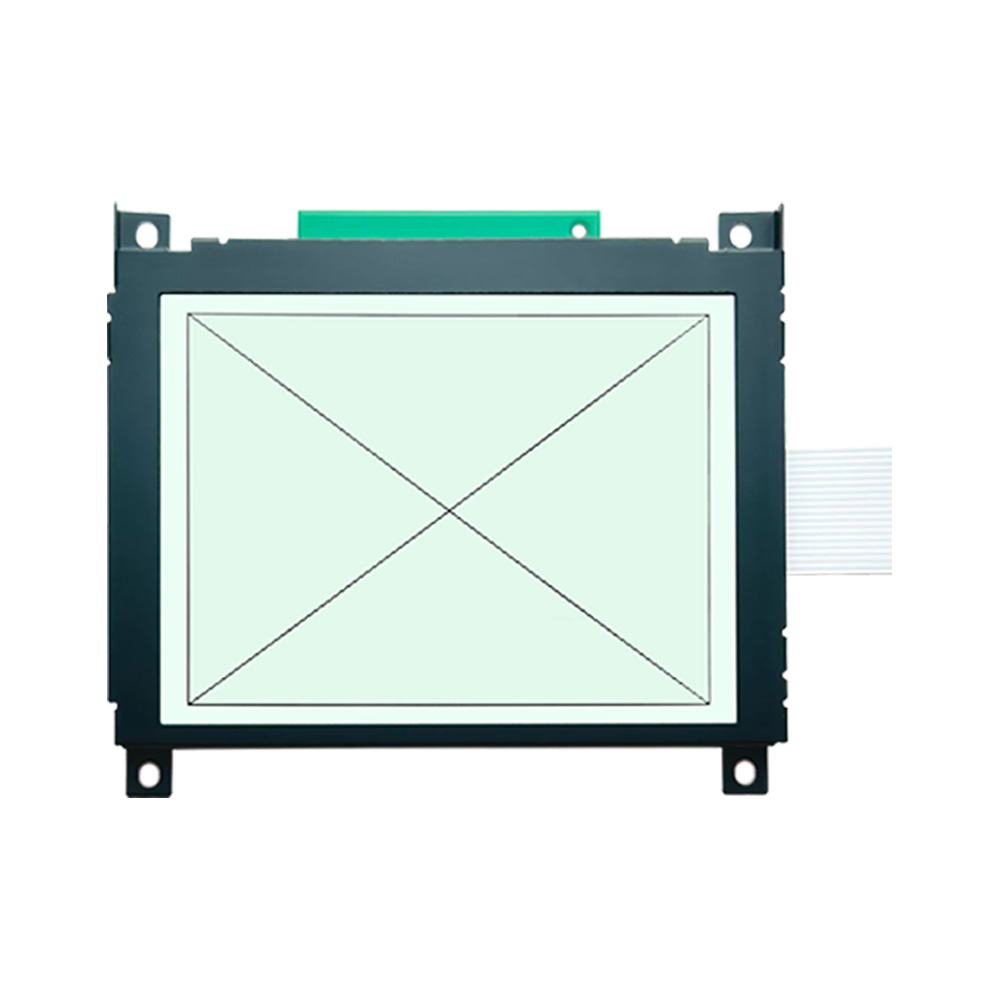

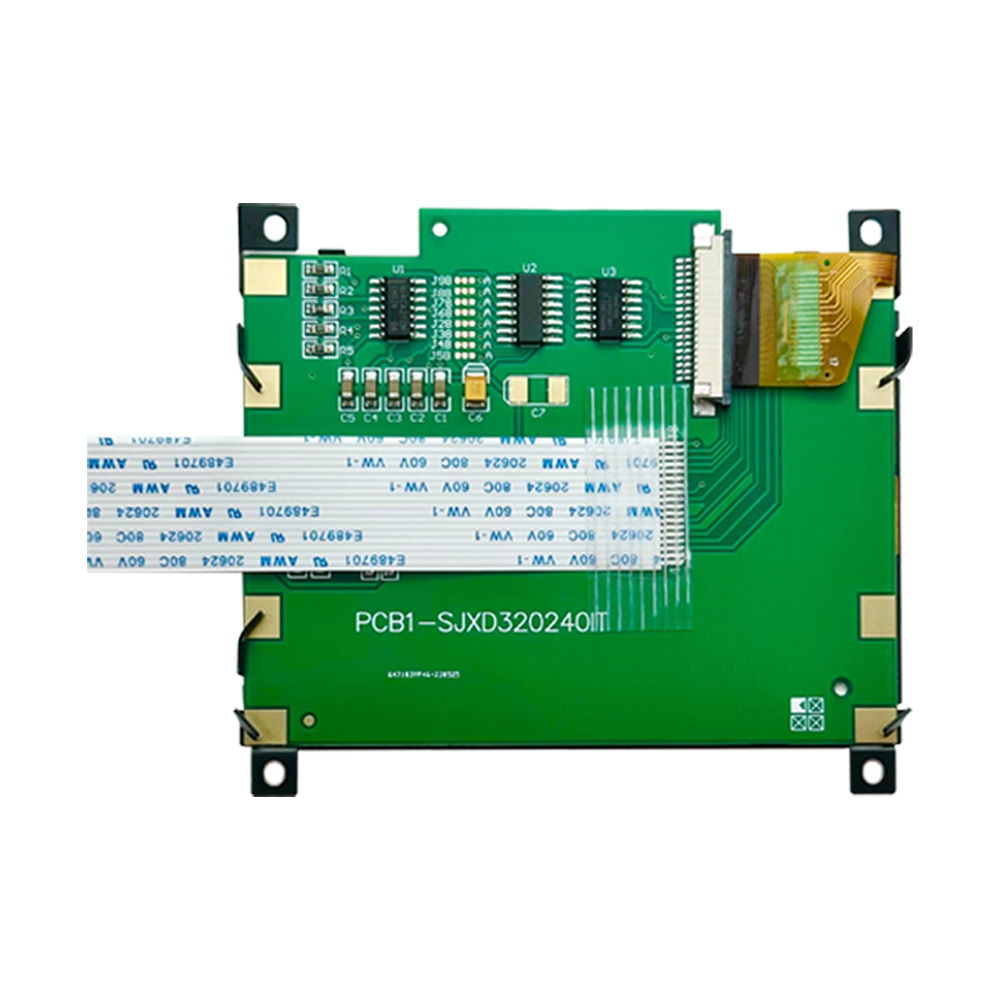

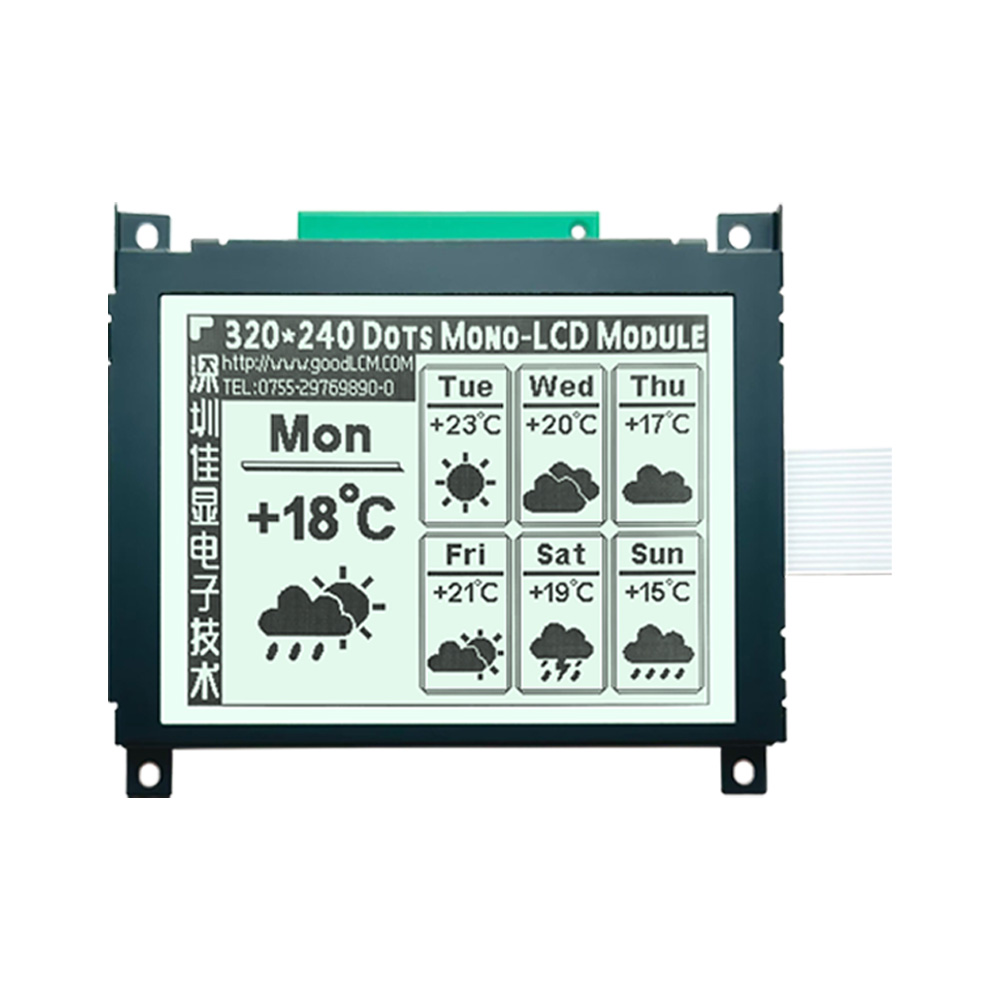

Basic Information
The SJXD320240IT LCD Graphic Display Module COG LCD Modules is a high-quality display solution designed for advanced industrial, commercial, and embedded applications. Utilizing Chip-On-Glass (COG) technology, the driver IC is directly mounted onto the glass substrate, reducing the number of external components and optimizing space. This design ensures enhanced stability, lower power consumption, and increased reliability, making it ideal for compact or battery-powered devices. The module delivers crisp monochrome graphics with precise pixel control, offering clear visualization for alphanumeric characters, symbols, and custom graphics. Its robust construction guarantees consistent performance even in challenging environmental conditions.
Parameters:
| Model | SJXD320240IT（LCM） |
| Model Size | 95.00(W)mm x 70.7(H) mm x Max.8.6(D)mm |
| Display Mode | Transflective Type |
| Viewing Angle | 06:00/09:00/12:00 |
| Backlight Type | White LEDs Backlight |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This LCD Graphic Display Module features a 320×240 pixel resolution, providing high-definition graphical output and flexible display layouts. Its COG architecture supports reduced wiring complexity and enhanced electrical stability. Operating at low voltage, the module consumes minimal energy while maintaining high contrast and clarity. The display offers wide viewing angles, ensuring readability from multiple perspectives, and fast response times for smooth graphics rendering. Its durable glass and backplane materials provide long-term reliability and resistance to mechanical stress, making it suitable for intensive operational environments.
Design Features
The SJXD320240IT module is engineered for flexibility and ease of integration. The COG design reduces space requirements on the PCB and simplifies assembly, while maintaining robust mechanical stability. Developers can create custom icons, text layouts, and graphical elements tailored to specific projects. Compatibility with a wide range of microcontrollers and embedded systems ensures seamless communication and precise control over display output. Its low-power consumption and efficient driving circuits make it an ideal solution for portable and battery-dependent electronics.
Applications
This LCD Graphic Display Module is widely used in industrial control systems, medical devices, automotive dashboards, smart home appliances, handheld measurement instruments, and other embedded electronics requiring clear visual output. Its adaptability for custom designs makes it a preferred choice for OEM and ODM solutions.

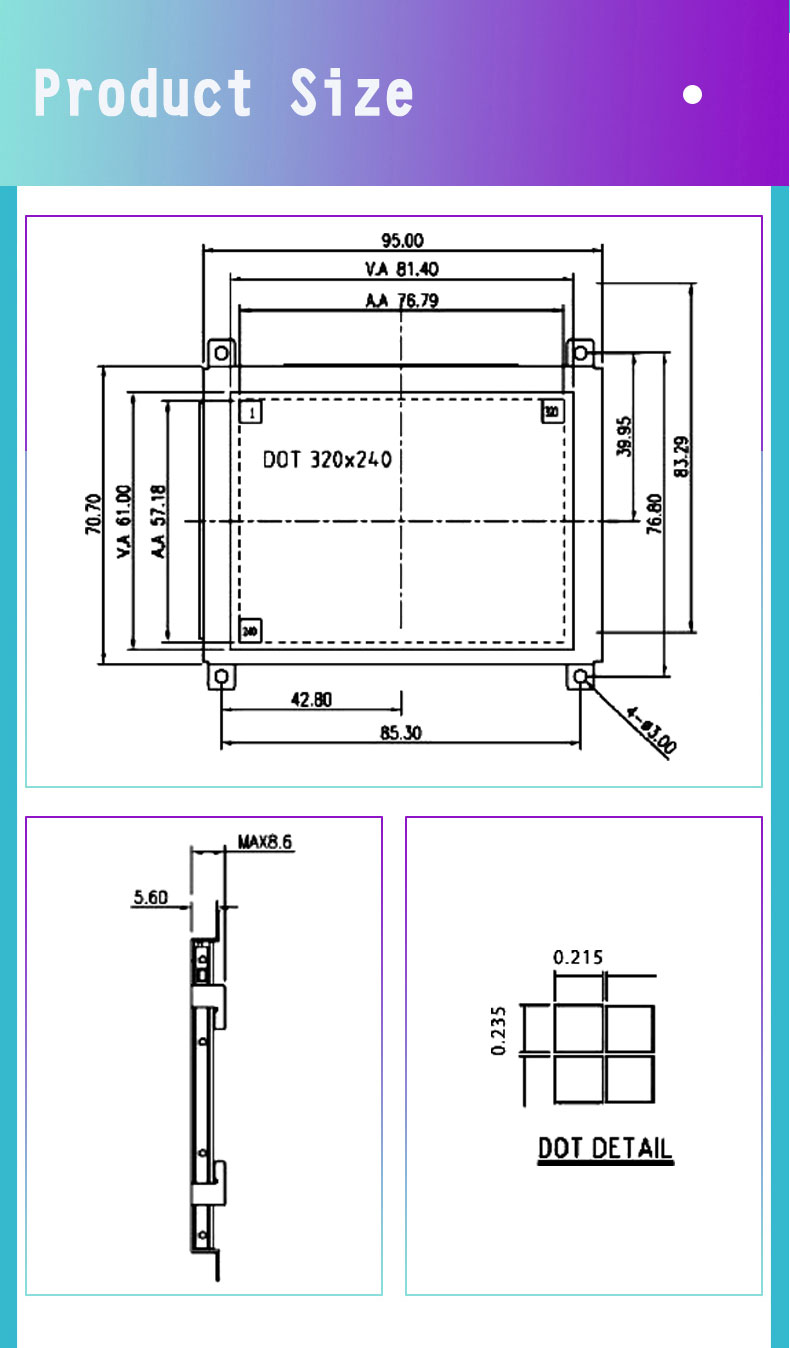

Product Size
FAQ
Q: Do you provide samples?
Answer: Yes, customers usually provide samples within 1-3 days to test and evaluate the performance and compatibility of the module.
Q: How to customize this LCD display module?
Answer: The module can be customized according to customer requirements, including parameters such as character display content, backlight color, and shell design, to meet specific application needs.
Q: Which applications is this module applicable to?
Answer: This module is suitable for applications that require displaying large font characters and numbers, such as instruments, device control panels, and information display systems.
Q: What is the quality of this module?
Answer: This module is manufactured with high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How to ensure cost-effectiveness?
Answer: This module adopts a simplified production and cost control design, aiming to provide cost-effective solutions while maintaining high quality and performance.
If you would like to learn more information or customize the LCD display screen you need, please feel free to contact us at any time.
