Basic Information

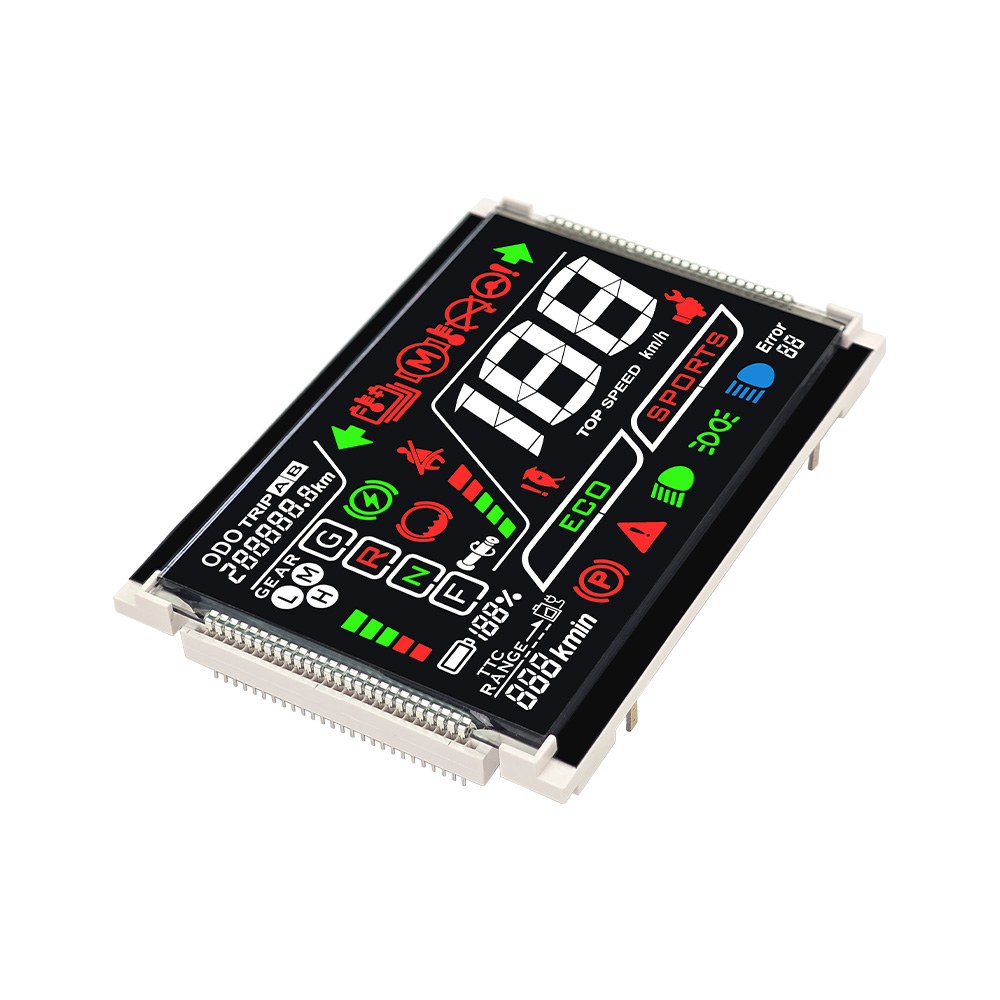

The SJXDGW044 Segment Color Screen is a high-quality segmented LCD display module designed to deliver clear and colorful visual output for modern electronic applications. It combines traditional segment display technology with enhanced color indication capability, providing improved readability and visual distinction. This makes it suitable for devices that require both numeric display and color-based status indication. With stable performance and low power consumption, it is an efficient solution for a wide range of electronic systems.

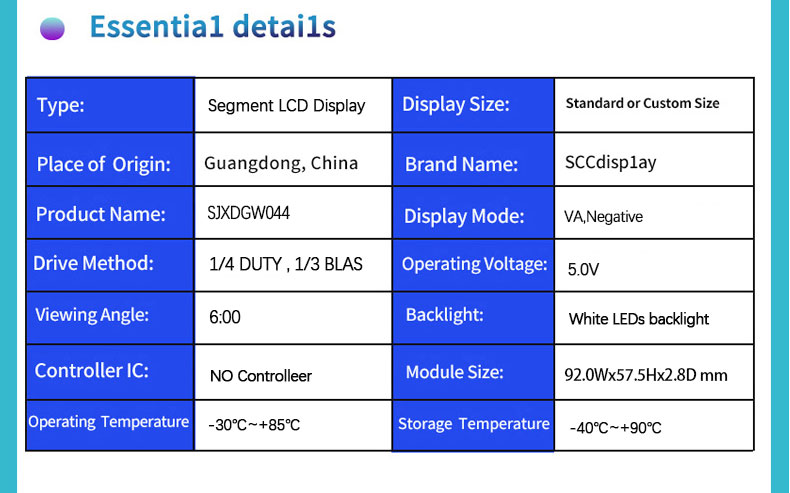

parameters：
| Character Type | Customized |
| Model | SJXDGW044 |
| Model Size | 92.0×57.5×2.8 mm |
| VA Size | 83.0×53.5 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
VA Negative |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-30C TO +85°C
|
| Storage Temperature |
-40°C TO +90°C
|
|
Working Voltage
|
5.0V |

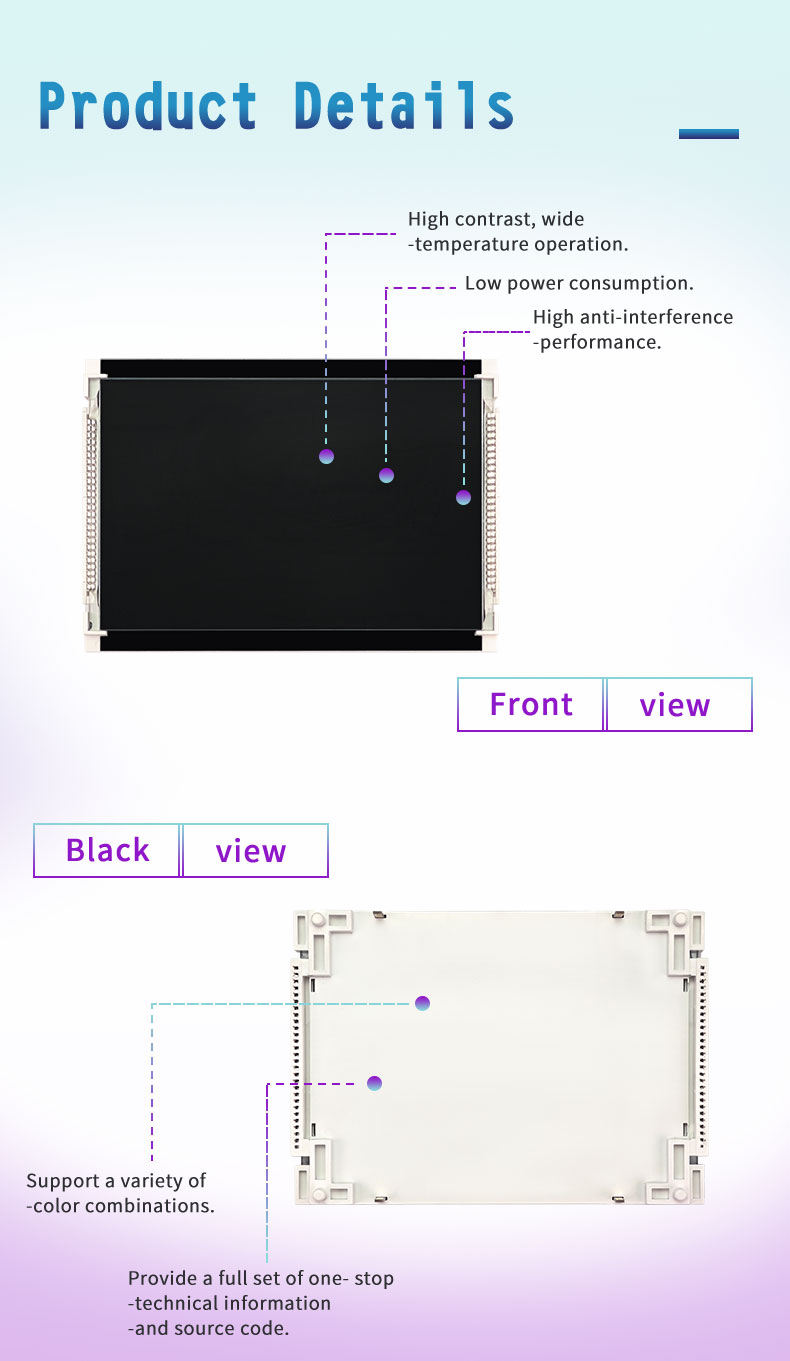

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
The SJXDGW044 features a customized segment layout with multi-color display capability, allowing different segments to be highlighted with distinct colors for better visual recognition. It is designed with low power operation in mind, making it suitable for battery-powered and energy-efficient devices. The display supports stable driving conditions, ensuring consistent performance and reliable signal response. Its compact structure allows easy integration into various product designs without requiring major structural changes. The module provides good contrast and visibility under different lighting conditions, improving usability in both indoor and semi-outdoor environments. It also supports stable electrical characteristics, ensuring long-term reliability in continuous operation.
Design Features
This segment color screen is engineered for durability and visual clarity. It offers fast response time and stable segment activation, ensuring accurate and timely display of information. The addition of color segmentation enhances user interaction by improving data differentiation. Its robust structure ensures long service life and consistent performance even under demanding conditions. The module is also optimized for easy assembly and compatibility with standard electronic driving systems.
Applications
The SJXDGW044 is widely used in digital meters, industrial control panels, home appliances, automotive dashboards, and smart electronic devices. It is commonly applied in power monitoring systems, temperature controllers, timers, counters, and multifunctional display equipment. Its combination of clarity and color indication makes it suitable for both consumer and industrial applications.

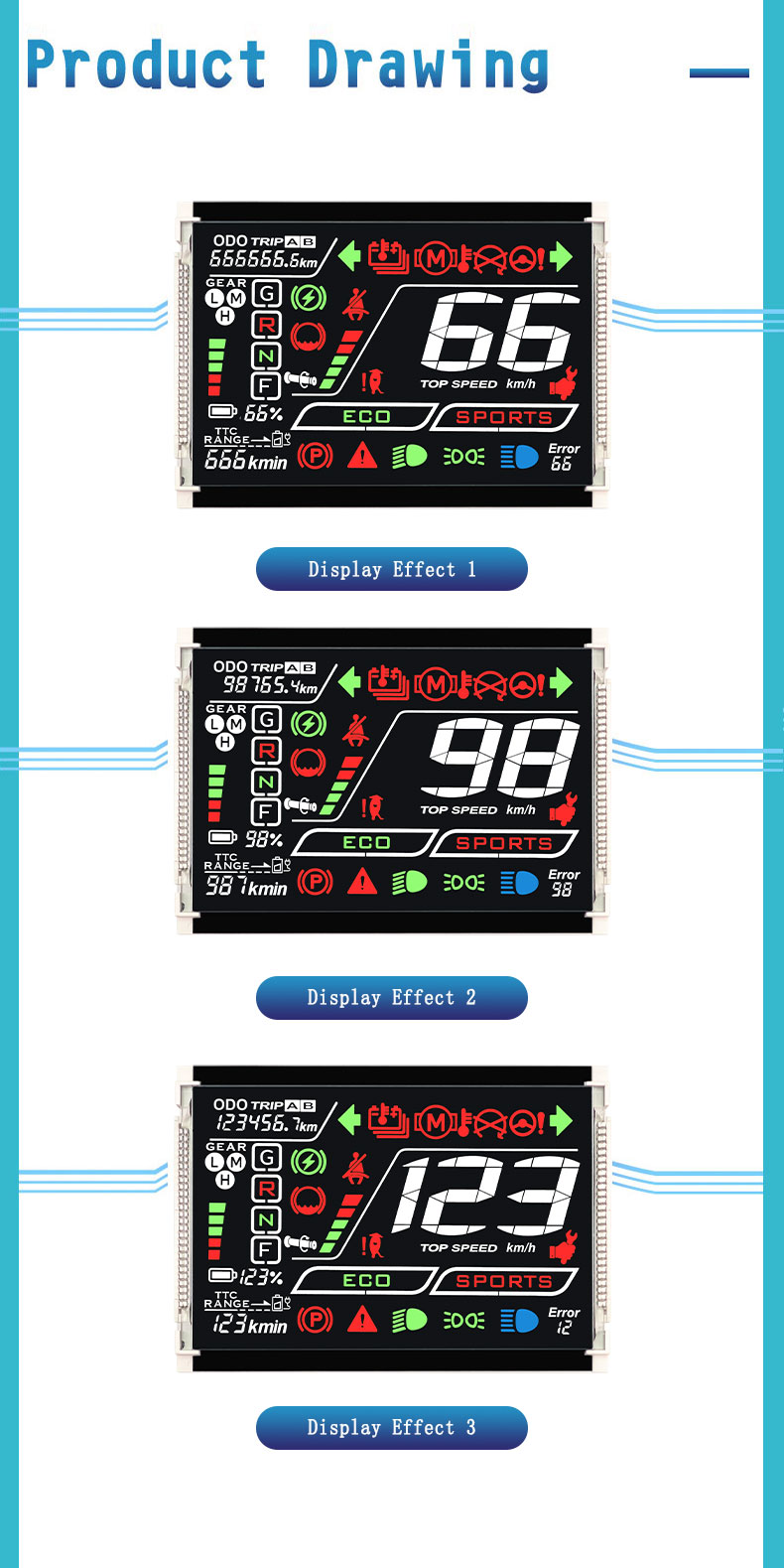

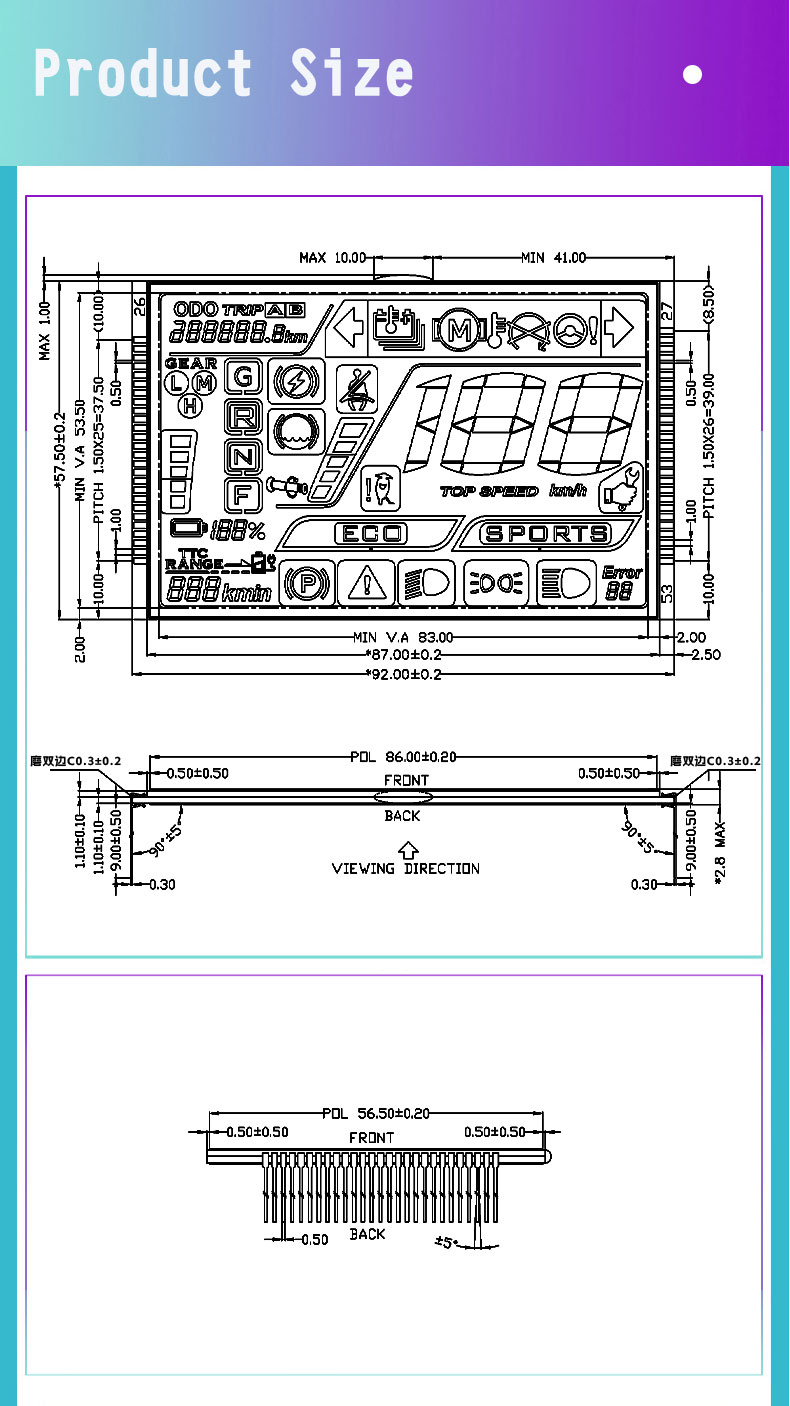

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
