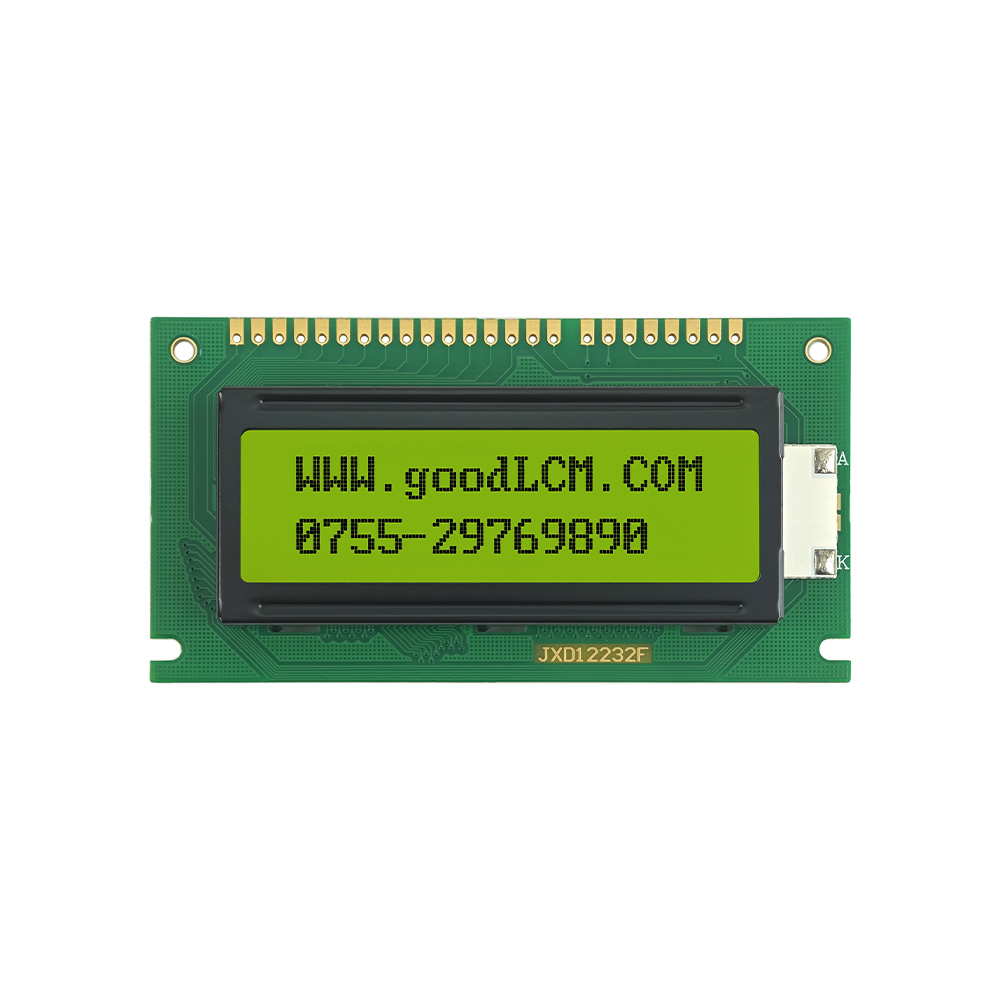

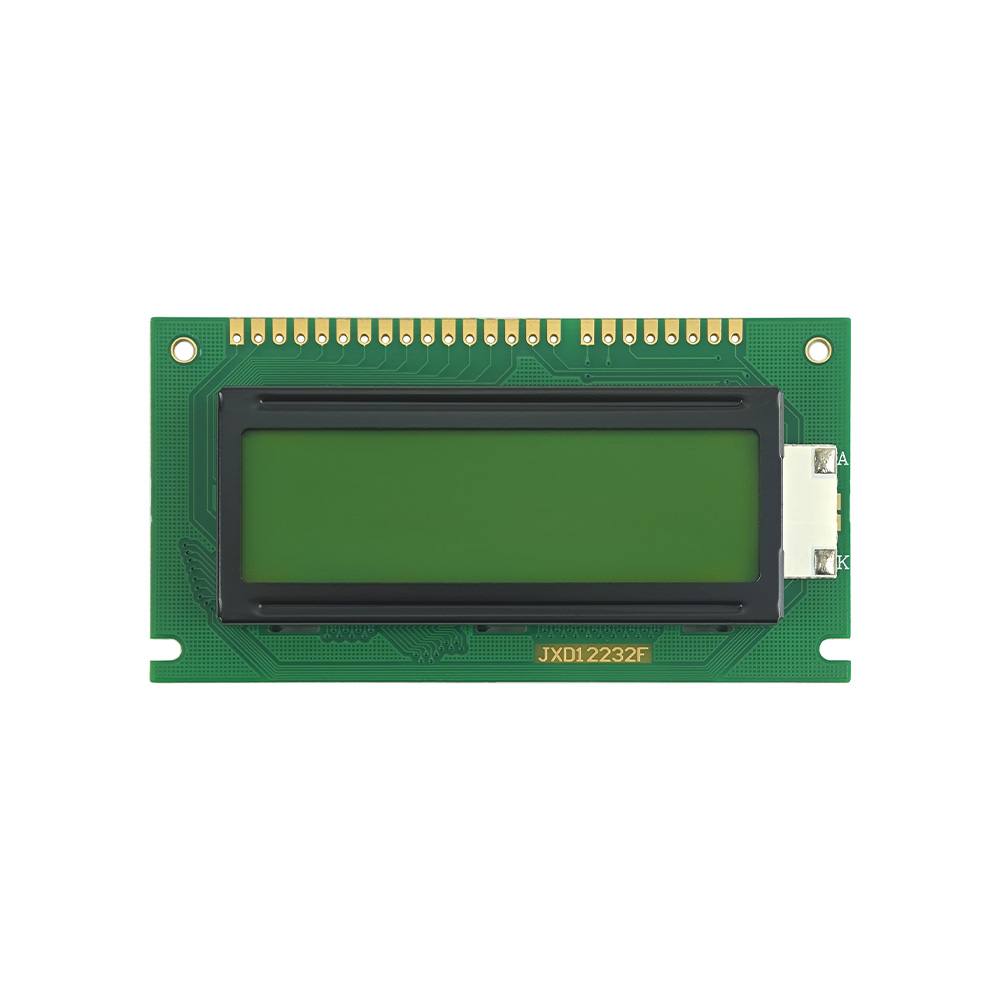

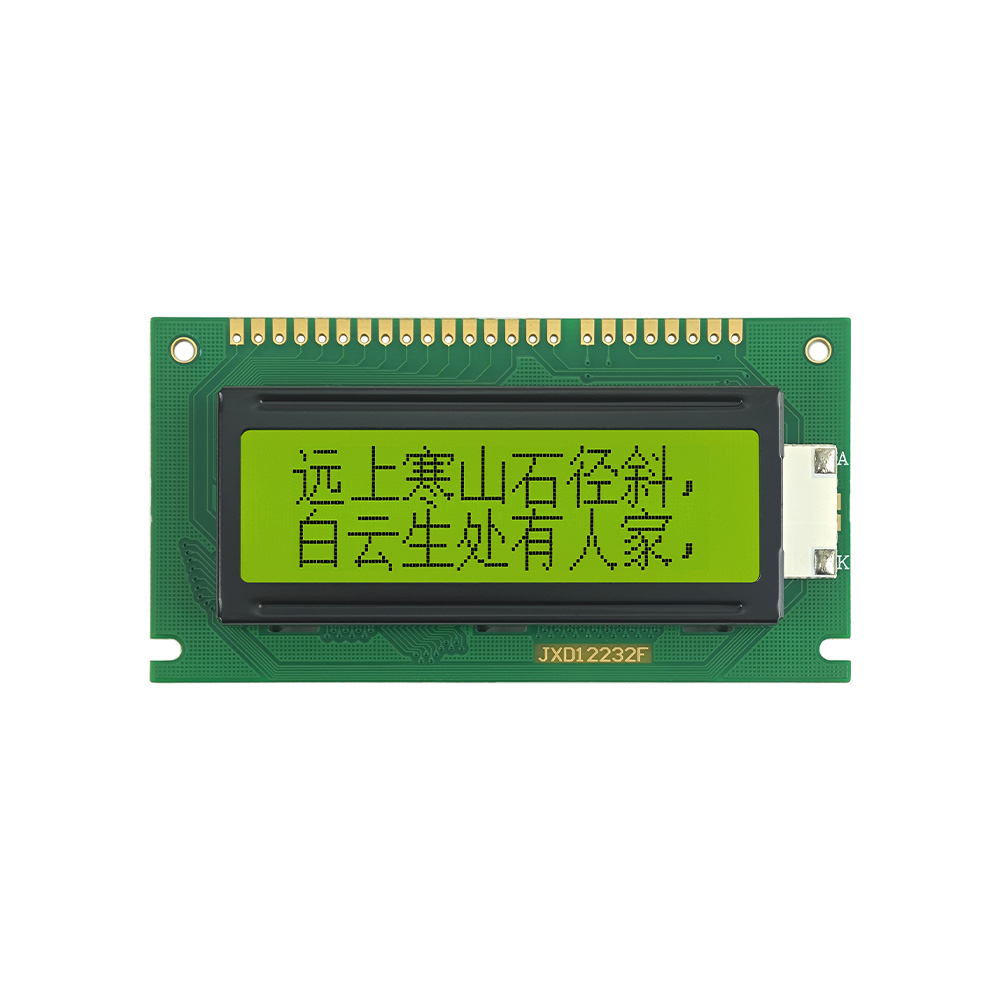

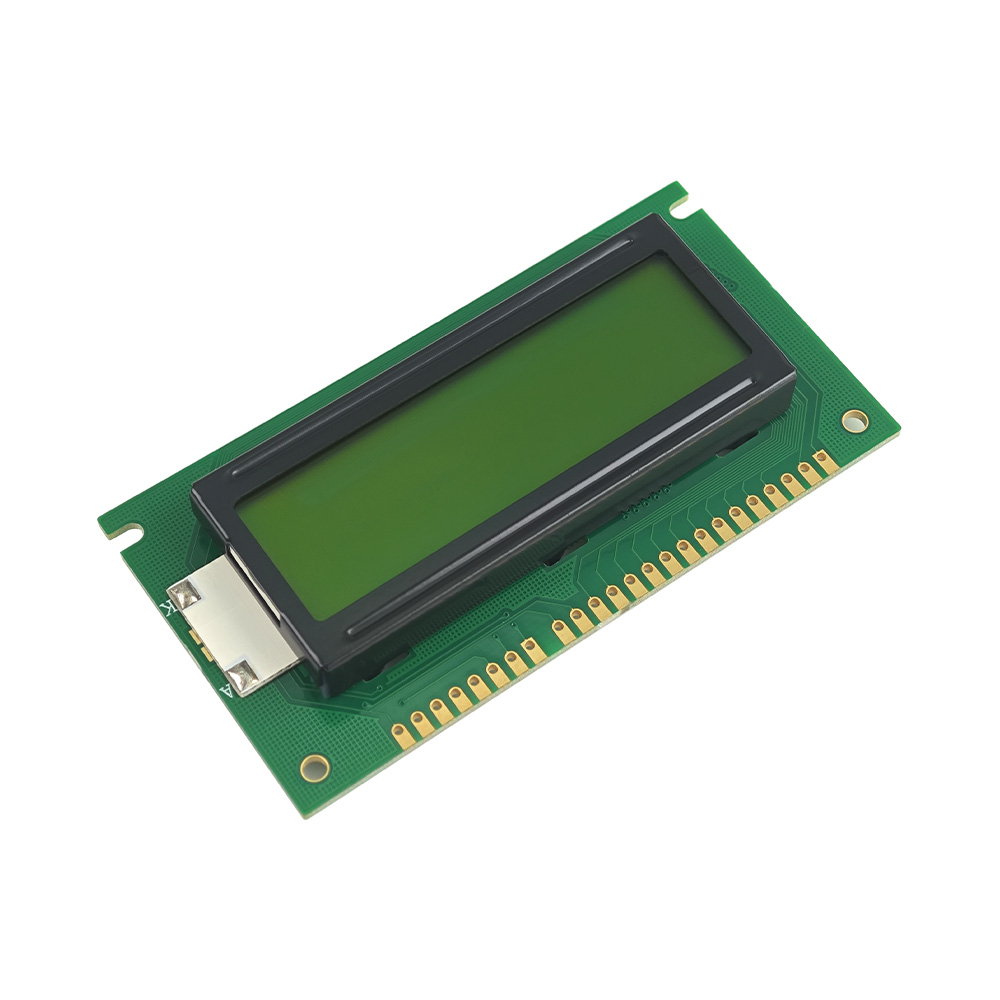

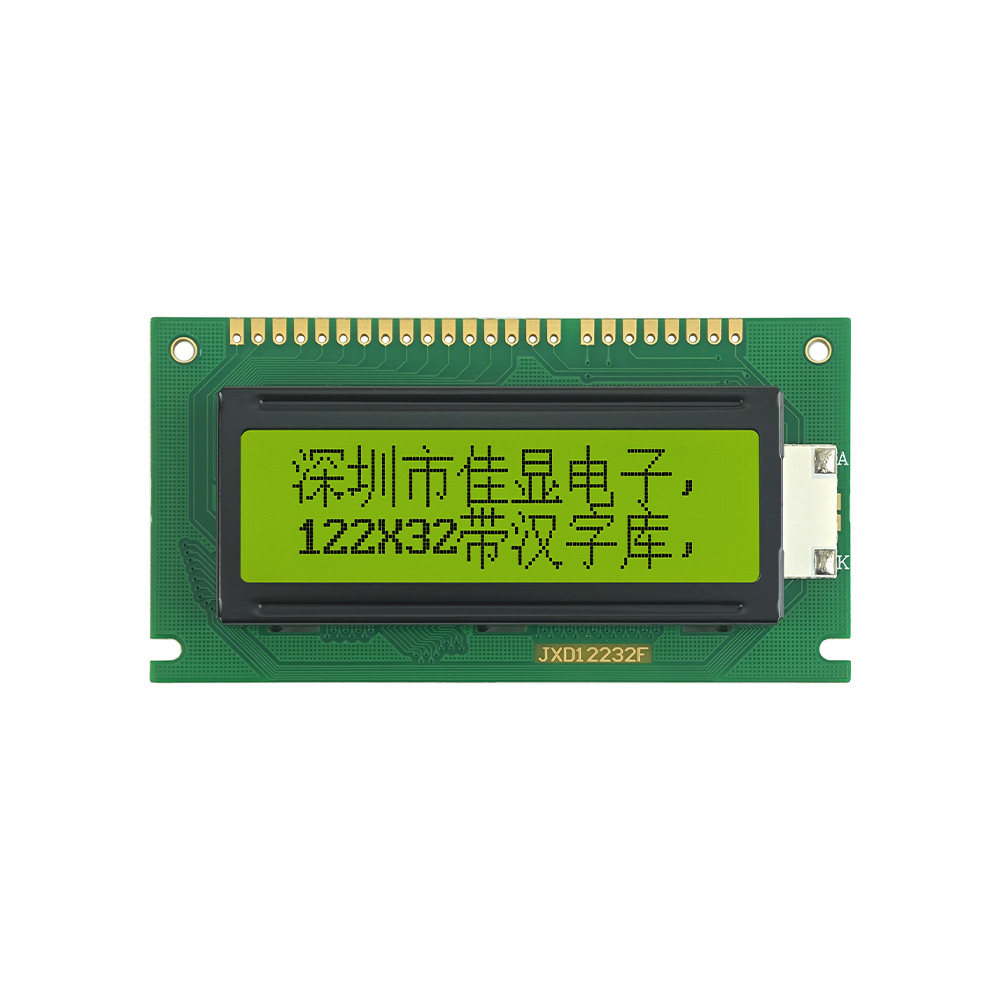

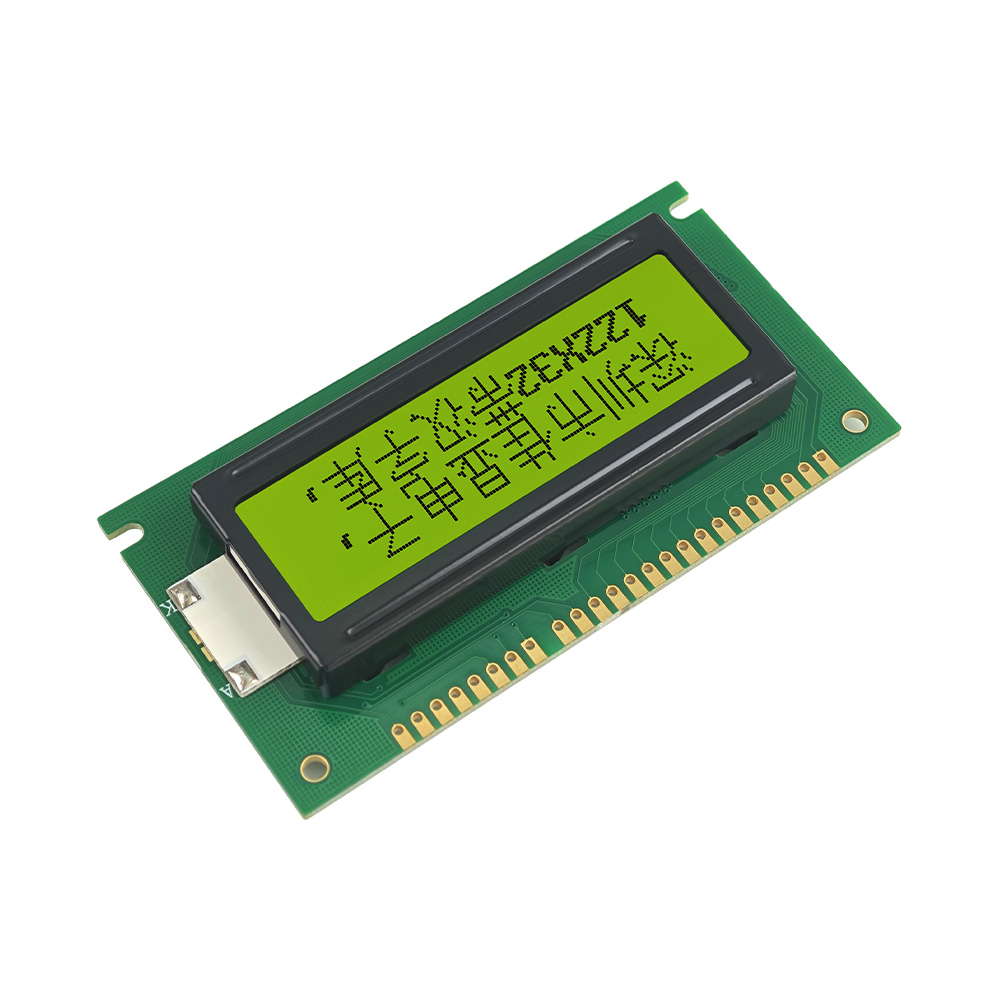

Basic Information
The 12232 LCD Display Screen JXD12232F is a high-performance visual module designed for embedded electronics, industrial controls, and compact device interfaces. Featuring a 122×32 pixel matrix, this LCD display offers clear and sharp text, symbols, and simple graphics, ensuring excellent readability in various lighting conditions. Its robust construction makes it suitable for both portable devices and fixed installations, while the compact size allows easy integration into limited-space applications. The module provides stable performance, low power consumption, and straightforward connectivity, making it a reliable choice for professional and hobbyist projects alike.

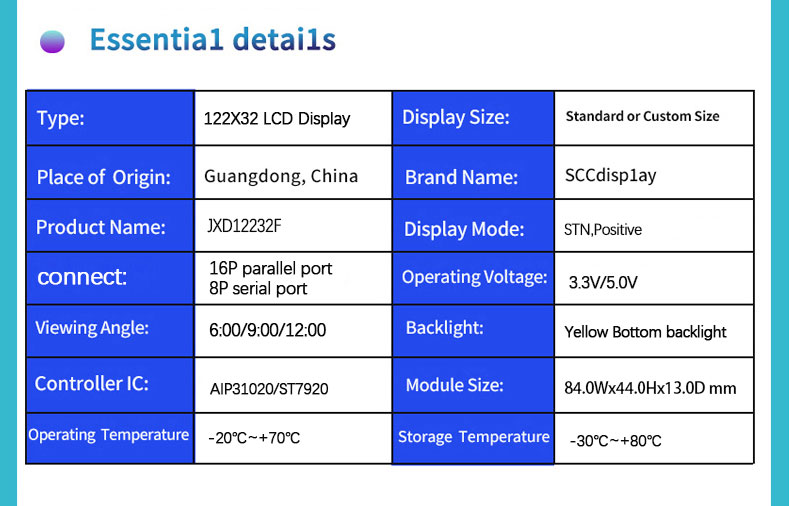

Parameters:
| Character Type | 122X32 |
| Model | JXD12232F |
| Model Size | 84.0×44.0×13.0 MM |
| VA Size | 60.5×18.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7920/AIP31020
|
|
Backlight
|
Yellow Bottom backlight
|
|
LCD Type
|
STN Positive
|
|

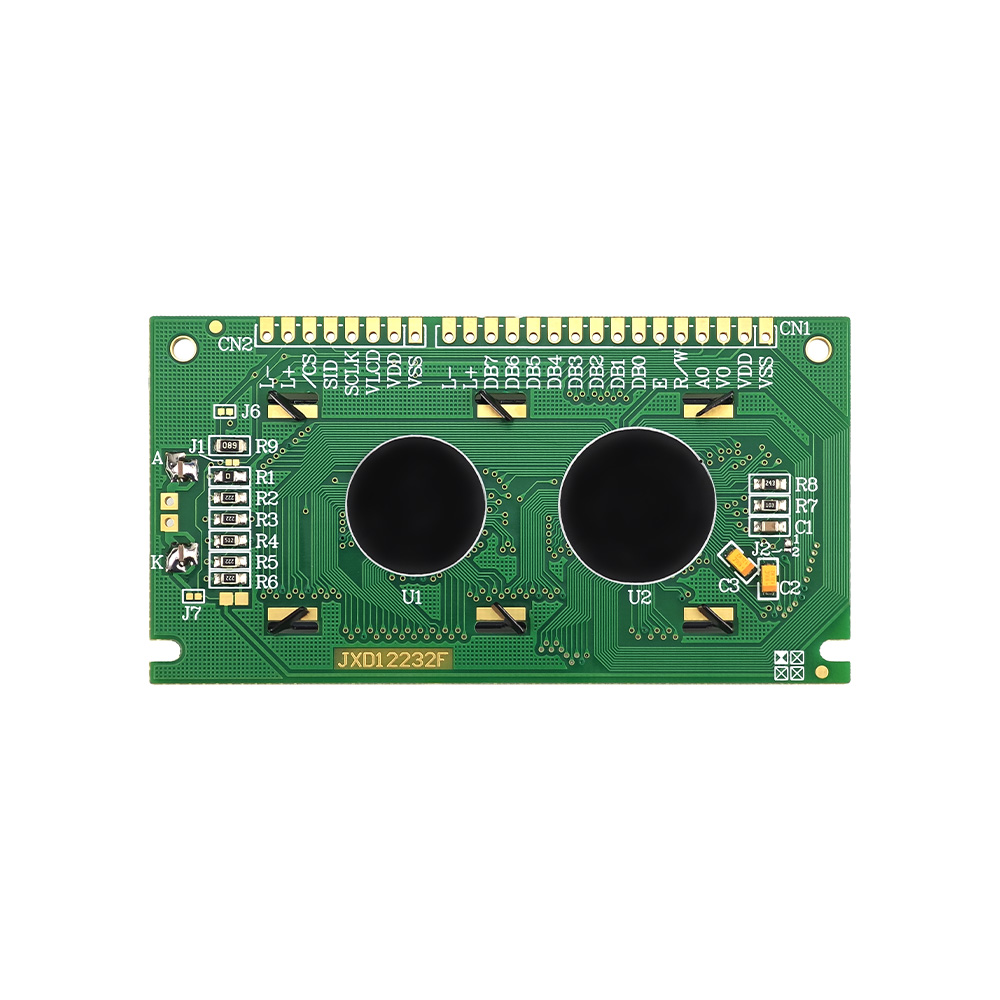

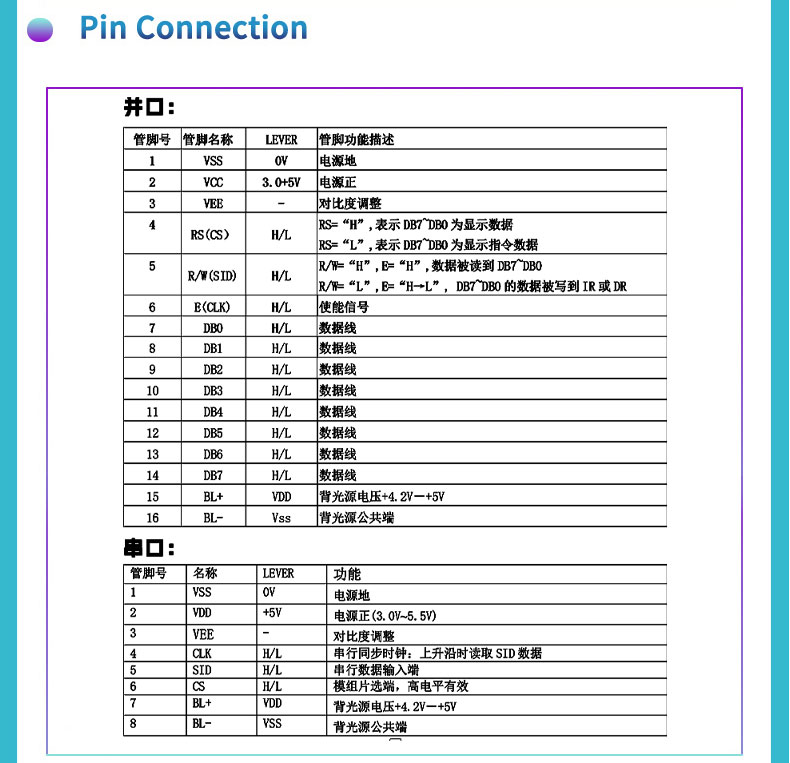

Interface
|
16P parallel/8P serial port |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

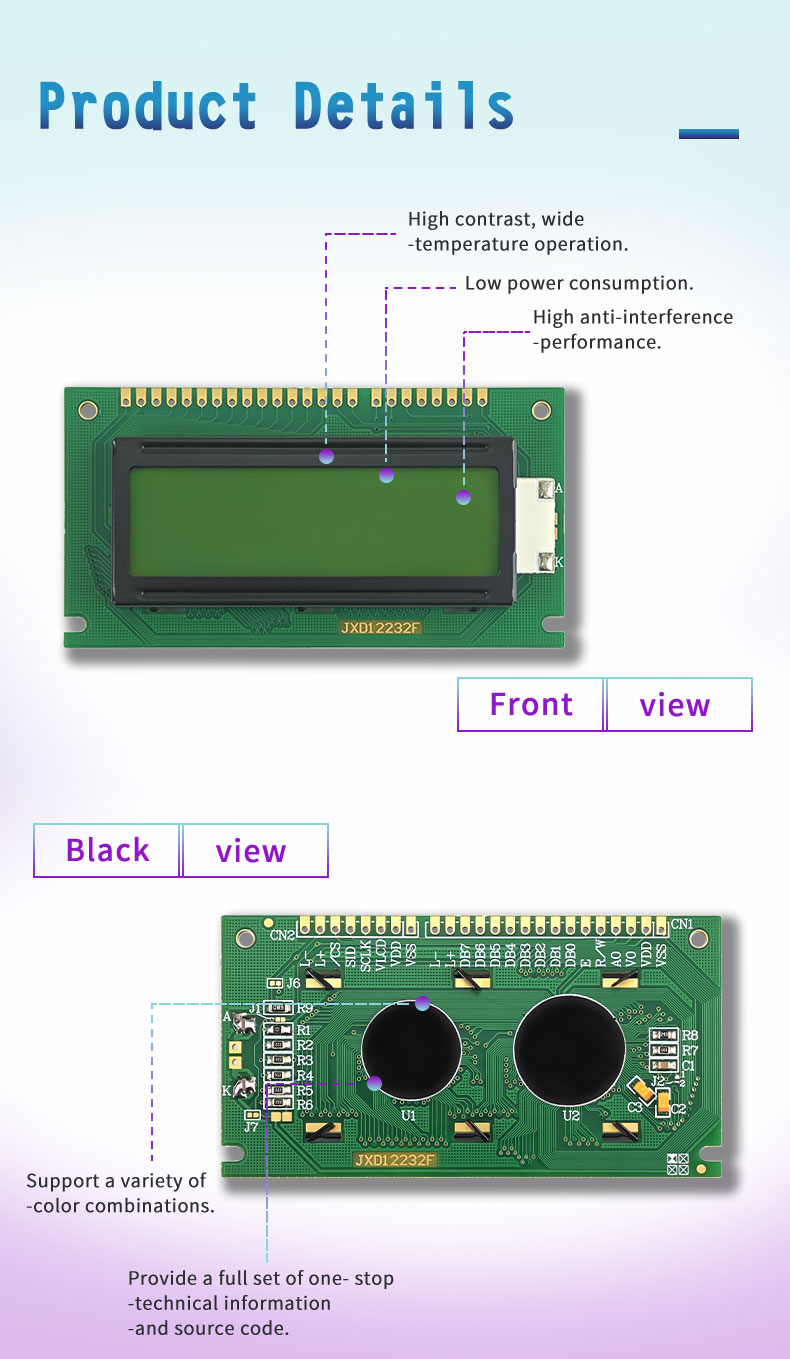

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
The 12232 LCD Display Screen boasts a resolution of 122×32 pixels, delivering crisp text and graphical output. It supports standard interface protocols such as SPI and I2C, allowing seamless integration with popular microcontrollers, including Arduino, STM32, and other embedded platforms. The display operates on low voltage, ensuring energy-efficient operation for battery-powered or low-consumption systems. Its fast response time and high contrast enable clear visual feedback in real-time monitoring or interactive applications. The module also supports custom character sets and graphics, providing flexibility for diverse project requirements.
Design Features
This LCD display module is engineered for durability and ease of implementation. The JXD12232F features an integrated driver IC that reduces external component requirements and simplifies hardware connections. Its lightweight yet sturdy construction ensures reliability in portable or industrial environments. The module's design allows quick mounting on panels or enclosures, while the wide viewing angle and uniform backlight provide consistent readability from multiple perspectives. Developers can use existing software libraries to implement menus, indicators, and graphical interfaces efficiently, reducing development time.
Applications
The 12232 LCD Display Screen is widely used in industrial equipment, control panels, measurement instruments, home automation devices, and embedded electronic projects. Its clear visual output, low power requirements, and compact form factor make it suitable for devices requiring efficient status display, user interaction, and real-time monitoring. It is also ideal for prototyping and commercial product deployment where space and readability are critical factors.

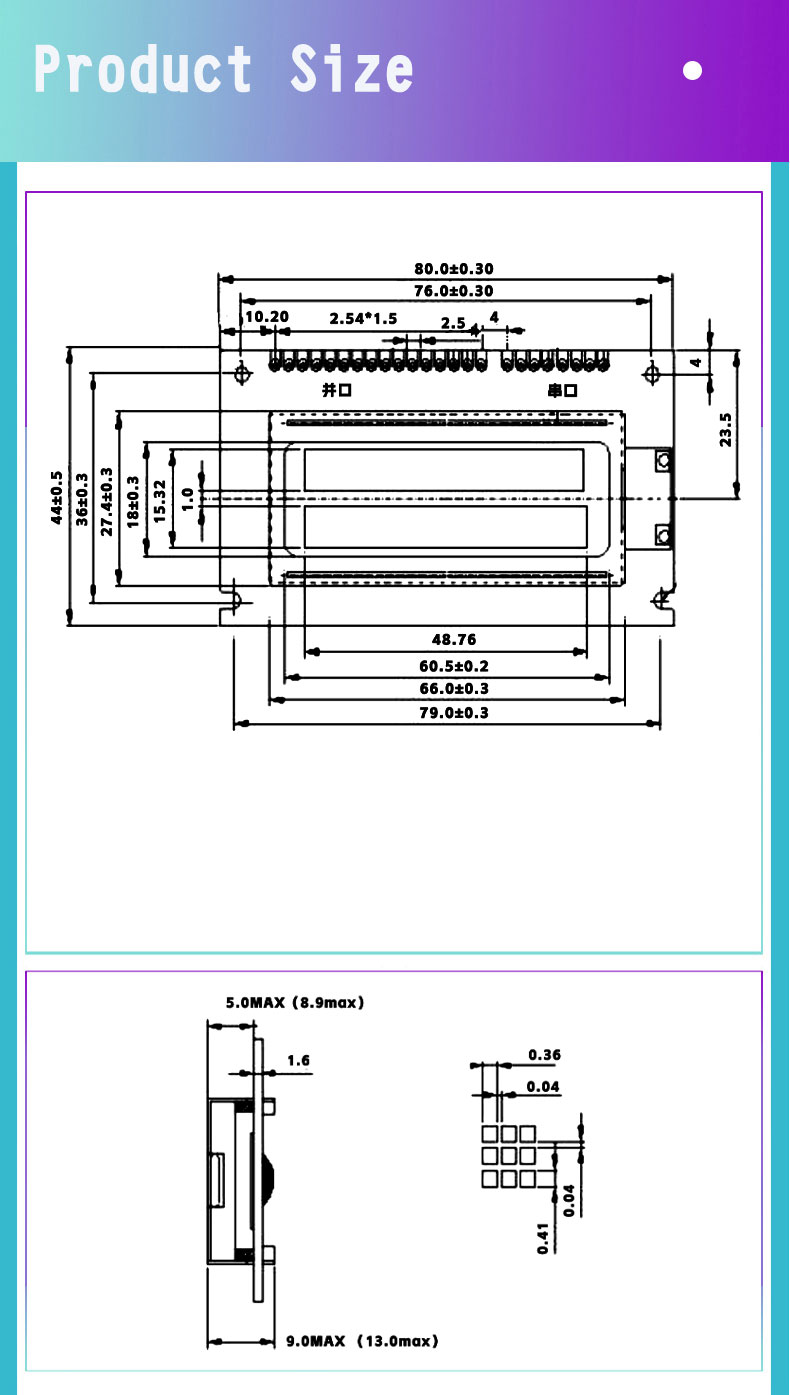

Product Size
