Basic Information
The Graphic Dot Matrix Screen JXD12232B is a compact monochrome LCD display module designed for embedded electronic systems that require stable graphical output, low power consumption, and reliable long-term operation. It utilizes dot matrix display technology to present structured visual information, including text, numbers, symbols, and simple interface graphics. This makes it suitable for industrial and commercial applications where consistent readability and dependable performance are essential.

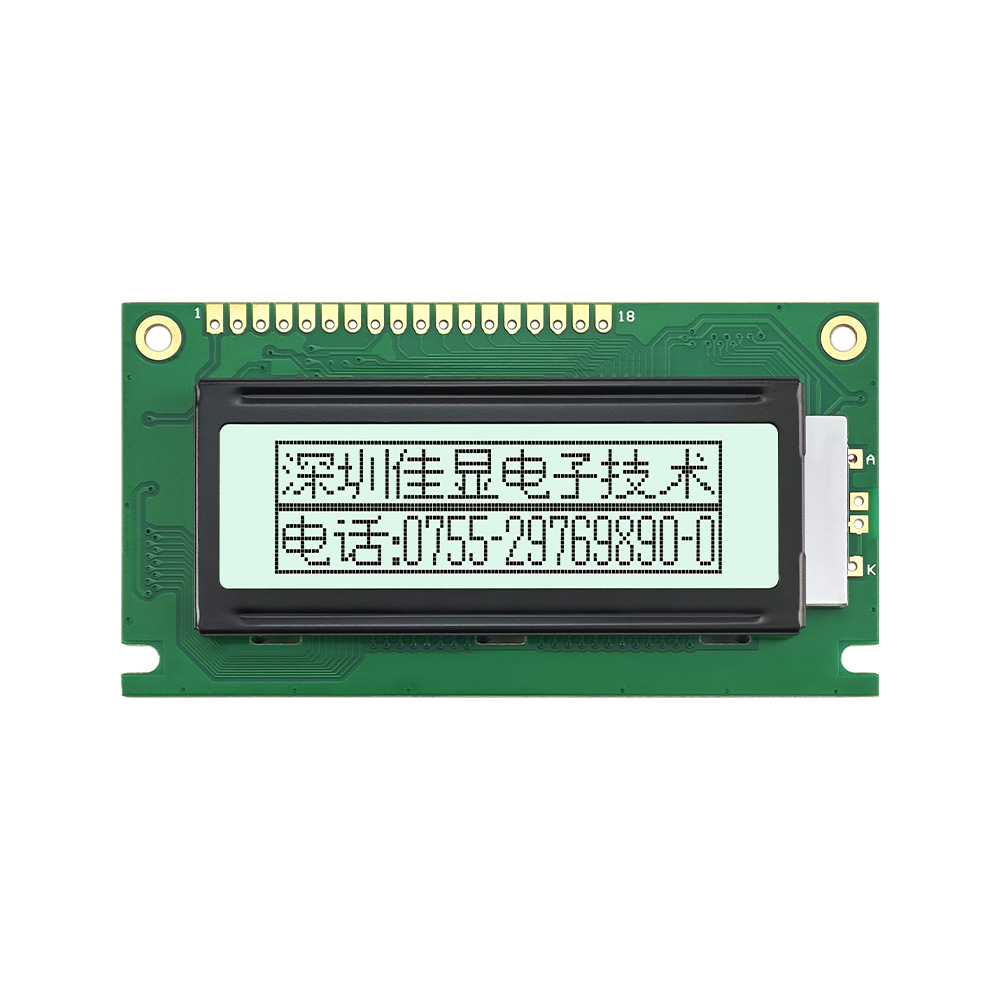

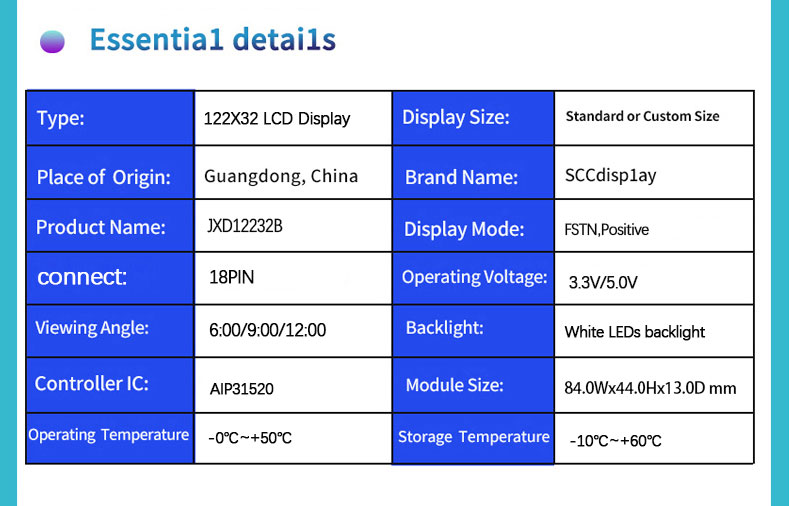

Parameters:
| Character Type | 122X32 |
| Model | JXD12232B |
| Model Size | 84.0×44.0×13.0 MM |
| VA Size | 60.5×18.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
AIP31520
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
FSTN Positive
|
|
Interface
|
18PIN |
| Working Temperature |
-0°C - +50°C
|
|
Storage Temperature
|
-10°C - +60°C |

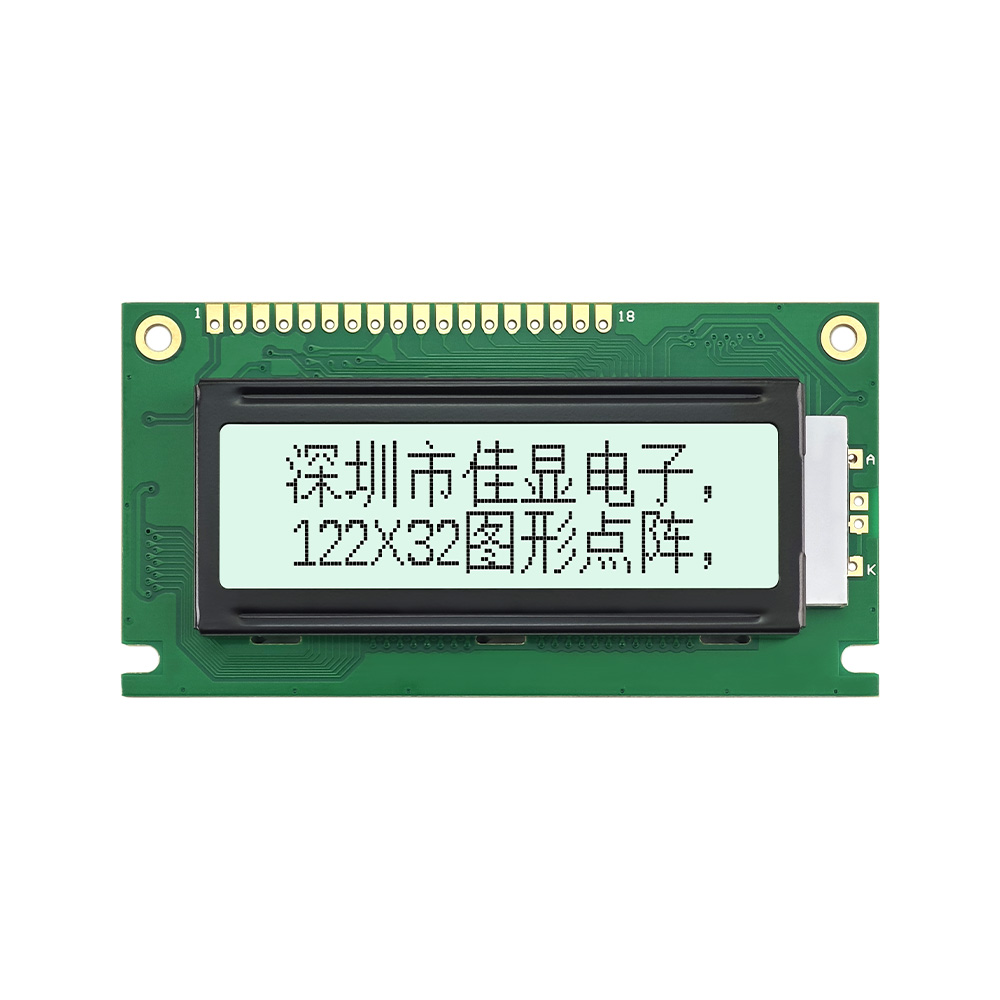

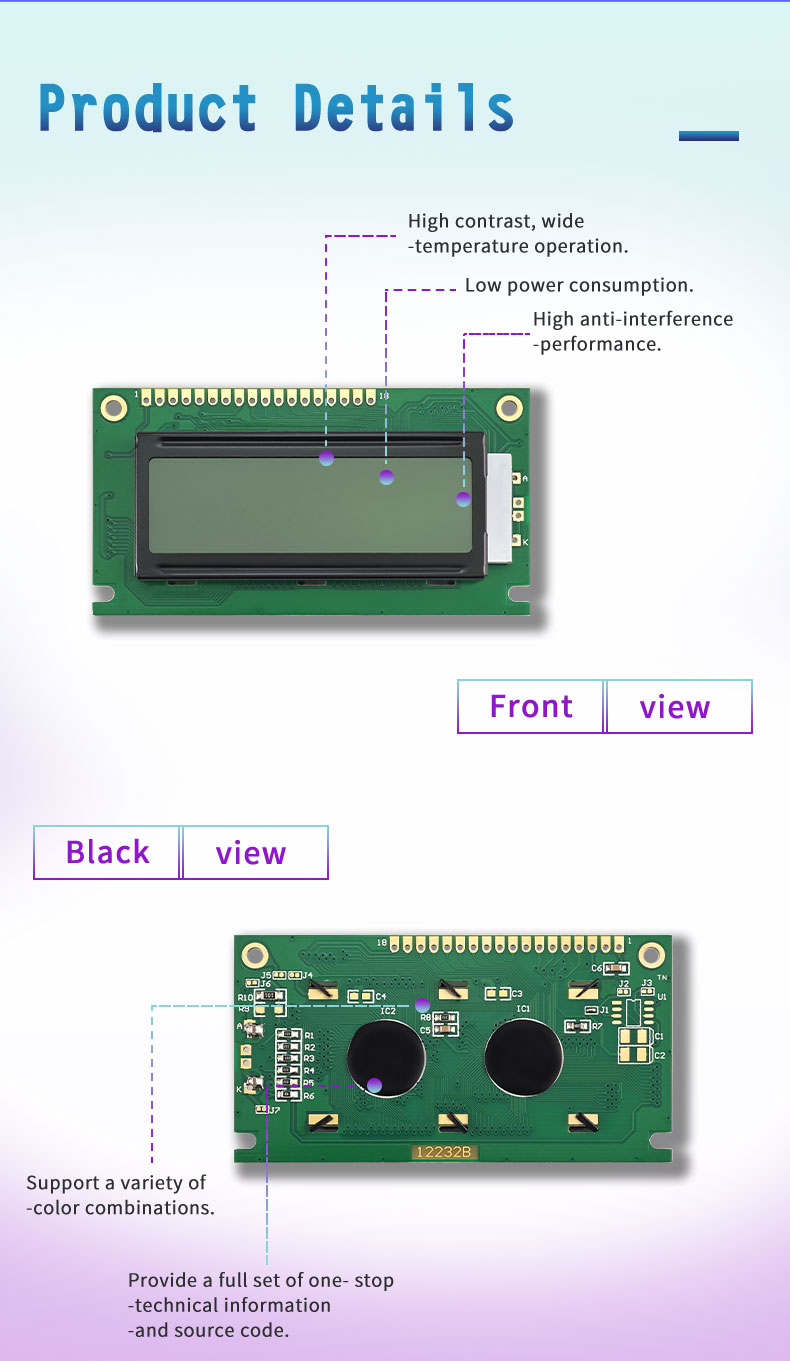

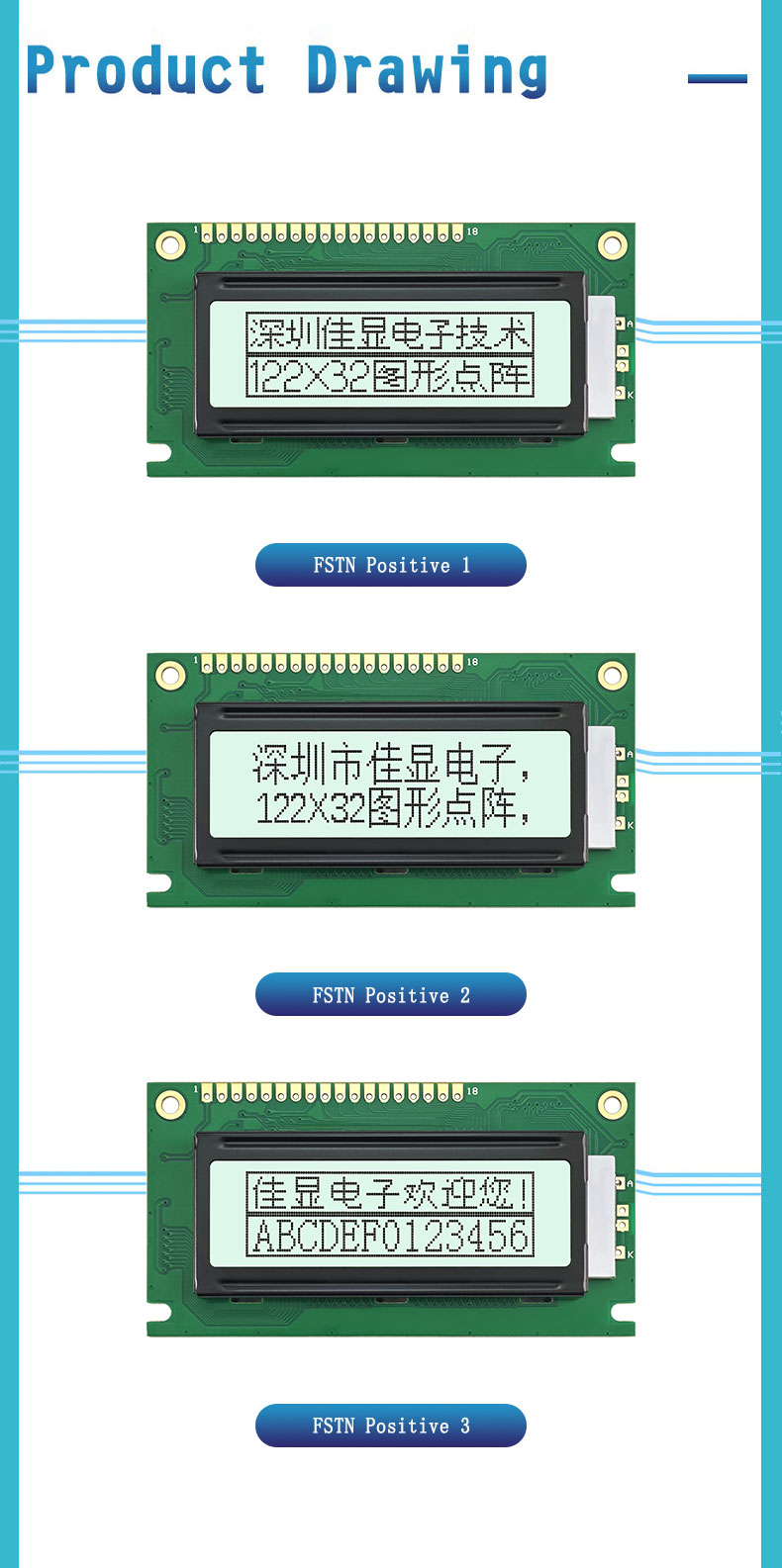

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
This Graphic Dot Matrix Screen features a 122×32 dot matrix resolution, enabling efficient rendering of alphanumeric data and basic graphical elements. The compact resolution is optimized for space-constrained applications while maintaining clear and legible output. The LCD structure ensures stable contrast performance and consistent visual clarity under various lighting conditions. It operates with low power consumption, making it suitable for battery-powered devices and continuously running embedded systems. The module supports stable refresh behavior, ensuring smooth updates of displayed content without flicker or distortion. Its compact mechanical design allows easy integration into industrial controllers, communication equipment, instrumentation devices, and embedded terminals. The display maintains reliable performance across a wide operating temperature range, ensuring stable operation in different environmental conditions. Uniform pixel alignment and controlled liquid crystal response contribute to accurate and consistent visual output.
Design Standards
The module is manufactured under strict LCD engineering standards to ensure durability, stability, and long-term reliability. High-quality liquid crystal materials are used to achieve uniform optical performance and stable contrast characteristics. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in embedded applications. The structural design supports compact integration while maintaining mechanical strength and thermal stability. Each unit undergoes comprehensive inspection for pixel accuracy, display uniformity, brightness consistency, and electrical reliability. Energy-efficient design principles are applied to reduce power consumption while maintaining stable operation over extended usage cycles. Quality control processes ensure consistent performance across production batches.
Applications
The Graphic Dot Matrix Screen is widely used in industrial automation systems, smart meters, medical devices, communication equipment, embedded controllers, and instrumentation panels. It is also suitable for monitoring systems, testing instruments, security devices, and portable electronic products. Its combination of compact structure, stable dot matrix output, and low-power operation makes it an effective solution for embedded display applications requiring clear and efficient visual communication in demanding environments.

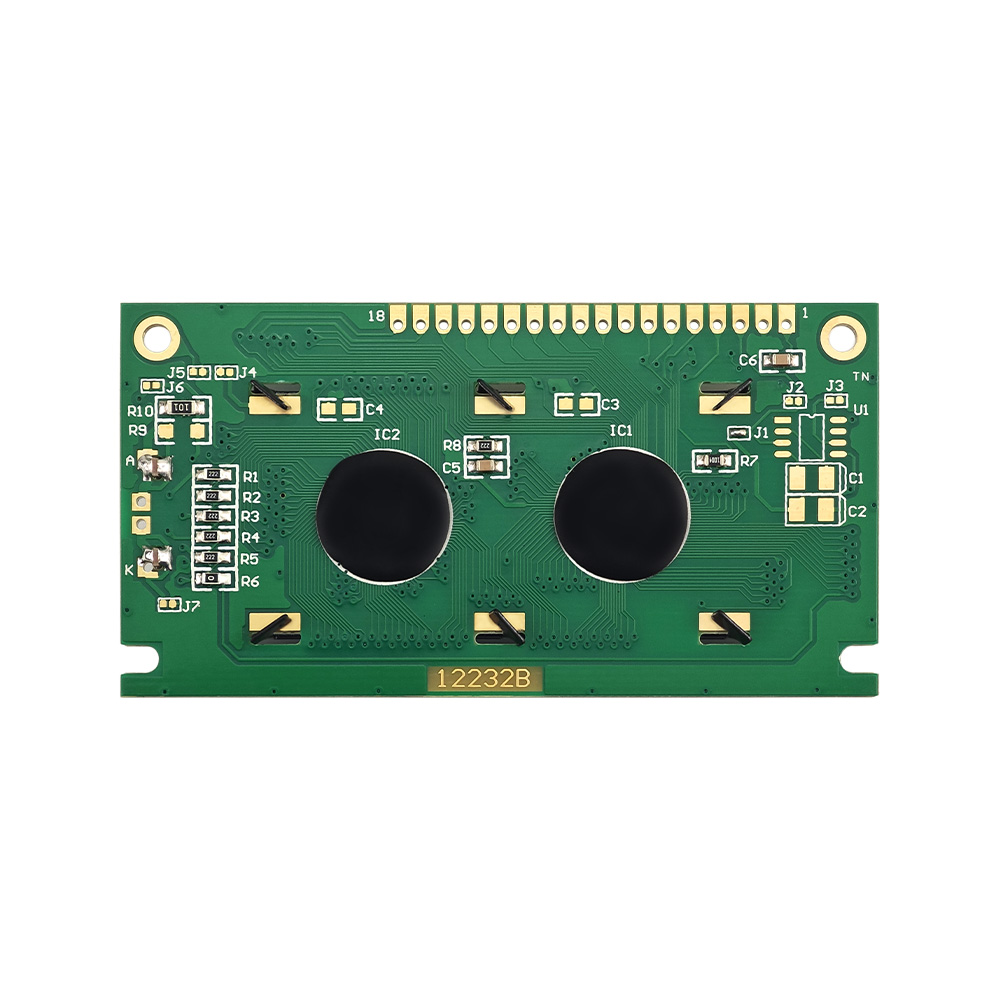

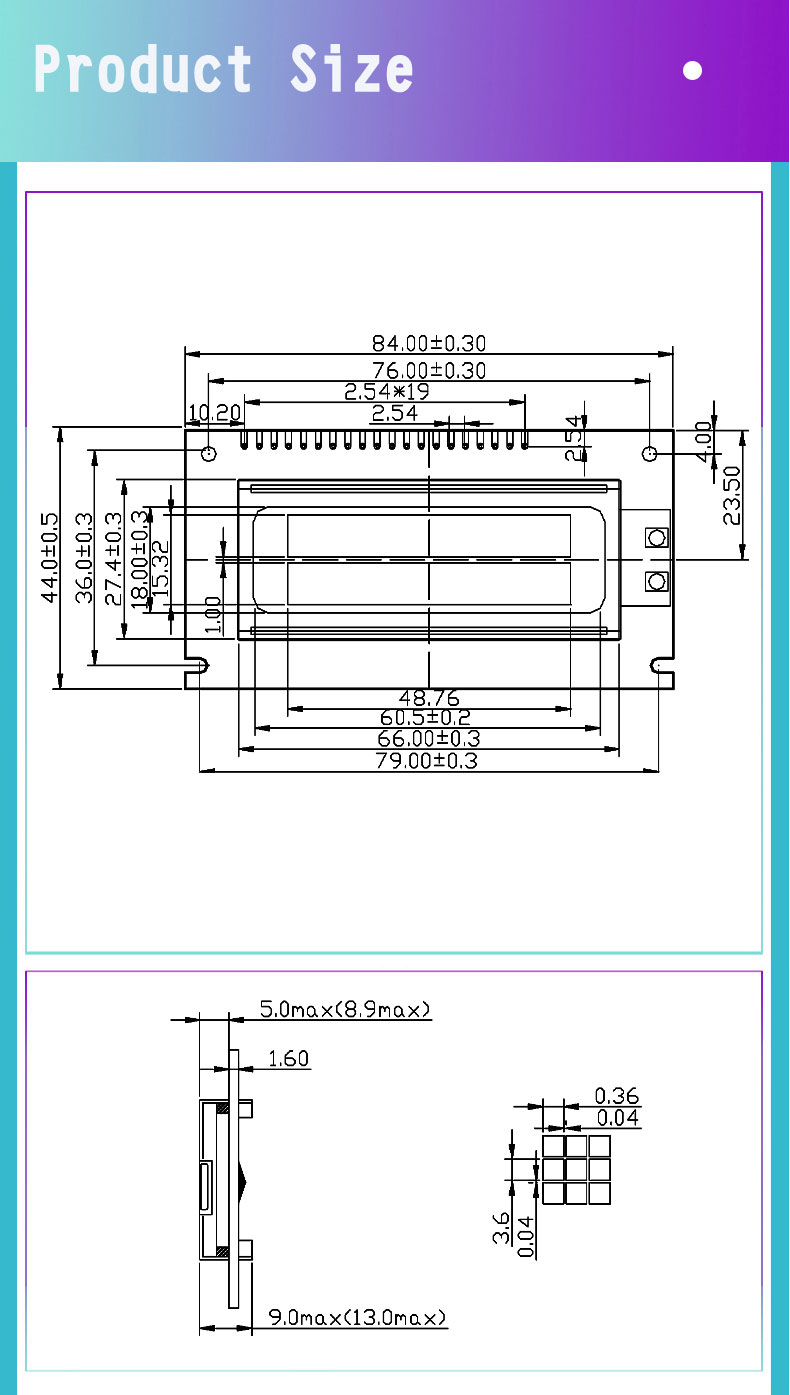

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
