Basic Information

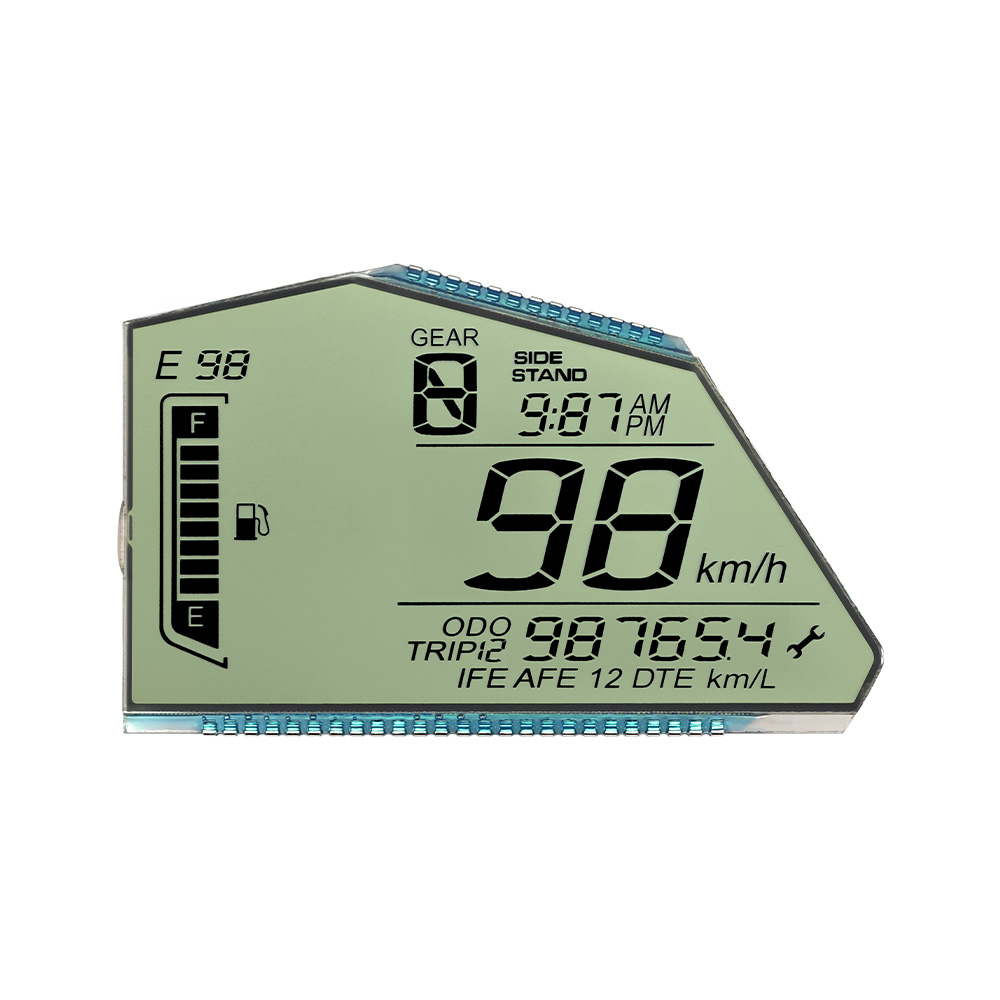

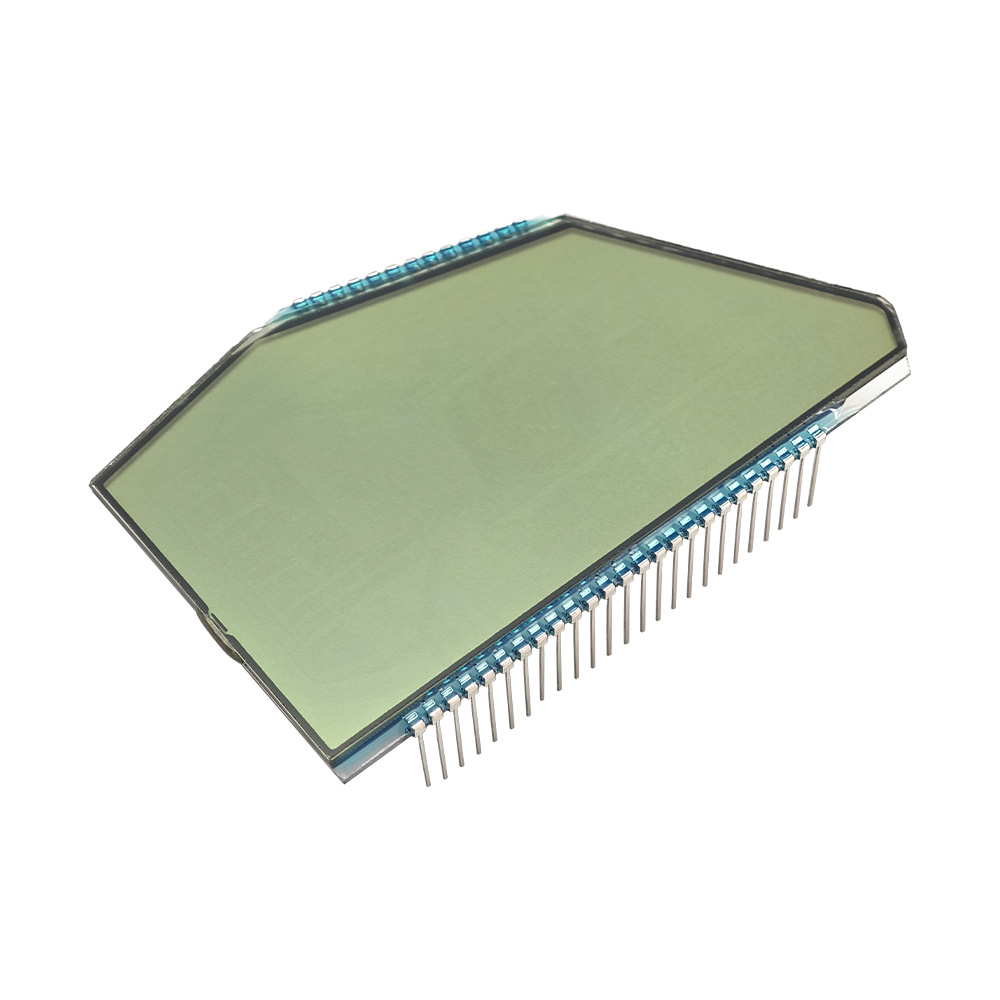

The Non Standard Segment SJXDGW055 is a customized segmented LCD display solution designed for specialized electronic applications that require unique layouts beyond conventional segment structures. It is engineered to support flexible display patterns, making it ideal for devices that demand customized numeric, icon, or symbol arrangements. Built for reliability and low power consumption, this display ensures stable performance in both industrial and consumer electronic environments where standard segment configurations are not sufficient.
Parameters:
| Character Type | Customized |
| Model | SJXDGW055 |
| Model Size | 91.5×57.0×2.8 mm |
| VA Size | 88.5×51.5 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
4.0V |

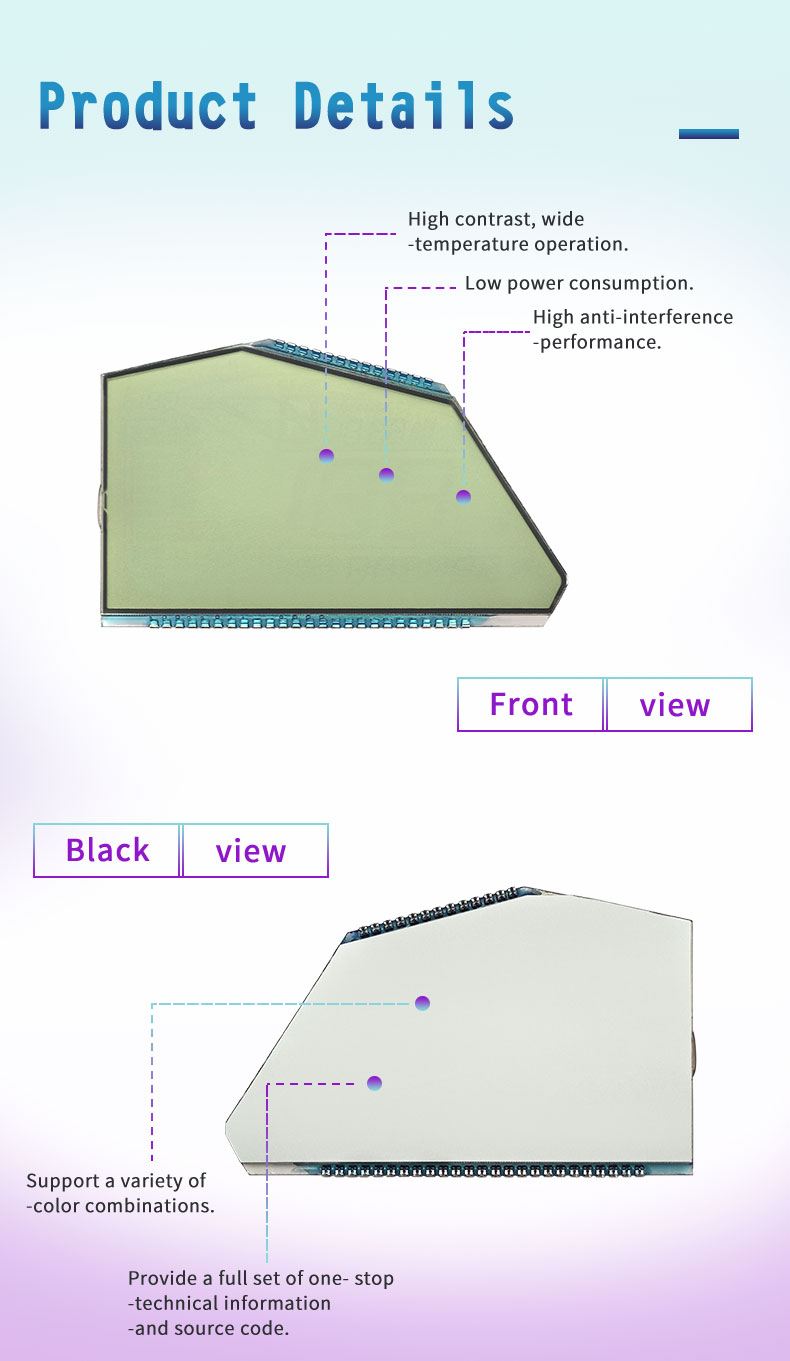

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Non Standard Segment display features a customized segmented architecture that allows tailored visual layouts based on application requirements. It provides high-contrast output to ensure clear visibility of digits and icons under different lighting conditions. The module operates at low voltage levels, making it suitable for energy-efficient and battery-powered devices. It is designed for stable electrical performance with minimal power consumption, supporting long-term operational use. The display is engineered to function reliably across wide temperature ranges, ensuring consistent performance in various environmental conditions. Its flexible segmentation design allows integration into complex interface layouts and non-traditional display structures. The compact form factor supports easy integration into space-limited electronic systems.
Design Standards
The module is manufactured according to strict industrial-grade quality and customization standards to ensure durability and stable performance. The segmented structure is optimized for flexible layout implementation while maintaining uniform optical clarity. High-quality LCD materials are used to ensure consistent display performance and resistance to environmental stress such as temperature variation and vibration. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission during continuous operation. The product follows low power design principles to enhance energy efficiency and extend device lifespan. Each unit undergoes rigorous testing to ensure reliable performance under long-term use and diverse operating conditions.
Applications
The Non Standard Segment display is widely used in customized industrial equipment, medical instruments, smart appliances, automotive dashboards, and specialized control systems. It is also suitable for consumer electronics requiring unique display layouts and compact interface designs. Its combination of flexibility, reliability, and low power consumption makes it an ideal solution for applications requiring non-standard visual representation and customized segmented LCD performance.

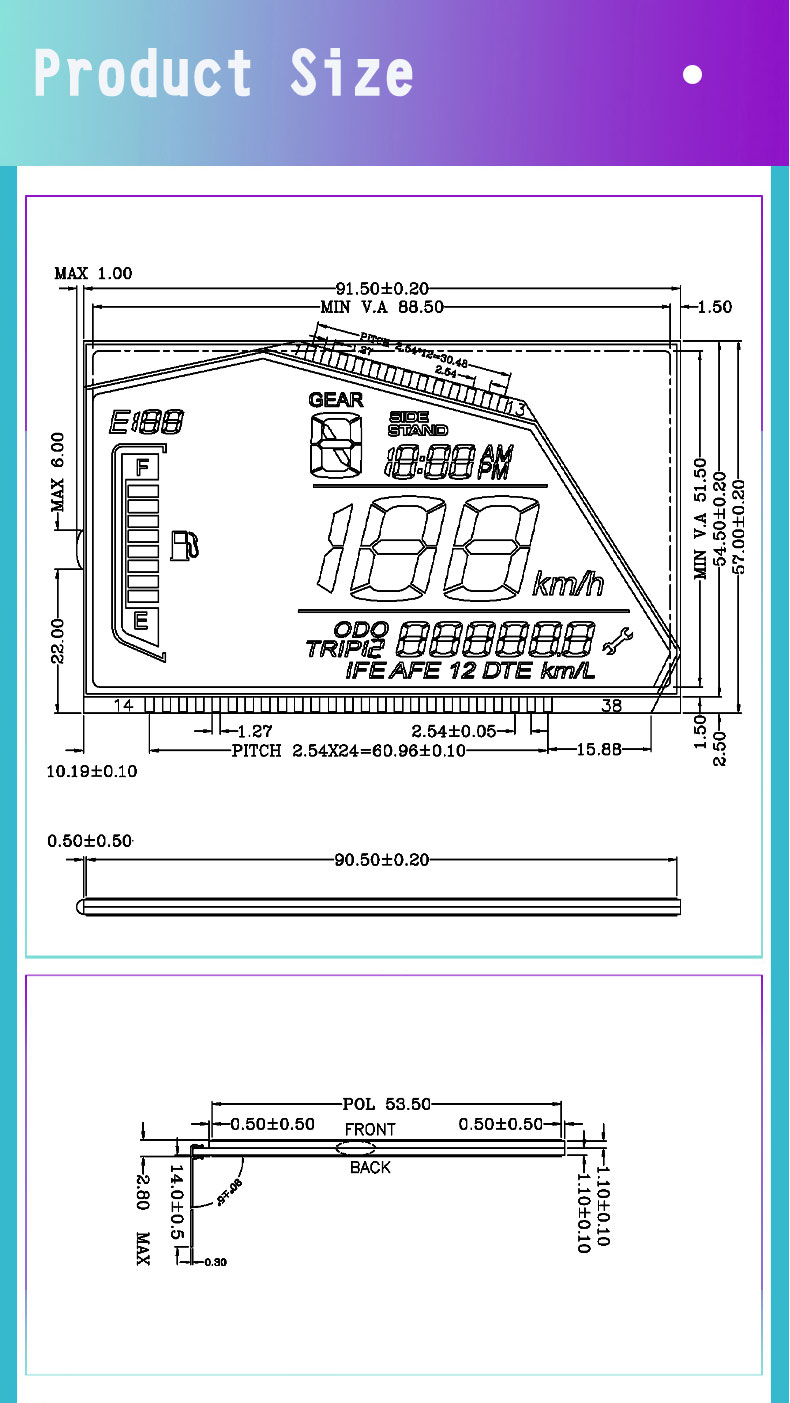

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
