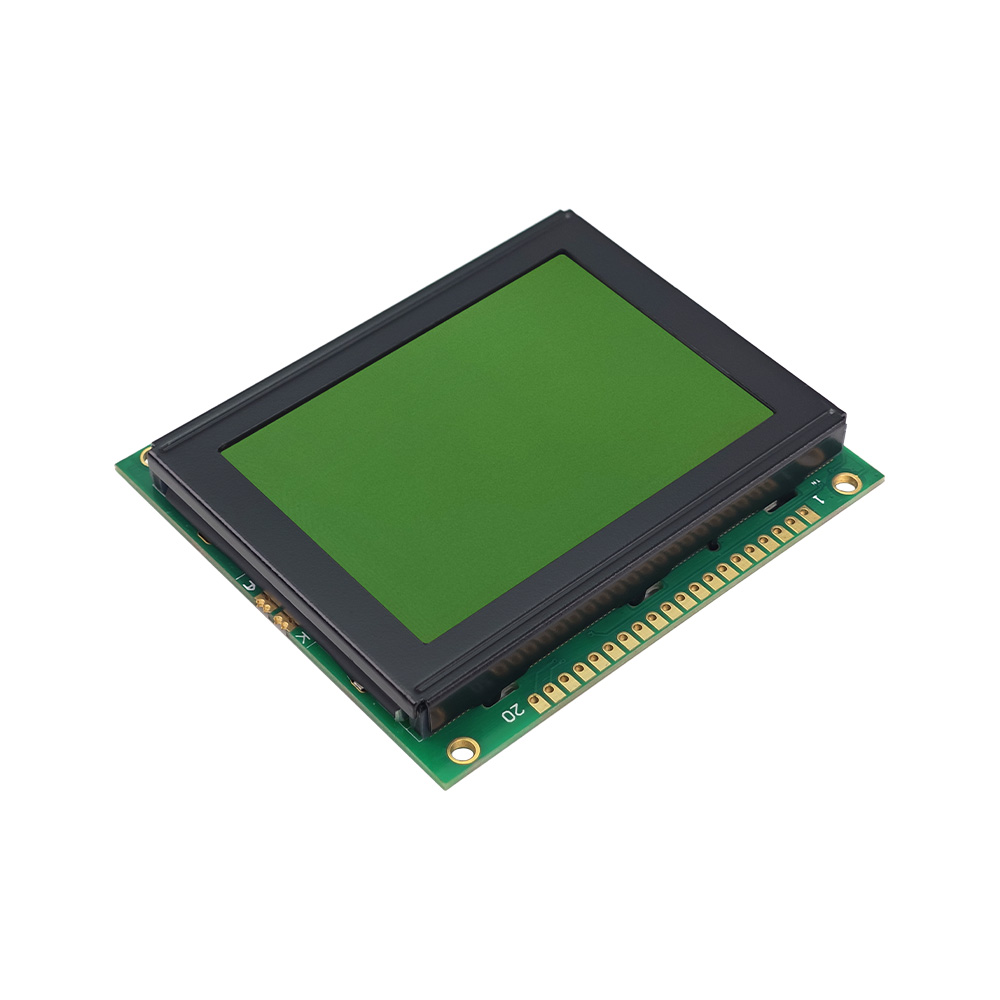

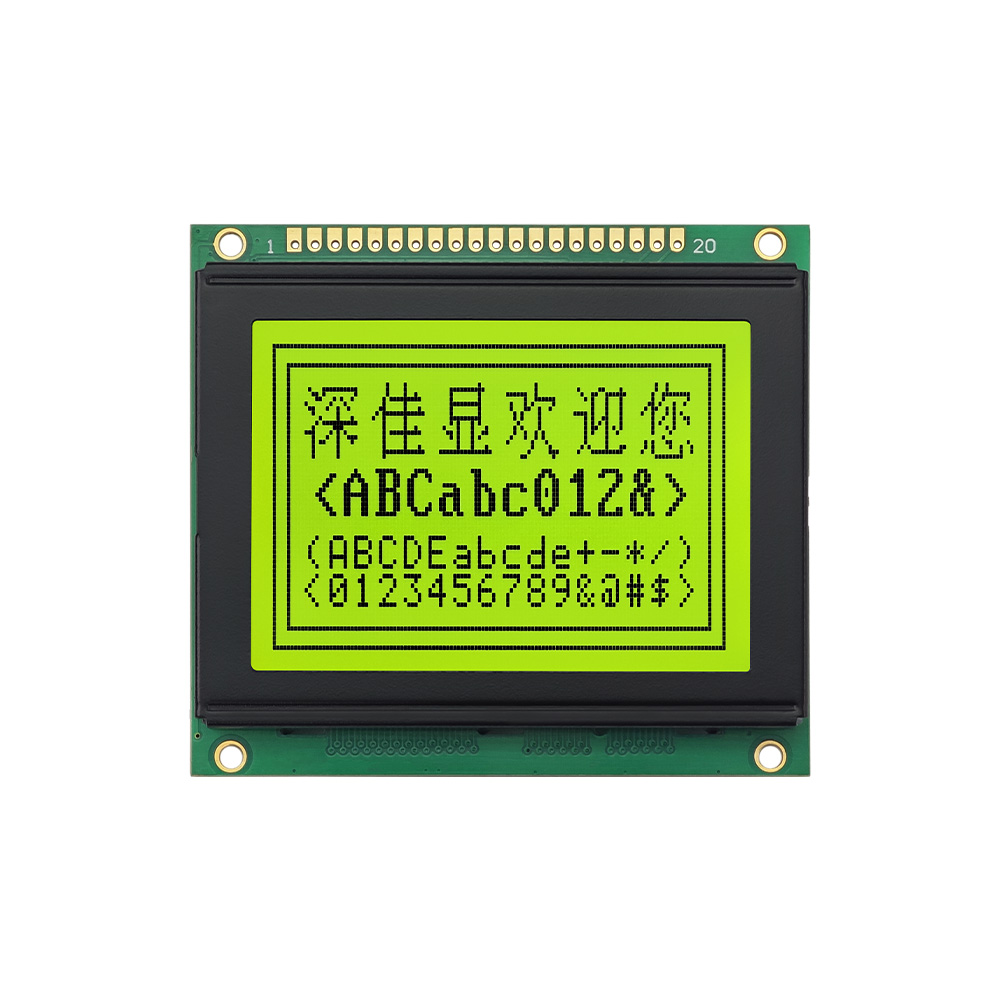

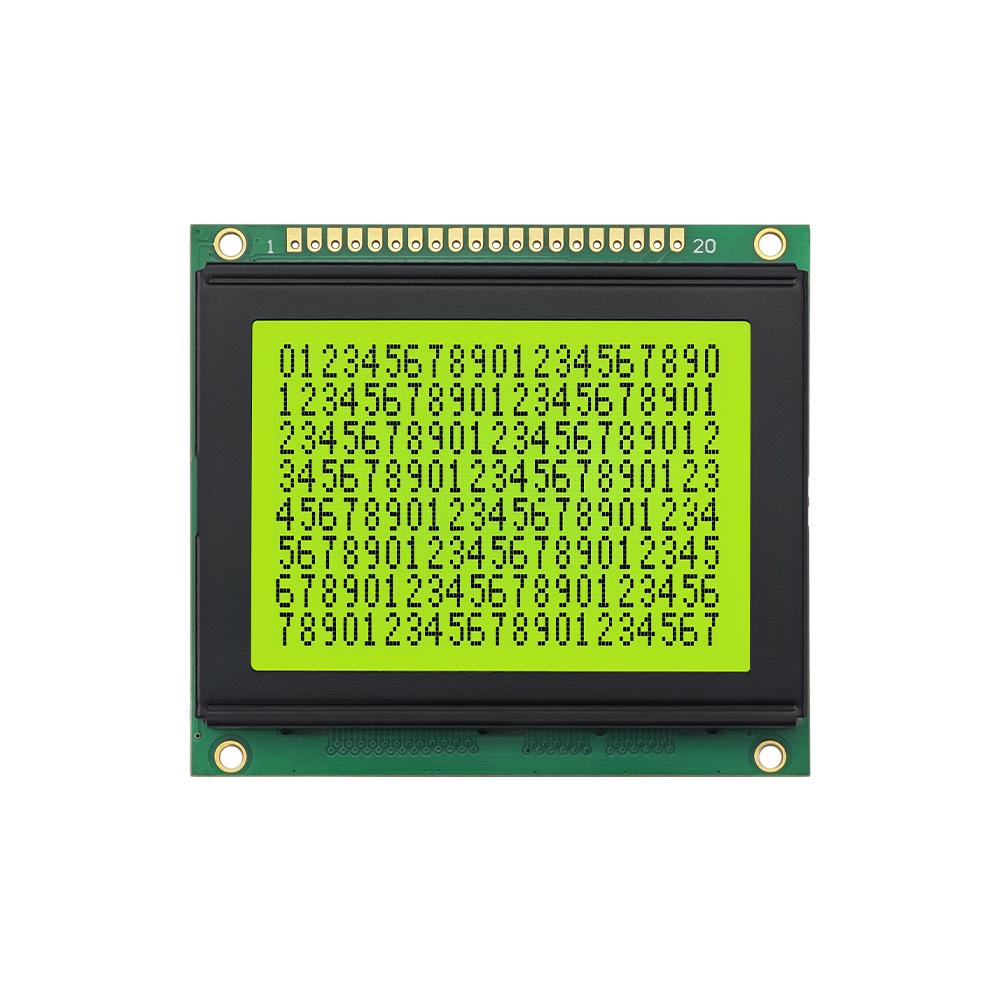

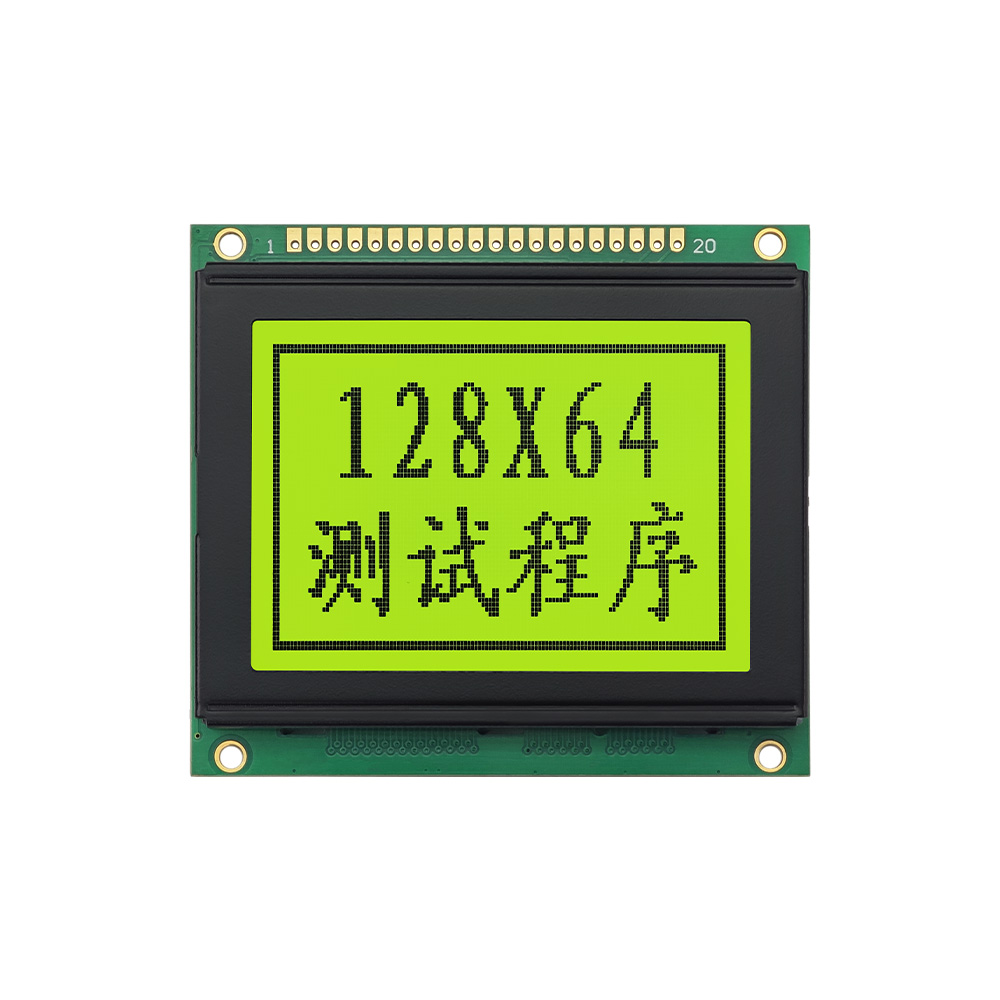

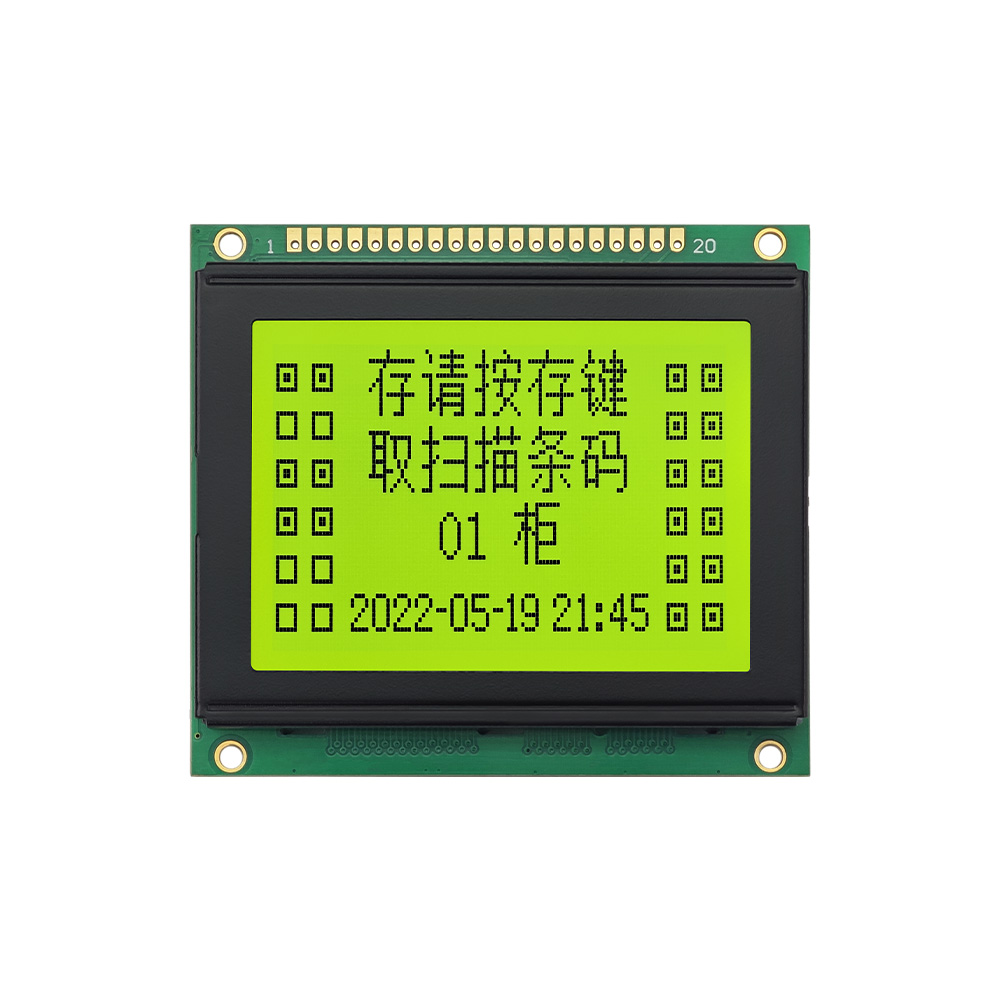

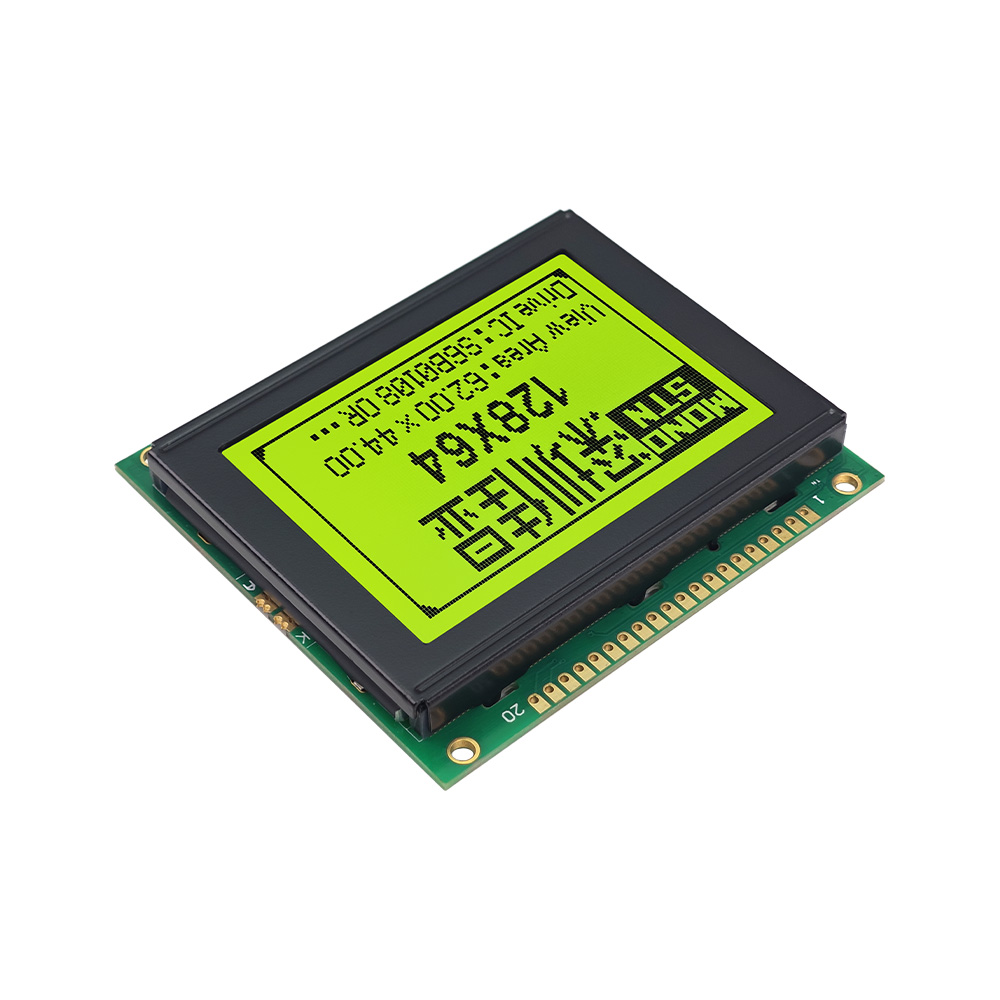

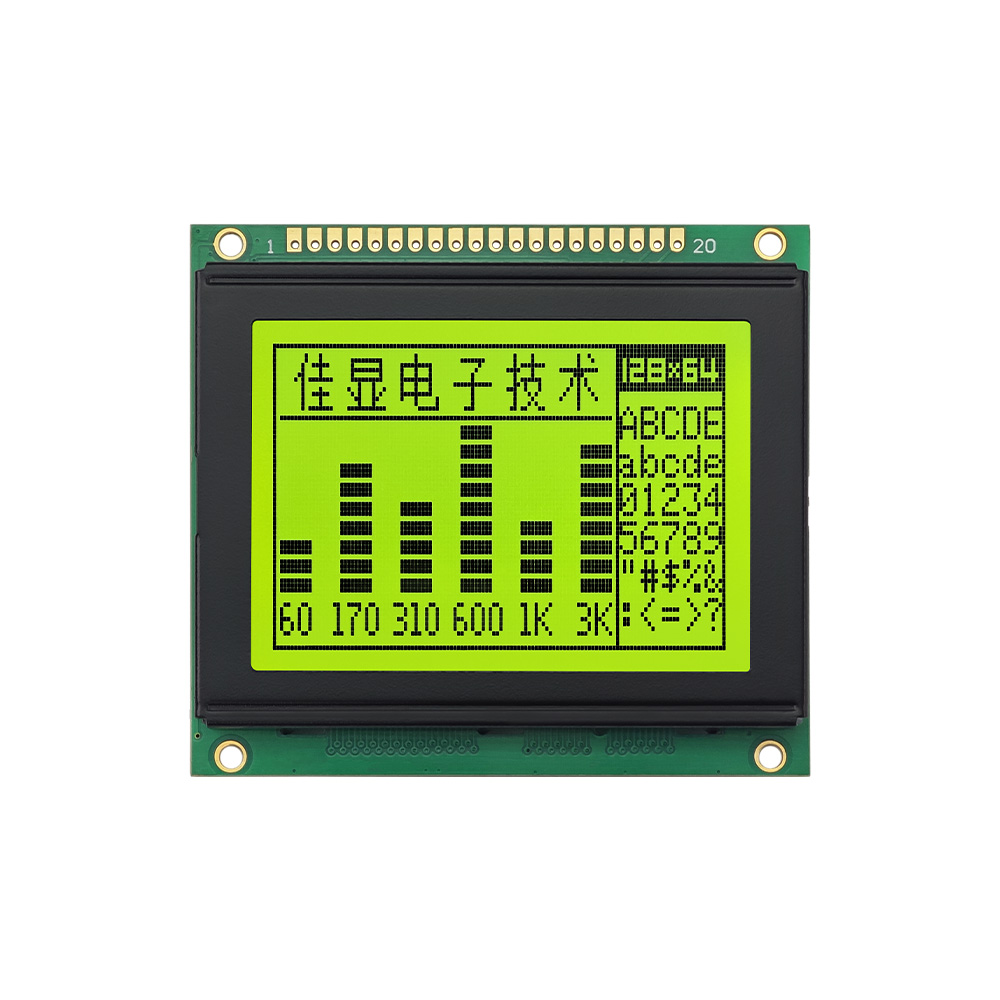

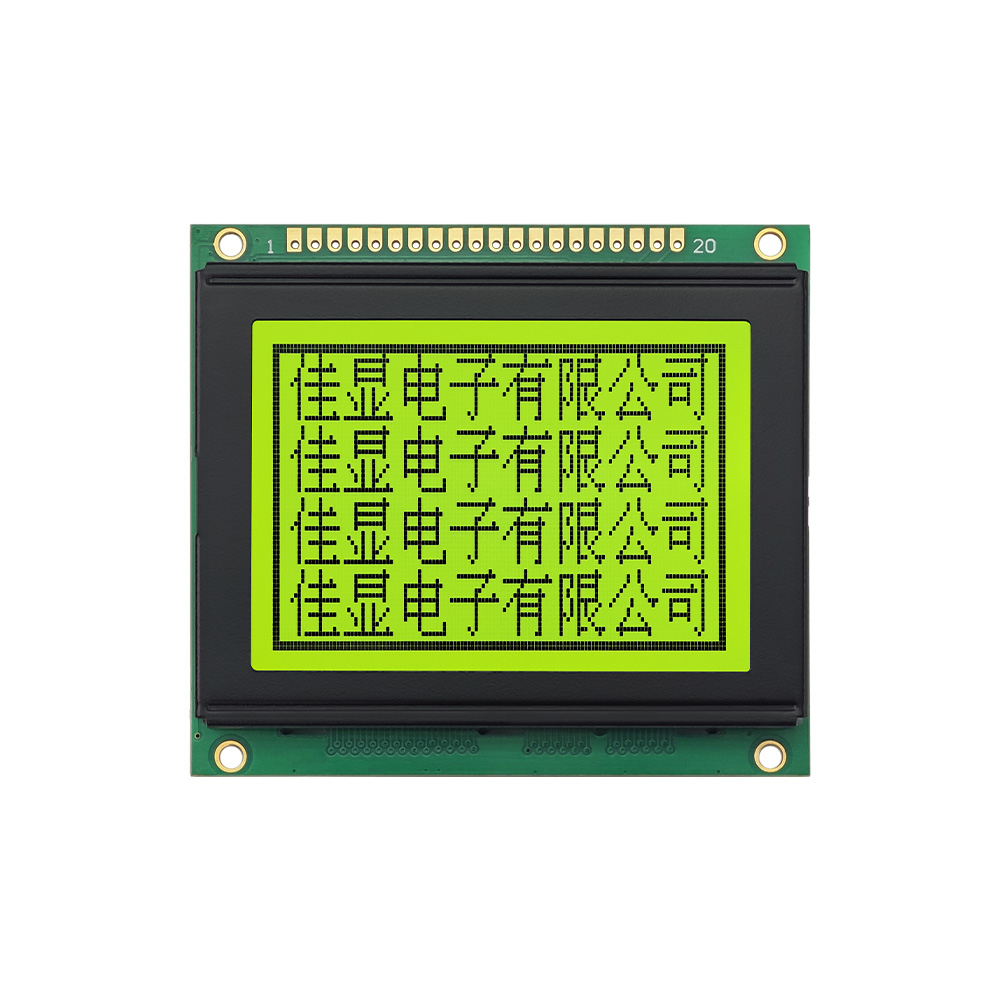

12864 LCD - JXD12864C18（STN Positive）

12864 LCD is a monochrome graphic display module featuring a 128×64 dot matrix resolution, capable of presenting both text and complex graphics with high clarity. It offers wide viewing angles, low power consumption, and stable performance, making it ideal for use in industrial equipment, instruments, communication devices, and embedded systems. This display supports multiple interfaces such as parallel or SPI, ensuring easy integration with various microcontrollers. Its durable design and excellent readability under different lighting conditions make it suitable for demanding environments.

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

The 12864 LCD features a 128×64 pixel resolution that ensures sharp and consistent monochrome rendering. It supports standard communication interfaces such as SPI and parallel data transmission, enabling seamless integration with microcontrollers including Arduino, STM32, and PIC series. The display operates at low voltage, making it ideal for energy-efficient and battery-powered systems. Its high contrast ratio and wide viewing angles ensure stable visibility under different lighting conditions. The integrated driver IC reduces external component requirements and simplifies system design, improving overall reliability and development efficiency.

Design Standards

This LCD module is manufactured under strict industrial-grade quality standards to ensure durability and consistent performance. The PCB structure is designed for stable long-term operation in demanding environments. A uniform backlight system enhances readability in both bright and low-light conditions. Developers can easily implement graphical interfaces, menus, and data visualization screens using standard libraries, significantly reducing development time and engineering complexity. Its compact form factor allows flexible installation in various embedded system designs.

Applications

The 12864 LCD is widely used in industrial automation systems, medical devices, laboratory instruments, communication equipment, smart home controllers, and embedded electronic projects. It is particularly suitable for applications requiring stable graphical output, low power consumption, and reliable long-term operation. Engineers and designers prefer this module for both prototyping and mass production due to its ease of integration and consistent performance.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
