Basic Information
The Motorcycle LCD Segment Screen SJXDGW051 is a specialized display module designed for modern two-wheeler instrument clusters that require clear, stable, and energy-efficient visual output. It uses segmented LCD technology to present essential riding information in a simple and highly readable format. Built for durability and outdoor reliability, this display ensures consistent performance under vibration, temperature variation, and changing lighting conditions commonly encountered during motorcycle operation.
Parameters:
| Character Type | Customized |
| Model | SJXDGW051 |
| Model Size | 158.0×56.0×2.8 mm |
| VA Size | 155.0×51.0 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Negative |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-30C TO +80°C
|
| Storage Temperature |
-35°C TO +85°C
|
|
Working Voltage
|
4.0V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications

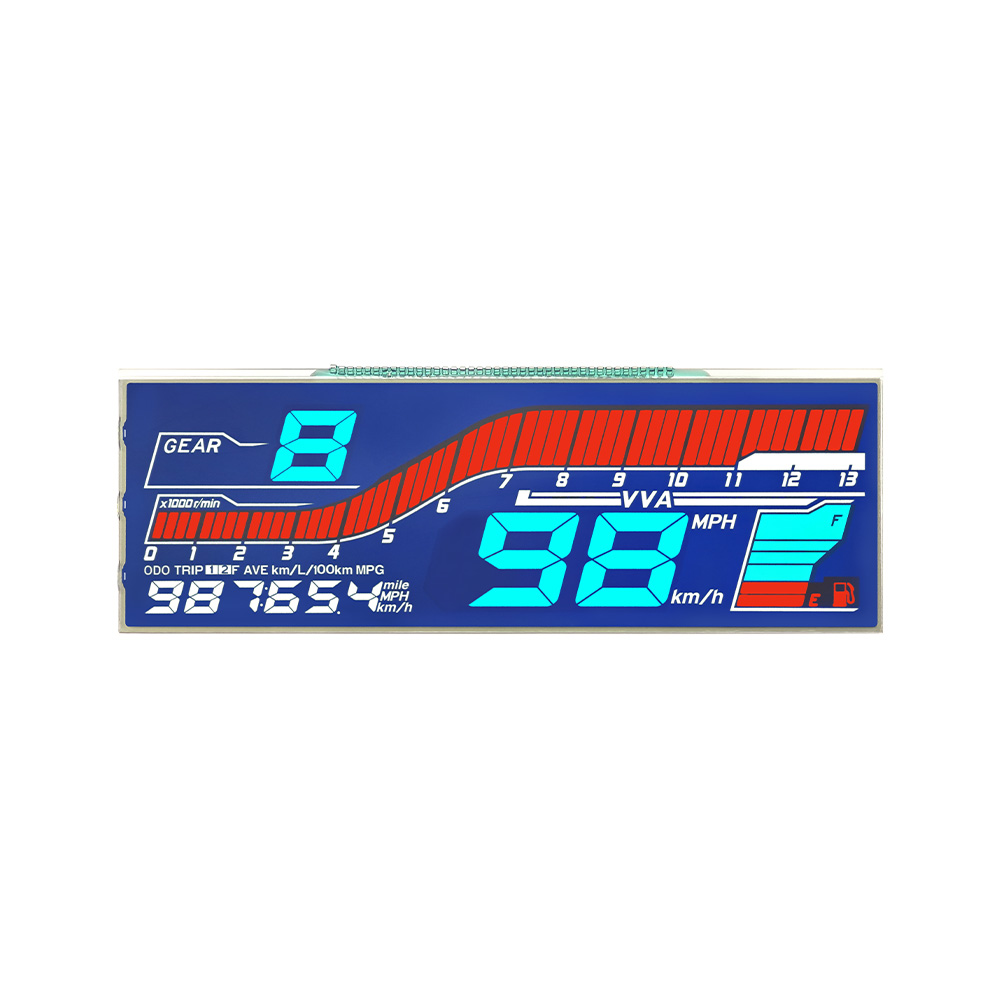

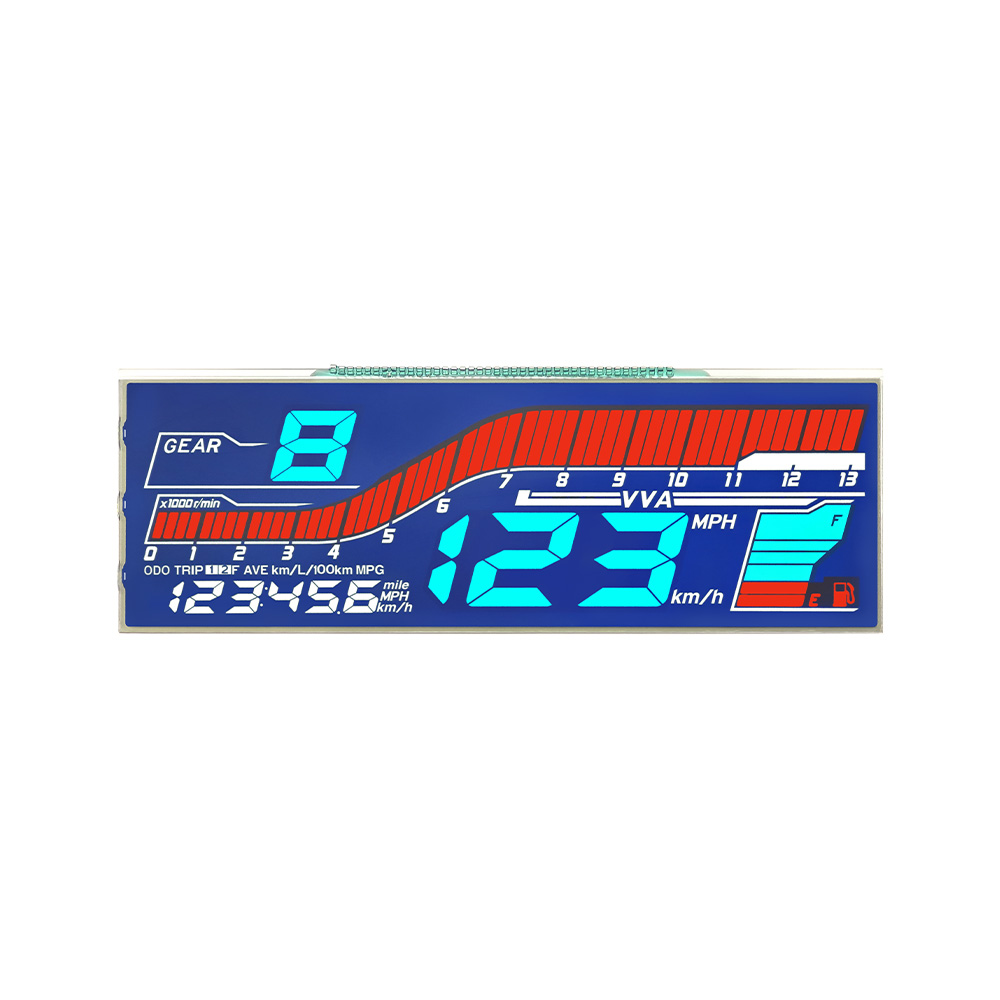

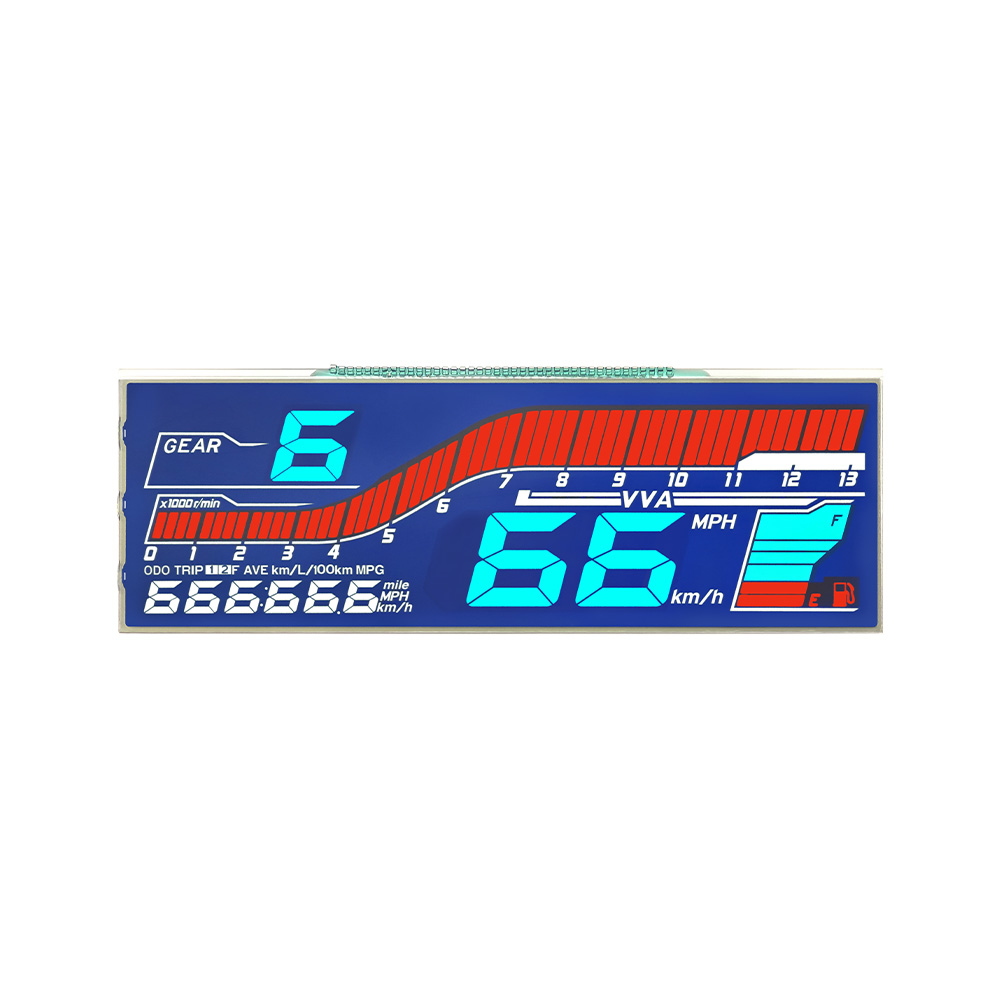

This motorcycle LCD segment screen features a segmented display architecture optimized for presenting speed, fuel level, gear position, and warning indicators with high clarity. The screen provides strong contrast performance to ensure readability in both bright sunlight and nighttime riding conditions. It operates with low power consumption, making it suitable for battery-powered vehicle systems without placing heavy load on the electrical system. The module supports stable communication with motorcycle electronic control units, enabling accurate real-time data updates. It is engineered to function reliably across a wide temperature range, ensuring consistent operation in diverse environmental conditions. The compact structure allows easy integration into modern motorcycle dashboards while maintaining a clean and functional layout.
Design Standards
The module is manufactured according to strict automotive-grade reliability and quality standards to ensure long-term stability and durability. Its internal structure is designed to withstand vibration, shock, and mechanical stress commonly experienced in motorcycle applications. Circuit design optimization reduces electromagnetic interference and ensures stable signal transmission during continuous operation. High-quality LCD materials are used to enhance optical performance, mechanical strength, and environmental resistance. The display undergoes rigorous testing to guarantee consistent operation over extended usage cycles. Energy-efficient design principles are applied to minimize power consumption while maintaining strong visibility and stable output performance.
Applications
The motorcycle LCD segment screen is widely used in motorcycles, scooters, electric bikes, and other two-wheeler vehicles. It is suitable for commuter transportation, recreational riding, and smart mobility systems. Its combination of clear segmented display output, durability, and low power consumption makes it an essential component for modern motorcycle instrument clusters requiring reliable performance and real-time riding information in all operating conditions.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
