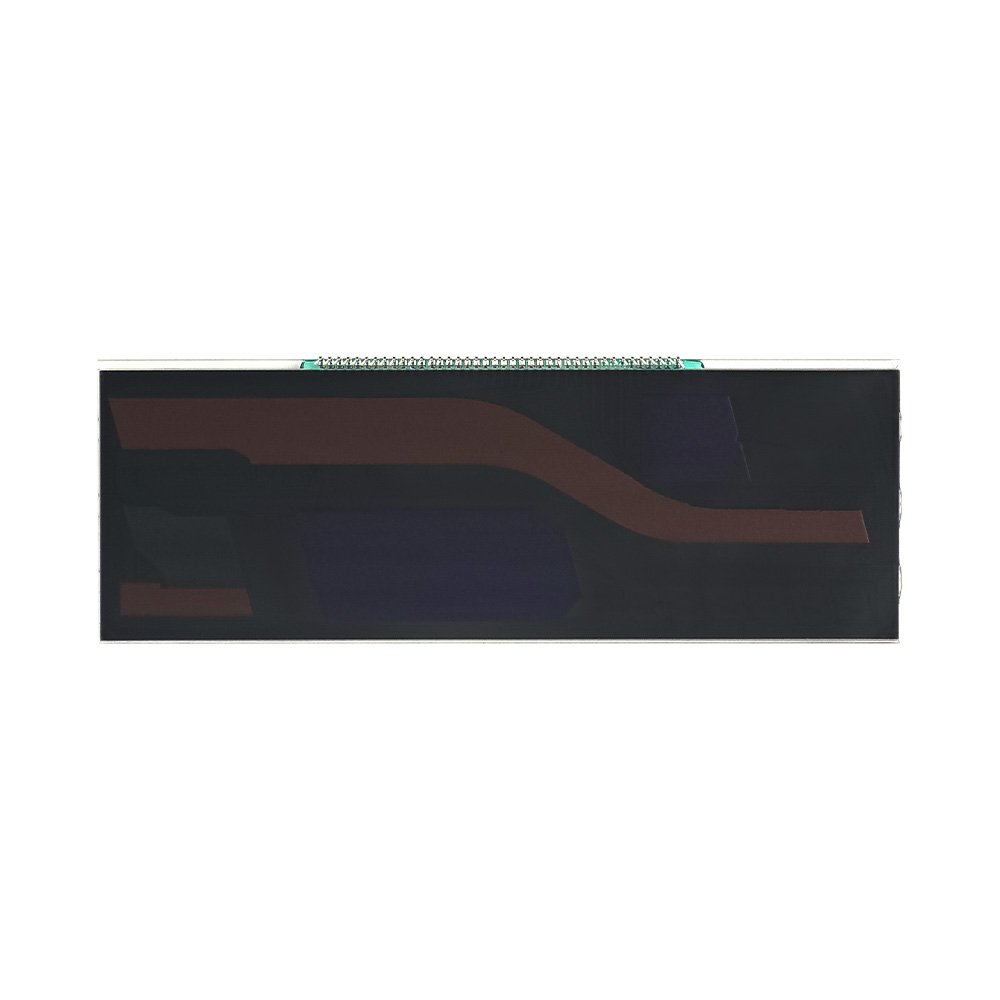

Basic Information
The 7 Segment Instrument SJXDGW050 is a compact and efficient numeric display solution designed for electronic measurement and control systems that require clear and stable data presentation. It utilizes a classic 7-segment structure to provide highly legible numerical output, making it ideal for devices where quick and accurate reading is essential. Engineered for reliability and low power consumption, this display is widely used in industrial, commercial, and portable electronic applications.
Parameters:
| Character Type | Customized |

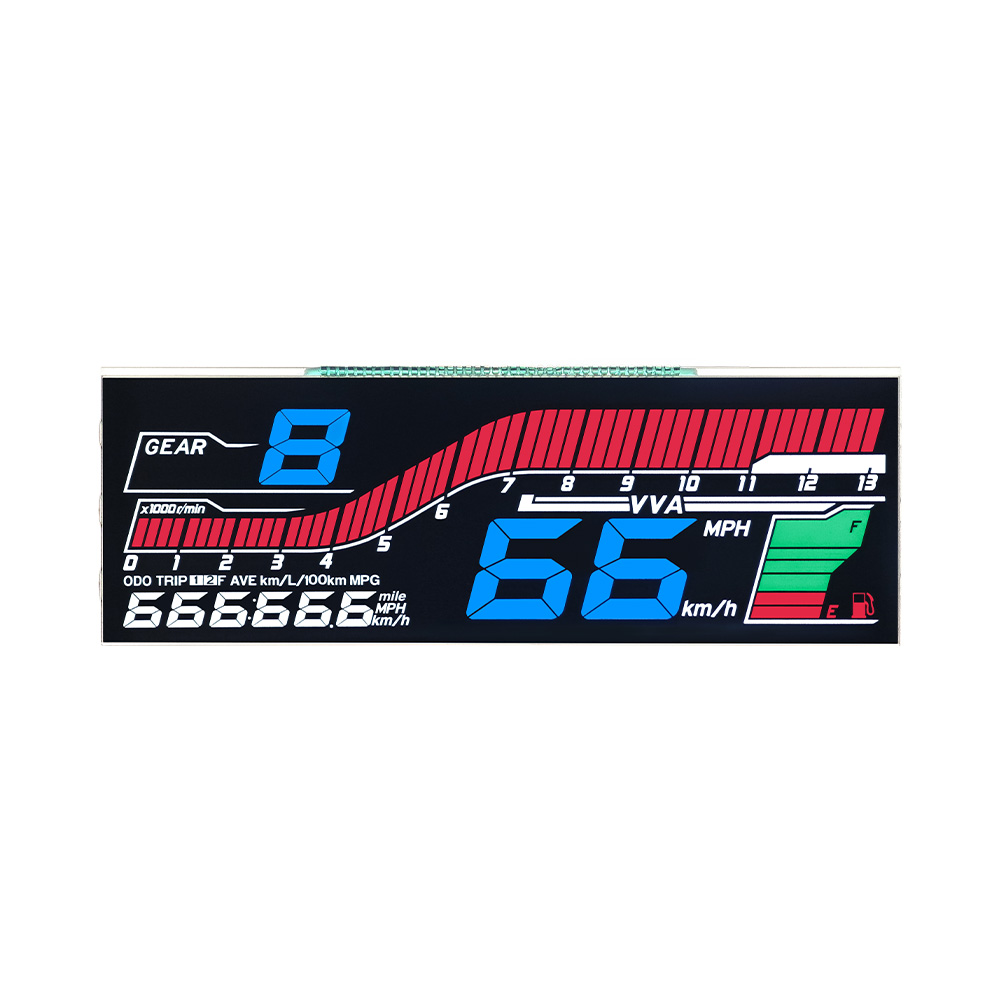

| Model | SJXDGW050 |
| Model Size | 158.0×56.0×2.8 mm |
| VA Size | 155.0×51.0 mm |
|

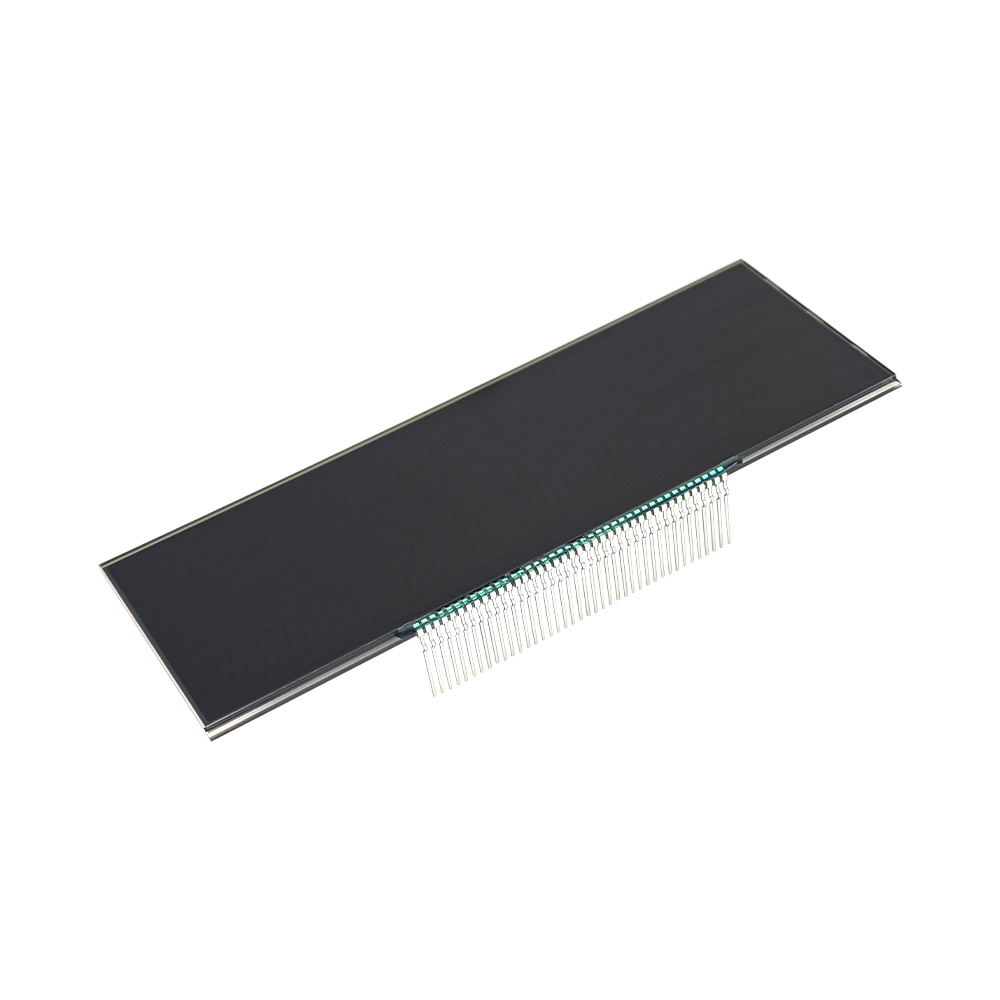

Connector
|
Metal pins |
|
LCD Type
|
HTN Negative |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-30C TO +80°C
|
| Storage Temperature |
-35°C TO +85°C
|
|
Working Voltage
|
4.0V |

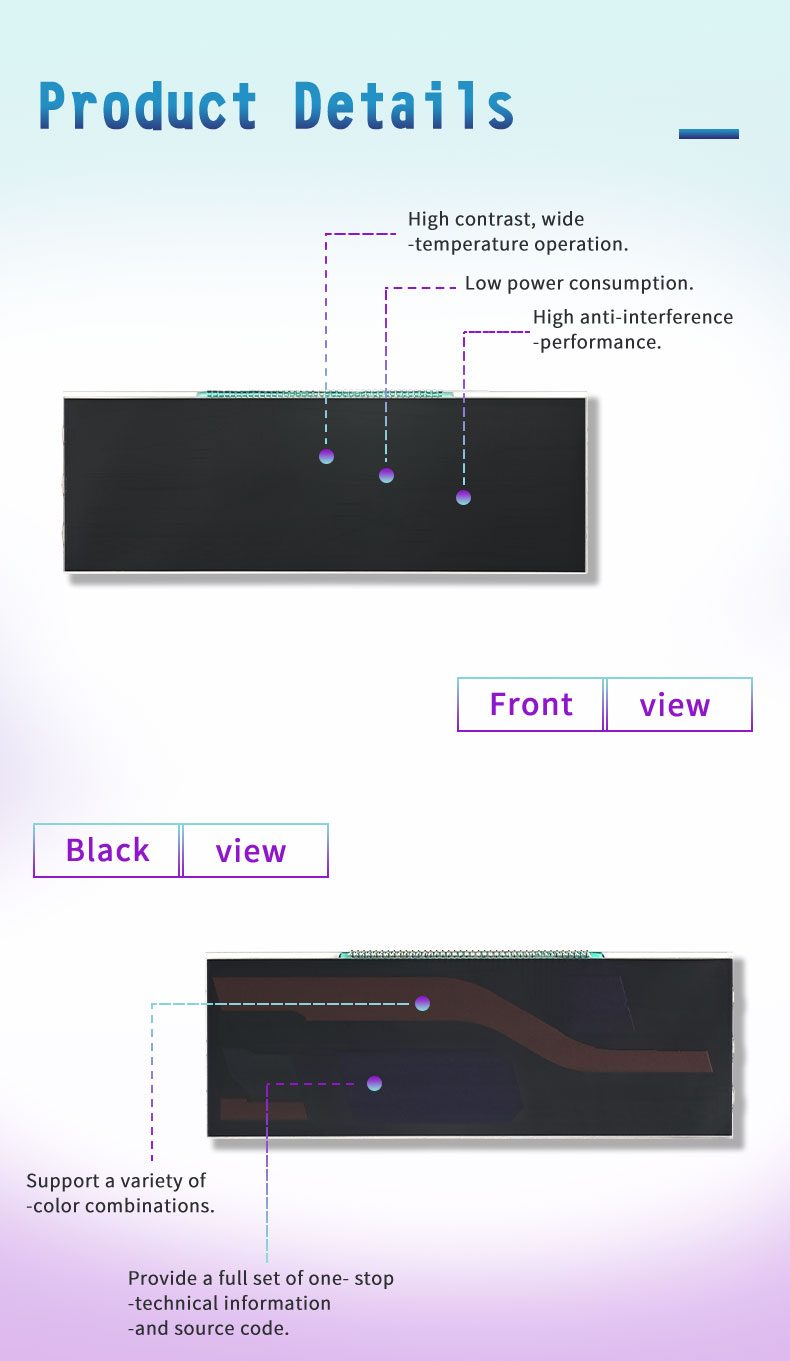

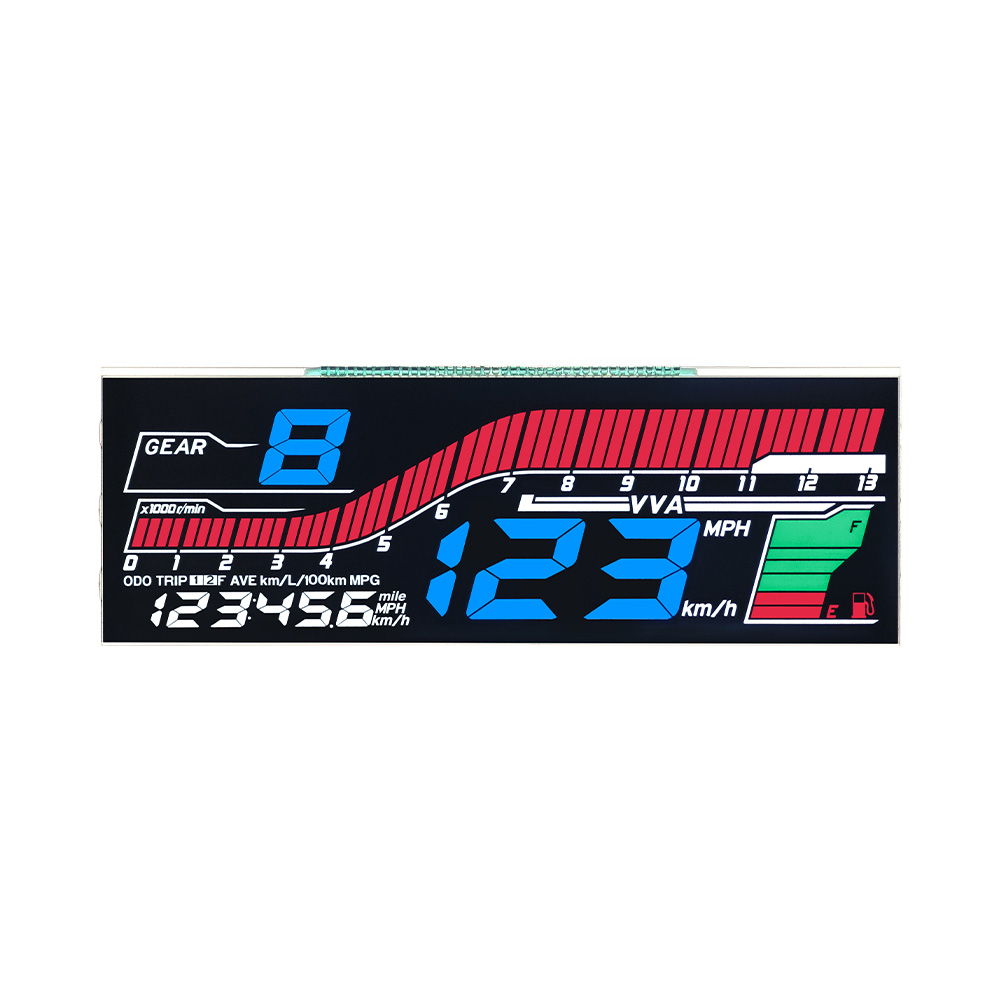

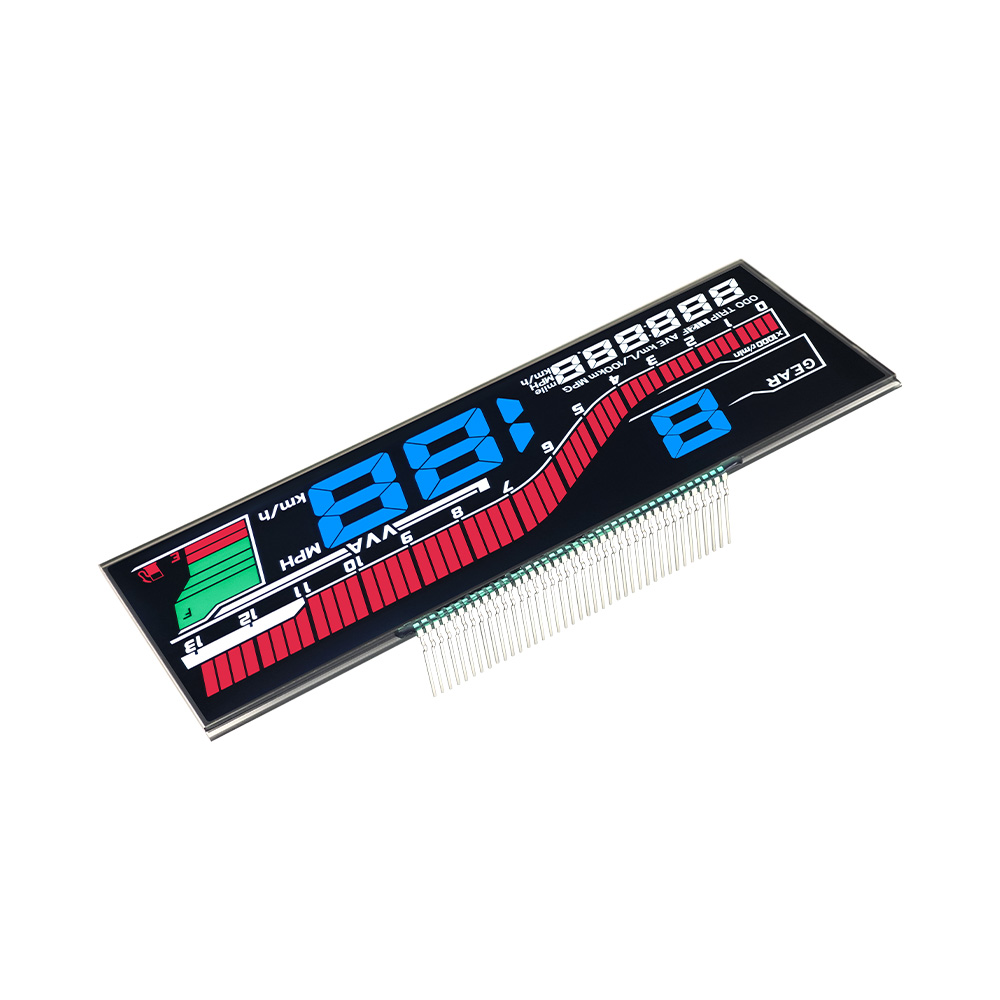

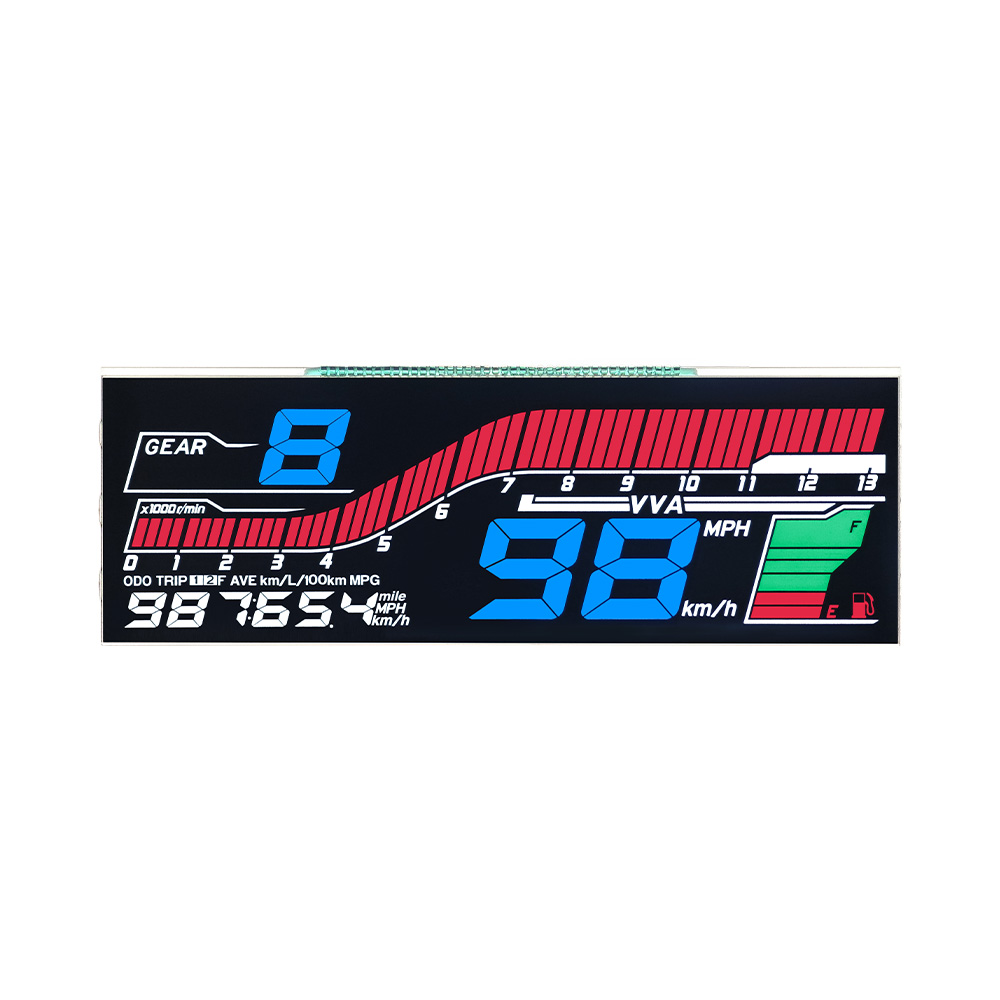

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This 7 Segment Instrument features a segmented LCD or LED-based structure optimized for clear numeric representation under various lighting conditions. It is designed to deliver high contrast output, ensuring excellent readability in both bright and low-light environments. The module operates at low voltage levels, making it compatible with battery-powered and energy-efficient systems. It supports stable electrical performance with minimal power consumption, helping extend device operational life. The display is engineered for fast response, enabling real-time numeric updates without delay. It operates reliably across a wide temperature range, ensuring consistent performance in different environmental conditions. Its compact size allows easy integration into space-constrained electronic devices and instrument panels.
Design Standards
The module is manufactured in accordance with strict electronic display and industrial reliability standards to ensure long-term durability and stable operation. The segmented design ensures uniform brightness distribution for improved visual consistency and clarity. High-quality materials are used to enhance mechanical strength and resistance to thermal and environmental stress. Circuit design optimization reduces electromagnetic interference and ensures stable signal transmission during continuous operation. The product follows low power engineering principles to improve energy efficiency while maintaining strong display performance. Each unit undergoes rigorous testing to ensure reliability under long-term use and varying environmental conditions such as vibration and temperature changes.
Applications
The 7 Segment Instrument is widely used in digital meters, industrial control panels, timing devices, household appliances, measurement instruments, and automotive electronics. It is also suitable for portable devices and embedded systems requiring simple and reliable numeric output. Its combination of clarity, durability, and low power consumption makes it an ideal solution for applications requiring stable and efficient numeric display performance in both industrial and consumer environments.

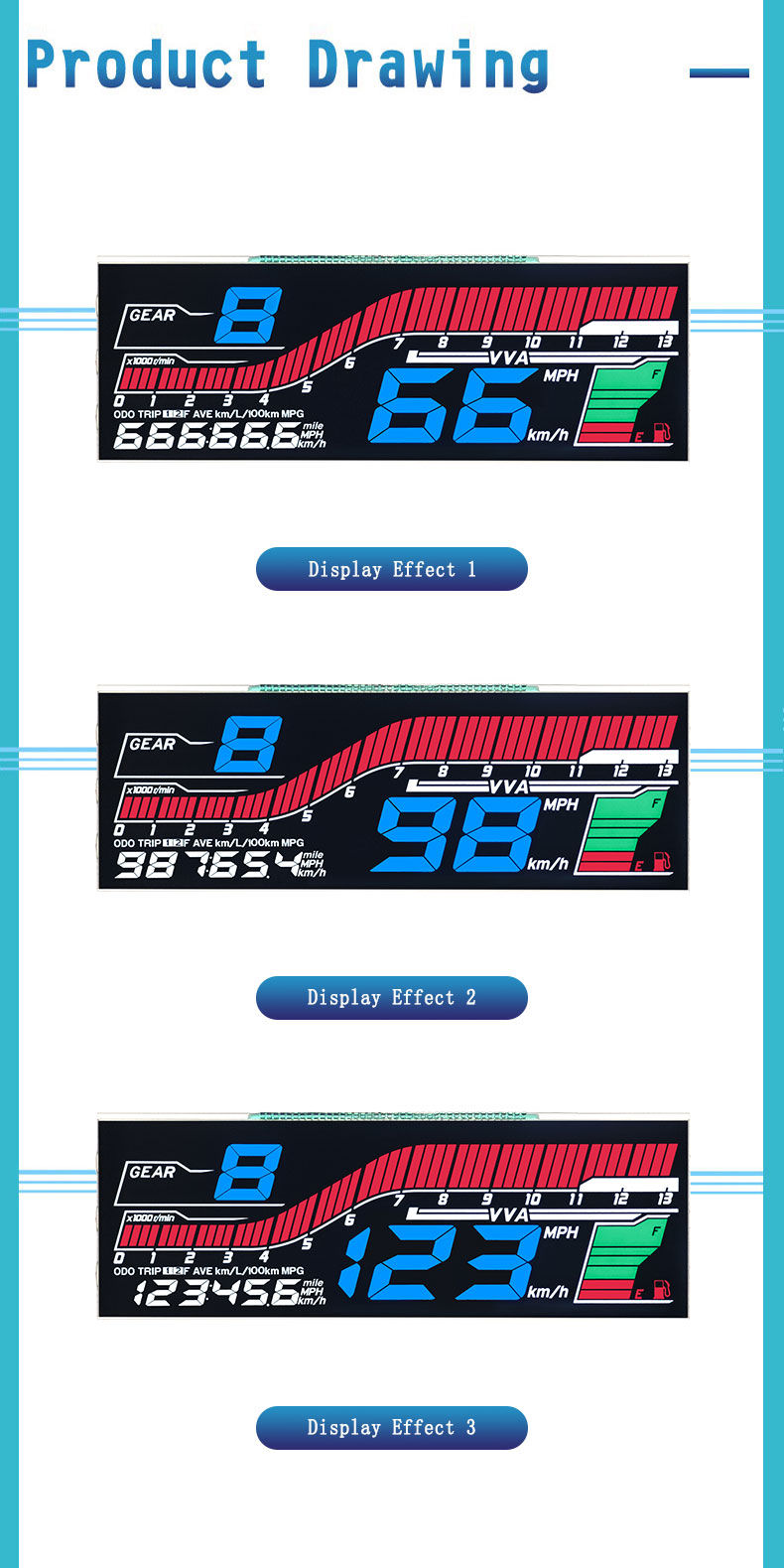

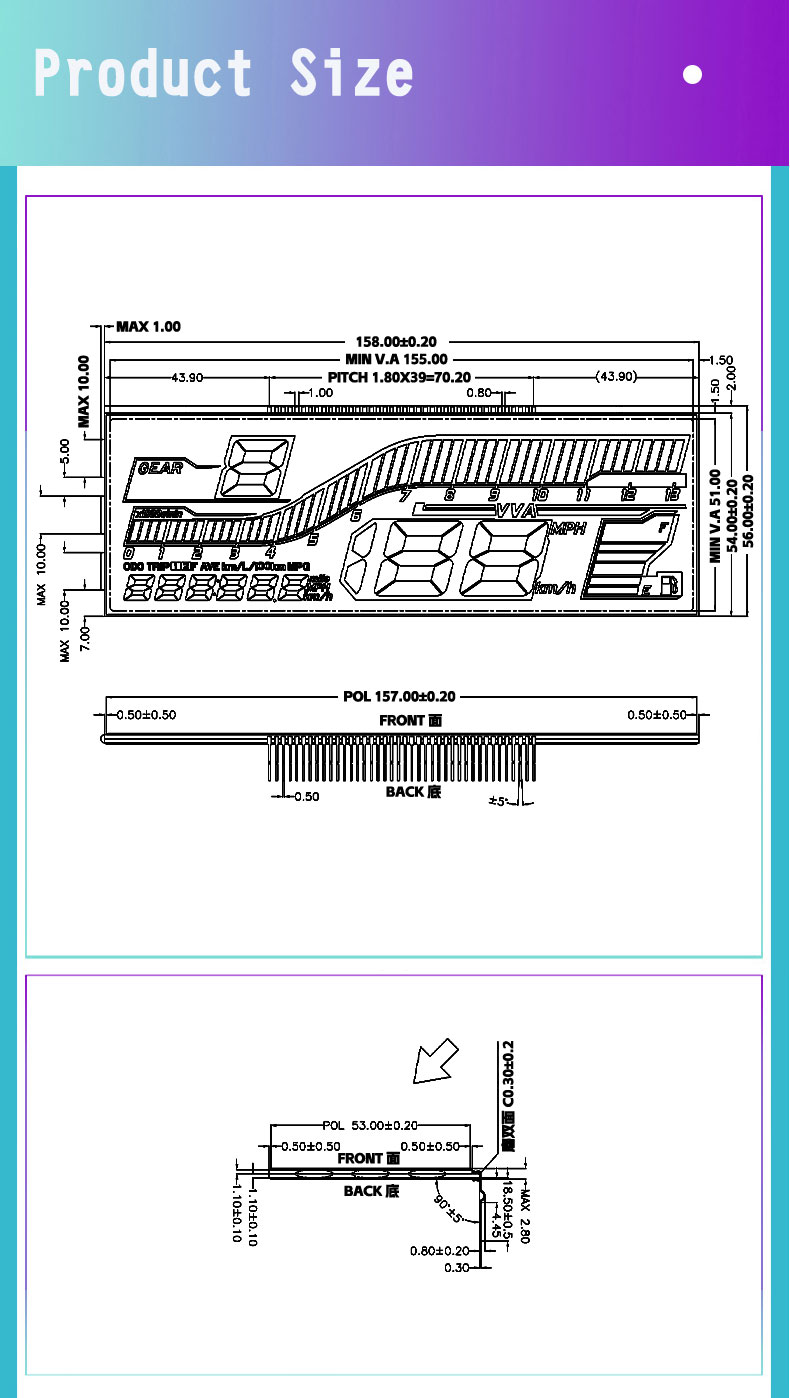

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
