Basic Information

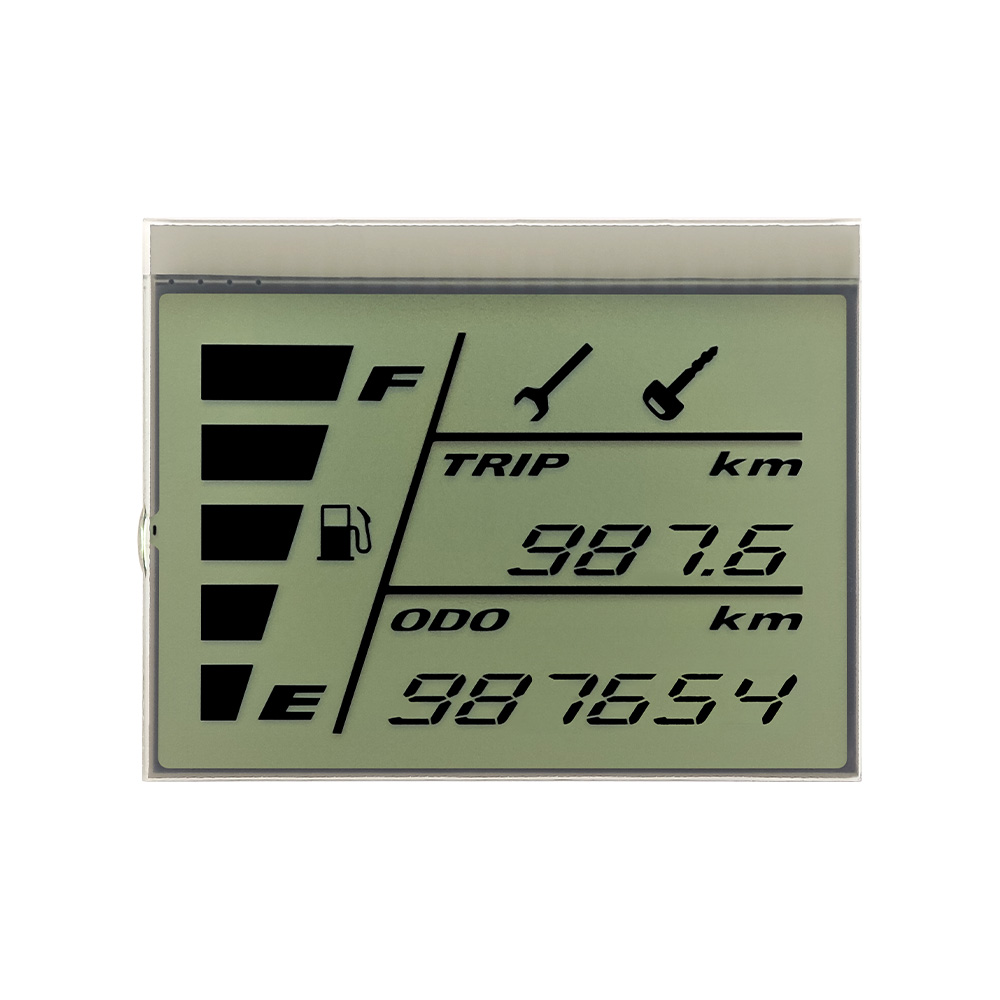

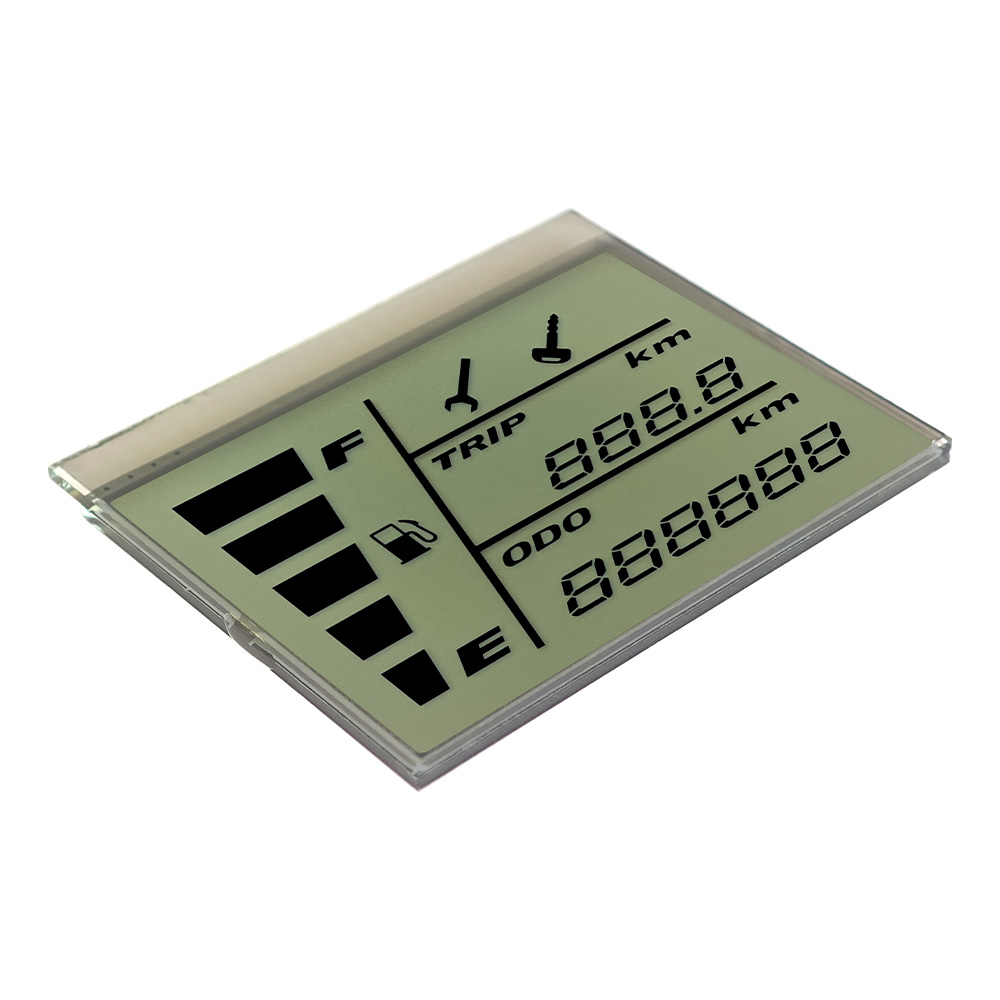

The Motorcycle LCD Screen SJXDGW030 is a dedicated display module developed for modern two-wheel vehicle instrument systems. It is designed to present essential riding information in a clear, stable, and highly readable format. By combining optimized LCD technology with a vehicle-oriented design structure, this screen ensures reliable visual performance under dynamic riding conditions. It is suitable for motorcycles and electric scooters that require accurate real-time data display for safe and efficient operation.
Parameters:
| Character Type | Customized |
| Model | SJXDGW030 |
| Model Size | 50.0×460.0×2.8 mm |
| VA Size | 47.0×41.0 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
5.0 V |

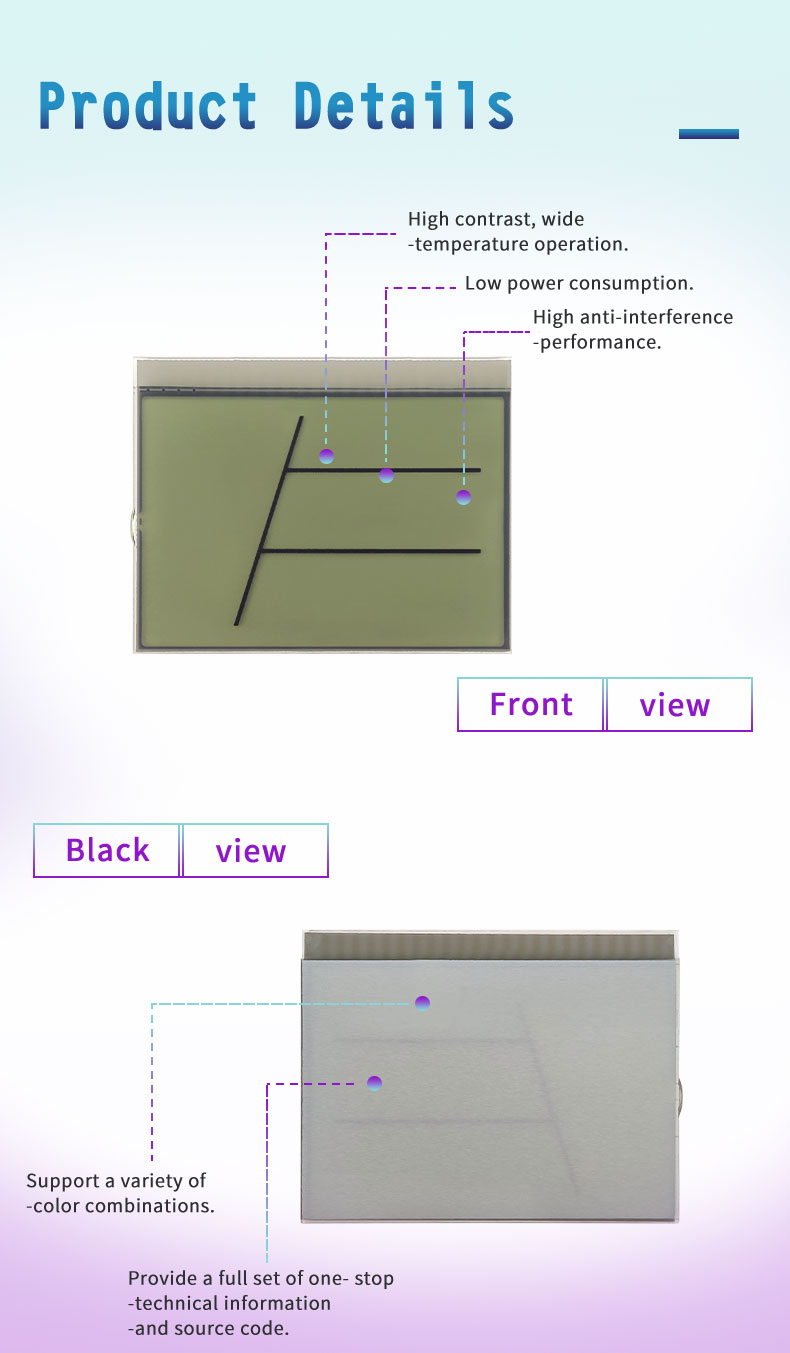

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications

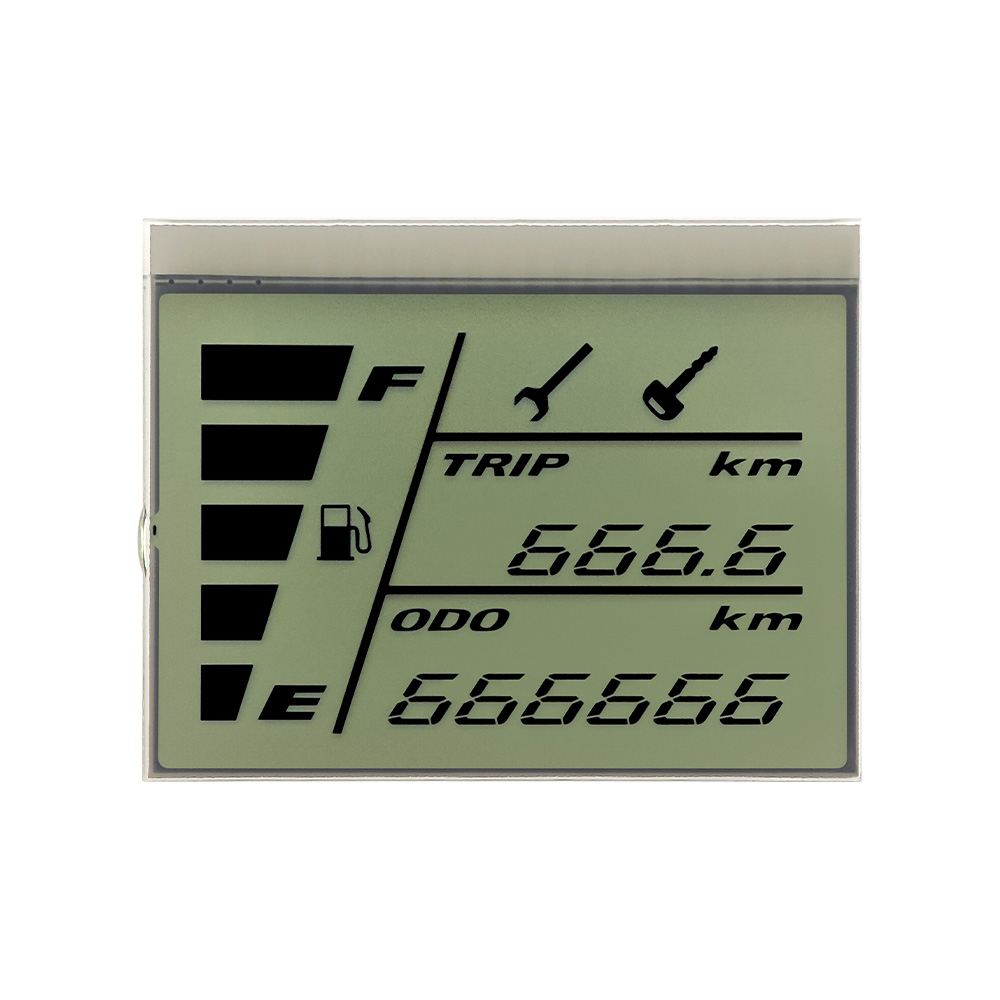

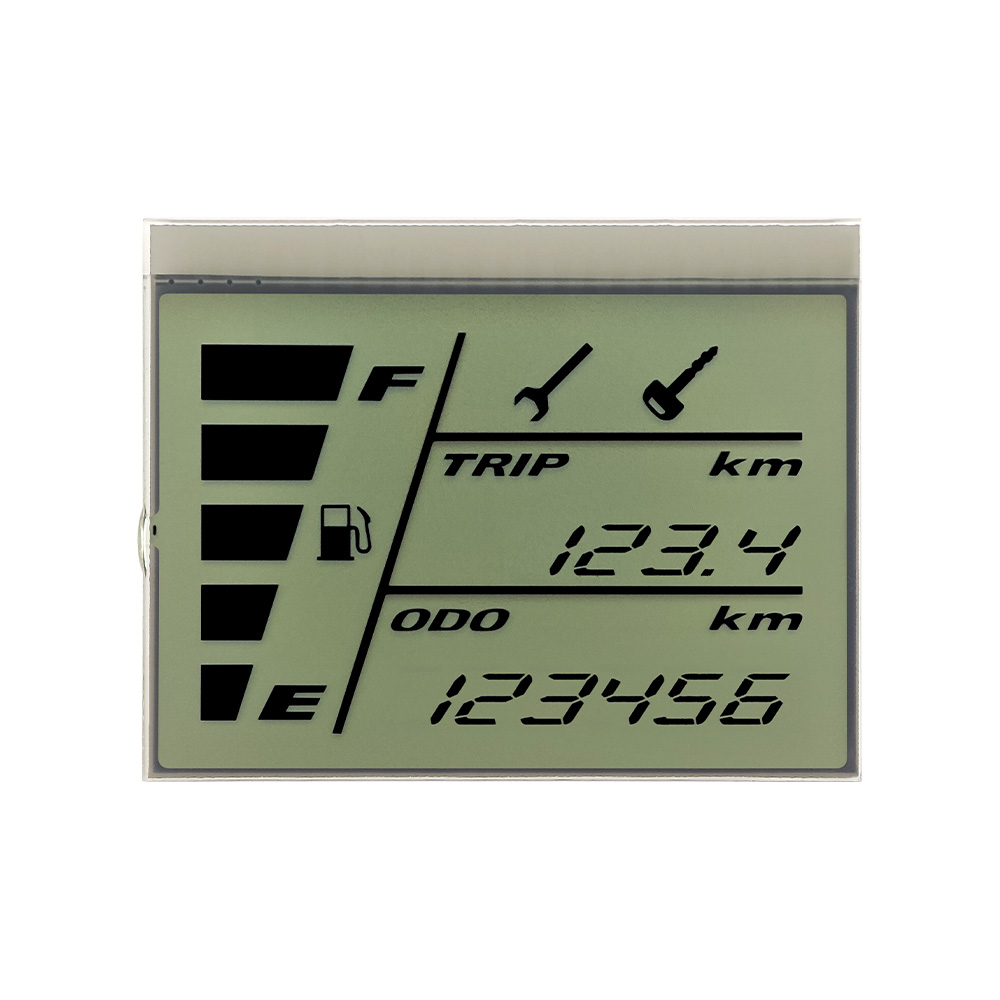

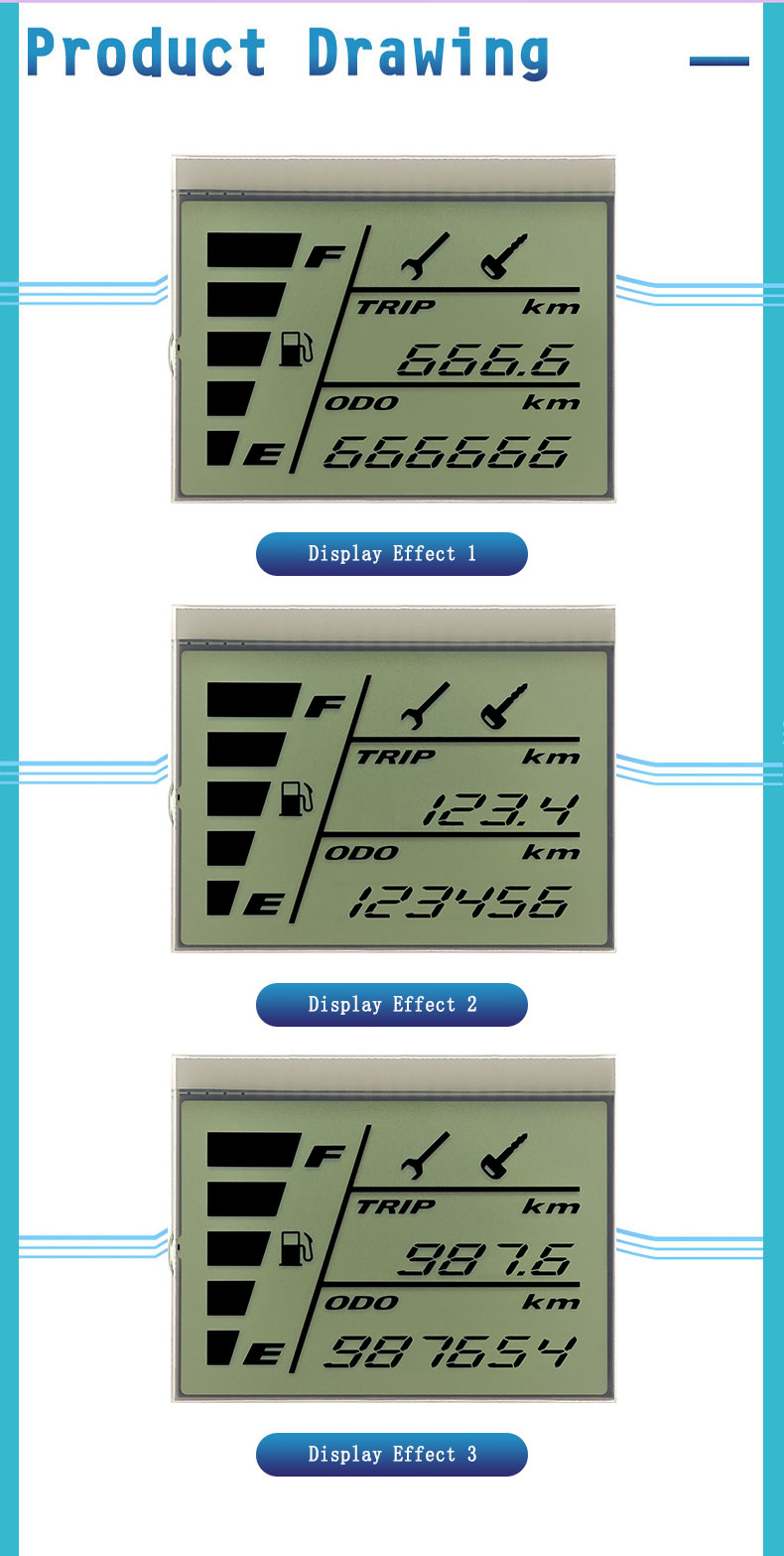

This Motorcycle LCD Screen features a specialized liquid crystal display structure tailored for dashboard integration in motorcycles. It provides clear presentation of key riding parameters such as speed, fuel level, gear indication, warning signals, and system status icons. The display is engineered to maintain high contrast visibility, ensuring readability in both bright daylight and low-light environments. It operates at low voltage, making it compatible with vehicle electrical systems while supporting energy-efficient performance. The module is designed for low power consumption, enabling stable long-term operation without excessive energy demand. It maintains reliable functionality across a wide temperature range, ensuring consistent performance in varying outdoor riding conditions. The compact design allows seamless integration into motorcycle dashboards without increasing structural complexity. Fast response characteristics ensure real-time updates of riding data without delay.
Design Standards
The module is manufactured according to strict automotive-grade reliability standards to ensure durability and stable operation in vehicle environments. The internal structure is reinforced to withstand vibration, shock, and mechanical stress caused by road conditions. High-quality LCD materials are selected to ensure long-term optical stability and resistance to environmental aging. Circuit design is optimized to minimize electromagnetic interference and maintain stable signal transmission within the vehicle system. The product is engineered for consistent performance under temperature fluctuations, humidity exposure, and continuous operation. Each unit undergoes comprehensive testing to verify display accuracy, durability, and operational stability.
Applications
The Motorcycle LCD Screen is widely used in motorcycles, electric scooters, e-bikes, and other light mobility vehicles. It is suitable for commuter transportation, recreational riding systems, and smart mobility dashboards. It can also be integrated into customized vehicle instrument clusters and embedded display solutions. Its combination of clarity, stability, and low power consumption makes it an ideal display component for modern two-wheel vehicle electronic systems requiring reliable real-time information visualization.

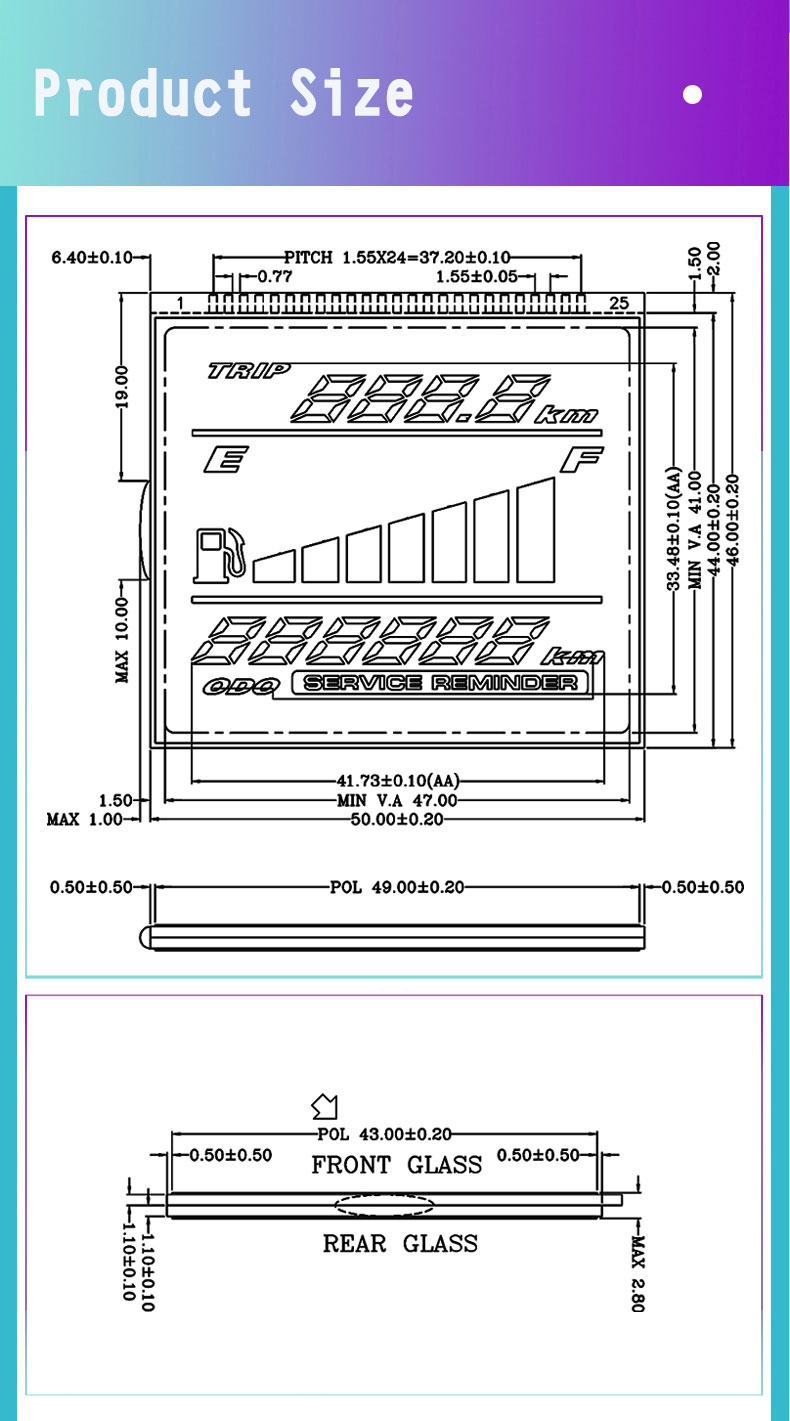

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
