Basic Information
The COG Segment SJXDGW062 is a compact and highly efficient LCD display solution designed using Chip-on-Glass technology for advanced embedded and industrial applications. It provides clear segmented numeric and symbol output in a space-saving structure, making it ideal for modern electronic devices that require high reliability and low power consumption. With its integrated driver design, it simplifies system architecture while ensuring stable and precise visual performance in demanding environments.

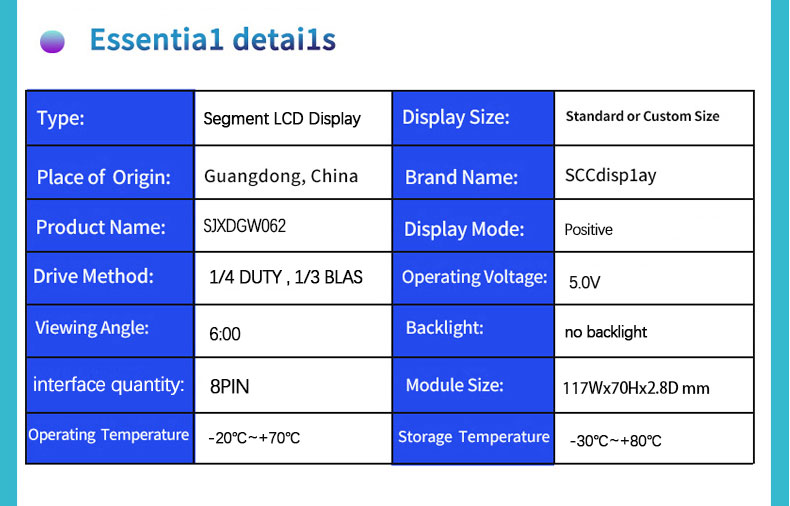

Parameters:
| Character Type | Customized |
| Model | SJXDGW062 |
| Model Size | 117.0×70.0×2.8 mm |
| VA Size | 113.0×59.0 mm |
|
Connector
|
FPC ribbon cable |
|
LCD Type
|
COG Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
5.0V |

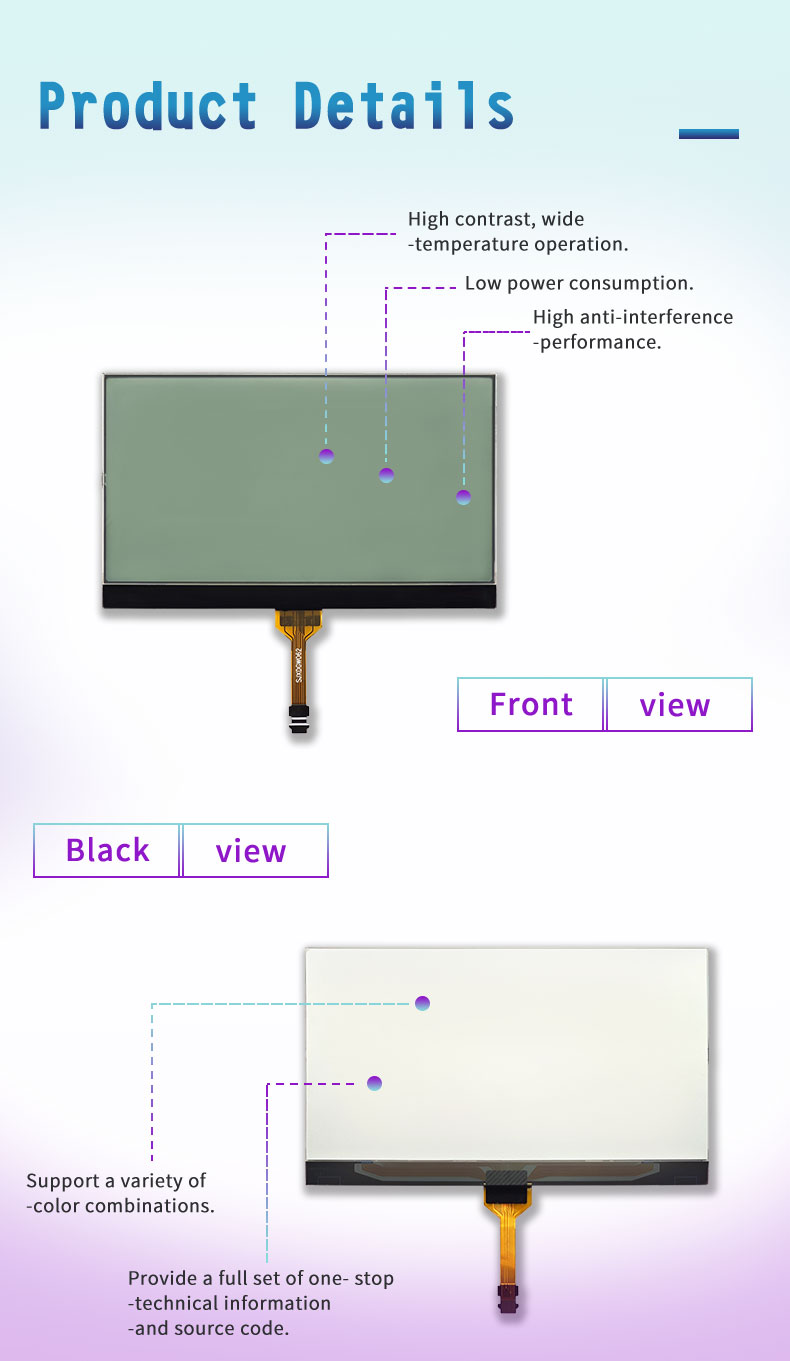

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This COG Segment display features a high-contrast segmented LCD structure optimized for clear numeric and icon presentation. The Chip-on-Glass integration reduces the need for external driver components, improving system compactness and reliability. It supports low voltage operation, making it suitable for battery-powered and energy-efficient devices. The display is designed for strong readability under different lighting conditions, ensuring consistent visibility in both indoor and semi-outdoor environments. It operates reliably across wide temperature ranges, making it suitable for industrial-grade applications. The module also offers low power consumption characteristics, significantly extending the operational life of portable devices. Its slim profile enables easy integration into compact electronic assemblies and modern product designs.
Design Standards
The module is manufactured according to strict industrial and electronic display standards to ensure long-term reliability and performance stability. The COG (Chip-on-Glass) structure enhances mechanical durability while reducing component complexity. Circuit integration is optimized to minimize electromagnetic interference and improve signal stability. High-quality LCD materials are used to ensure consistent optical performance and resistance to environmental stress factors such as temperature variation and vibration. The design emphasizes energy efficiency and compactness, making it suitable for space-constrained applications. Each unit undergoes rigorous testing to ensure consistent quality and dependable operation under continuous use conditions.
Applications
The COG Segment display is widely used in digital meters, portable medical devices, industrial control systems, instrumentation equipment, and consumer electronics. It is also suitable for smart measurement tools and battery-powered devices requiring clear numeric display and low energy consumption. Its combination of compact design, high reliability, and efficient performance makes it an ideal solution for modern electronic systems requiring stable and long-lasting segmented display technology.

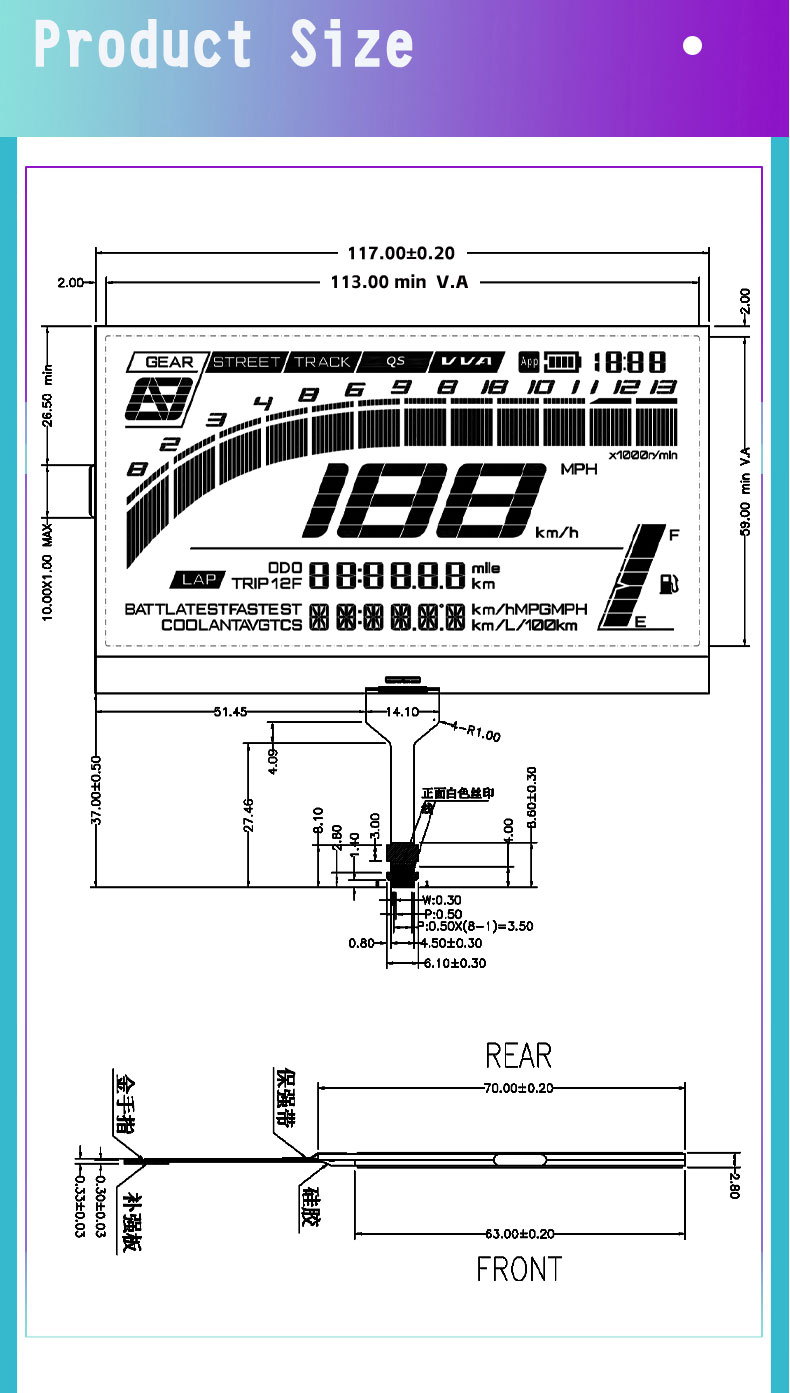

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
