Basic Information

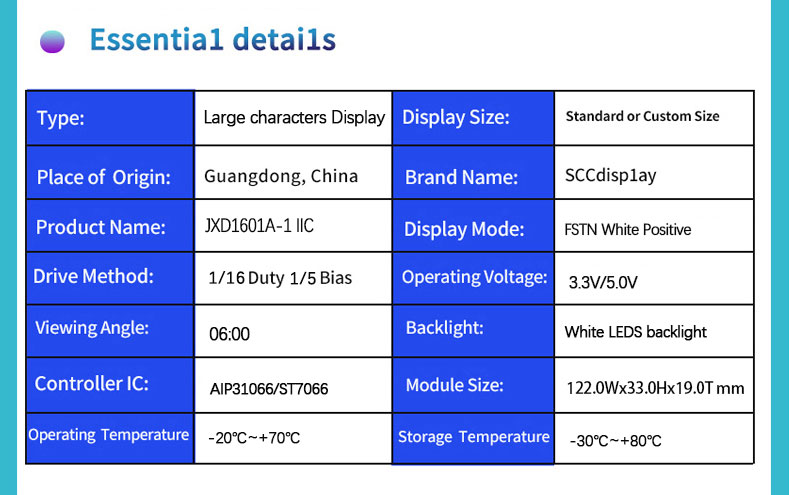

Parameters:
| Character Type | 16×1 |
| Model | SJXD1601A-1 IIC |
| Model Size | 122.0×33.0×19.0 mm |
| VA Size | 99.0×13.5 mm |
|
Drive Voltage
|
5.0V or 3.3V
|
|
Drive IC
|
AIP31066/ST7066
|
|
Backlight
|
white LED backlight
|
|
LCD Type
|
FSTN positive
|
|

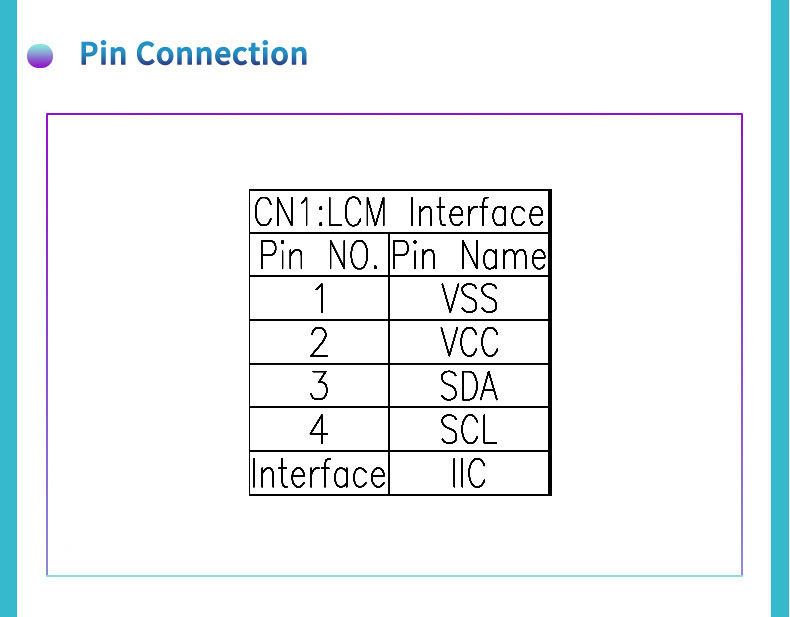

Interface
|
IIC/I2C
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

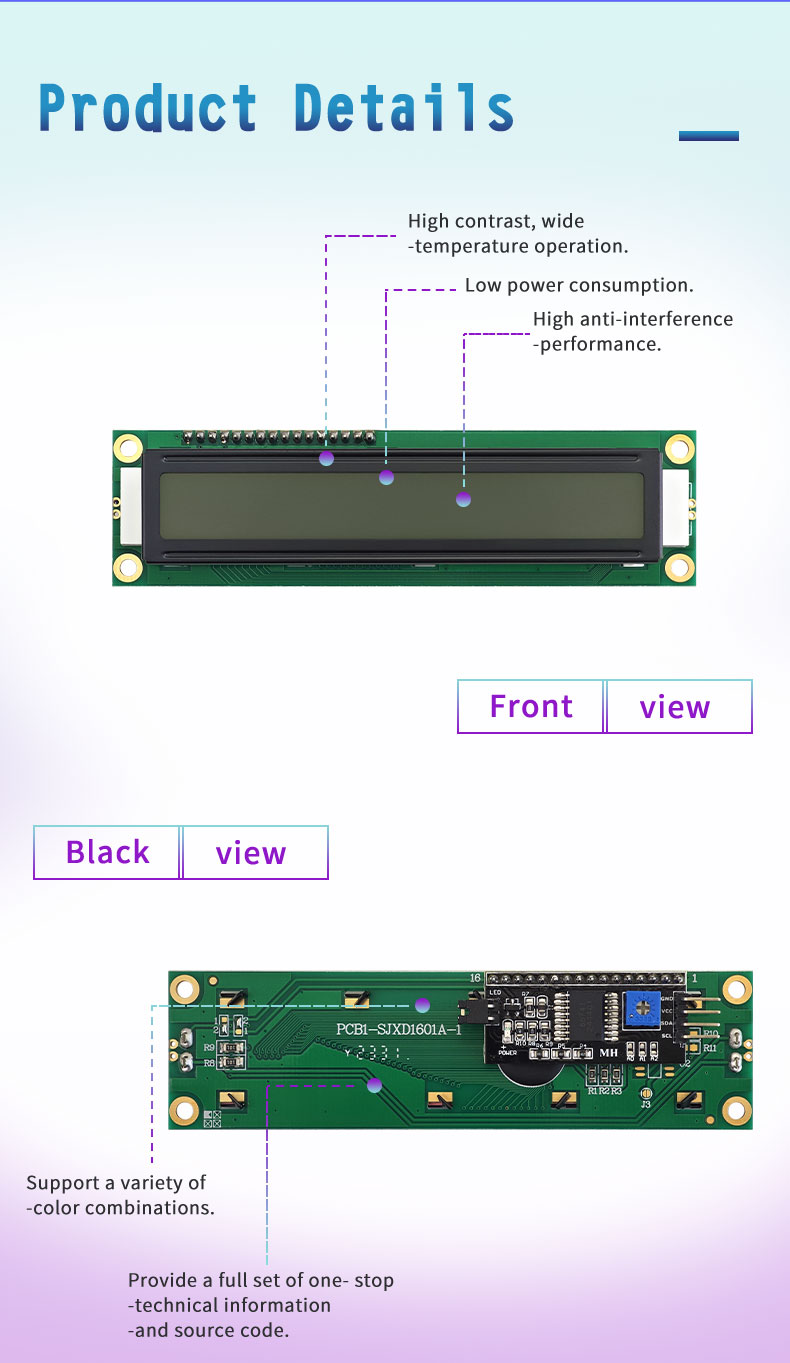

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
Modular Displays SJXD1601A-1 IIC is a 16×1 character LCD module designed for clear text, number, and symbol output. It features a 122.0×33.0×19.0 mm module size, 99.0×13.5 mm viewing area, and IIC/I2C interface for simplified wiring. The module supports 5.0V or 3.3V drive voltage, AIP31066/ST7066 drive IC, white LED backlight, FSTN positive LCD type, and 06:00 viewing angle.
Design Standards
Modular Displays are designed for high contrast, wide-temperature operation, low power consumption, and strong anti-interference performance. This model works from -20°C to +70°C and stores from -30°C to +80°C, helping maintain stable use in different device environments. It also supports multiple color combinations, customization, one-stop technical information, source code support, and 1–3 day sample availability for faster product testing.
Applications
Modular Displays are suitable for meters, equipment control panels, information display systems, industrial devices, smart products, medical systems, automotive dashboards, and embedded electronics. The 16×1 structure works well for large font characters, numbers, menu data, status messages, and simple system information. With compact size, IIC connection, white backlight, and reliable character output, it supports both prototype development and customized production applications.

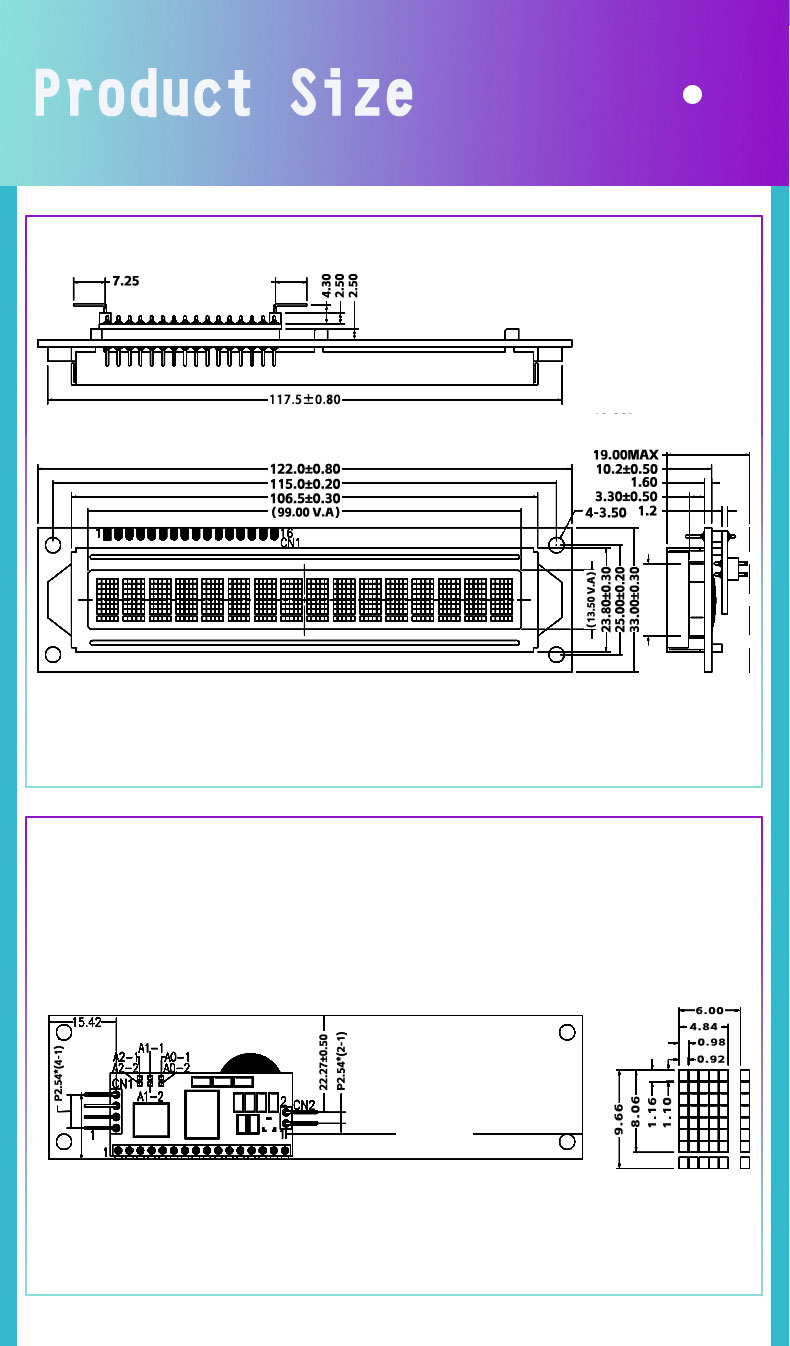

Product Size
FAQ
Q: Why is it so cheap?
A: Because we are a factory producing and selling without intermediaries.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
