Basic Information

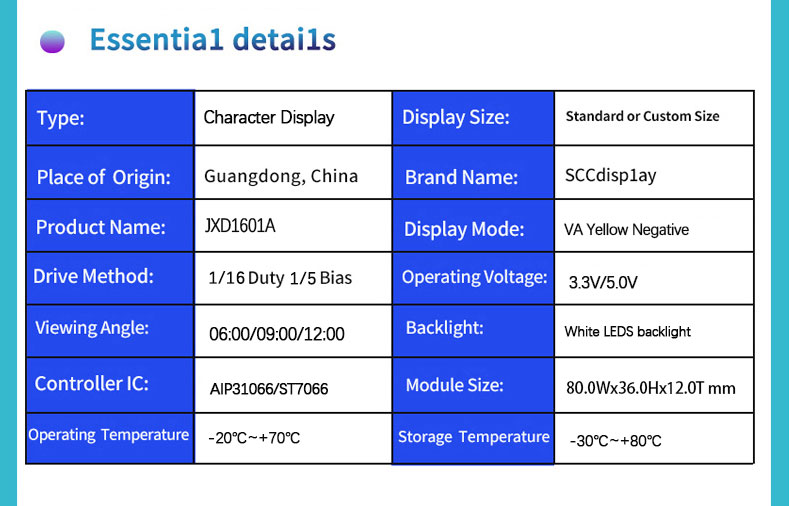

Parameters:
| Character Type | 16X1 |
| Model | JXD1601A |
| Model Size | 80.0×36.0×12.0 MM |
| VA Size | 64.5×14.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
VA Negative
|
|

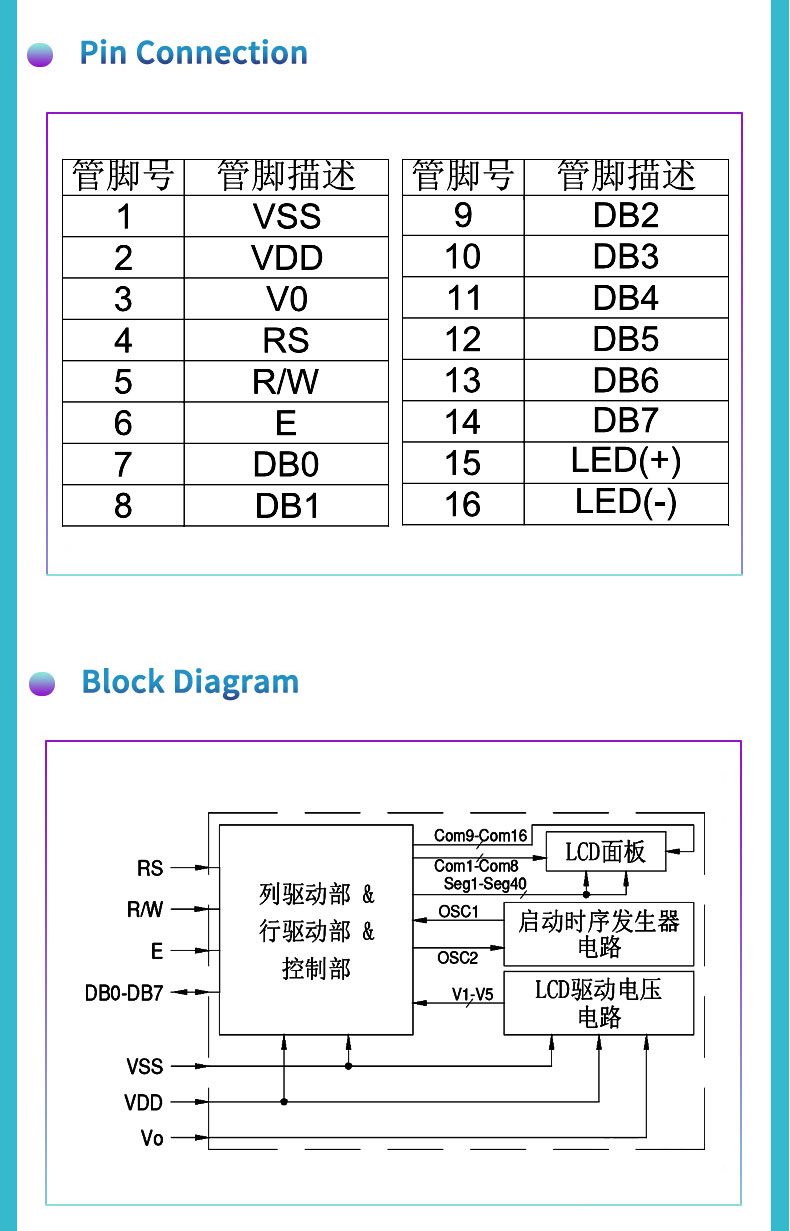

Interface
|
16PIN parallel port
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

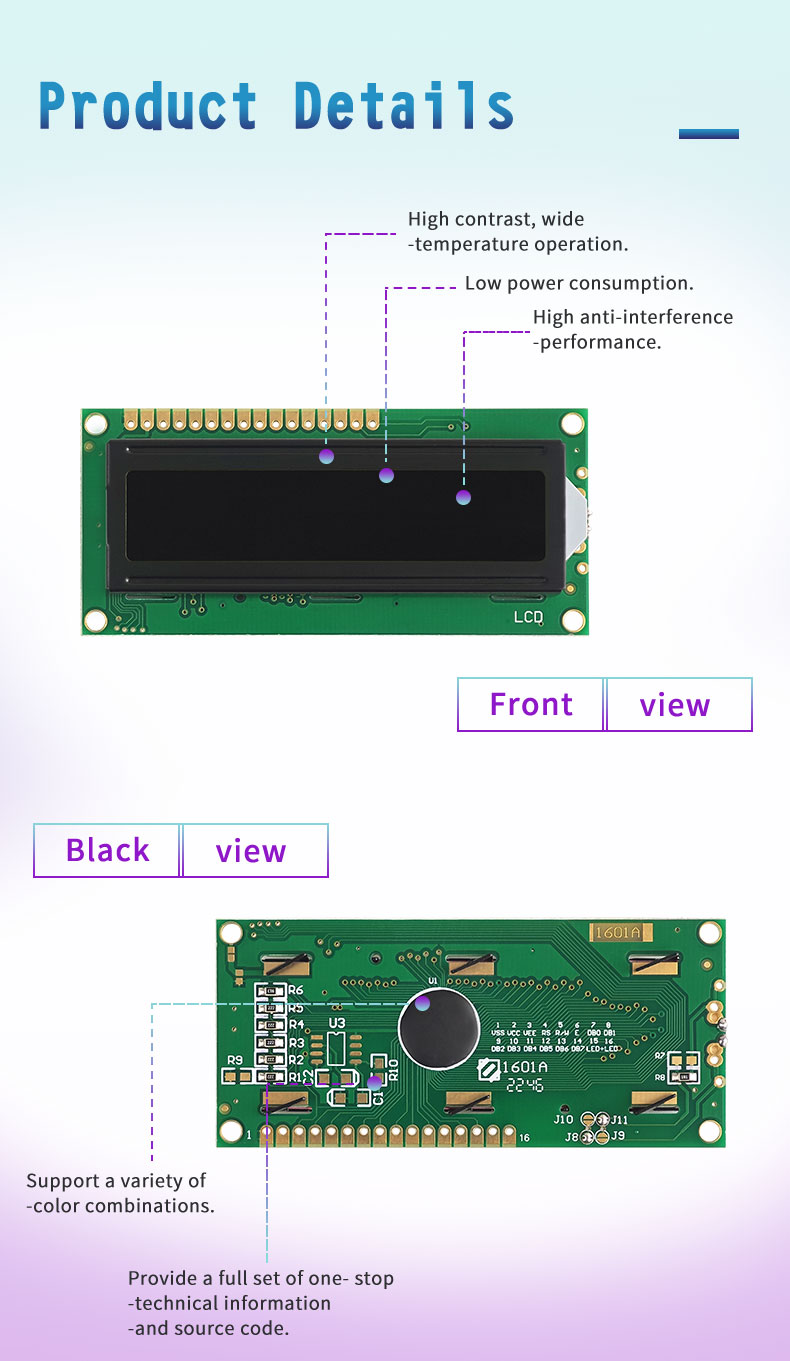

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications

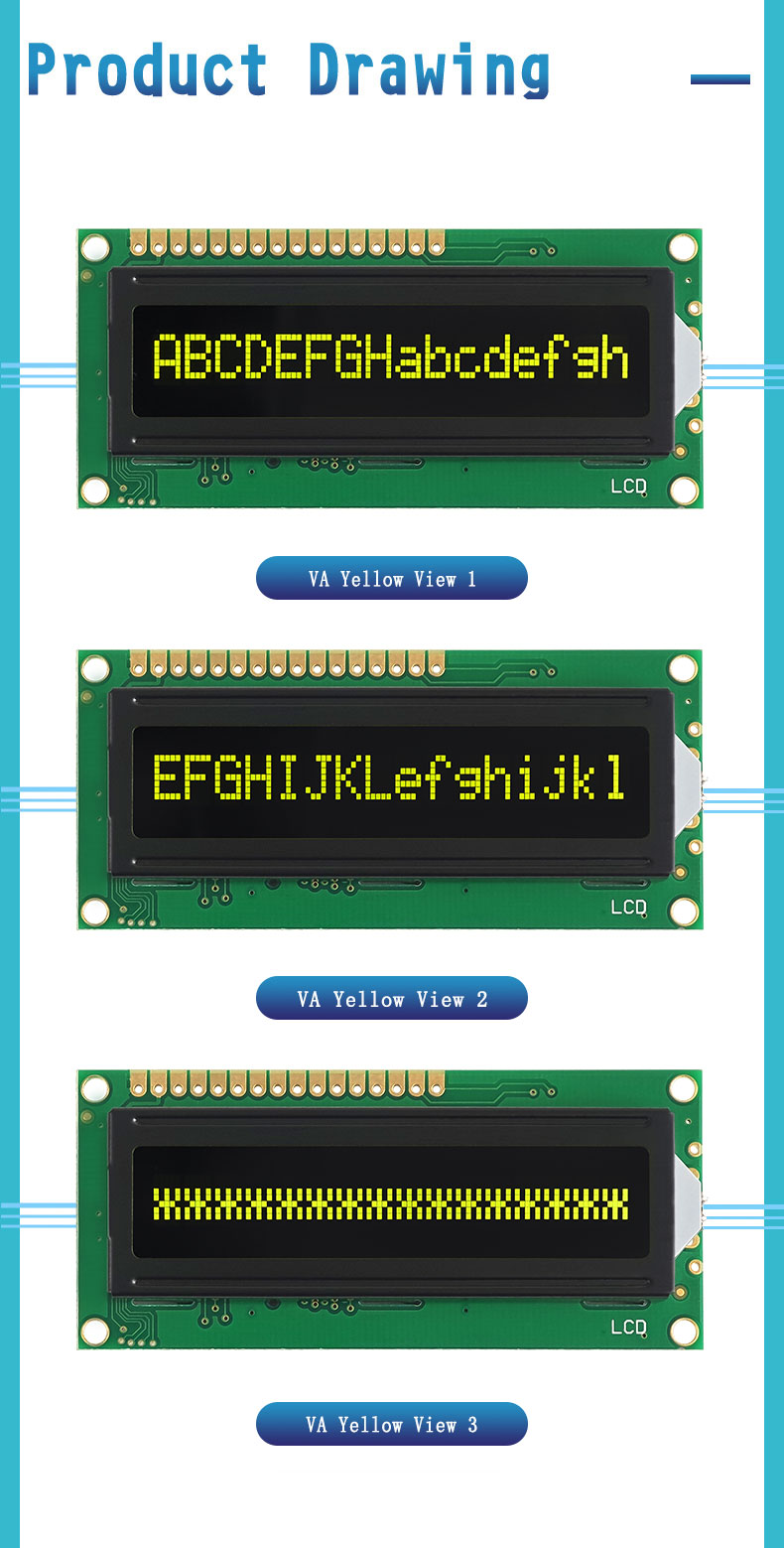

LCD Liquid Crystal Display JXD1601A is a 16×1 character LCD module designed for clear text, number, and symbol output. It features an 80.0×36.0×12.0 mm module size, 64.5×14.0 mm viewing area, 3.3V/5.0V drive voltage, and ST7066/AIP31066 drive IC. The module uses a 16PIN parallel interface, white LED backlight, and VA Negative LCD type, providing sharp contrast and reliable character presentation for compact devices.
Design Standards
LCD Liquid Crystal Display is built for high contrast, wide-temperature operation, low power consumption, and strong anti-interference performance. It supports an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, helping maintain stable performance in varied environments. The product also supports multiple color combinations, customization, technical information, source code support, 1–3 day samples, and fast batch delivery for project development.
Applications
LCD Liquid Crystal Display is suitable for applications requiring large font characters, numbers, menu text, status messages, and basic system data. It can be used in meters, equipment control panels, information display systems, home appliances, industrial controls, medical devices, consumer electronics, and DIY projects. With its compact structure, VA Negative viewing effect, white backlight, and stable display performance, it supports both product testing and customized electronic device production.

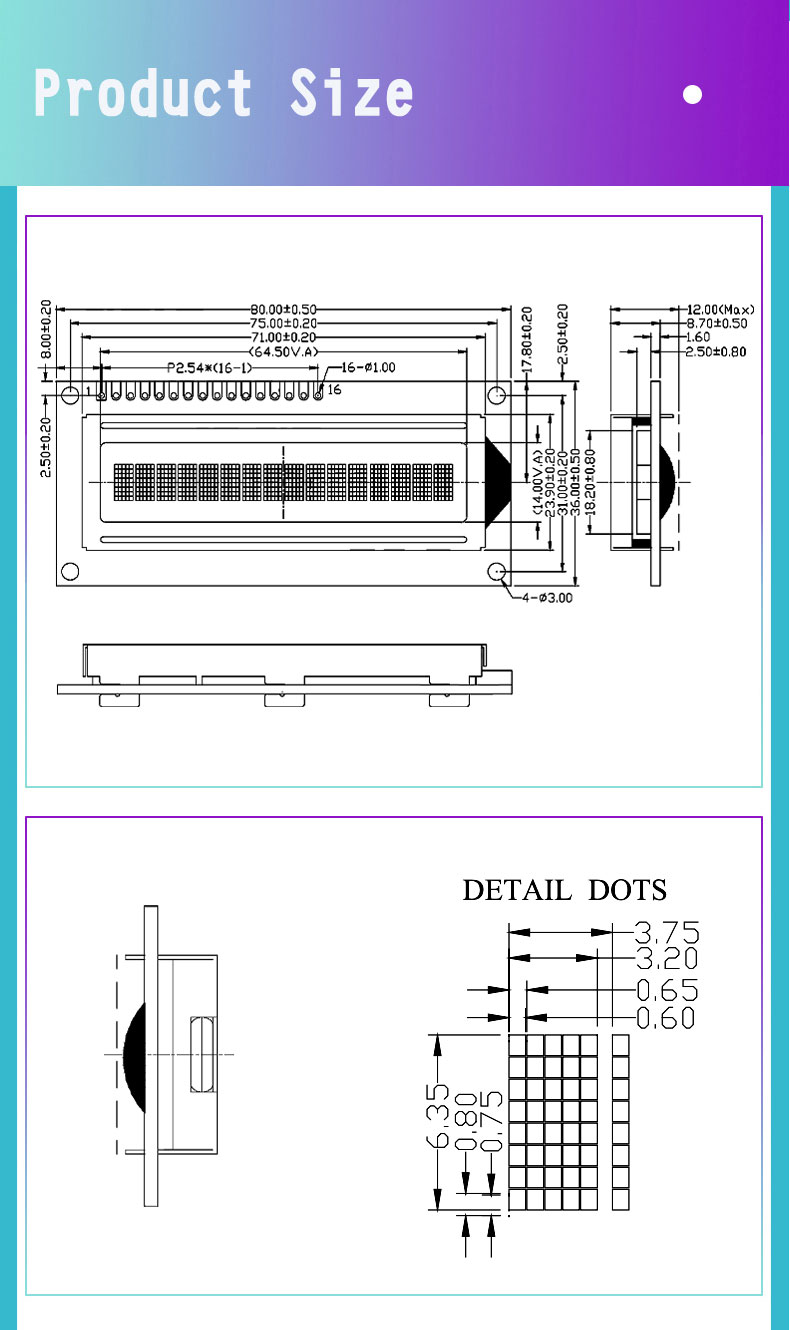

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
