Linux LCD Character Display offers a 20x2 text module for embedded boards, control terminals, and compact Linux-based equipment. Its FSTN positive screen, white LED backlight, IIC interface, and 3.3V/5V drive support clear output with fewer signal lines. The 116.0x37.0mm body fits meters, automation devices, medical instruments, appliances, and DIY systems requiring stable status feedback during boot display, monitoring, debugging, setup, maintenance, and daily operation in practical compact hardware projects.

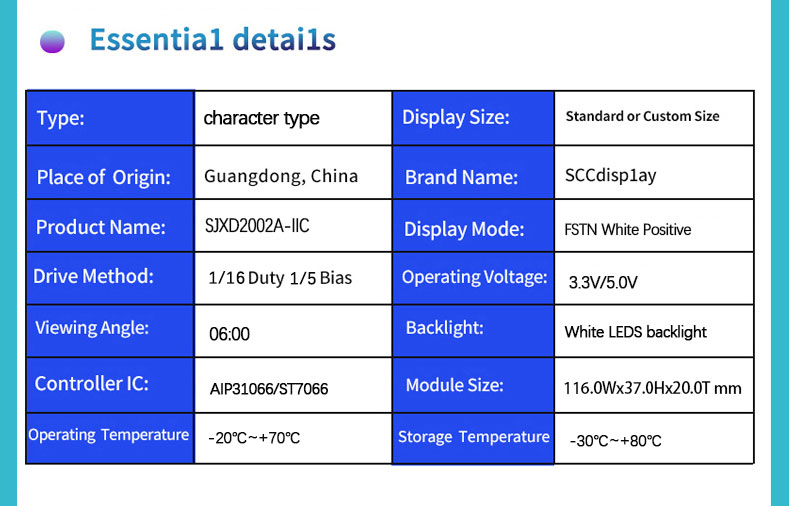

Parameters:
| Character Type | 20X2 |
| Model | JXD2002A-IIC |
| Model Size | 116.0×37.0×20.0 MM |
| VA Size | 83.0×18.6 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
FSTN Positive
|
|
Interface
|
IIC/I2C |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
Linux LCD Character Display is a 20×2 character module designed for Linux-based embedded projects that need clear text output through a simple display interface. The JXD2002A-IIC model provides two longer rows for system messages, menu labels, sensor values, and command feedback. It features a 116.0×37.0×20.0 mm module size, 83.0×18.6 mm viewing area, 3.3V/5.0V drive voltage, ST7066/AIP31066 driver IC, IIC/I2C interface, white LED backlight, FSTN Positive LCD type, 06:00 viewing direction, -20°C to +70°C working temperature, and -30°C to +80°C storage temperature.
Design Standards
Linux LCD Character Display is developed for stable embedded communication, reduced wiring effort, and practical software-controlled text presentation. The IIC/I2C interface helps reduce signal-line demand, making it easier to connect with Linux development boards, single-board computers, industrial controllers, and MCU systems. Its FSTN Positive display structure supports sharp character definition on a clean light background, while the white LED backlight helps maintain readable output in equipment panels. The module also supports high contrast, low power consumption, anti-interference performance, multiple color combinations, complete technical information, source code support, customization, 1–3 day sample testing, and fast batch delivery planning.
Applications
Linux LCD Character Display is suitable for embedded products that need direct status feedback without using a large graphic screen. It can show boot information, IP addresses, sensor readings, device states, menu options, warning prompts, debugging messages, and operation guidance in a two-line format. Typical application fields include Linux control terminals, industrial devices, meters, automation equipment, medical instruments, home appliances, consumer electronics, information display systems, and DIY development boards. Its 20×2 layout, I2C connection, FSTN Positive readability, and white backlight make it practical for compact systems requiring reliable character output and easier hardware integration.

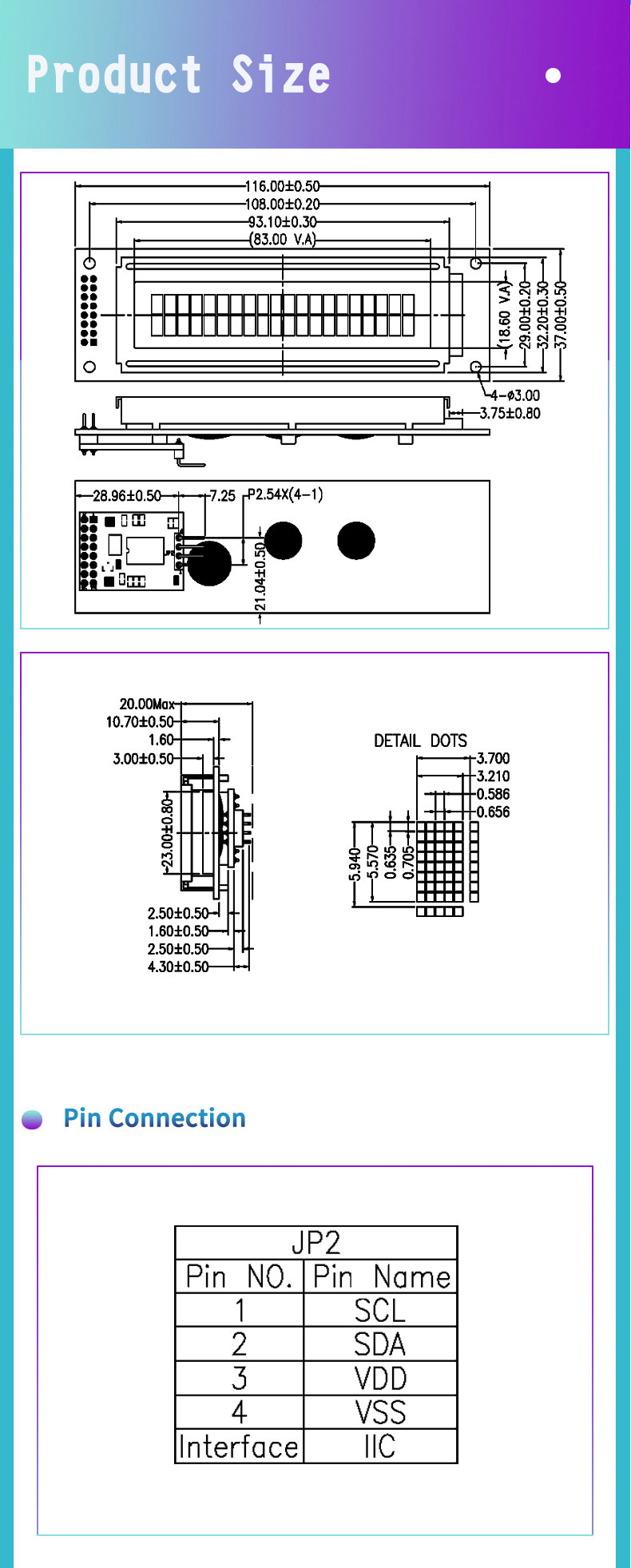

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
