Basic Information
The LCD Segment Display Repair SJXDGN031 service is a specialized technical solution designed to restore and recover segmented LCD displays used in industrial, commercial, and embedded electronic systems. It focuses on repairing malfunctioning or partially damaged segment screens, ensuring that visual output returns to stable and accurate performance. This service is ideal for extending the lifecycle of existing equipment while maintaining reliable display functionality without requiring full module replacement.
Parameters:
| Character Type | Customized |
| Model | SJXDGN031 |
| Model Size | 67.4×26.8×2.8mm |
| VA Size | 56.8×19.8mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Negative |
|
Drive Conditions
|
1/4D 1/3B
|
|
Working Temperature
|
-20°C TO +70'C
|
| Storage Temperature |
-30'C TO +80'C
|
|
Working Voltage
|
4.2 V |

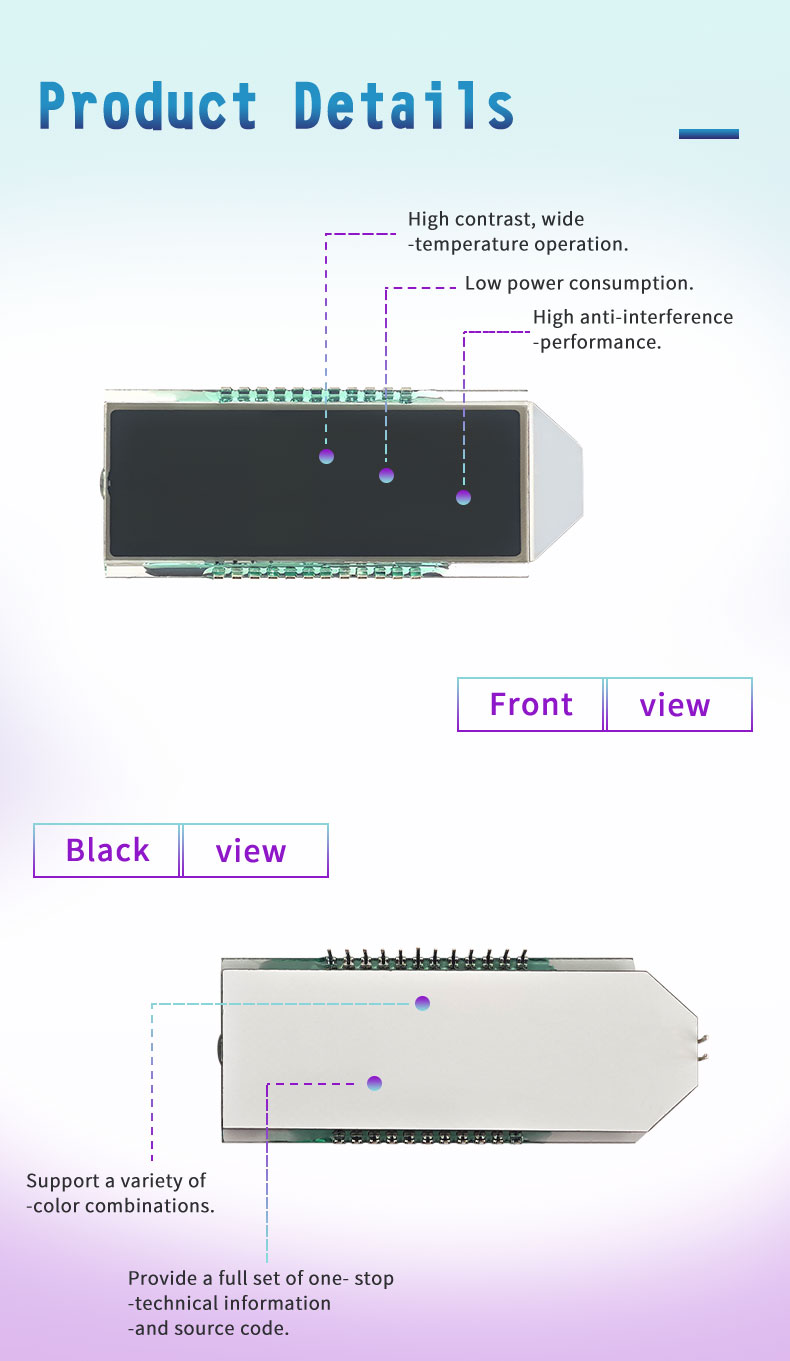

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This LCD Segment Display Repair process covers restoration of segmented LCD modules with issues such as missing segments, uneven contrast, display fading, or unstable visual output. The repair procedure is designed to recover clear numeric and symbolic representation, ensuring that the display returns to its original operational clarity. It supports a wide range of LCD segment configurations commonly used in meters, instruments, and embedded control panels. The service is compatible with low-voltage display systems and maintains the original power efficiency characteristics of the module. It is engineered to preserve stable electrical behavior and restore consistent segment activation across the entire display area. After repair, the display is tested for readability, contrast balance, and functional accuracy under standard operating conditions. The process ensures reliable performance across typical temperature and usage environments.
Design Standards
The repair service follows strict electronic restoration and quality assurance standards to ensure long-term stability and operational consistency. Diagnostic procedures are used to identify segment failures, circuit issues, and optical degradation. High-precision techniques are applied to restore LCD alignment, segment integrity, and electrical connectivity. The process ensures that repaired displays maintain uniform visual output and stable signal response. Quality control testing is performed to verify restored functionality, including segment activation accuracy and display clarity. The repair methodology is designed to minimize further degradation and extend the usable life of the original display module.
Applications
The LCD Segment Display Repair service is widely used in industrial instrumentation, smart meters, medical devices, automotive dashboards, and embedded control systems. It is also suitable for repairing display units in manufacturing equipment, energy monitoring systems, and portable electronic devices. This solution provides a cost-effective and sustainable alternative to full replacement, helping maintain reliable visual performance in critical electronic applications.

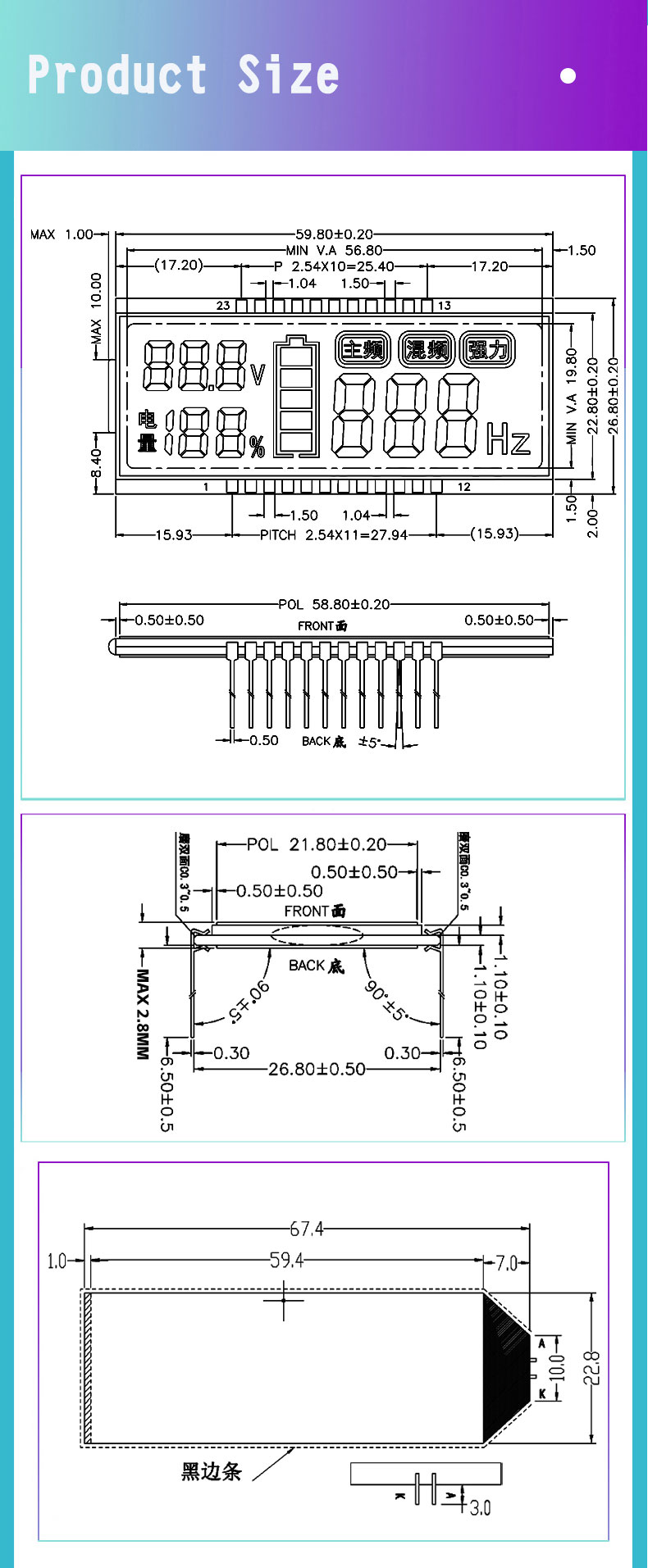

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
