LCD Display Replacement​ - JXD1601A-IIC （FSTN Positive）Russian

LCD Display Replacemen JXD1601A-IIC is a compact 16×1 character module for short labels, values, symbols, counters, and status messages. It uses an FSTN positive display structure, white LED backlight, and IIC/I2C interface to reduce wiring space and simplify controller connection. With 3.3V/5.0V drive support, wide temperature performance, low power operation, and customization flexibility, it suits meters, small instruments, access terminals, appliances, medical electronics, embedded systems, and replacement display projects.

Parameters:

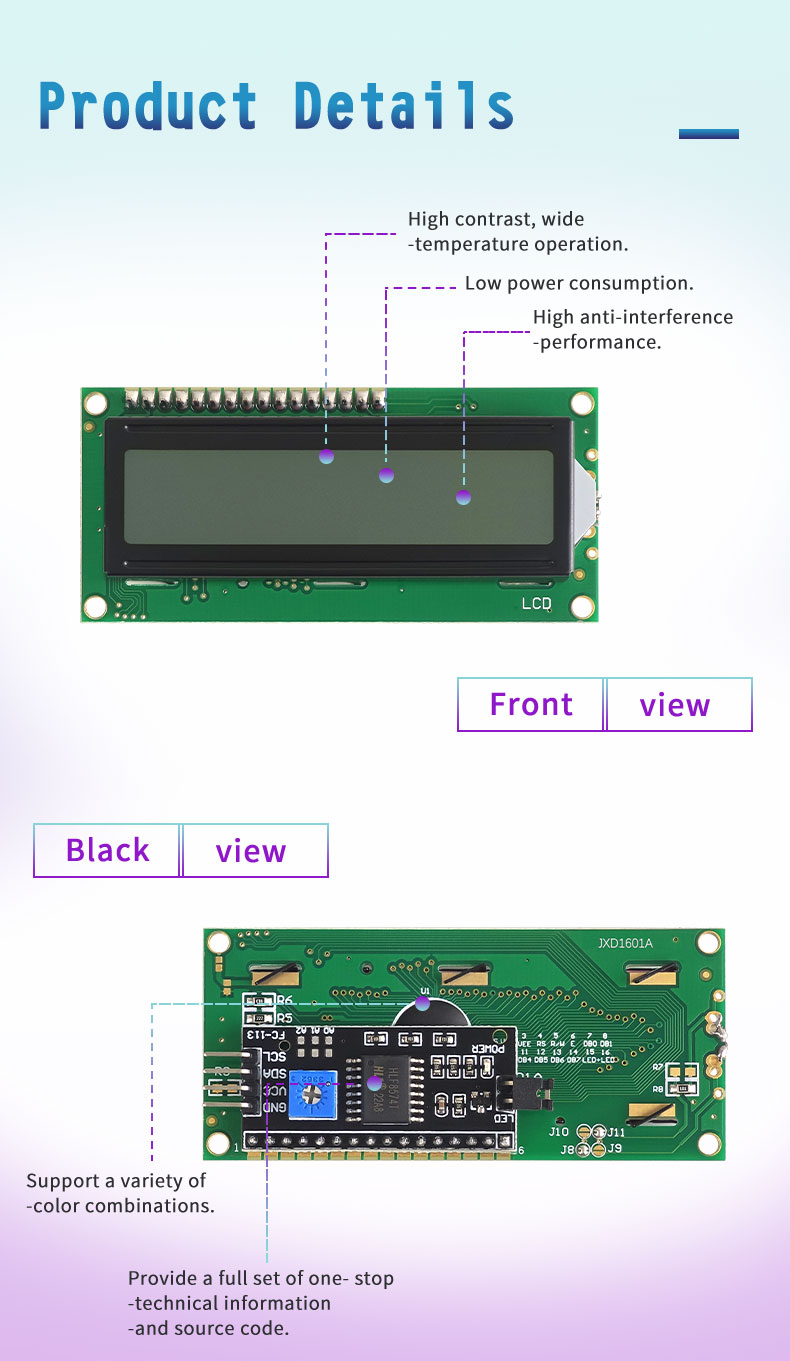

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

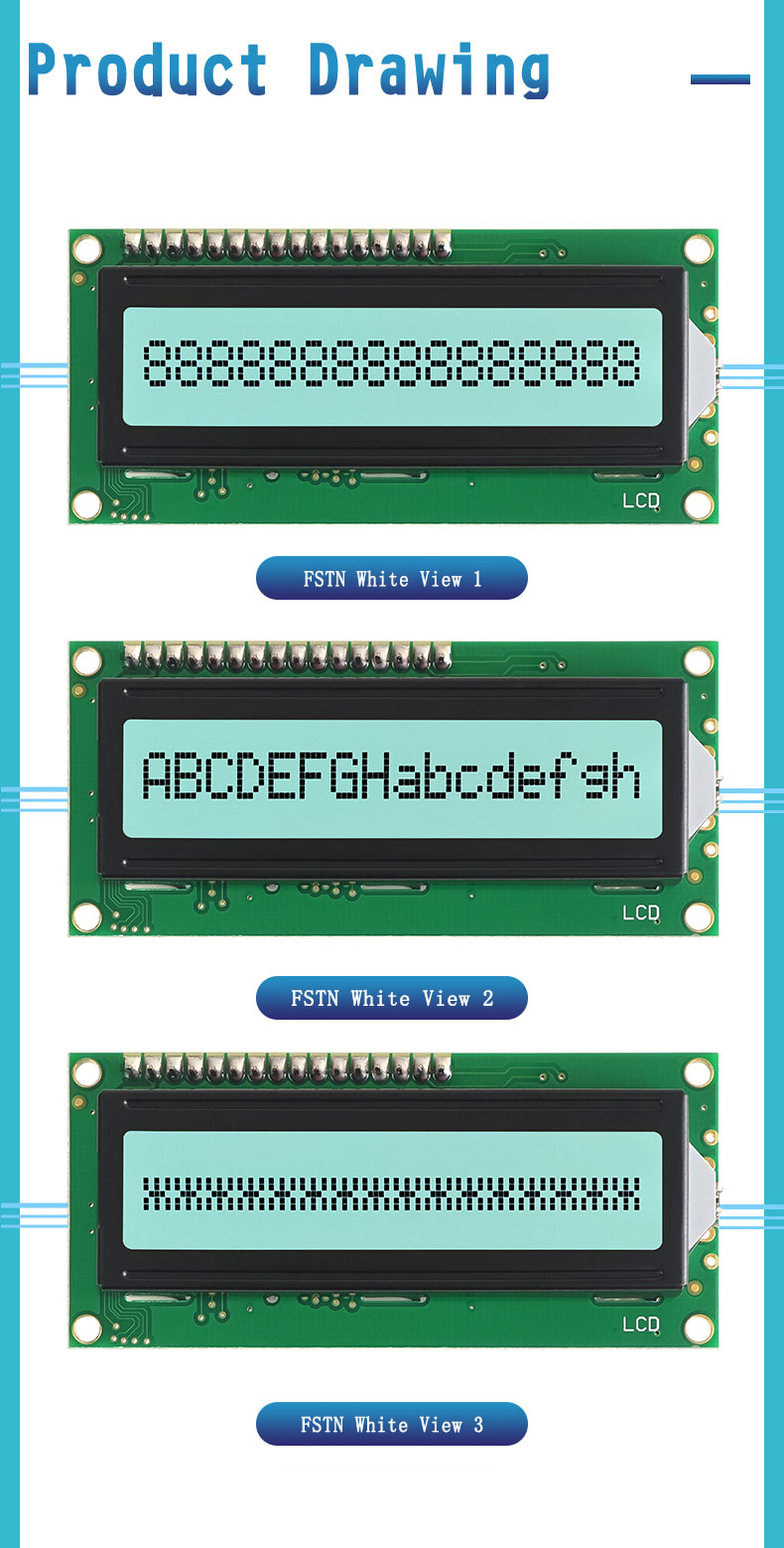

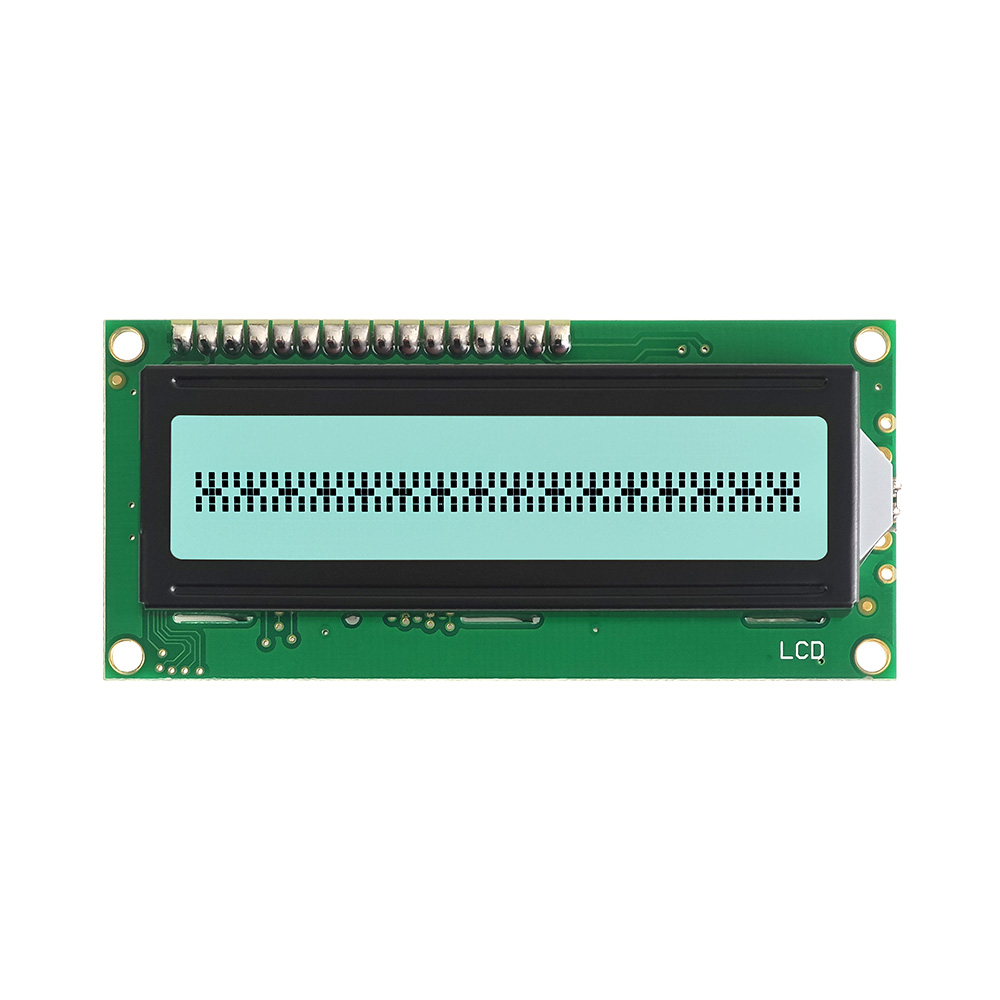

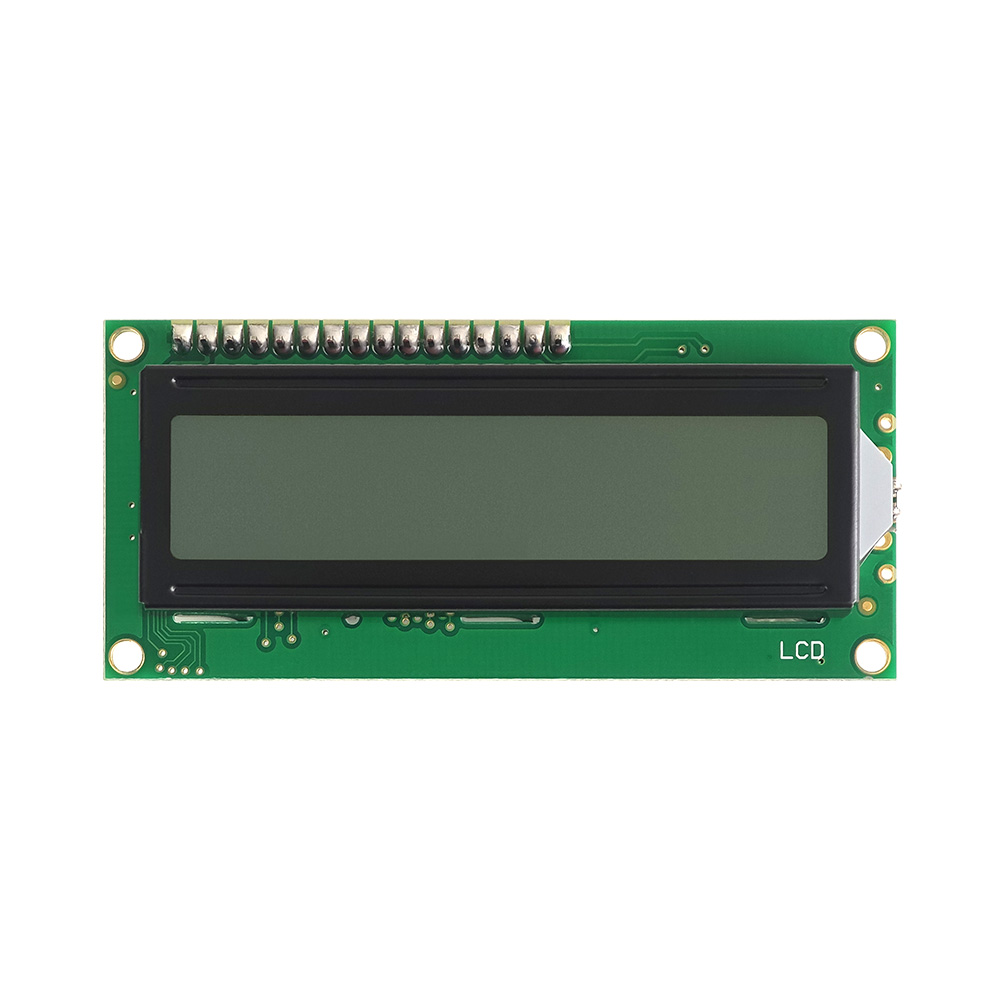

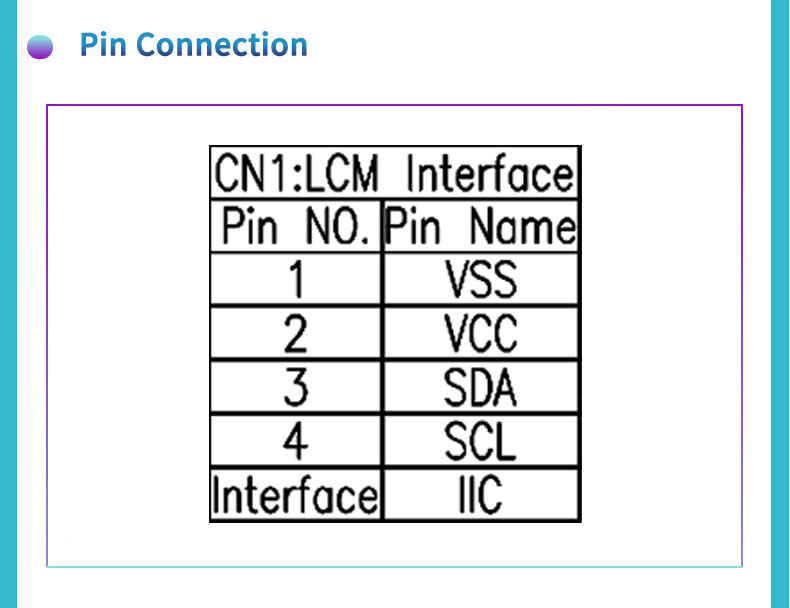

LCD Display Replacemen JXD1601A-IIC is a 16×1 character LCD module designed for single-line text output in compact equipment. It supports short labels, values, symbols, status words, and basic user prompts. The module uses an FSTN positive LCD structure with a white LED backlight for clear readability. Its IIC/I2C interface reduces wiring complexity, while 3.3V/5.0V drive support makes it easier to connect with different controller boards and embedded systems.

Design Standards

LCD Display Replacemen is developed for replacement projects that need stable compatibility, simple communication, and clean character presentation. The FSTN positive display mode helps improve text definition, while the IIC interface saves board space and lowers pin usage compared with traditional parallel wiring. It supports wide-temperature operation for industrial and electronic applications. Low power consumption, anti-interference performance, technical data support, source code assistance, sample service, and customization options help engineers adapt the module to different product structures.

Applications

LCD Display Replacemen is suitable for devices that need a compact display update or a replacement text screen. It can show device names, operating modes, setting values, counters, short warnings, and system status. Common uses include meters, small instruments, access terminals, control panels, household appliances, medical electronics, communication devices, power equipment, embedded controllers, and DIY electronic projects. Its 16×1 layout and IIC connection make it practical for space-limited products that require simple readable output.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
