LCD Display - JXD1601A-IIC （STN Positive）Russian

LCD Display JXD1601A-IIC is a compact 16×1 character screen for simple text, values, symbols, labels, and status prompts. It uses STN positive display technology, LED backlight support, and an IIC/I2C interface to reduce wiring and save controller pins. With 3.3V/5.0V drive compatibility, wide temperature operation, low power performance, and customization options, it suits small meters, access panels, handheld instruments, appliances, medical electronics, embedded controllers, and replacement display designs.

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

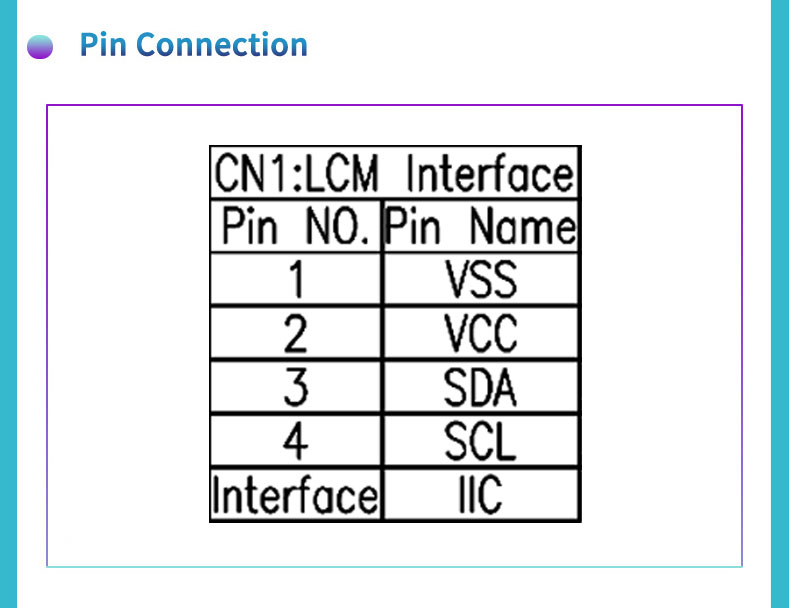

LCD Display JXD1601A-IIC is a compact 16×1 character module for simple text, numbers, symbols, labels, and short status messages. It uses STN positive display technology to present dark characters on a bright background, helping users read information clearly in small panel spaces. The module supports an IIC/I2C interface, reducing wiring and saving controller pins. With 3.3V/5.0V drive compatibility, LED backlight support, and stable character output, it suits embedded electronic designs.

Design Standards

LCD Display is designed for products that need a small, efficient, and easy-to-connect text screen. Its I2C communication method simplifies PCB layout and supports cleaner integration than traditional multi-pin parallel wiring. The STN positive structure provides reliable readability for everyday equipment interfaces, while the backlight improves visibility during indoor or low-light operation. Low power consumption, anti-interference performance, wide-temperature capability, technical support, sample testing, and customization options help manufacturers adapt the module to different product requirements.

Applications

LCD Display is suitable for compact devices that only need one line of essential information. It can show operating modes, counters, short warnings, product labels, setting values, and system status. Typical applications include small meters, access control panels, handheld instruments, household appliances, medical electronics, communication terminals, power equipment, embedded controllers, DIY electronics, and replacement display projects. Its 16×1 format and I2C interface make it practical for space-limited products that require clear and stable text output.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
