LCD Display 16x2 - JXD1602A （FSTN Positive）Russian

LCD Display 16x2 JXD1602A is a compact two-line character screen for values, menus, labels, symbols, alarms, and status prompts. Its 16×2 format offers clear information output while keeping product panels space-saving. The FSTN positive display structure improves character readability, and LED backlight options support daily operation in indoor environments. With 3.3V/5.0V drive compatibility, low power use, wide temperature performance, and customization flexibility, it suits meters, instruments, appliances, medical electronics, access devices, and embedded systems.

Parameters:

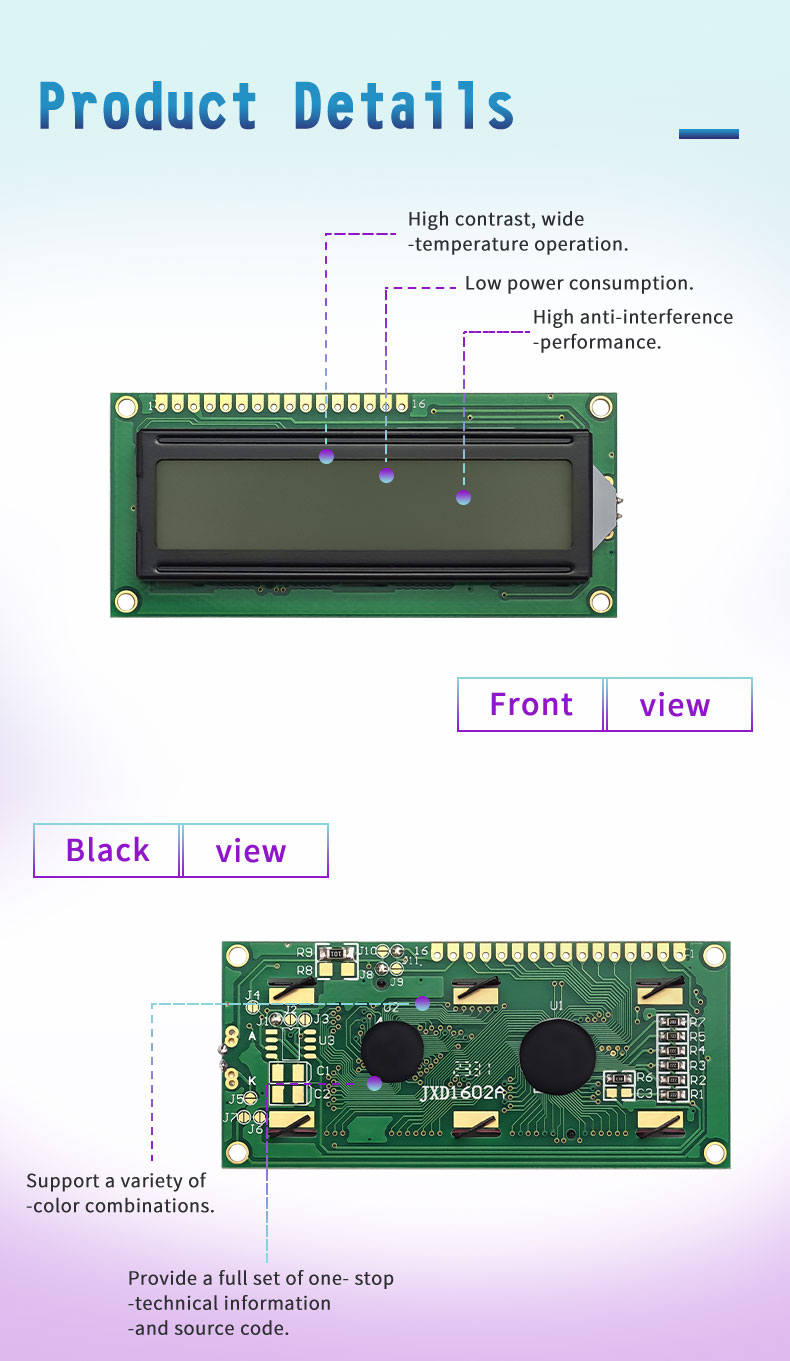

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

LCD Display 16x2 JXD1602A provides two rows with 16 characters per row, making it suitable for compact equipment that needs readable text, values, symbols, and menu prompts. It uses FSTN positive display technology to support clear dark characters on a light background. The module is compatible with 3.3V/5.0V drive circuits and can be matched with LED backlight options, standard character control methods, and customized interface requirements for embedded product development.

Design Standards

LCD Display 16x2 is designed for balanced display capacity, compact installation, and stable operation in electronic devices. Its 16×2 layout gives enough room for essential data while keeping the module small and easy to fit into control panels. The FSTN positive structure helps improve contrast and viewing quality, while backlight support improves readability in indoor environments. Low power consumption, anti-interference performance, wide-temperature design, sample support, technical documents, and customization options support different OEM needs.

Applications

LCD Display 16x2 is suitable for devices that need simple two-line information output without a complex graphic screen. It can display operating values, mode names, setting menus, unit labels, alarms, and short system messages. Common applications include meters, test instruments, industrial controllers, household appliances, communication terminals, medical electronics, power equipment, access control products, embedded boards, and DIY projects. Its familiar 16×2 format gives engineers a practical display choice for many compact user interfaces.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
