16x2 Character LCD Display​ - JXD1602A （STN Positive）Russian

16x2 Character LCD Display JXD1602A is a standard two-line module for text, values, unit labels, menu prompts, warnings, and device status. Its STN positive display mode presents dark characters on a light background for clear readability. With 3.3V/5.0V drive compatibility, LED backlight options, low power operation, wide temperature performance, and flexible customization, it suits meters, industrial instruments, control panels, appliances, medical electronics, access terminals, communication devices, embedded systems, and DIY projects.

Parameters:

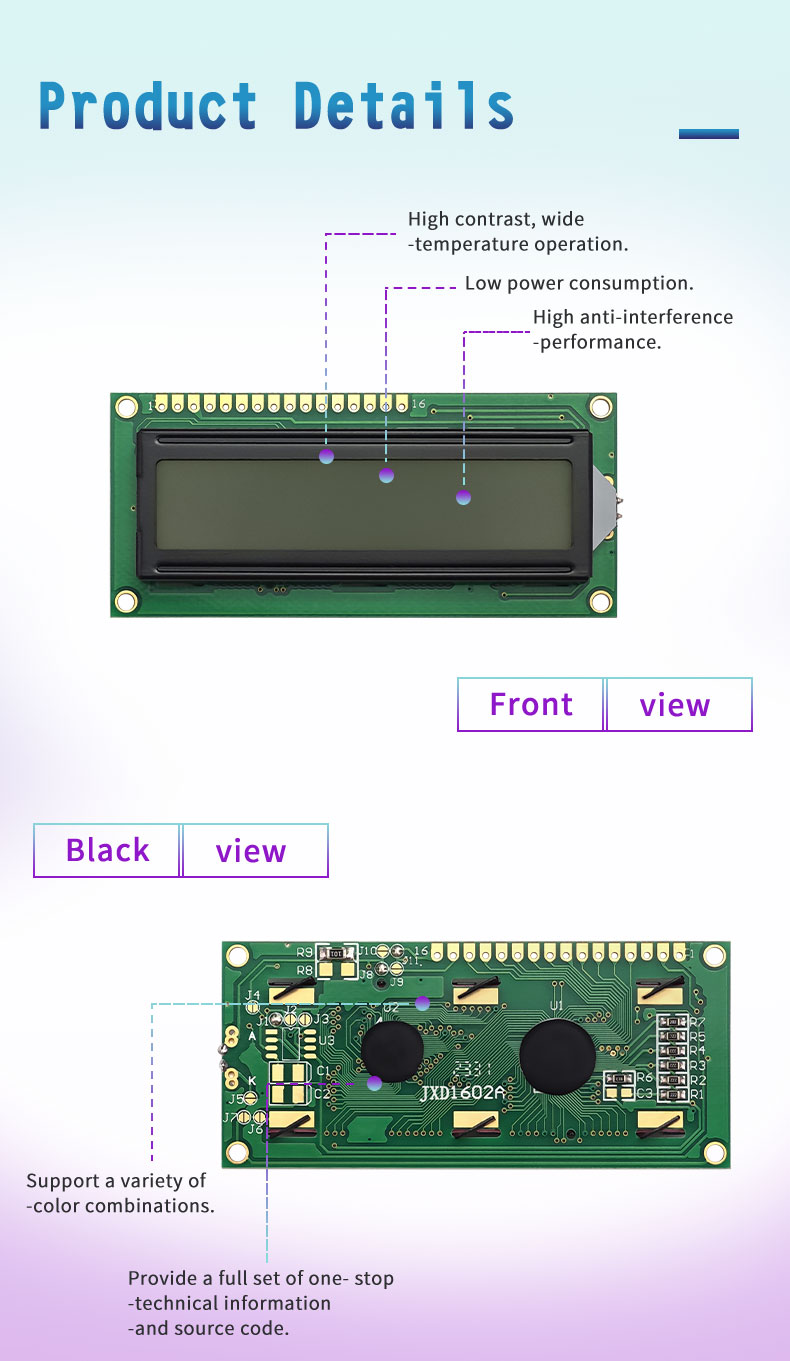

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

16x2 Character LCD Display JXD1602A is a standard two-line character module for showing 16 characters per row, including text, numbers, units, symbols, menu names, and device prompts. It uses STN positive display technology, giving the screen dark characters on a light background for familiar readability. The module supports 3.3V/5.0V drive compatibility, LED backlight options, and character-based controller integration, making it suitable for embedded boards, product panels, and compact electronic interfaces.

Design Standards

16x2 Character LCD Display is designed for stable text output, easy circuit matching, and efficient use of panel space. Its 16×2 format gives enough room for common operating information without requiring a large display area. The STN positive structure supports clear contrast, while backlight options help maintain visibility in indoor environments. Low power consumption, wide-temperature performance, anti-interference capability, sample testing, technical documentation, and customization for interface, backlight, or viewing direction help support OEM product development.

Applications

16x2 Character LCD Display works well in products that need simple two-line information display with reliable readability. It can show measurement values, working modes, parameter settings, short alerts, menu prompts, and system status. Typical applications include meters, industrial instruments, control panels, household appliances, medical electronics, access terminals, communication devices, power equipment, embedded controllers, educational kits, and DIY electronics. Its mature 16×2 layout makes it a practical choice for many compact device interfaces.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
