LCD Character Display Corrupt Text - SJXD0802A-1 （STN Positive）

LCD Character Display Corrupt Text refers to issues where an 8×2 LCD module shows wrong symbols, scrambled letters, or unreadable output. The SJXD0802A-1 model supports 3.3V/5V operation, ST7066/AIP31066 controller options, white LED backlight, STN positive display type, 16PIN interface, and compact two-row text output. Corrupt text may result from wrong initialization, timing errors, unstable voltage, poor grounding, pin mismatch, or code settings. It suits meters, medical devices, access terminals, appliances, testing tools, and embedded control panels.

Parameters:

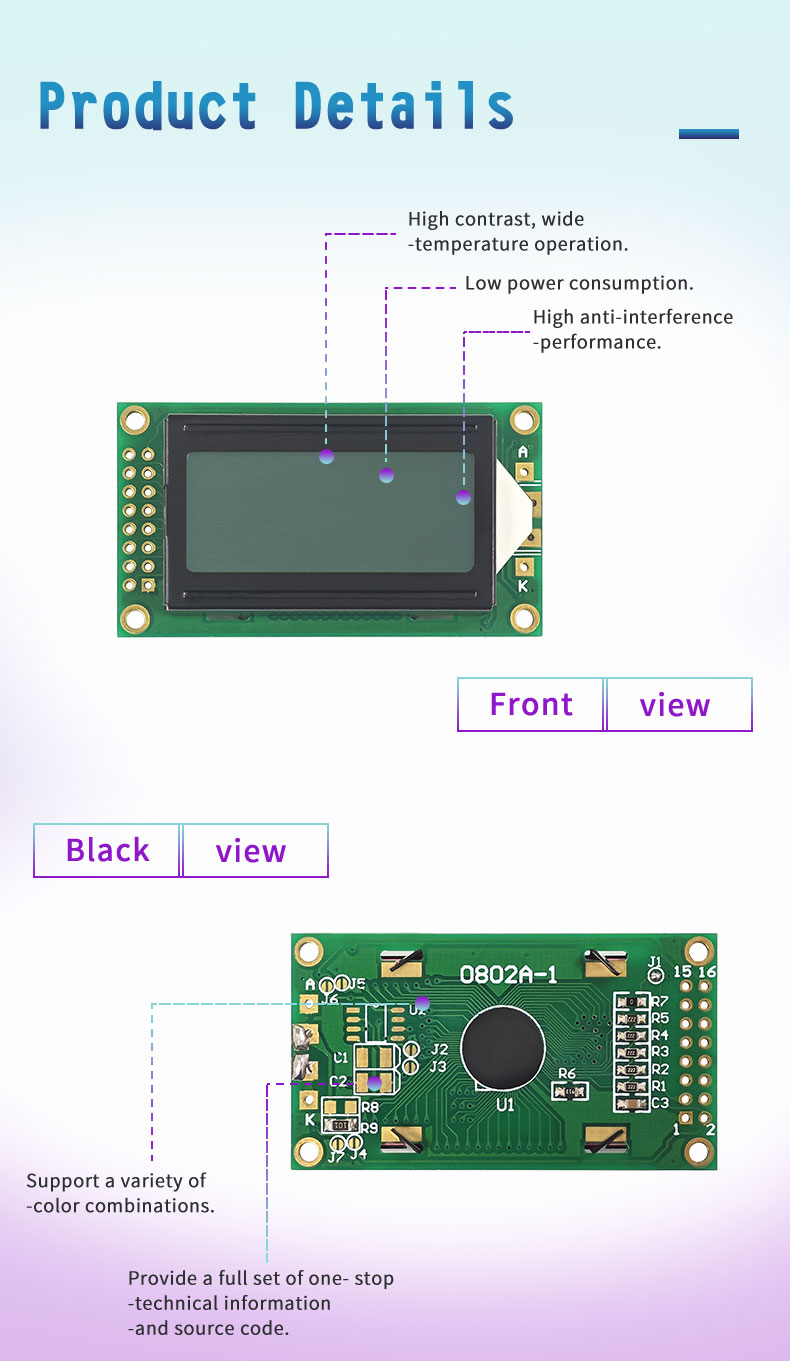

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

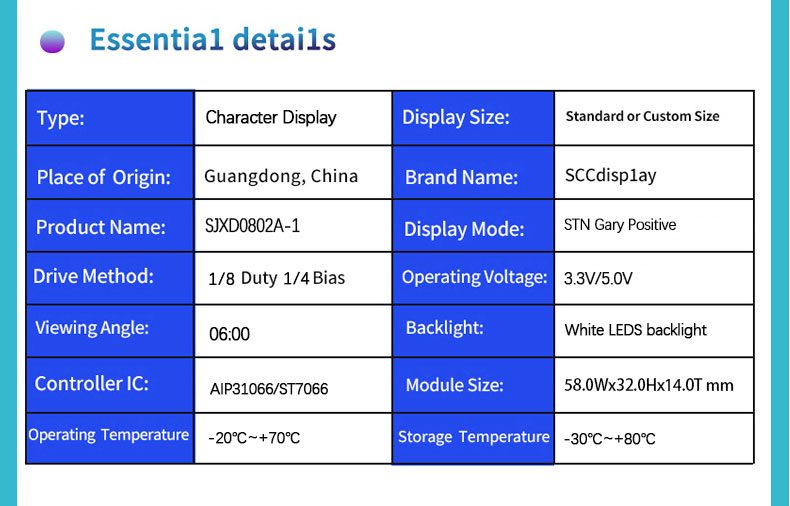

LCD Character Display Corrupt Text is related to an 8×2 character LCD module used for short text, symbol, and numeric output in compact electronic devices. The SJXD0802A-1 model features a 58.0×32.0×14.0mm outline size and a 37.7×16.0mm viewing area, providing two rows for concise display content. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 controller IC options, white LED backlight, STN positive LCD type, 16PIN parallel interface, and 06:00 viewing direction. Its working temperature range is -20°C to +70°C, with storage from -30°C to +80°C.

Design Standards

LCD Character Display Corrupt Text focuses on stable character decoding, correct initialization, and reliable communication between the LCD and host controller. Corrupt text may come from incorrect data timing, unstable voltage, poor grounding, wrong pin mapping, contrast mismatch, code library errors, or incomplete startup commands. The module design supports defined command control, readable dot matrix character output, and dependable backlight performance in small panels. It also allows customization for backlight color, display mode, interface structure, shell design, operating parameters, and project-specific display requirements.

Applications

LCD Character Display Corrupt Text is suitable for development, testing, and production environments where engineers need to avoid unreadable or incorrect character output. It can display operating modes, menu labels, sensor values, timer data, alarm codes, battery status, diagnostic prompts, and short instructions. Typical uses include portable instruments, control terminals, medical electronics, access systems, appliance panels, educational boards, vending devices, testing equipment, smart controllers, and embedded products. Its 8×2 format is useful when a small screen must deliver accurate text feedback.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
