How To Power LCD Character Display - SJXD0802A-1 （FSTN Positive）

How To Power LCD Character Display explains powering a compact 8×2 LCD module for stable text and backlight output. The SJXD0802A-1 model supports 3.3V/5V drive voltage, ST7066/AIP31066 controller options, white LED backlight, STN positive display type, 16PIN parallel interface, and 06:00 viewing direction. Reliable operation depends on correct voltage, grounding, contrast adjustment, and backlight wiring. It suits meters, access devices, medical electronics, appliance panels, test tools, smart controllers, education boards, and embedded products.

Parameters:

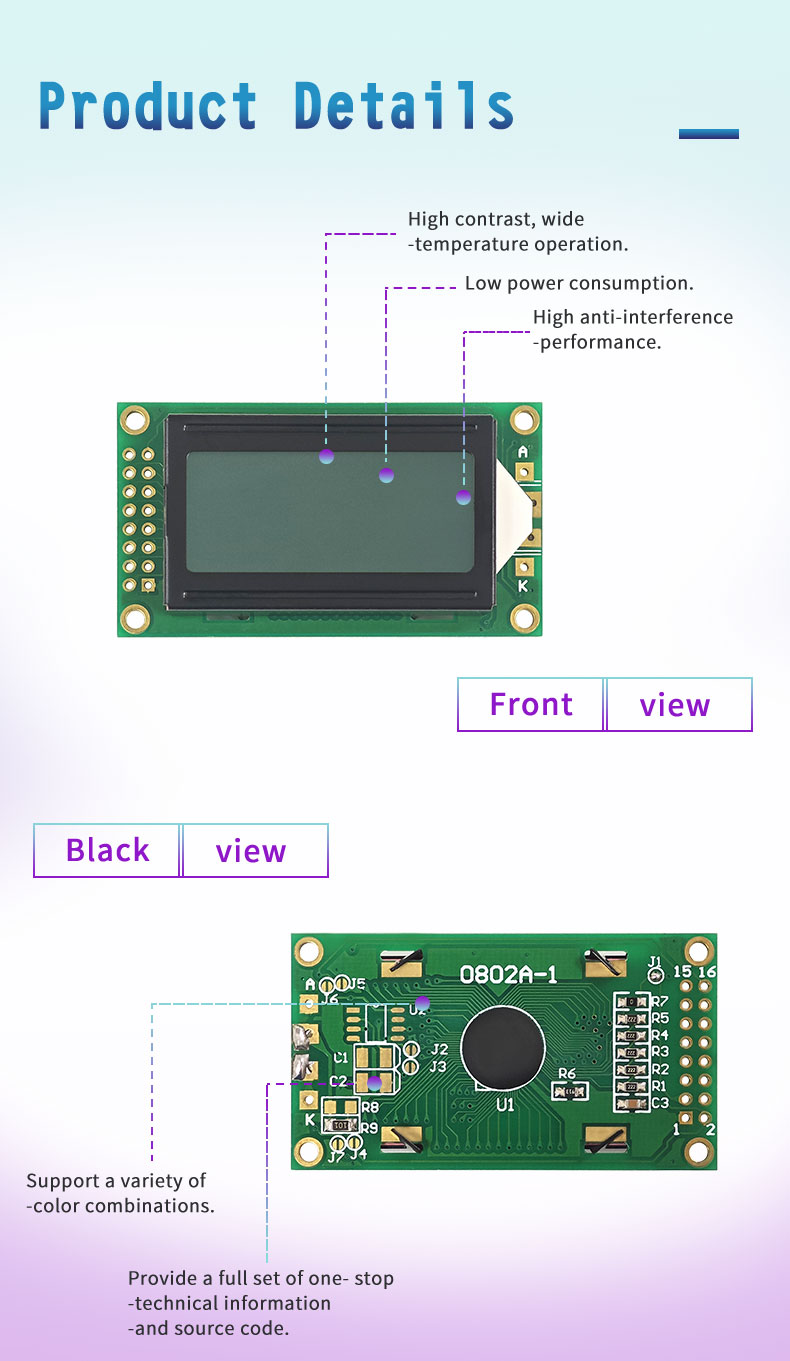

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

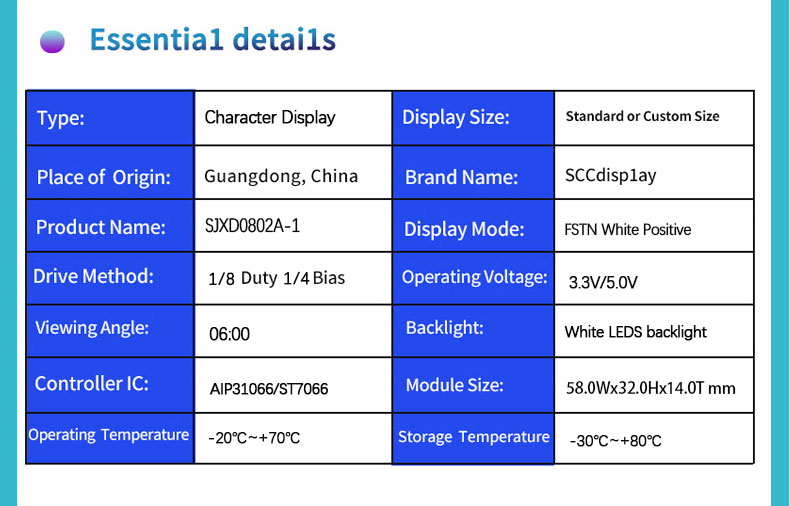

Key Specifications

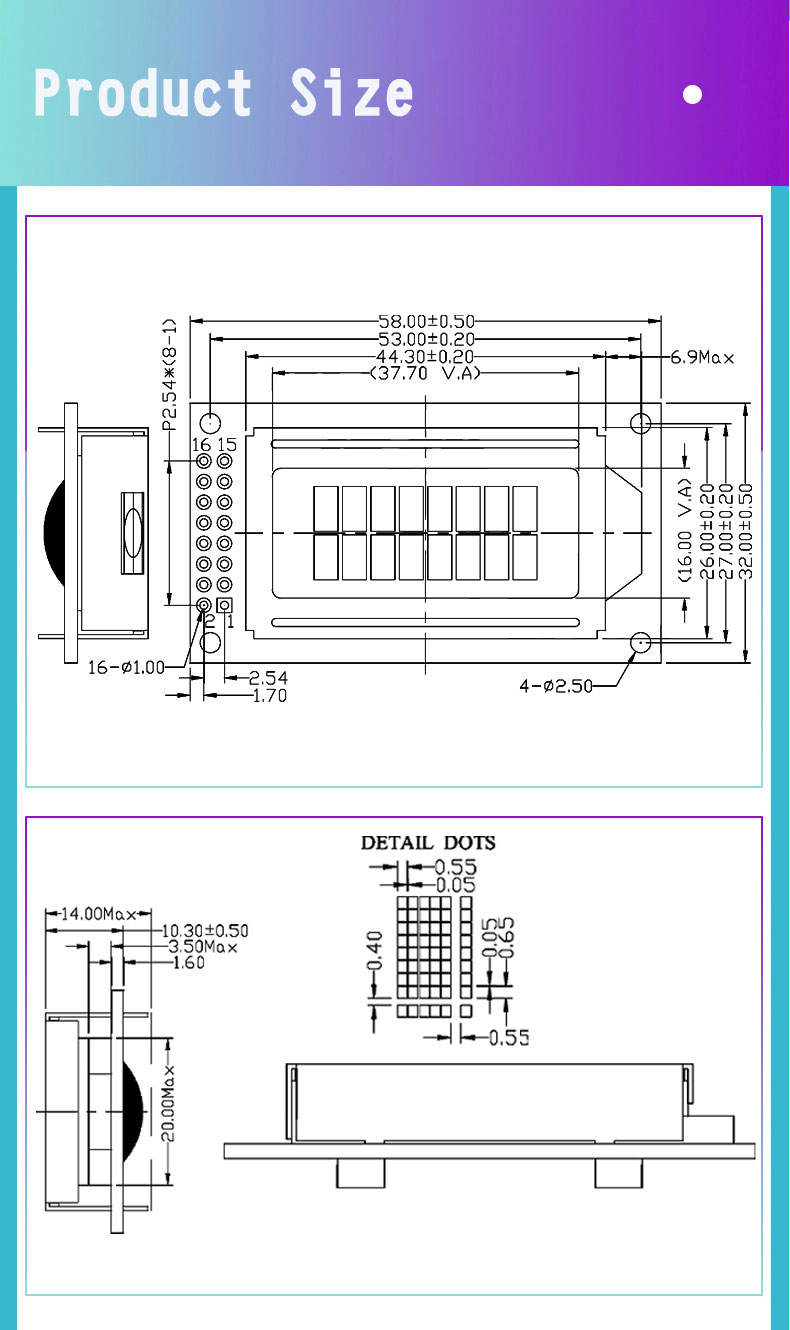

How To Power LCD Character Display refers to an 8×2 character LCD module that requires stable voltage input for clear text and backlight performance. The SJXD0802A-1 model uses a compact 58.0×32.0×14.0mm outline with a 37.7×16.0mm viewing area. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 controller IC options, white LED backlight, STN positive LCD type, 16PIN parallel interface, and 06:00 viewing direction. Its operating temperature range is -20°C to +70°C, with storage from -30°C to +80°C.

Design Standards

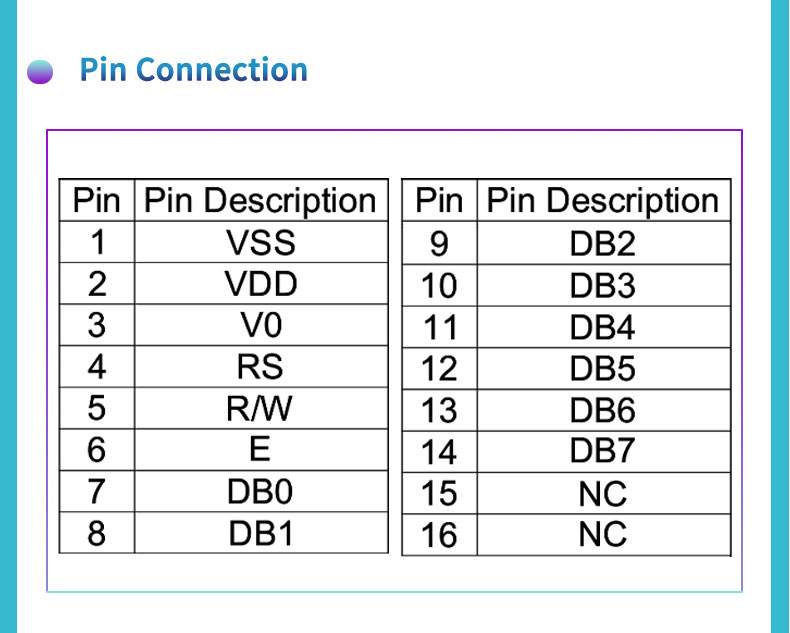

How To Power LCD Character Display focuses on correct voltage supply, stable grounding, and proper backlight connection to prevent dim output, missing characters, flicker, or unstable display behavior. The logic power and LED backlight should match the module specification, while contrast adjustment helps maintain readable characters under different lighting conditions. The 16PIN interface supports separate power, control, data, and backlight pins for direct embedded integration. The module also supports low power operation, anti-interference performance, technical documentation, source-code guidance, sample supply, and customization for voltage, backlight color, display mode, and structure.

Applications

How To Power LCD Character Display is suitable for projects where reliable LCD power input is important for consistent two-line text output. It can show sensor readings, voltage values, menu labels, timer data, warning codes, battery level, device status, and short operating prompts. Typical applications include portable meters, control terminals, access systems, medical devices, appliance panels, testing instruments, vending equipment, educational boards, smart controllers, DIY electronics, and embedded products. Its small 8×2 format works well in compact devices that need clear information display with simple power and signal wiring.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
