Basic Information
The SJXD-HTH66447 LCD 7 Segment Display Module is a customized segmented display solution designed for clear and stable numeric visualization in a wide range of electronic applications. It is engineered to deliver accurate data presentation with low power consumption and long-term reliability. This module is widely used in measurement devices, control systems, and electronic instruments where simple and precise numeric output is required.

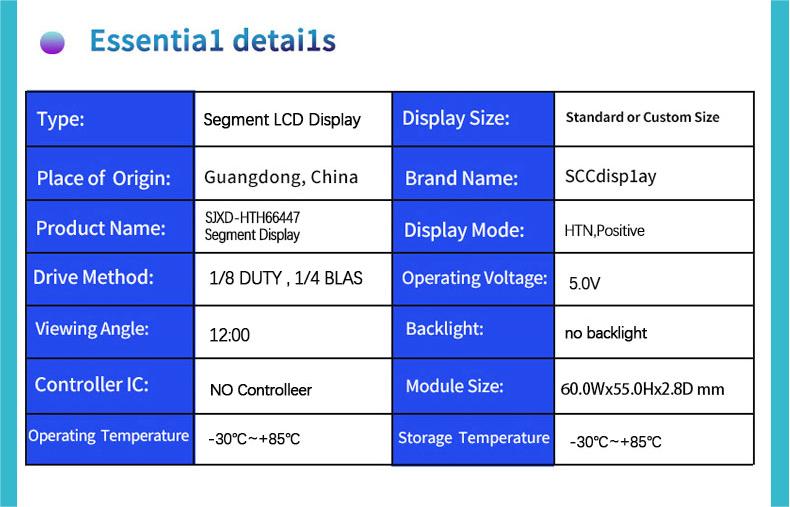

Parameters:
| Character Type | Customized |
| Model | SJXD-HTH66447 No Backlight |
| Model Size | 60×55×2.8mm |
| VA Size | 57×48mm |
|
Connector
|
PIN |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/8 DUTY,1/4 BIAS
|
|
Working Temperature
|
-30C TO +85°C
|
| Storage Temperature |
-30C TO +85°C
|
|
Working Voltage
|
5.0 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The SJXD-HTH66447 LCD 7 Segment Display Module features a classic segmented LCD structure optimized for numeric display applications. It provides high-contrast performance, ensuring clear readability of digits under various lighting conditions. The display is designed for low power operation, making it suitable for battery-powered devices and energy-efficient systems. It supports stable electrical driving characteristics, ensuring consistent operation during long-term use. The compact structure allows easy integration into different electronic products without requiring complex design changes. The module is optimized for stable signal response and reliable visual output, ensuring dependable performance in both industrial and consumer environments.
Design Features
This LCD 7 segment display module is built for durability, clarity, and functional stability. It offers fast response time and accurate segment activation, ensuring precise numeric representation. The segmented layout is optimized for long service life and stable operation even under continuous usage conditions. Its flexible design allows manufacturers to adapt the display for different product requirements, making it suitable for a wide range of electronic systems. The module also ensures consistent visibility and performance across varying environmental conditions. Its compact and efficient structure supports easy integration into space-limited designs while maintaining reliable functionality.
Applications
The SJXD-HTH66447 LCD 7 Segment Display Module is widely used in digital meters, measuring instruments, timers, counters, household appliances, industrial control systems, and portable electronic devices. It is commonly applied in power meters, temperature controllers, electronic clocks, and monitoring equipment. Its stability and clarity make it suitable for both consumer-grade and industrial-grade applications requiring accurate numeric display output.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
