Basic Information

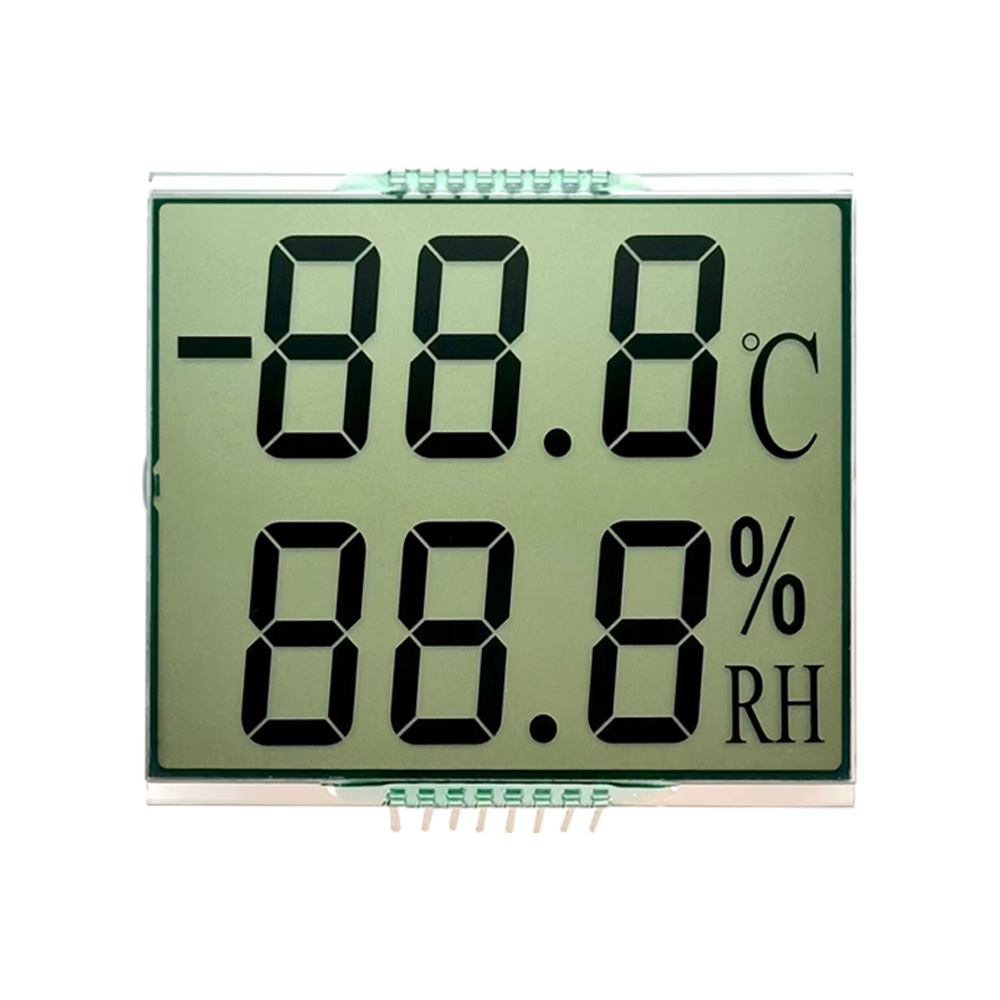

The SJXD-T61661G 7 Segment LCD Display Arduino is a customized segmented display solution designed for seamless integration with Arduino and other microcontroller platforms. It is developed to provide clear numeric output, stable performance, and low power consumption for embedded development projects. With its optimized segment structure, this display is ideal for prototyping, learning, and practical electronic applications requiring simple and accurate data visualization.
Parameters:
| Character Type | Customized |
| Model | SJXD-T61661G |
| Model Size | 62.5×57×2.8mm |
| VA Size | 59.5×50mm |
|
Connector
|
16PIN |
|
LCD Type
|
TN Positive |
|
Drive Conditions
|
1/4 Duty, 1/3 Bias
|
|
Working Temperature
|
-20C TO +70C
|
| Storage Temperature |
-30C TO+80°C
|
|
Working Voltage
|
3.3 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The SJXD-T61661G 7 Segment LCD Display Arduino features a classic segmented LCD layout optimized for digital numeric representation. It provides high-contrast display performance, ensuring clear readability of digits under various lighting conditions. The module is designed for low power operation, making it suitable for battery-powered Arduino projects and energy-efficient systems. It supports stable electrical characteristics and reliable signal response, ensuring consistent operation during continuous use. The compact structure allows easy integration into Arduino development boards and custom circuit designs without requiring complex modifications. The display is optimized for stable performance and clear output in both educational and experimental environments.
Design Features
This Arduino-compatible 7 segment LCD display is built for simplicity, reliability, and ease of use. It allows developers to quickly implement numeric display functions in embedded systems. The segmented structure ensures fast response and accurate digit representation, improving user interaction in real-time applications. Its durable construction ensures long service life and stable operation even in continuous testing scenarios. The module is designed to support flexible integration with Arduino controllers, making it suitable for both beginners and advanced developers. It also maintains consistent display quality across different operating conditions.
Applications
The SJXD-T61661G 7 Segment LCD Display Arduino is widely used in Arduino projects, DIY electronics, digital counters, timers, voltage meters, temperature displays, and educational development kits. It is suitable for learning embedded programming, prototyping electronic devices, and building custom measurement systems. It is also applied in hobby electronics and small-scale industrial control experiments.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
