LCD 1602 Module​ - JXD1602A （STN Negative）Russian

LCD 1602 Module JXD1602A is a 16×2 character display for values, menus, unit labels, symbols, alarms, and status prompts. It uses STN negative display technology with LED backlight support, showing bright characters on a darker background for stronger contrast. With 32 display positions, 3.3V/5.0V drive compatibility, low power operation, wide temperature performance, and customization options, it suits meters, industrial instruments, control terminals, power equipment, appliances, medical electronics, access devices, and embedded projects.

Parameters:

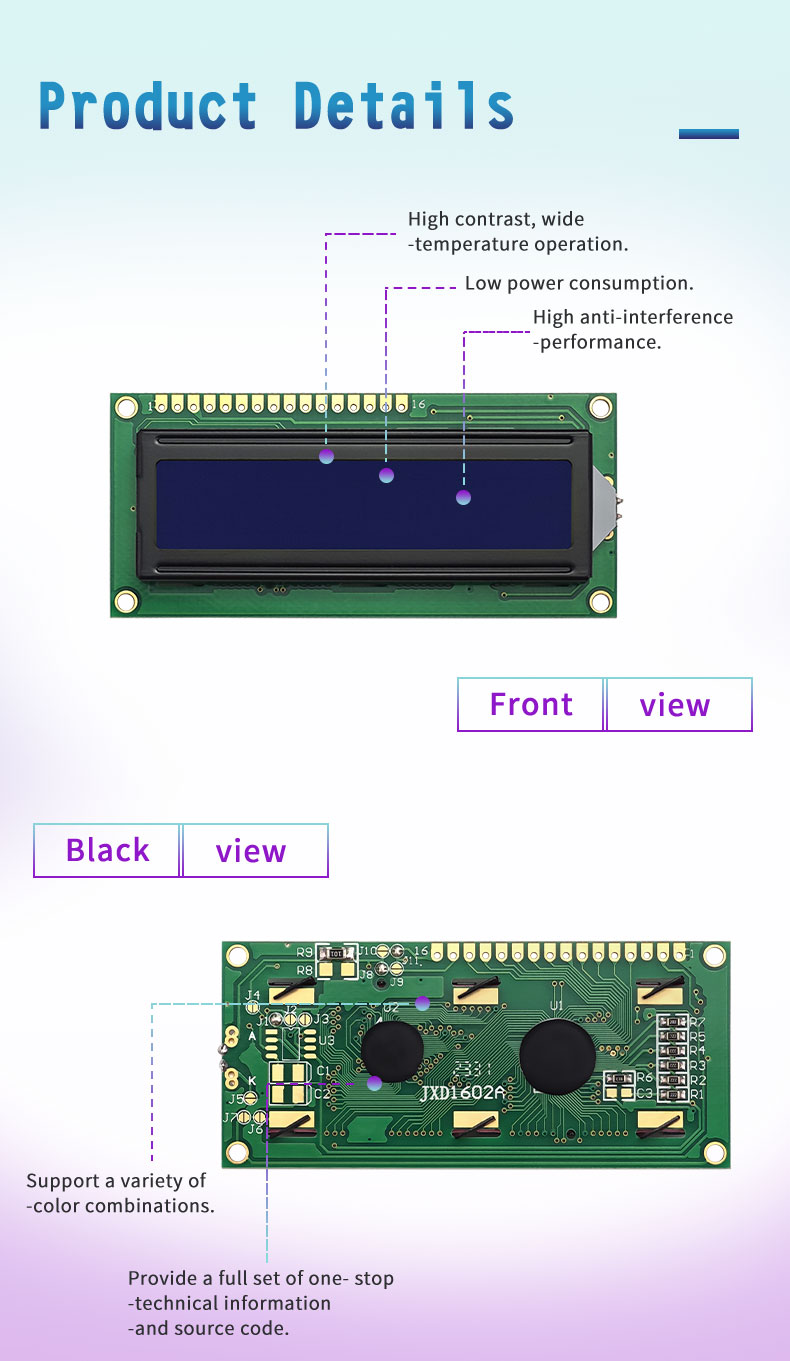

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective
• The fastest batch delivery can be achieved within 15 days

Key Specifications

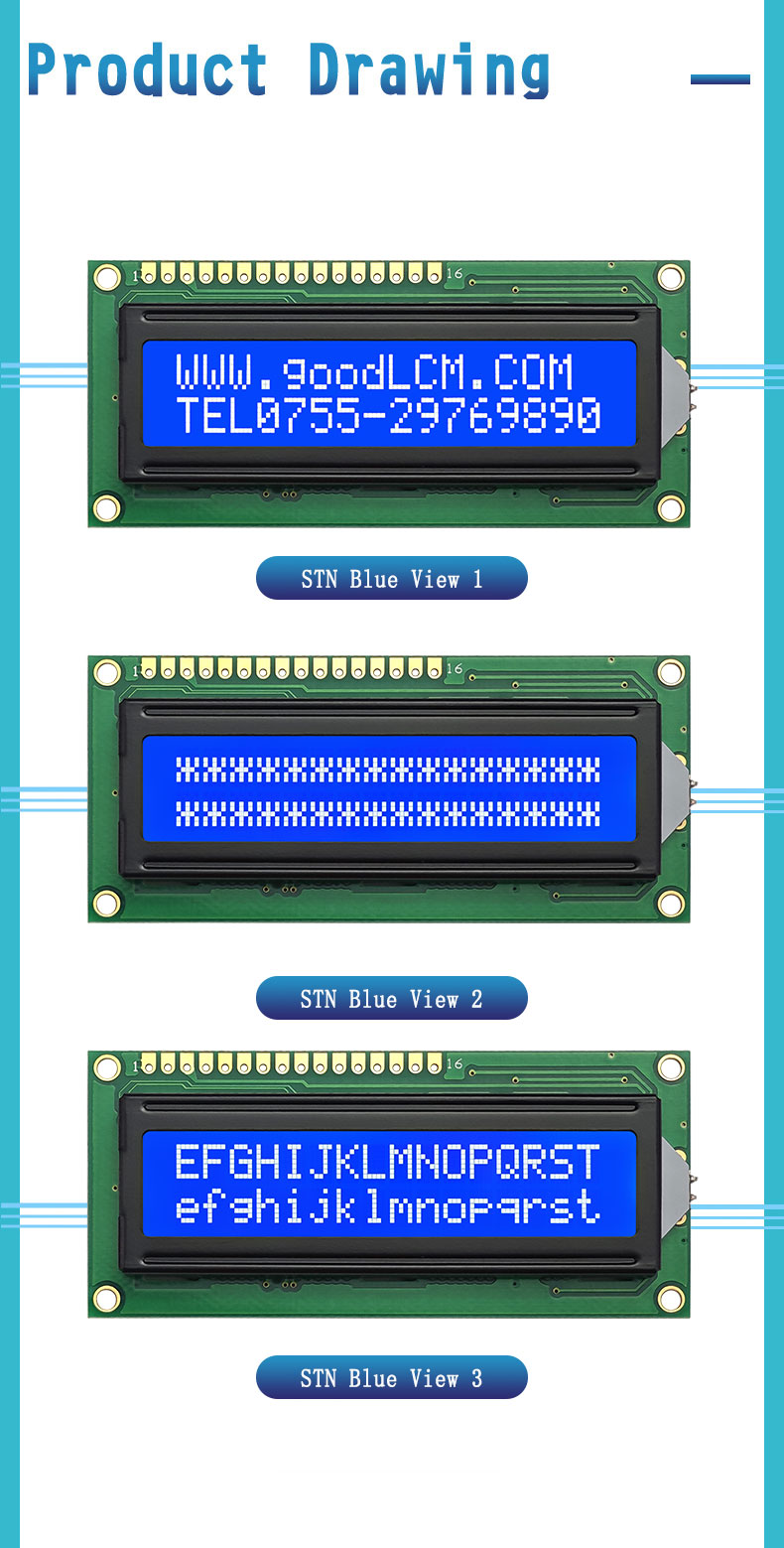

LCD 1602 Module JXD1602A is a 16×2 character display designed for two-line text, numbers, symbols, menu labels, and device prompts. It provides 32 character positions in a compact module structure, making it suitable for small control panels and embedded products. This version uses STN negative display technology with LED backlight support, helping bright characters stand out against a darker background. It supports 3.3V/5.0V drive compatibility and standard character LCD control for easy integration.

Design Standards

LCD 1602 Module is built for clear contrast, stable text output, and practical installation in electronic equipment. The STN negative display mode gives the screen a stronger visual effect than common positive displays, especially when used with a white or colored LED backlight. Its 16×2 layout balances readable information capacity with compact size. Low power consumption, anti-interference performance, wide-temperature operation, sample support, technical documentation, and customization options help manufacturers adapt the module to different OEM projects.

Applications

LCD 1602 Module is suitable for products that need a simple two-line interface without using a larger graphic display. It can show measurement values, working modes, setting menus, alarm codes, unit labels, timer information, and system status. Common applications include meters, industrial instruments, control terminals, power equipment, home appliances, access control devices, medical electronics, communication products, embedded controllers, educational kits, and DIY electronics that require reliable character-based display output.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
