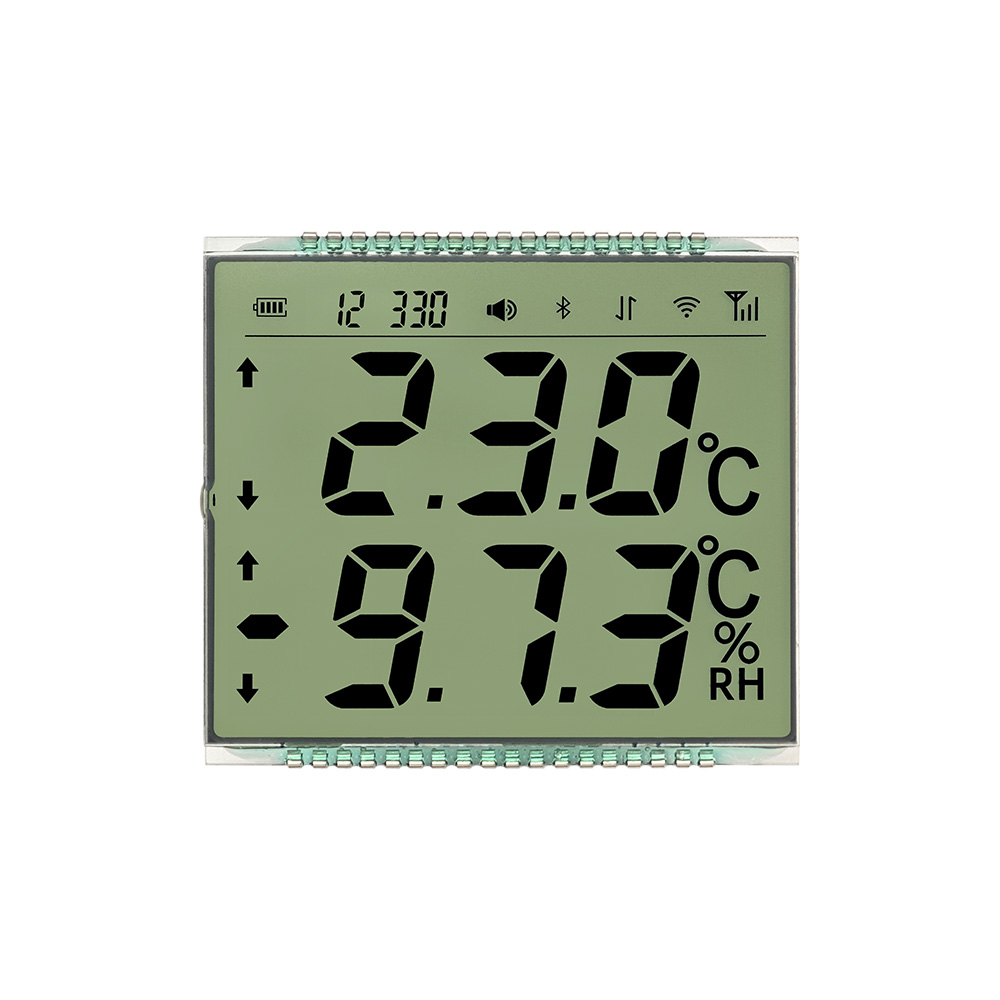

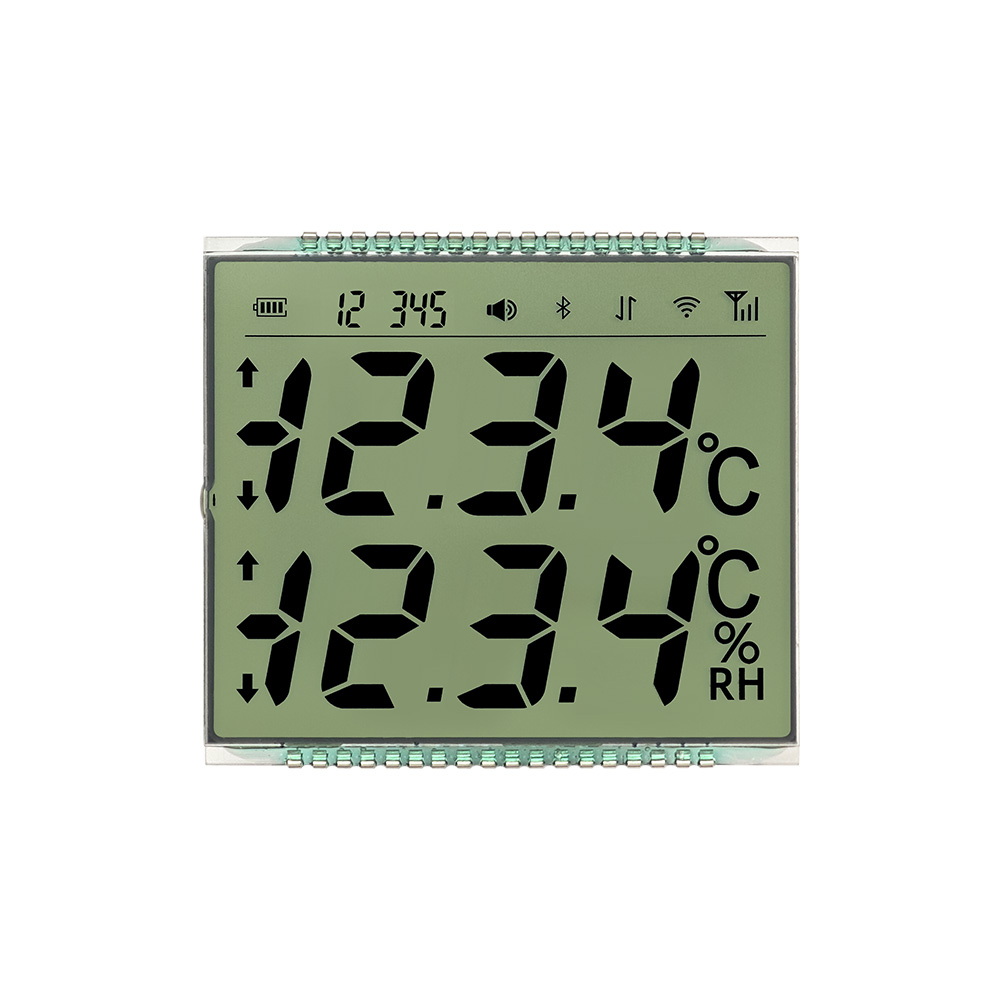

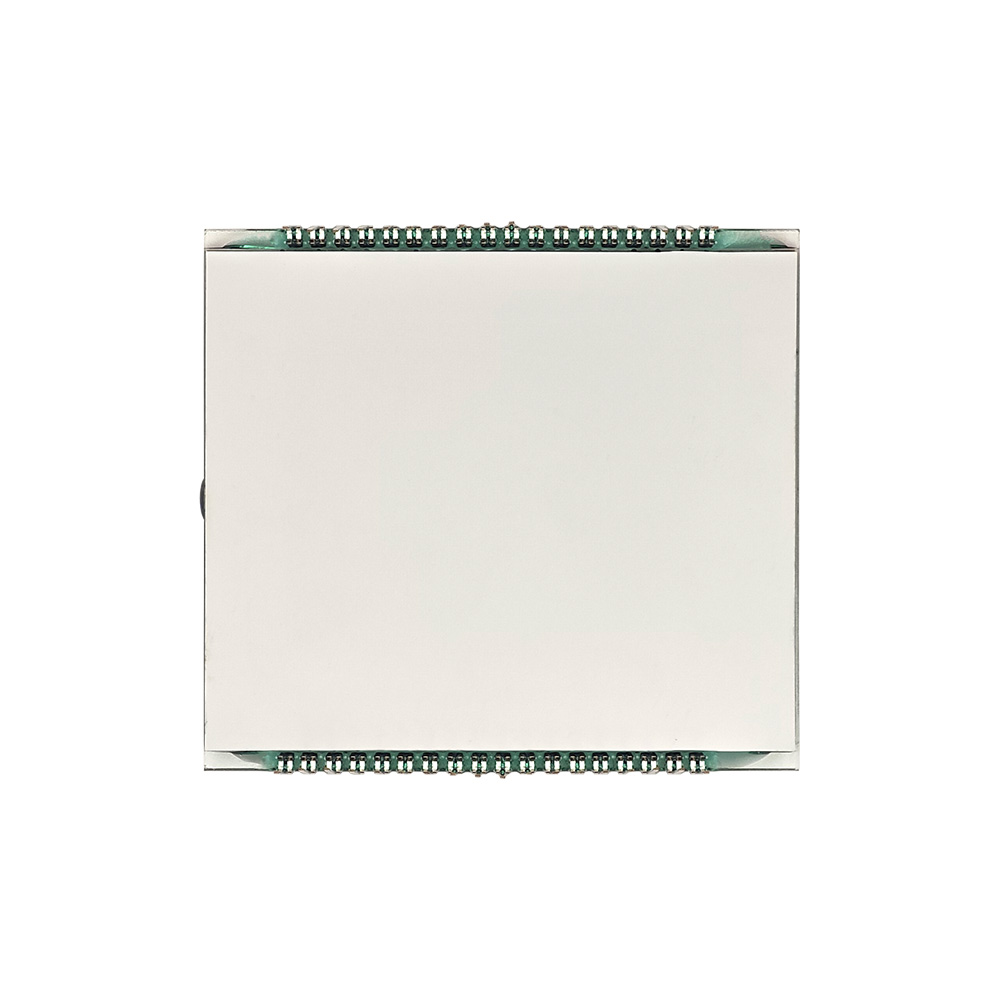

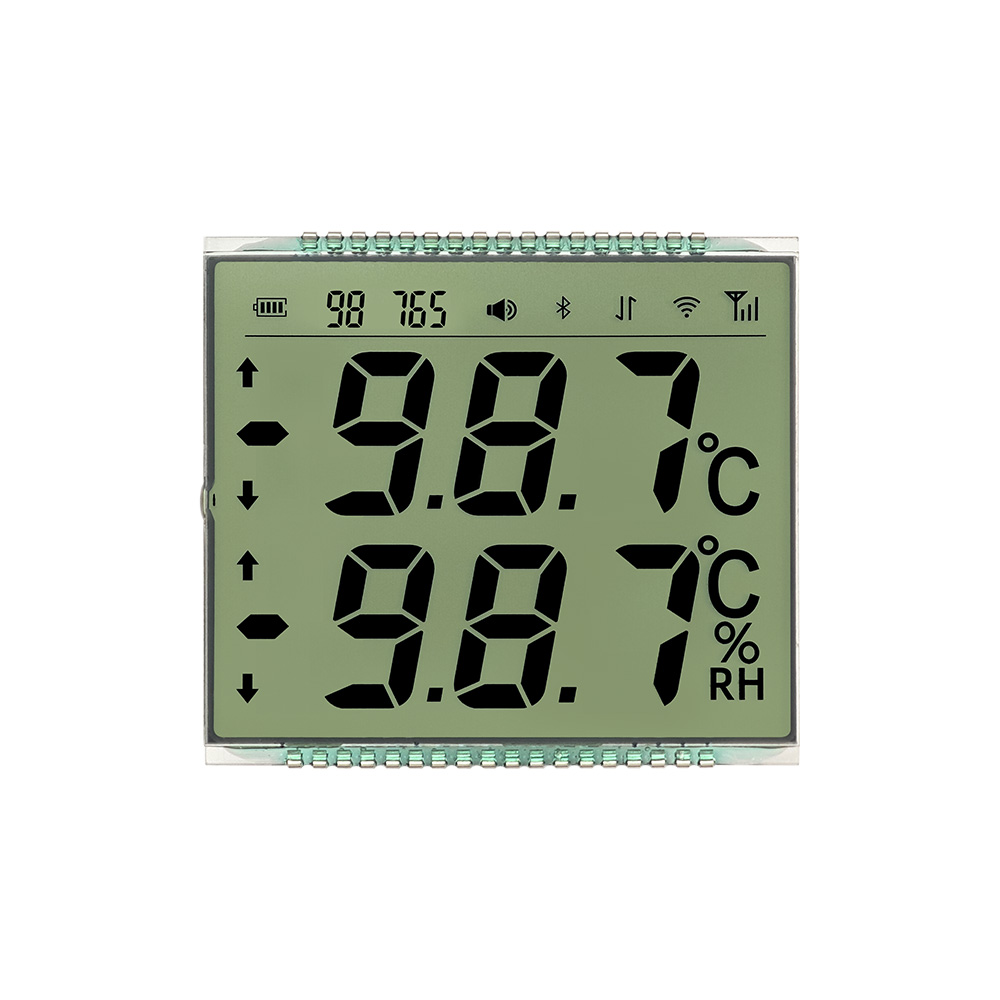

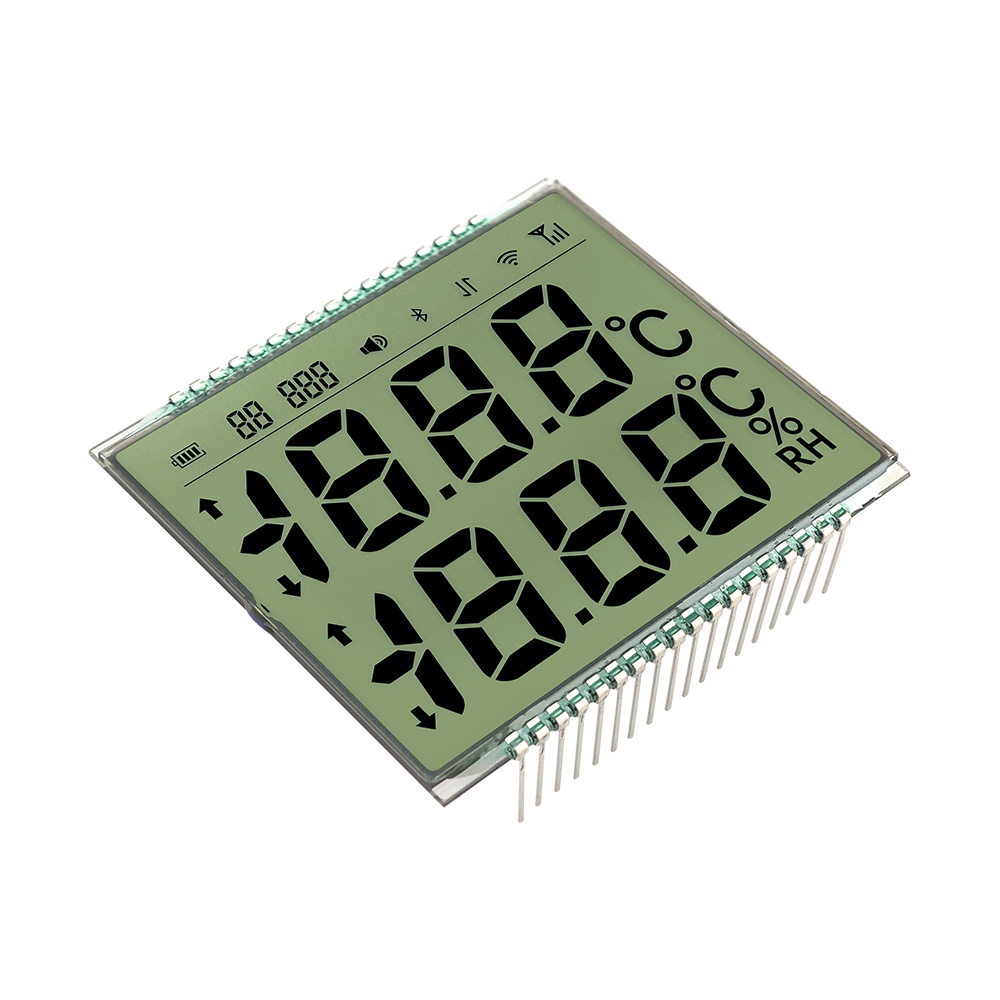

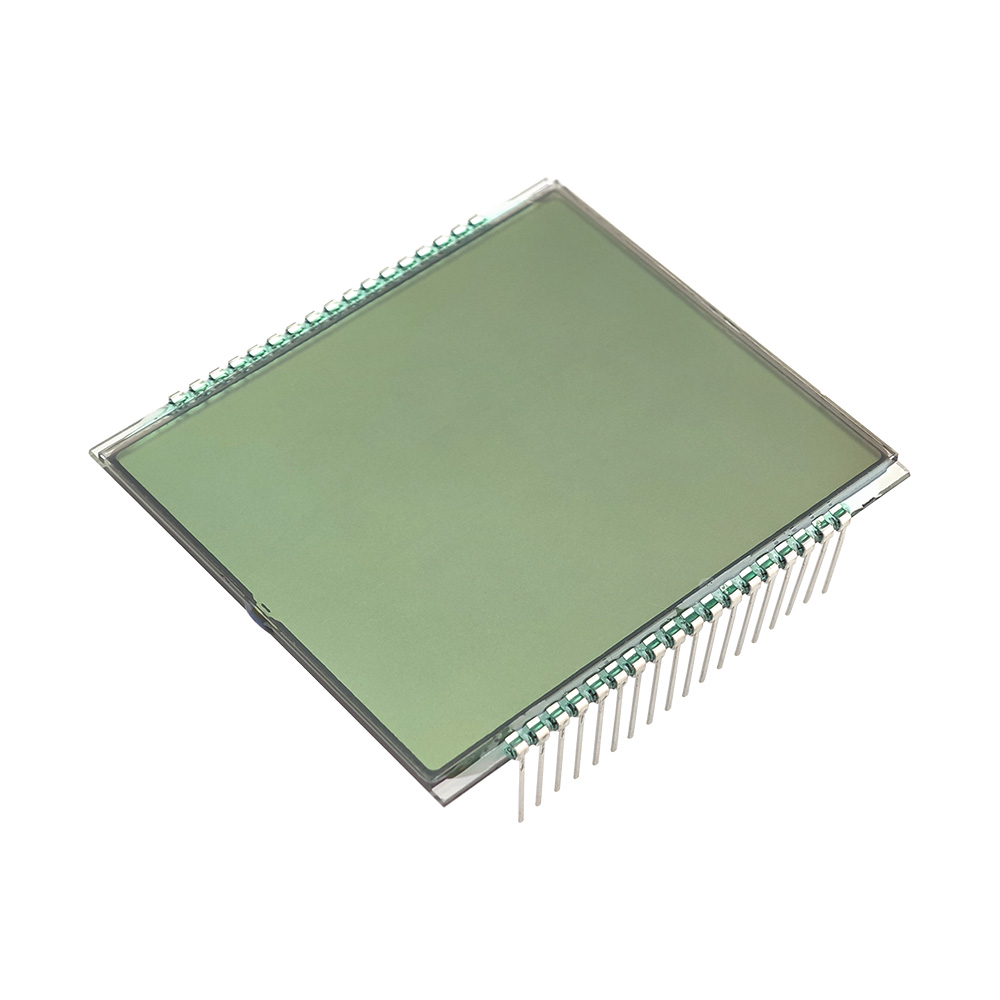

The Instrument Segment Screen SJXDGN048 is a compact and reliable segmented display solution designed for precision measurement and control equipment. It provides clear numeric and symbol-based output, ensuring that critical instrument data can be easily read at a glance. Built for industrial and embedded applications, this display is engineered to deliver stable performance, low power consumption, and long operational life in demanding environments. Its efficient design makes it suitable for a wide range of instrumentation systems requiring accurate and consistent visual feedback.
Parameters:
| Character Type | Customized |
| Model | SJXDGN048 |
| Model Size | 62.5×57.0×2.8 mm |
| VA Size | 58.0×48.0 mm |
|
Connector
|
Metal pins |
|
LCD Type
|
HTN Positive |
|
Drive Conditions
|
1/4 D 1/3 B
|
|
Working Temperature
|
-20C TO +70°C
|
| Storage Temperature |
-30°C TO +80°C
|
|
Working Voltage
|
3.3V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- In stock, fast delivery
Key Specifications
This Instrument Segment Screen features a high-contrast segmented LCD structure optimized for clear numeric and icon display. It ensures excellent readability under various lighting conditions, including indoor and semi-outdoor environments. The module operates at low voltage, making it suitable for energy-efficient and battery-powered systems. It is designed for stable electrical performance with minimal power consumption, supporting long-term continuous operation. The display functions reliably across a wide temperature range, ensuring consistent output in industrial and environmental variations. Its compact architecture allows seamless integration into space-limited control panels and measurement devices. The segmented design ensures fast response and accurate real-time data updates, making it ideal for precision applications.
Design Standards
The module is manufactured according to strict industrial-grade display standards to ensure durability, accuracy, and long-term reliability. The segmented structure is optimized for uniform optical clarity and stable brightness distribution. High-quality LCD materials are used to enhance resistance to thermal stress, vibration, and environmental aging. Circuit design optimization reduces electromagnetic interference and ensures stable signal transmission during continuous operation. The product follows low power engineering principles to improve energy efficiency and extend device battery life. Each unit undergoes rigorous testing to ensure consistent performance under long-term use and varying environmental conditions, including temperature fluctuations and mechanical stress.
Applications
The Instrument Segment Screen is widely used in industrial measurement systems, digital meters, laboratory instruments, medical monitoring devices, and embedded control equipment. It is also suitable for portable testing tools, smart sensors, and battery-powered electronic devices requiring clear and reliable numeric display. Its combination of stability, clarity, and low power consumption makes it an ideal solution for modern instrumentation systems requiring accurate and efficient segmented visual output in both industrial and professional environments.

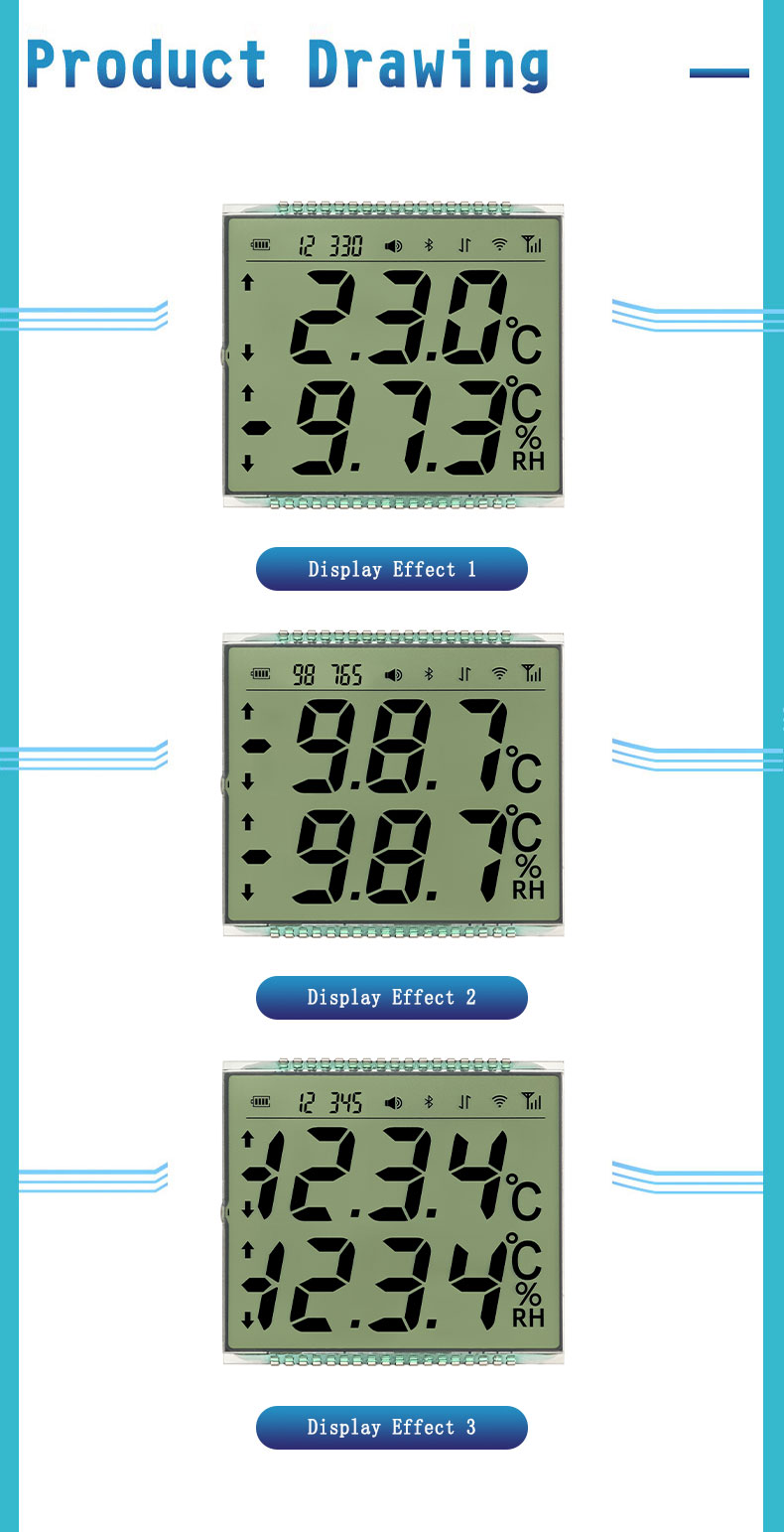

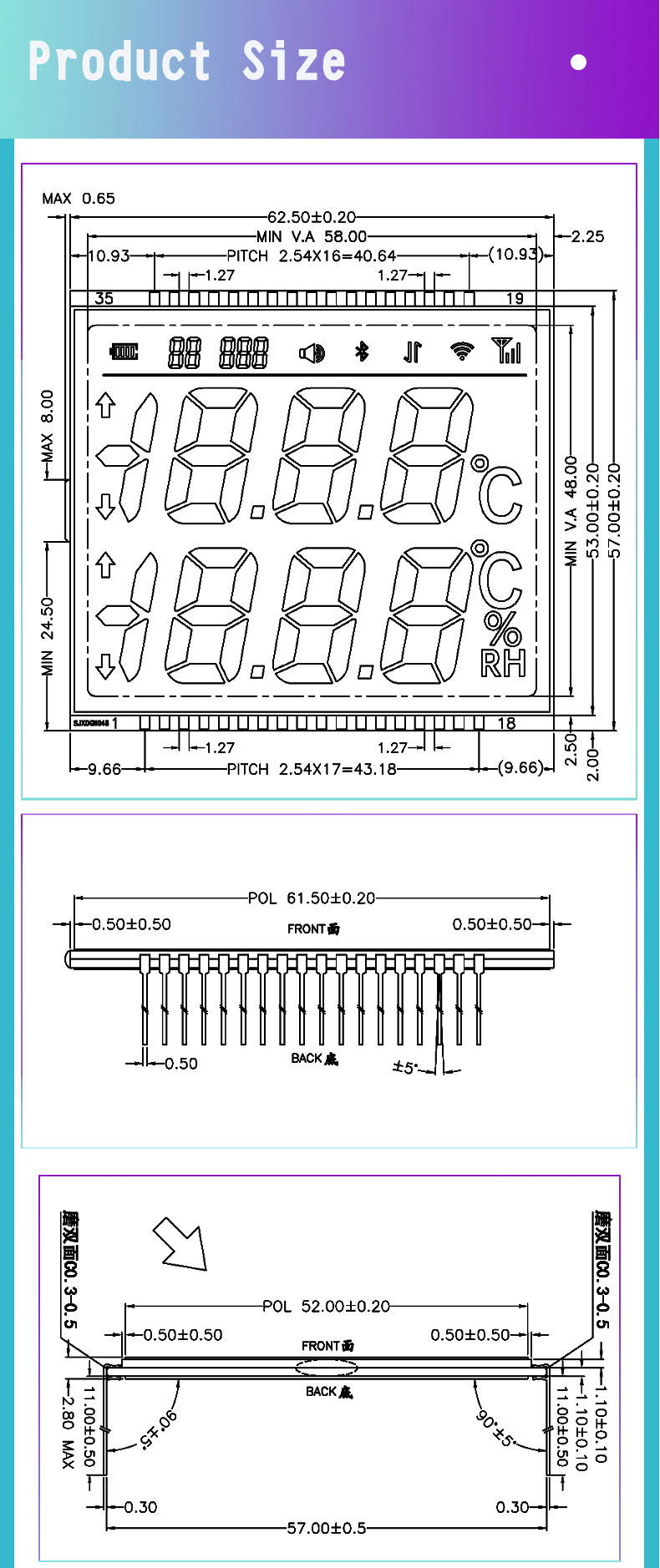

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
