Basic Information

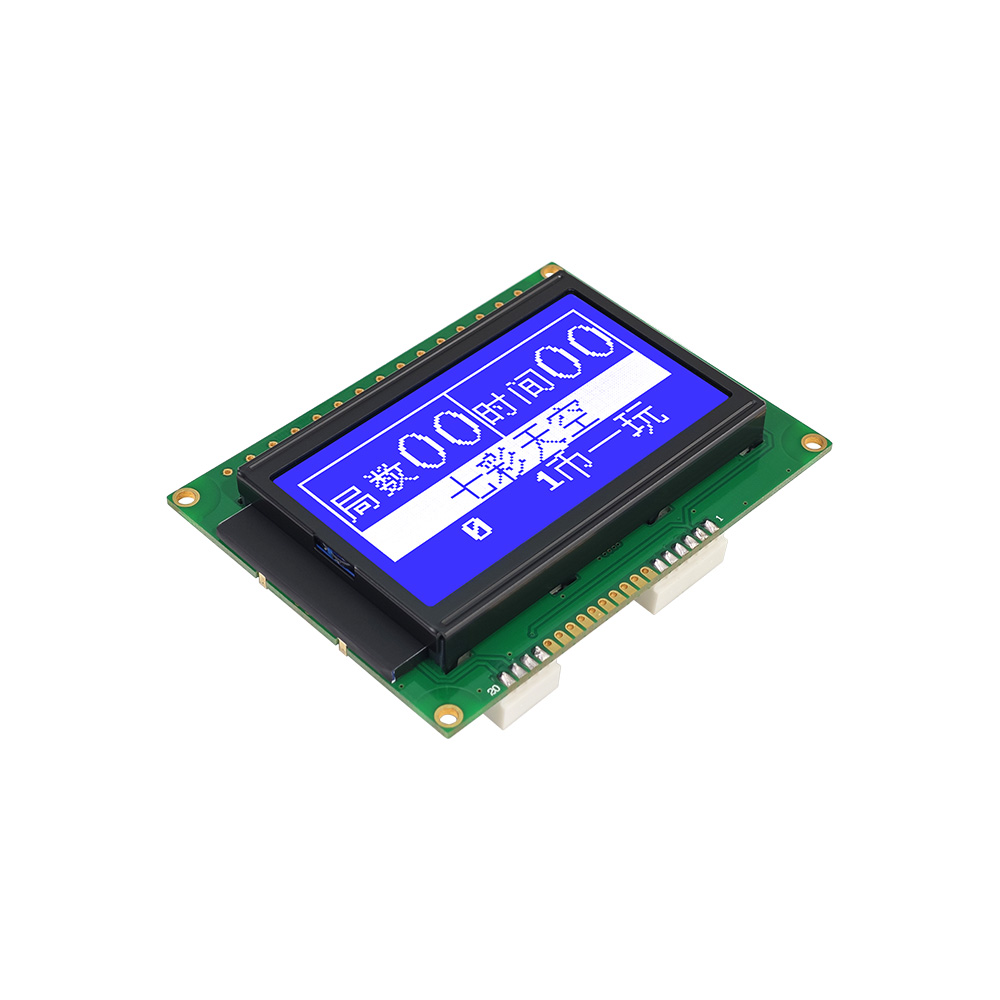

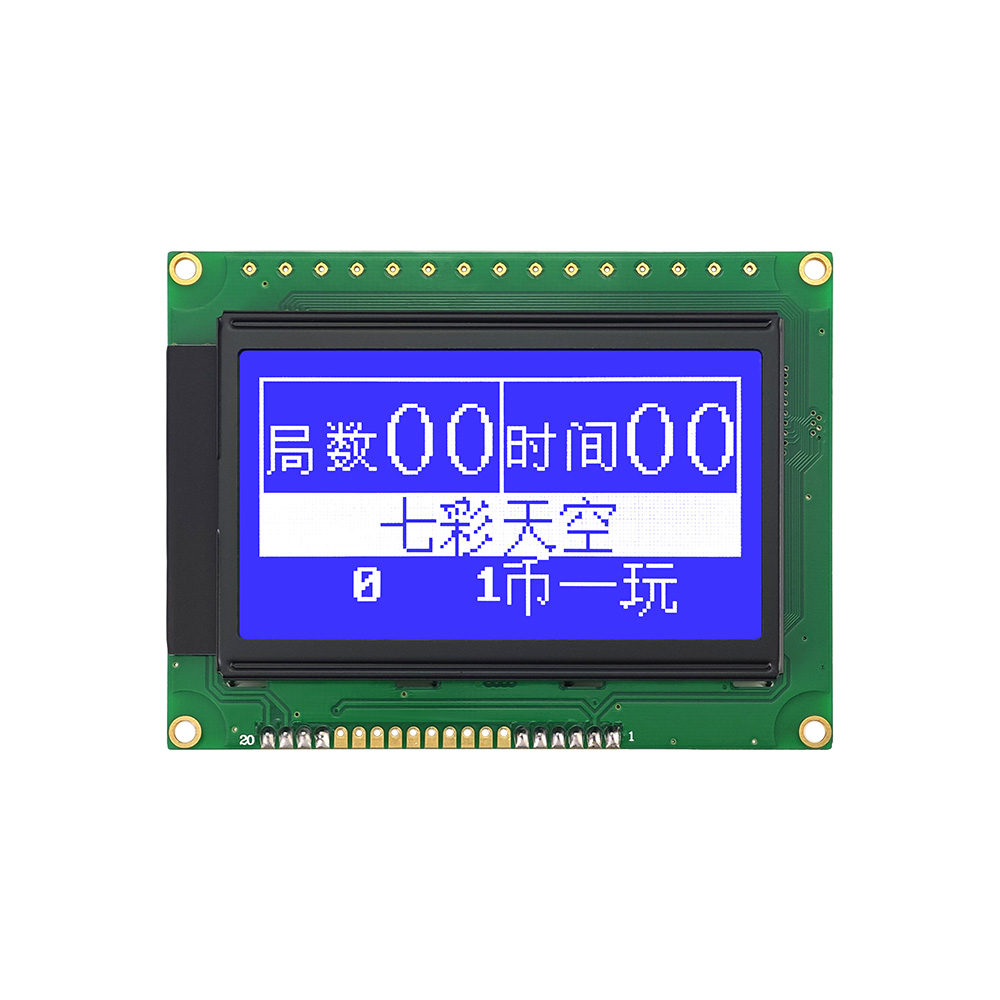

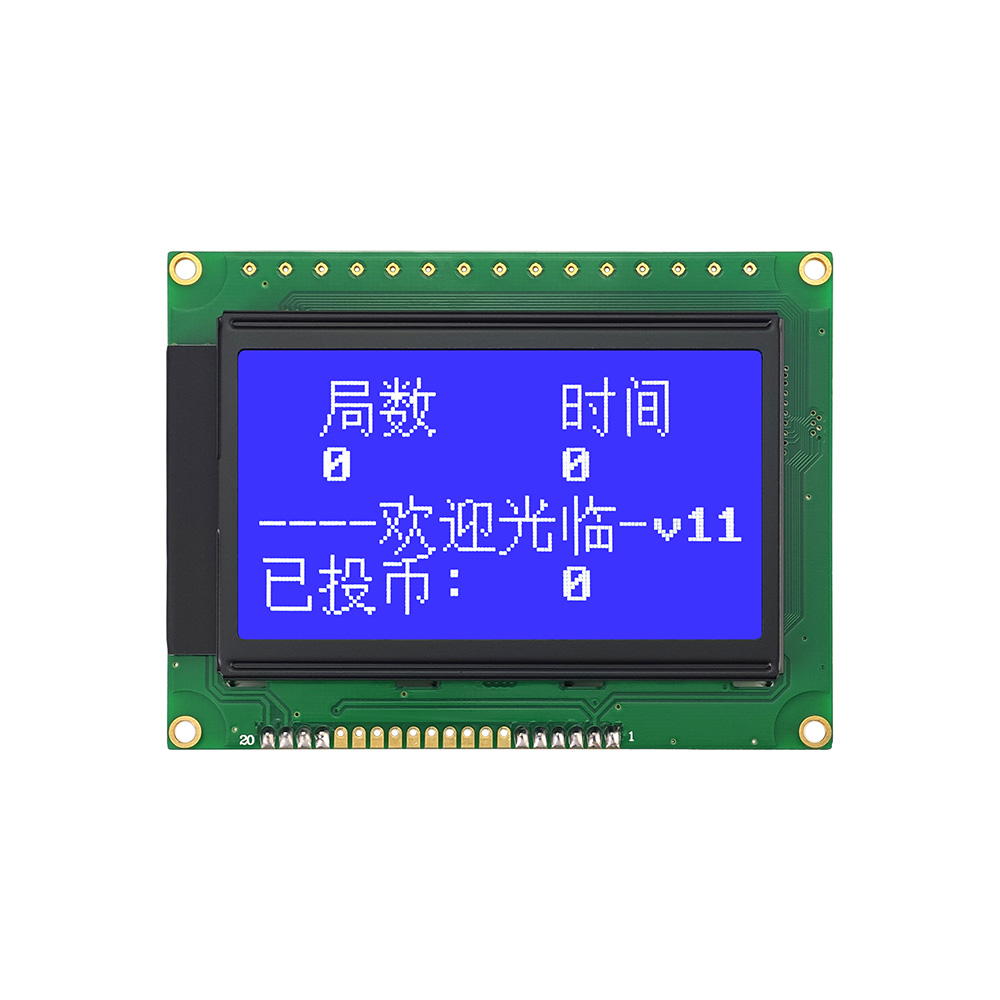

The Industrial Grade LCD SJXD12864G-1 is a robust monochrome display solution engineered for demanding industrial and embedded applications. Designed to deliver stable visual performance and long operational life, it provides clear and reliable graphical output for text, symbols, and basic interface elements. With a 128×64 dot matrix resolution, this display is well-suited for compact control systems and instrumentation devices that require consistent readability and low power consumption. Its industrial-grade construction ensures dependable operation even in harsh working environments.
Parameters:
| Character Type | 128X64 |
| Model | SJXD12864G-1 |
| Model Size | 93.0×70.0×14.0 MM |
| VA Size | 72.0×40.0 MM |
|
Drive Voltage
|
3.0V/5.0V
|
|
Drive IC
|
ST7920
|
|
Backlight
|
White LED Backlight
|
|
LCD Type
|
STN Negative
|
|
Interface
|
20PIN |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
This Industrial Grade LCD features a 128×64 resolution using FSTN positive display technology, offering enhanced contrast and improved viewing clarity. It is designed to operate at standard embedded system voltage levels, typically 5.0V, ensuring broad compatibility with microcontroller-based platforms. The module supports stable controller integration for efficient data communication and accurate pixel rendering. LED backlight technology provides uniform illumination while maintaining energy efficiency and extended lifespan. The display is optimized to function reliably across industrial temperature ranges, ensuring consistent performance in both controlled and demanding environments. Its compact structure allows easy integration into space-limited electronic systems and embedded control panels.
Design Standards
The module is manufactured according to strict industrial-grade quality and reliability standards to ensure long-term stability and durability. The circuit design is optimized to minimize electromagnetic interference and maintain stable signal transmission during continuous operation. High-quality LCD materials are used to ensure consistent optical performance and resistance to environmental stress. The mechanical structure is engineered for secure mounting and vibration resistance, making it suitable for industrial equipment and field applications. Low power design principles are applied to reduce energy consumption and improve system efficiency, especially in long-duration operational scenarios.
Applications
The Industrial Grade LCD is widely used in industrial automation systems, measurement instruments, medical monitoring devices, communication equipment, and smart control panels. It is also commonly integrated into human-machine interface (HMI) systems, embedded controllers, and portable electronic devices. Its combination of durability, clarity, and stable performance makes it an ideal choice for applications requiring reliable data visualization and long-term operation in industrial and commercial environments.

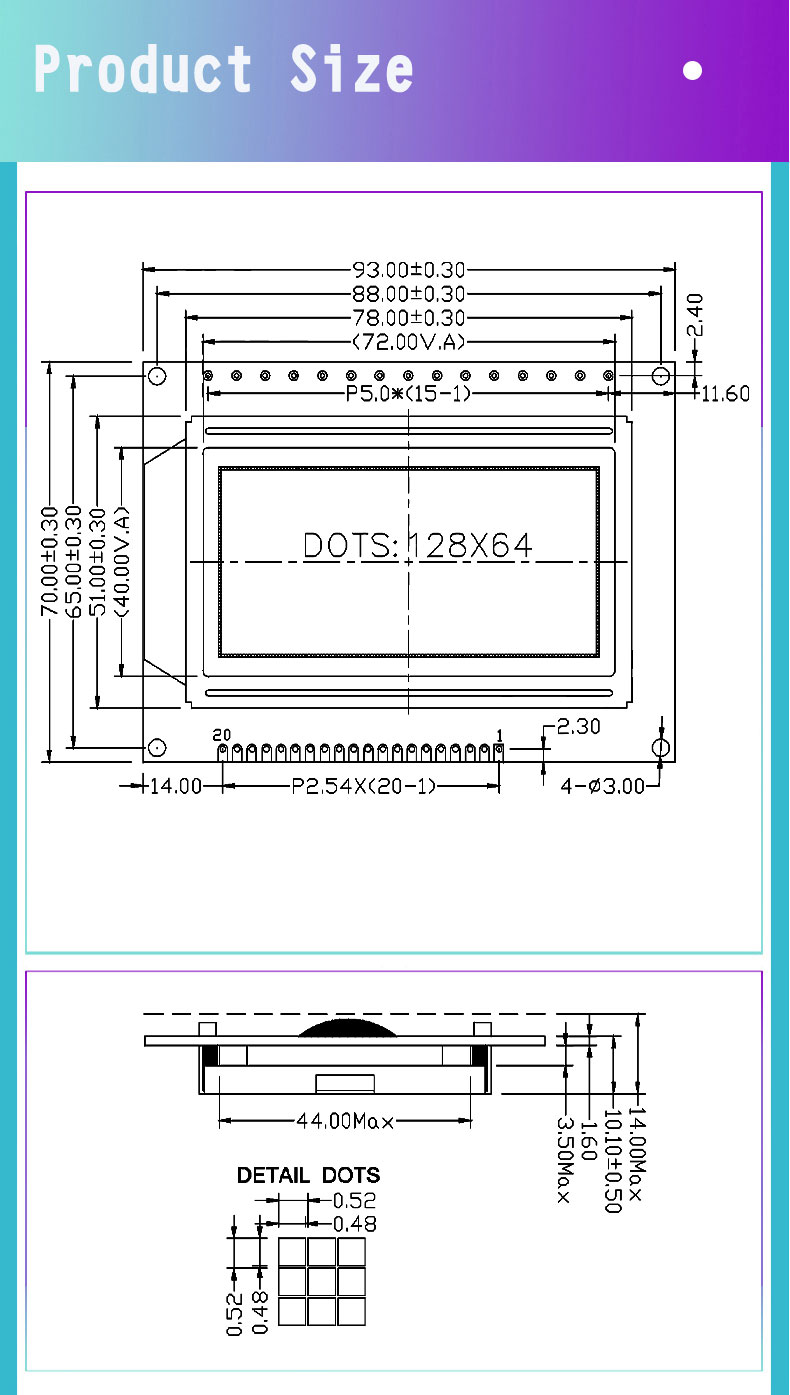

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
