Basic Information

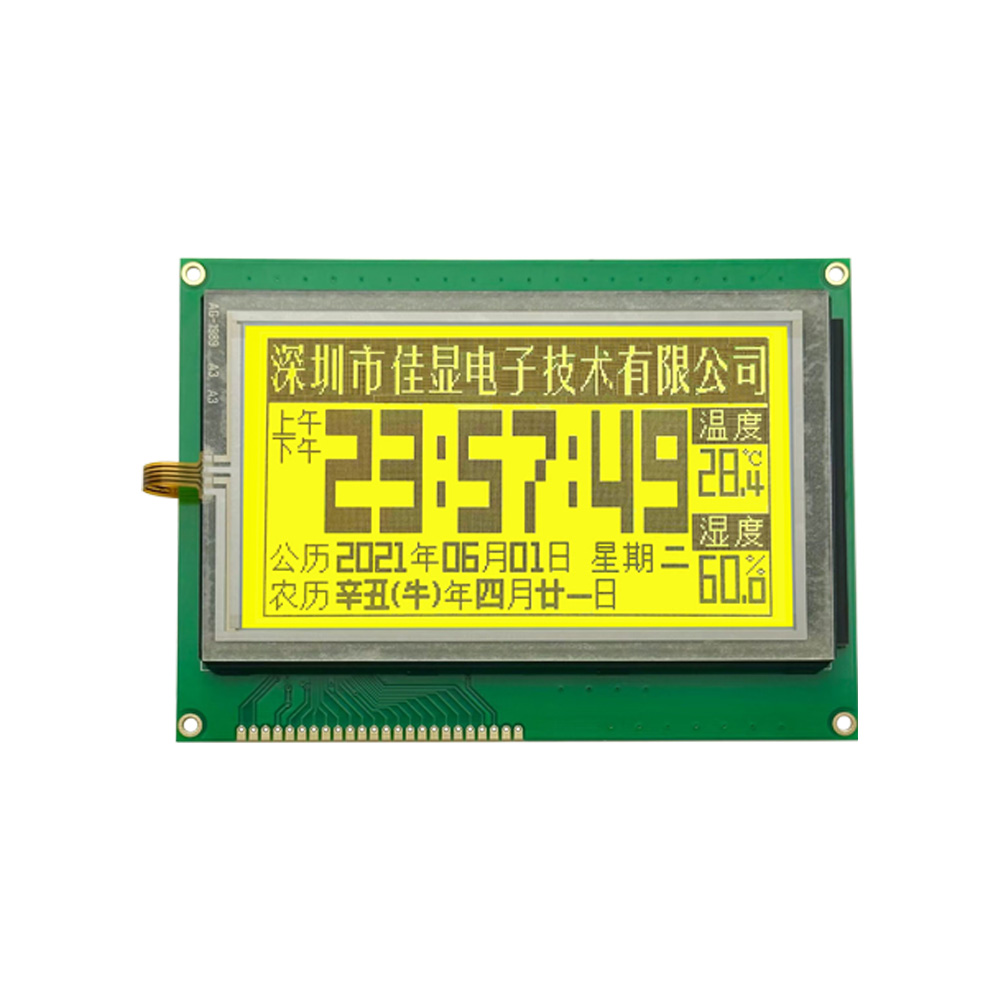

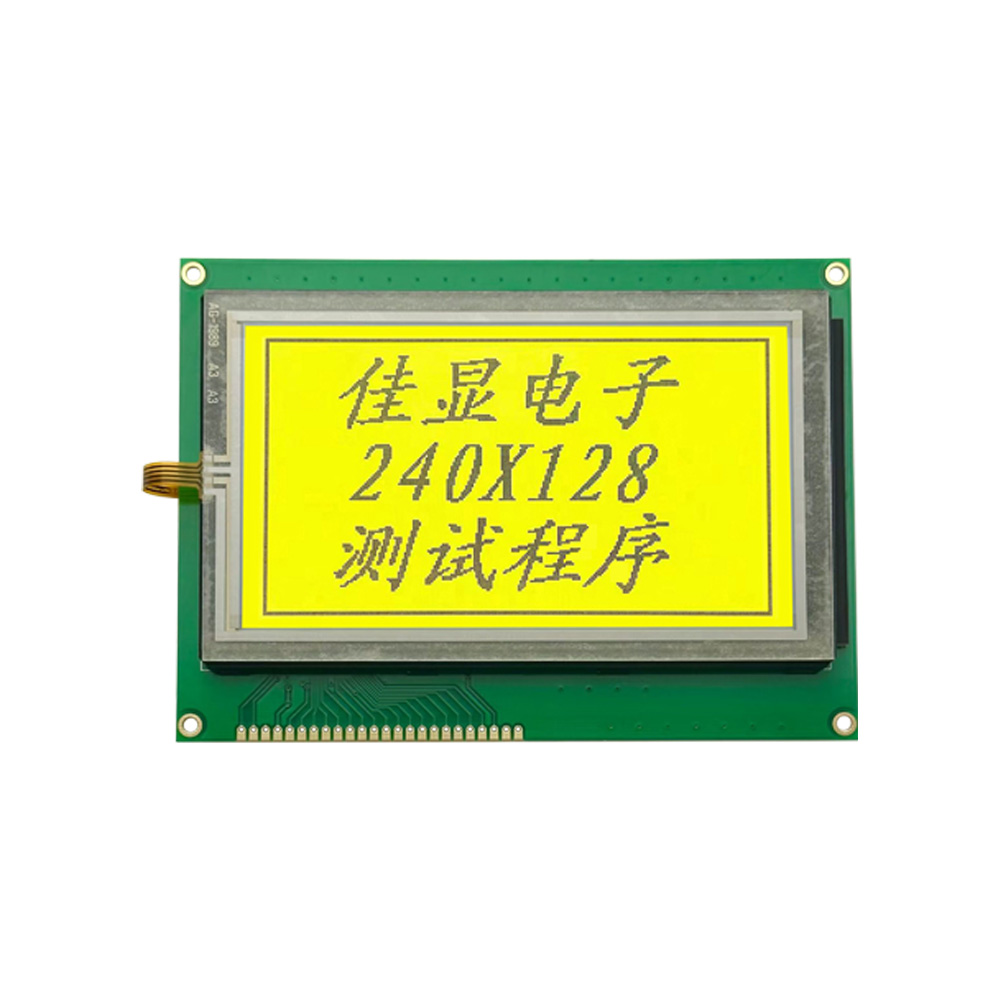

Monochrome LCD Displays are designed for high-performance embedded systems that require clear, stable, and scalable visual output. The JXD240128F-TP model provides an expanded display area suitable for presenting complex information, including multi-line text, numeric data, and simplified graphical elements. It is engineered for industrial and technical environments where readability, durability, and continuous operation are critical. The module supports efficient human-machine interaction in control and monitoring systems.
Parameters:
| Model | JXD240128F-TP |
| Model Size | 144.0×104.0×14.0 mm |
| Field of View Size | 114.0×64.0mm |
| Display Mode | STN positive |
| Viewing Angle | 6:00/9:00/12:00 |
| Operating Temperature |
-20℃~+70℃
|
|
Storage Temperature
|
-30℃~+80℃ |
|
Drive IC
|
RA8822PIN/RA8803 |
|
Backlight
|
Yellow LEDS backlight |
|
Drive Voltage
|
5.0V/3.0V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This display features a 240×128 dot matrix configuration, offering a large active viewing area for detailed information presentation. The monochrome LCD structure ensures strong contrast and sharp visibility under typical indoor lighting conditions. It is optimized for low power consumption, making it suitable for energy-efficient embedded devices and long-duration operation systems. The module supports standard interface protocols, enabling straightforward integration with microcontrollers and industrial control units. Stable driving technology ensures consistent refresh behavior and reduces flickering during dynamic content updates. Its viewing angle is designed to maintain clarity from multiple directions, improving usability in both handheld and panel-mounted applications. The touchscreen-enhanced version (TP) further improves user interaction capability in advanced control systems.
Design Standards
Monochrome LCD Displays are manufactured under strict industrial-grade quality and reliability standards. The construction includes reinforced glass substrates combined with precision-aligned liquid crystal layers to ensure long-term optical stability. Anti-electromagnetic interference design helps maintain consistent performance in electrically noisy environments such as industrial automation systems and manufacturing facilities. Thermal stability engineering ensures reliable operation across a wide temperature range without degradation in contrast or response speed. The design emphasizes mechanical durability and long operational lifespan, making it suitable for demanding embedded applications.
Applications
This module is widely used in industrial automation systems, medical devices, communication equipment, and advanced instrumentation. It is particularly effective in control panels, diagnostic systems, and monitoring terminals requiring large-format and high-clarity display output. Engineers also integrate it into testing equipment, embedded dashboards, and custom industrial interfaces. Monochrome LCD Displays offer a balanced combination of readability, stability, and efficiency, making them a dependable choice for modern electronic system development.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
