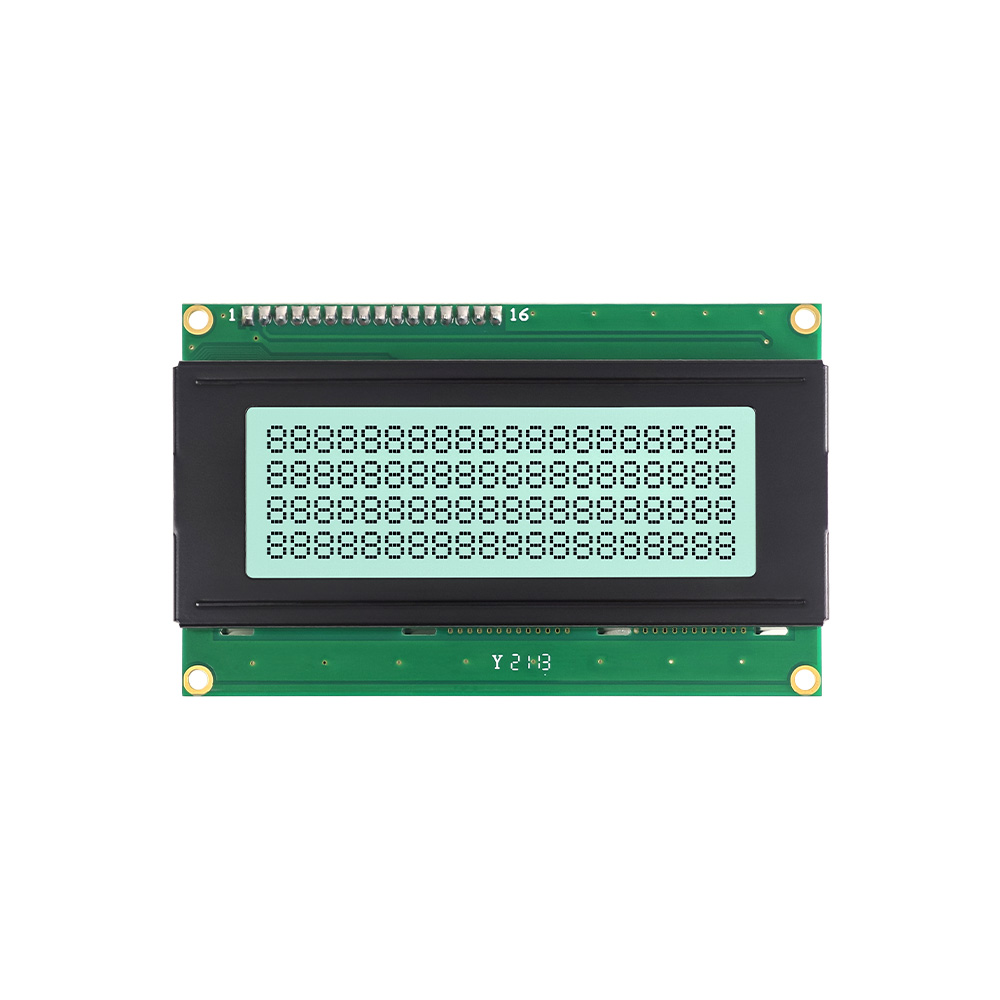

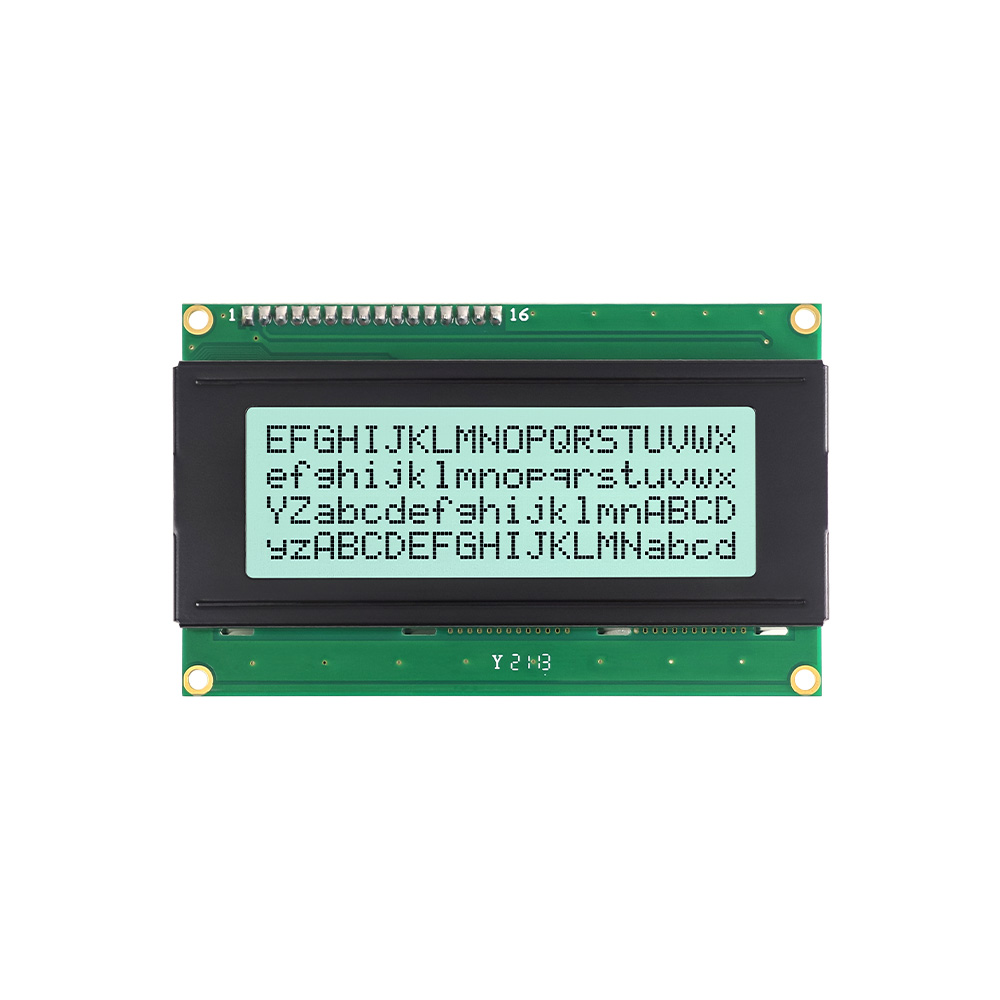

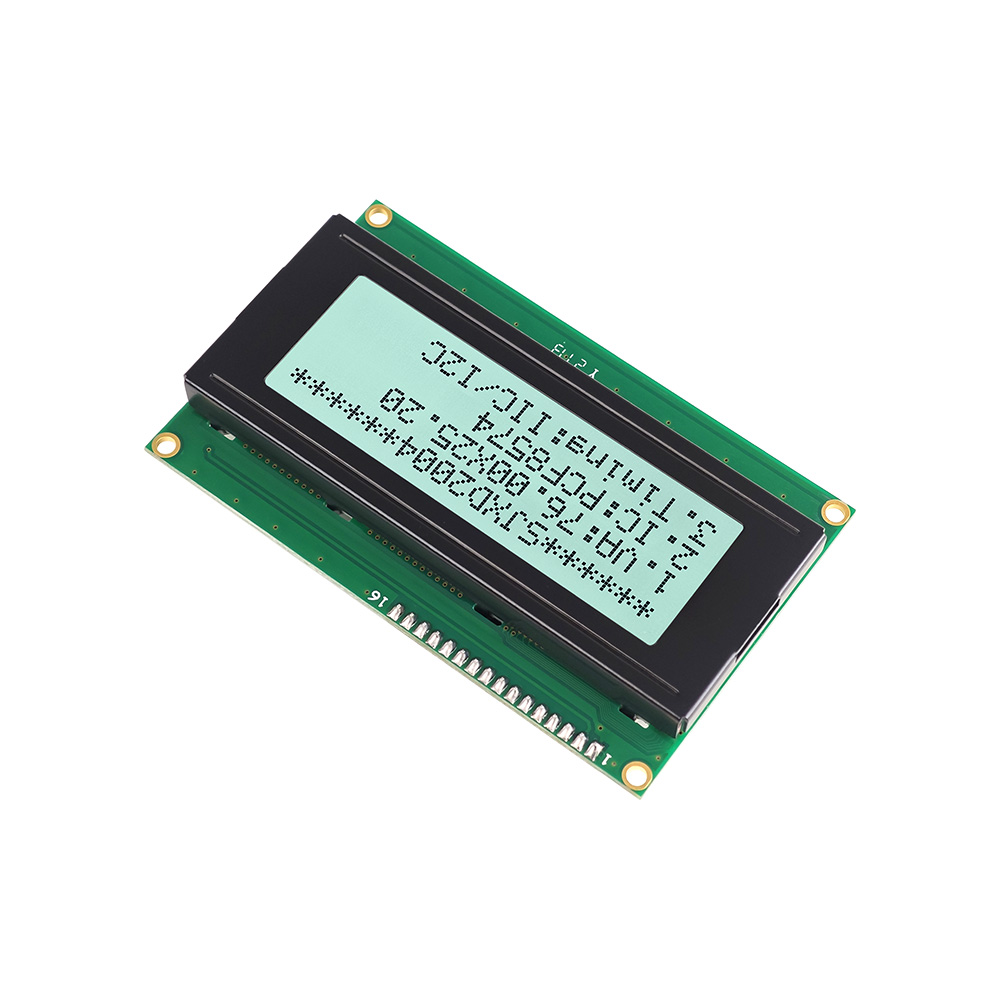

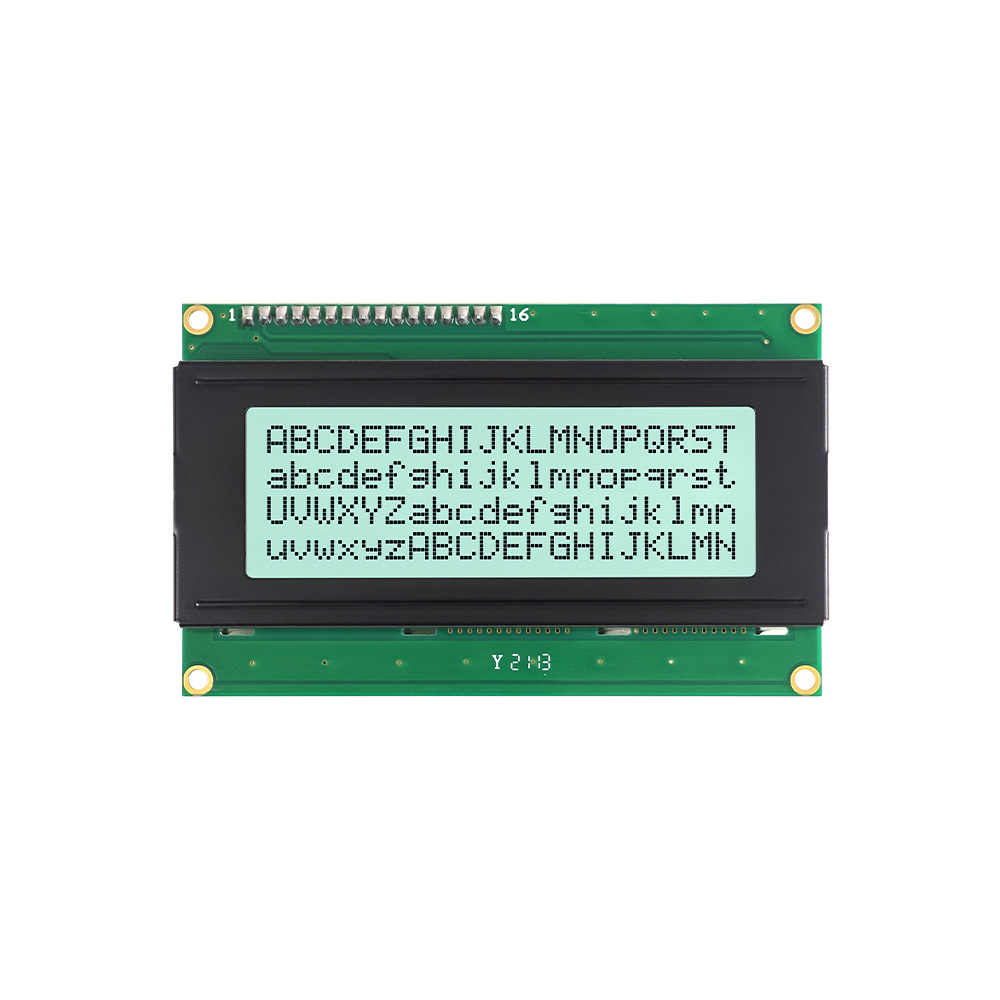

I2C 20*4 Characters offers a four-row LCD format for equipment needing organized menus, values, alerts, and operating guidance on one compact screen. Its FSTN positive display, white LED backlight, IIC interface, and 3.3V/5V drive support clear reading with fewer wires. The 98.0x60.0mm module fits instruments, controllers, medical devices, terminals, appliances, and development boards requiring stable multi-line text output during setup, monitoring, troubleshooting, maintenance, and daily operation in compact electronic systems.
Parameters:
| Character Type | 20X4 |
| Model | SJXD2004A-IIC |
| Model Size | 98.0×60.0×20.0 MM |
| VA Size | 76.0×25.2 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
AIP31066/ST7066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
FSTN Positive
|
|

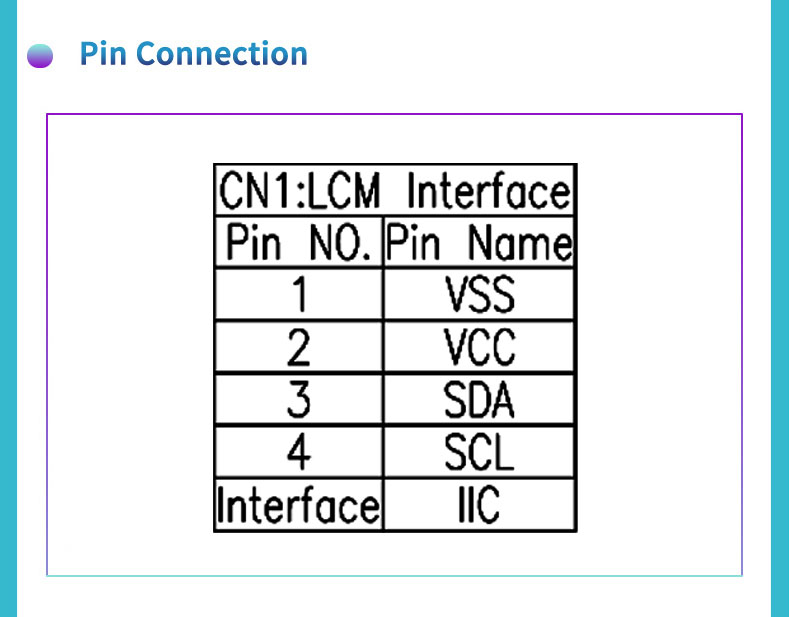

Interface
|
IIC/I2C |
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

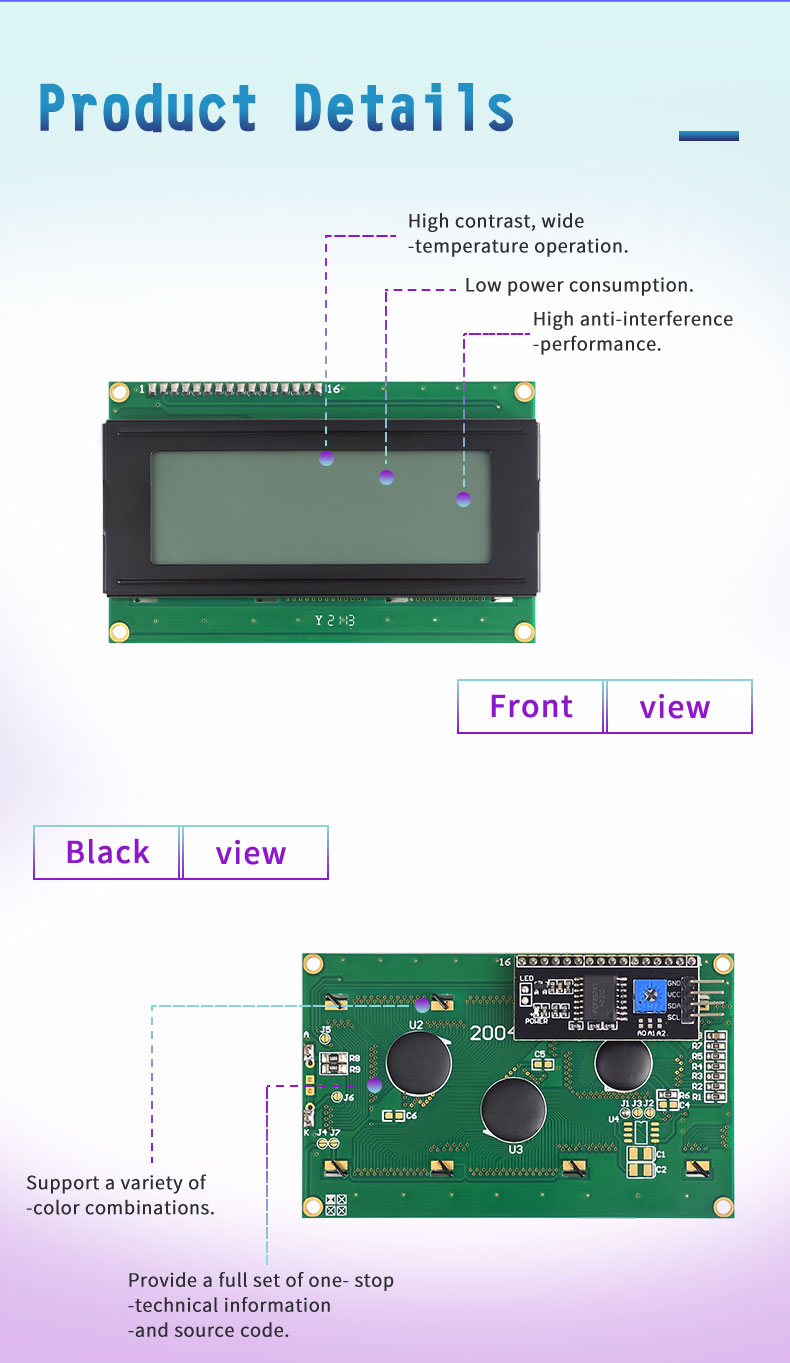

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
I2C 20*4 Characters is a four-line character LCD module designed for equipment that needs more text content in one compact display area. The SJXD2004A-IIC model provides a 20×4 character layout, helping users view menu layers, status details, numerical data, and prompt messages without frequent page switching. It features a 98.0×60.0×20.0 mm module outline, 76.0×25.2 mm viewing area, 3.3V/5.0V drive voltage, AIP31066/ST7066 driver IC, IIC/I2C interface, white LED backlight, FSTN Positive LCD type, 06:00 viewing direction, -20°C to +70°C working temperature, and -30°C to +80°C storage temperature.
Design Standards

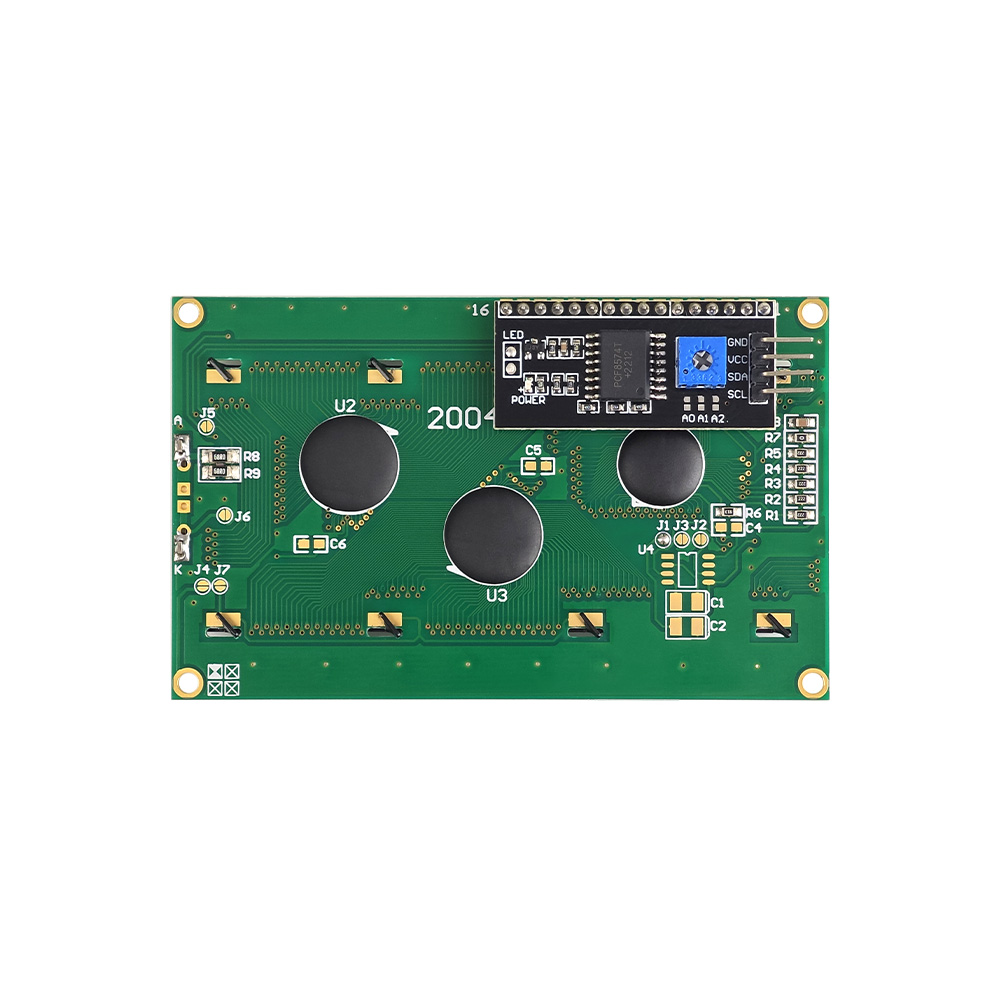

I2C 20*4 Characters is developed for efficient multi-row display control, simplified wiring, and stable embedded communication. The IIC/I2C interface reduces the number of required controller pins, making PCB design cleaner for systems that also connect buttons, sensors, relays, alarms, or external communication modules. Its FSTN Positive display structure improves character definition on a light background, while the white LED backlight keeps the screen clear for front-panel reading. The module also supports high contrast, low power consumption, anti-interference performance, wide-temperature operation, multiple color options, technical documentation, source code assistance, customization, 1–3 day sample testing, and fast batch production planning.
Applications
I2C 20*4 Characters is suitable for products that need organized four-row information display while keeping a standard character LCD structure. It can present setting menus, device status, measurement values, alarm descriptions, process steps, diagnostic codes, service reminders, and user instructions on one screen. Typical application areas include measuring instruments, industrial controllers, automation panels, medical equipment, access terminals, home appliances, information display systems, consumer electronics, and DIY development boards. Its 20×4 layout, I2C connection, FSTN Positive readability, and white backlight make it practical for compact control interfaces requiring clearer text grouping and efficient hardware integration.

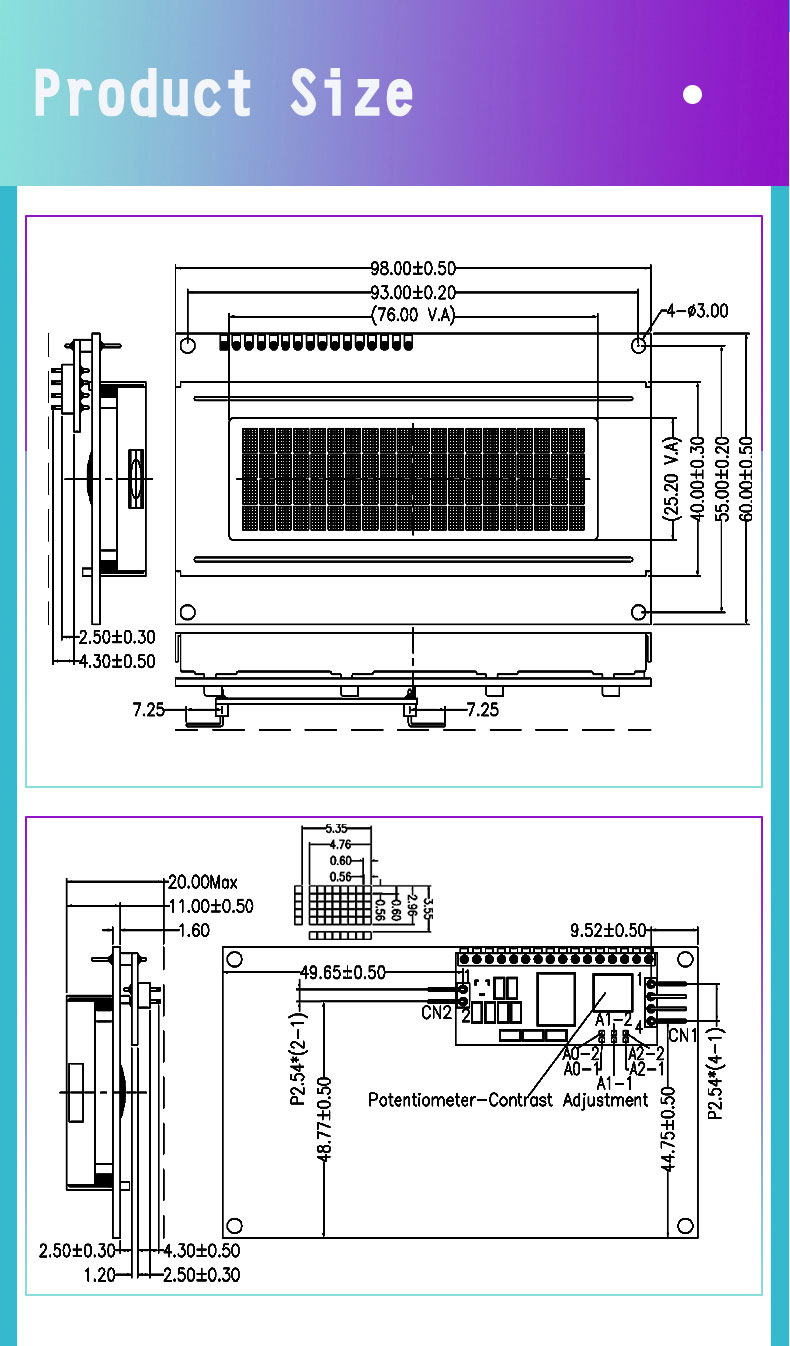

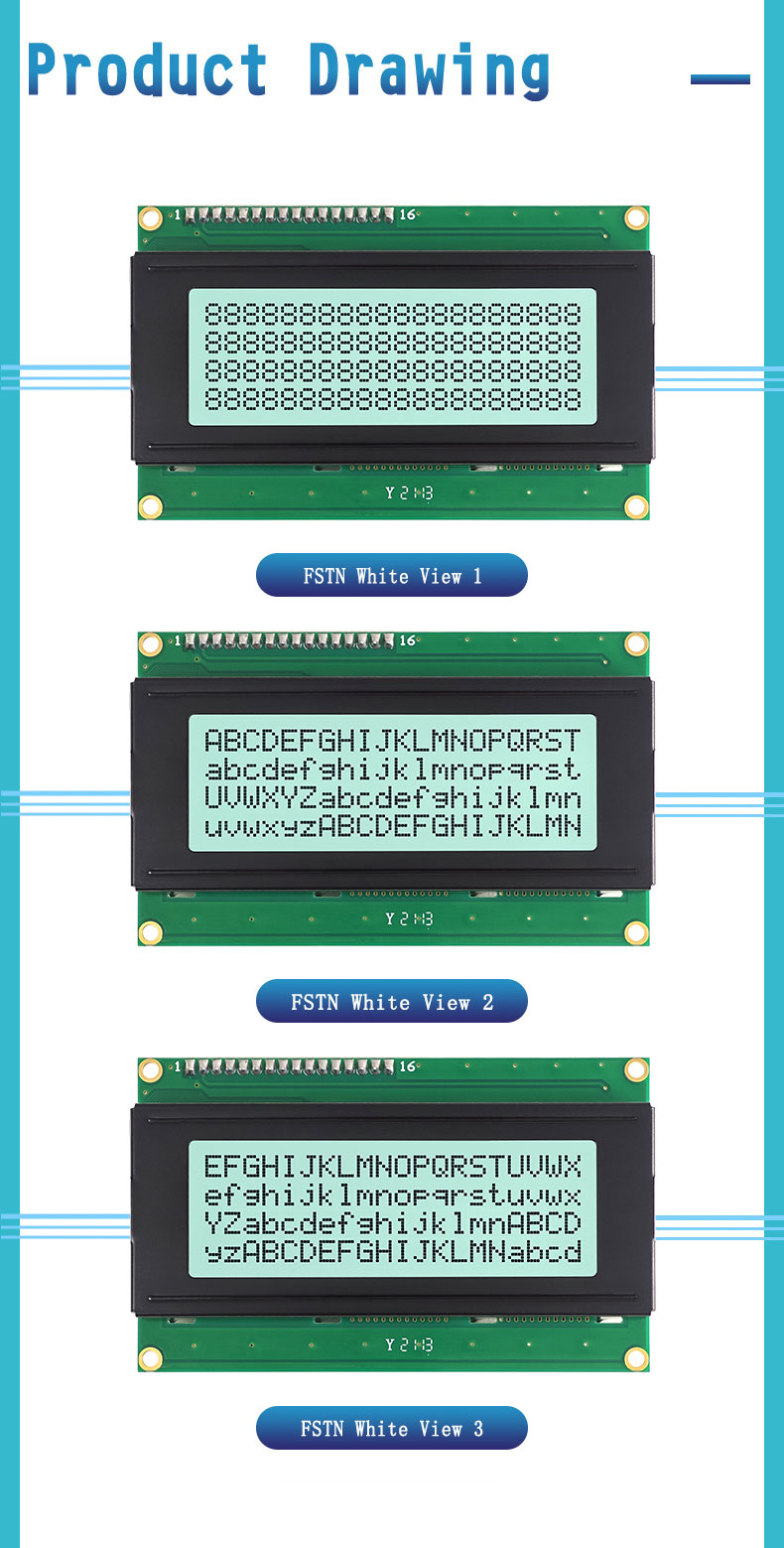

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
