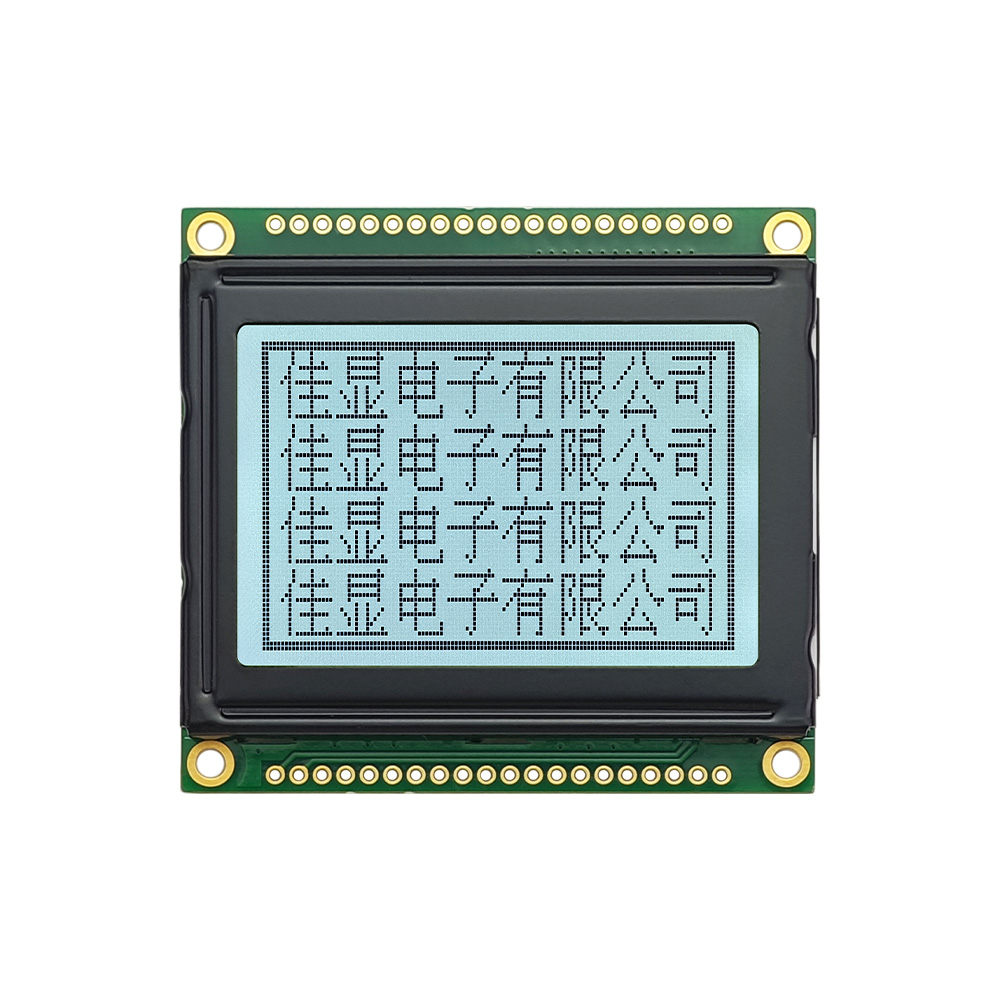

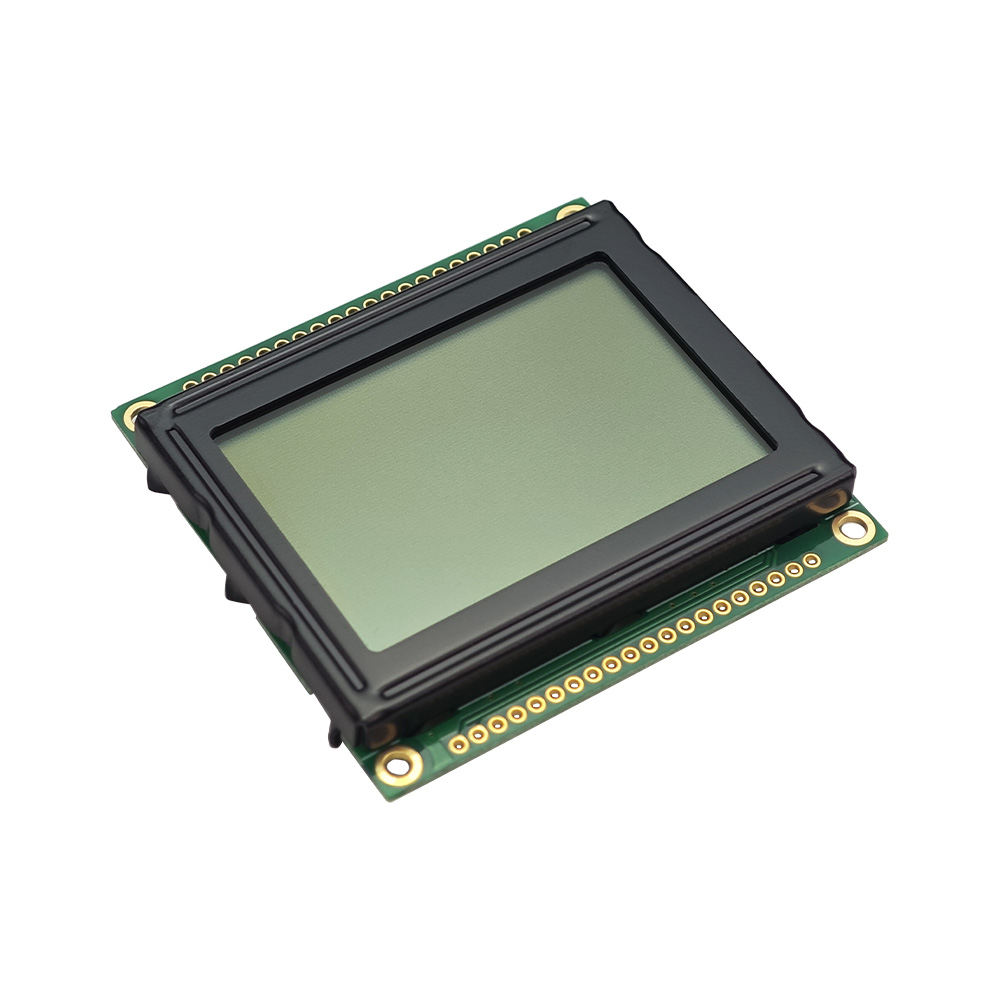

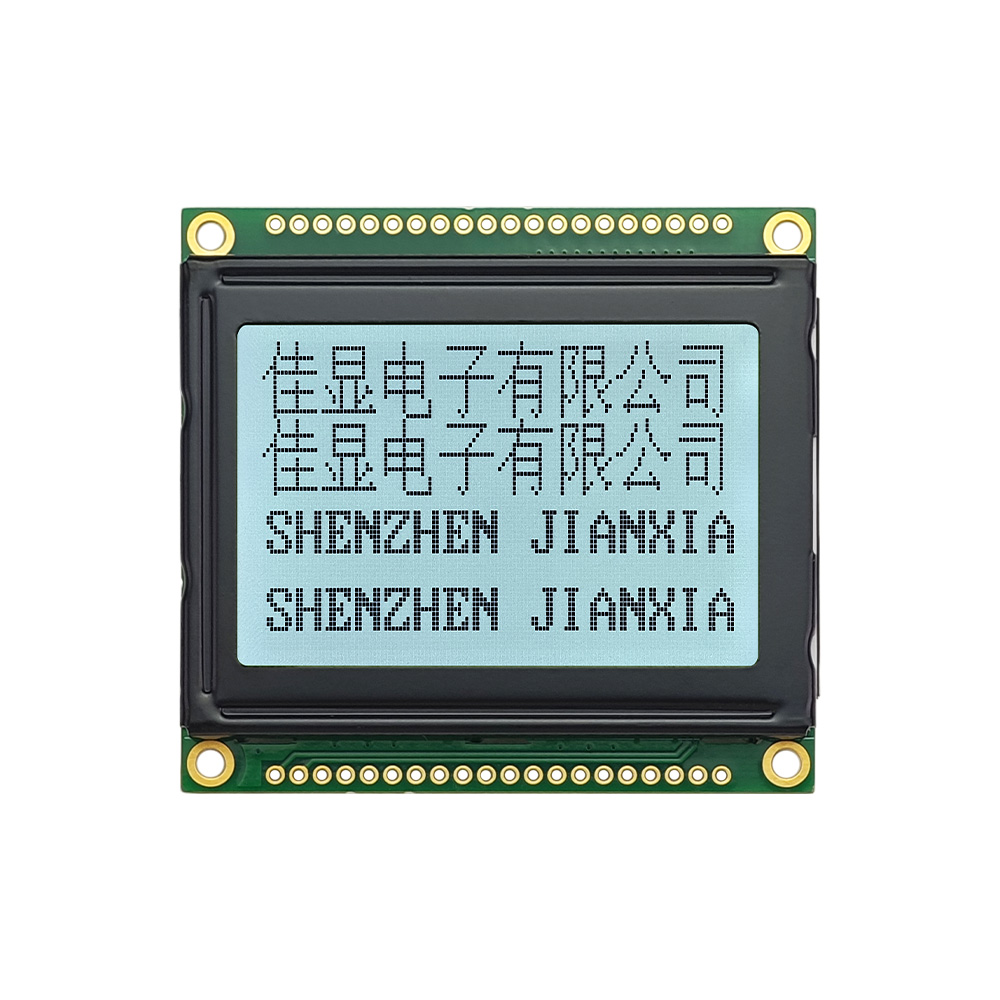

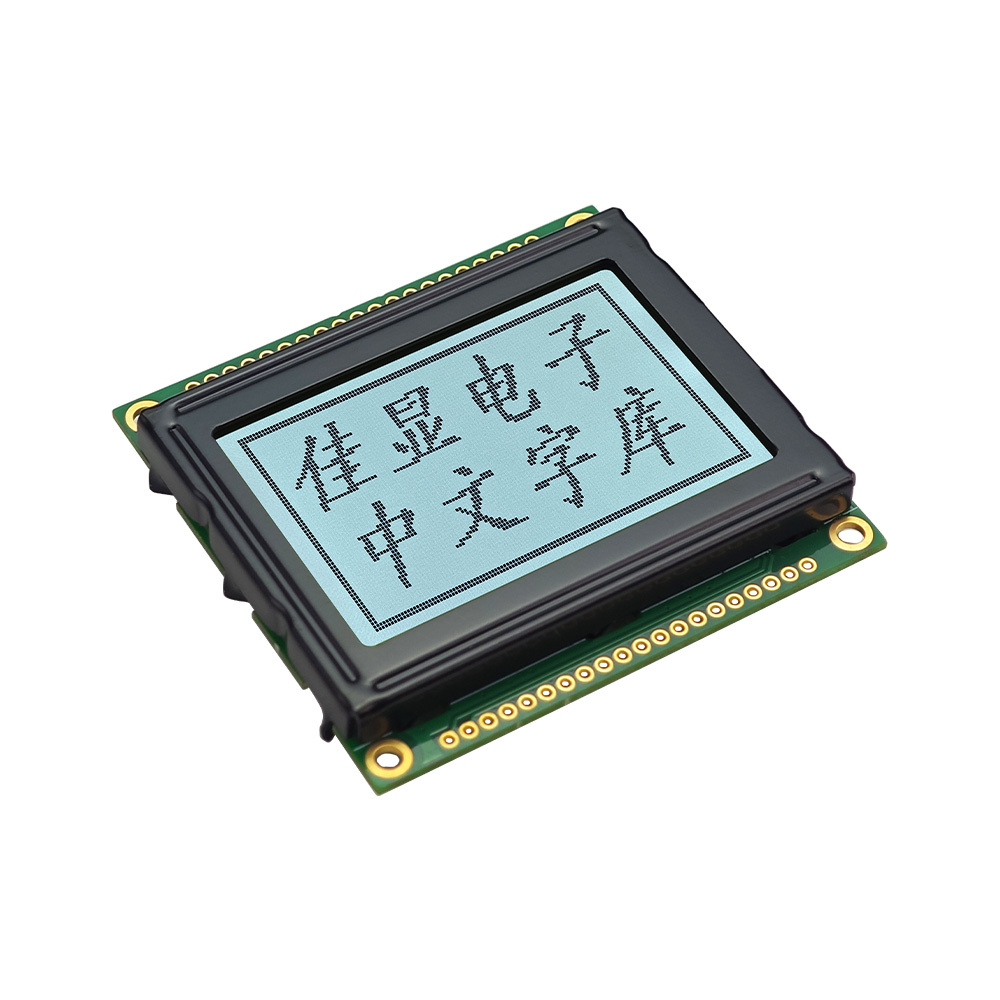

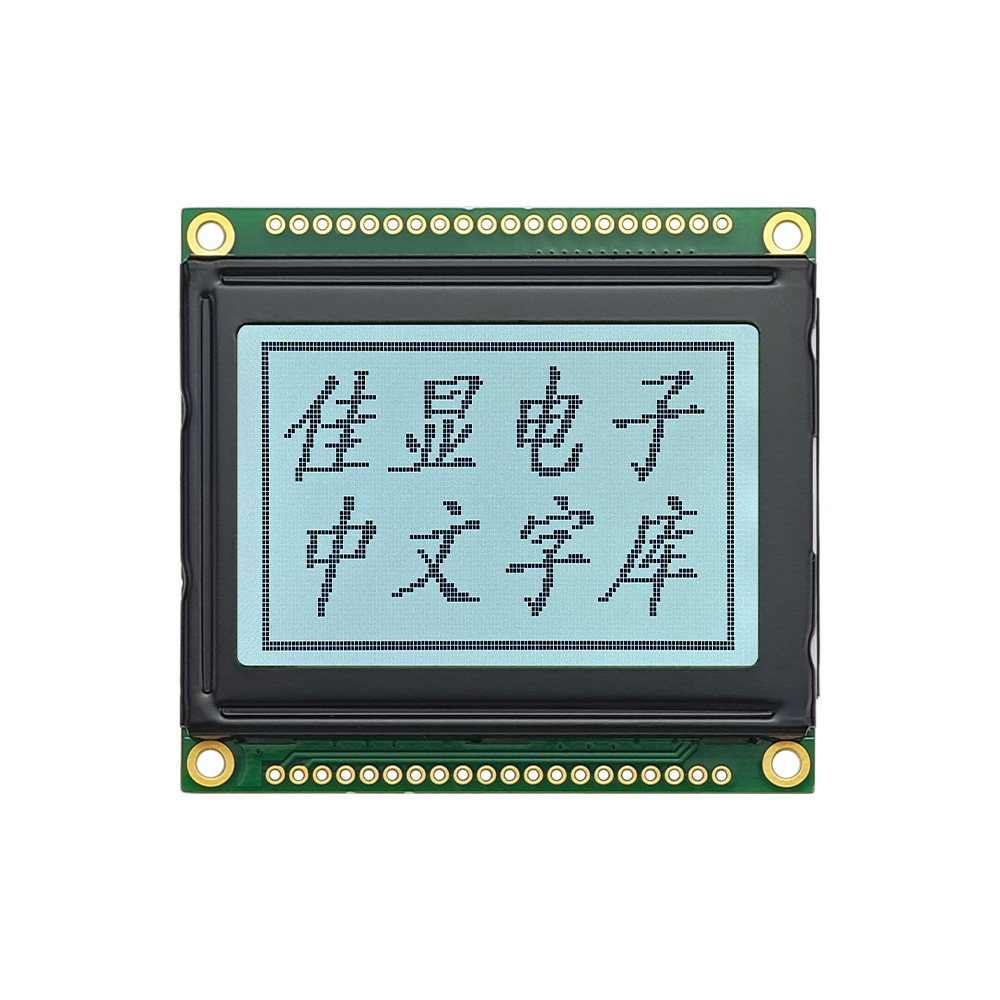

The High Resolution Monochrome LCD Display SJXD12864I-F is a precision-engineered graphical display module designed for embedded systems, industrial equipment, and professional electronic applications. With a high-density pixel structure, this display delivers sharp monochrome visuals that ensure excellent readability for text, icons, and detailed graphical elements. Its compact design and stable performance make it suitable for integration into space-limited devices while maintaining strong visual clarity and reliability.

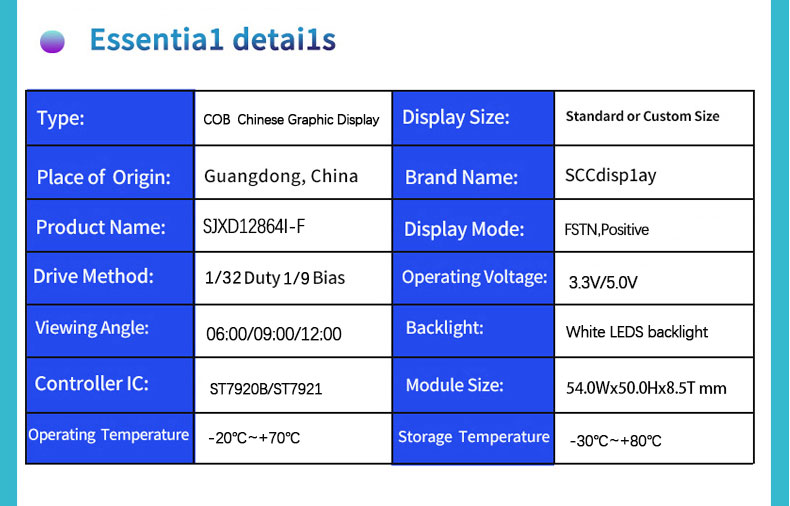

Parameters:
| Model | SJXD12864I-F |
| Model Size | 54.0×50.0×8.5 mm |
| Field of View Size | 44.0×29.0mm |
| Display Mode | FSTN positive |
| Viewing Angle | 06:00/09:00/12:00 |
| Top |
-20°C~+70°C
|
|
Tst
|
-30°C~+80°C |
|
Backlight
|
White LEDS backlight |
|
Drive IC
|
ST7920B/ST7921 |
|
Drive Voltage
|
5.0V or 3.3V |

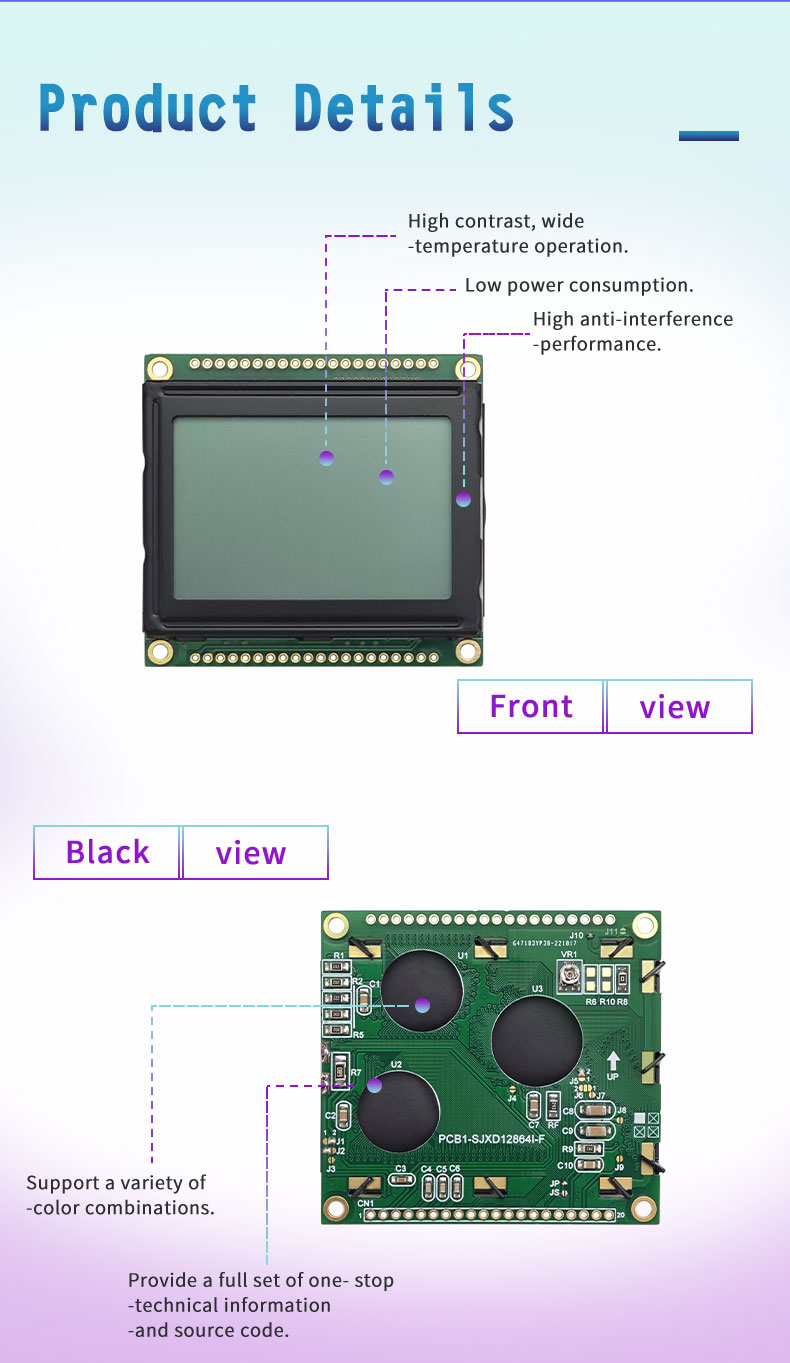

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications

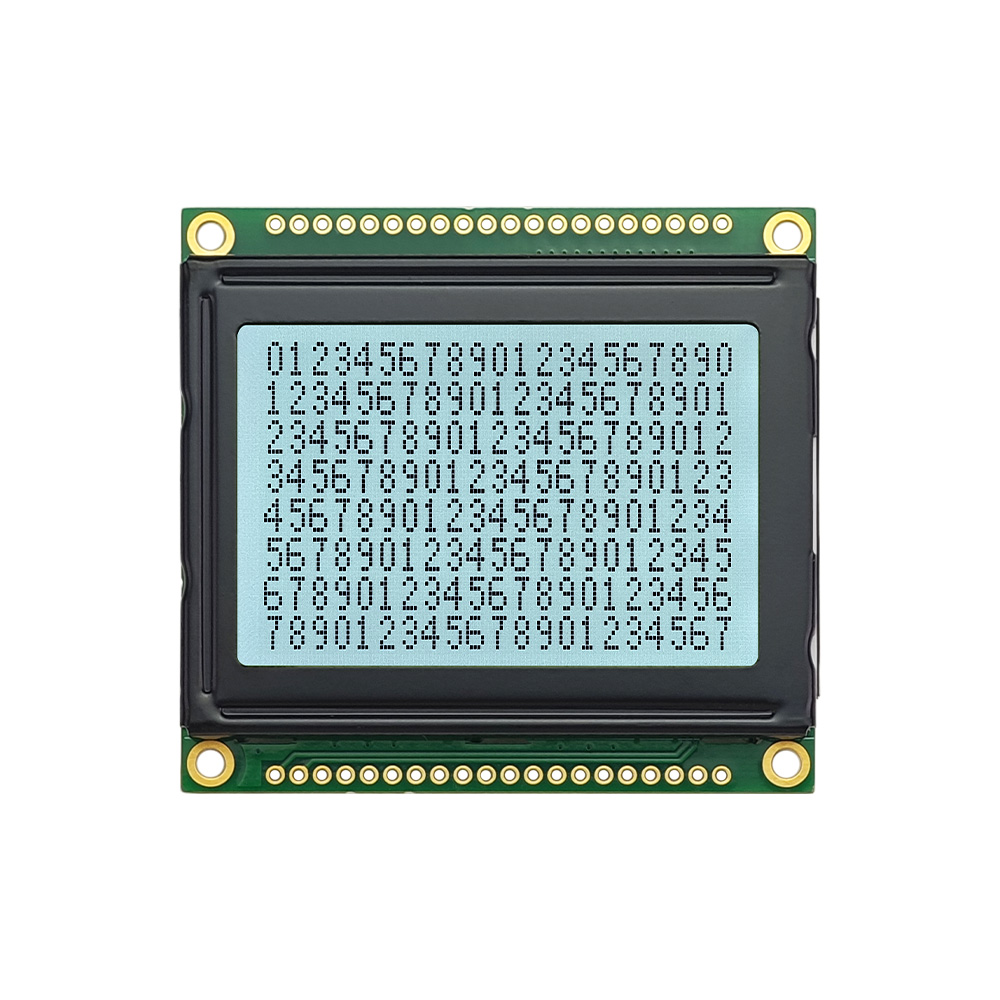

The High Resolution Monochrome LCD Display features a 128×64 dot matrix resolution, providing fine detail rendering for a wide range of display content. It supports standard communication interfaces such as SPI and parallel connection modes, ensuring compatibility with popular microcontrollers including Arduino, STM32, and PIC platforms. The module operates at low voltage with optimized power consumption, making it ideal for energy-efficient systems. Its high contrast ratio and wide viewing angles ensure consistent visibility under various lighting conditions, while fast refresh performance supports real-time data display and monitoring applications.
Design Standards
This LCD module is manufactured under strict quality control standards to ensure long-term stability and durability. The integrated driver IC simplifies system design by reducing external component requirements, improving reliability and reducing development complexity. The display is built with industrial-grade materials that ensure resistance to environmental stress and continuous operation. Its backlight system provides uniform illumination, enhancing readability in both bright and low-light environments. Developers can easily implement graphical interfaces using standard libraries, reducing development time and improving efficiency.
Applications
The High Resolution Monochrome LCD Display is widely used in industrial automation systems, medical monitoring equipment, laboratory instruments, communication devices, and embedded control panels. It is particularly suitable for applications requiring precise data visualization, stable performance, and low power consumption. Engineers and designers rely on this module for both prototyping and mass production due to its reliability and consistent output quality.

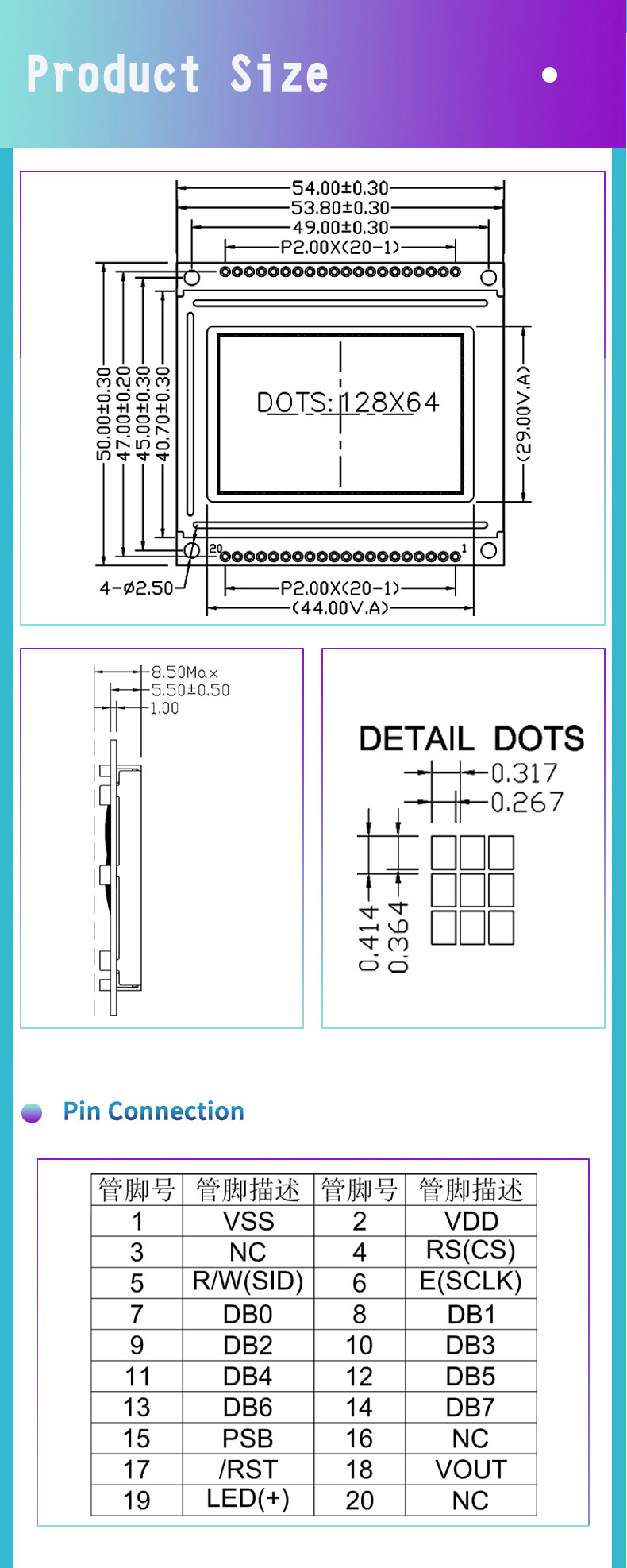

Product Size
