Basic Information
Graphic Monochrome LCD Display is designed for embedded systems that require flexible visualization of text, symbols, and basic graphical elements. The SJXD12864G-1 model provides a reliable solution for engineers who need clear data representation in compact electronic devices. It supports both alphanumeric and custom graphic rendering, making it suitable for interactive control panels and instrumentation interfaces where clarity and adaptability are essential.

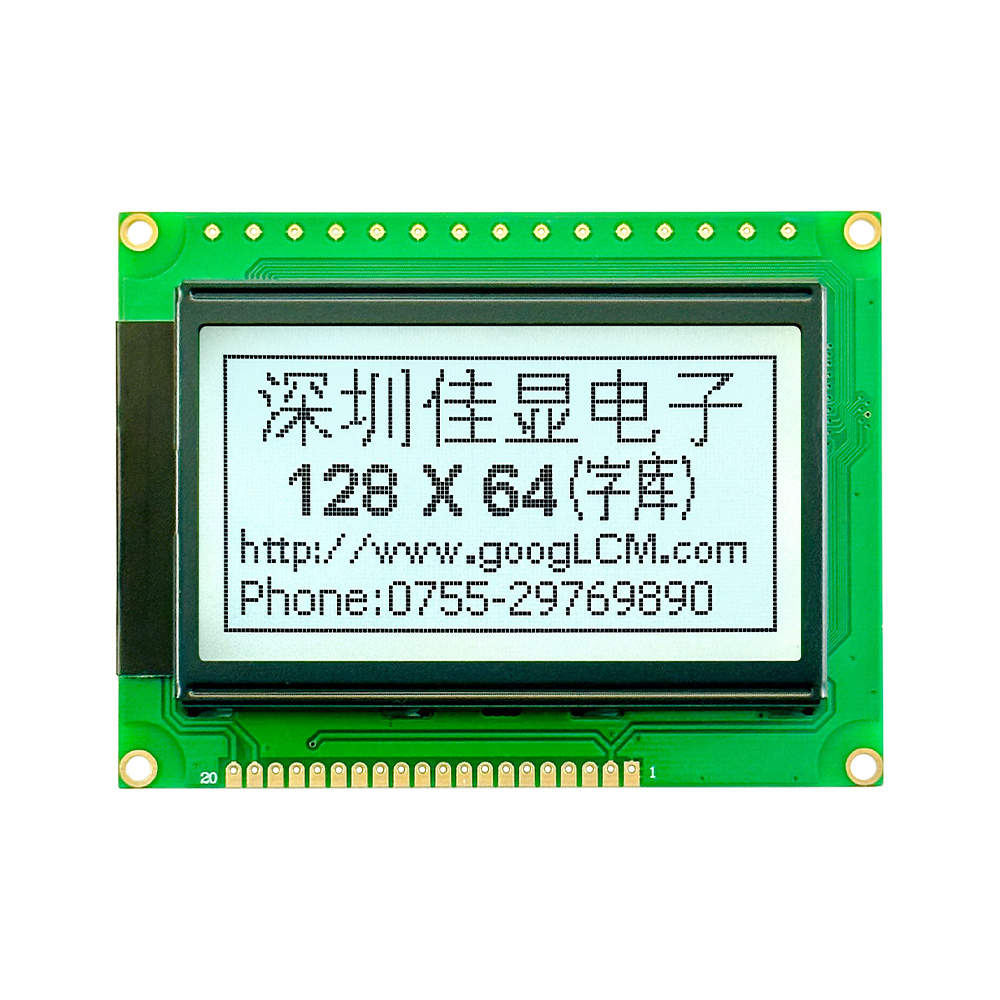

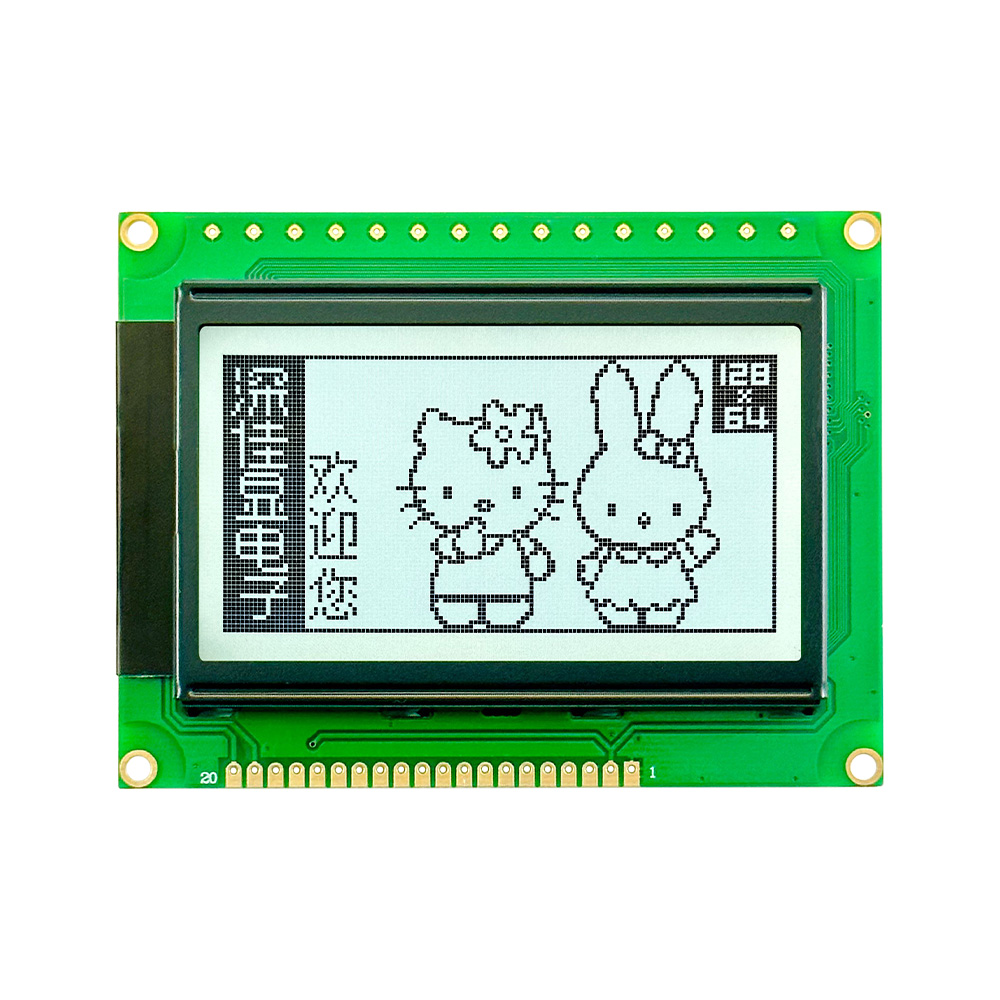

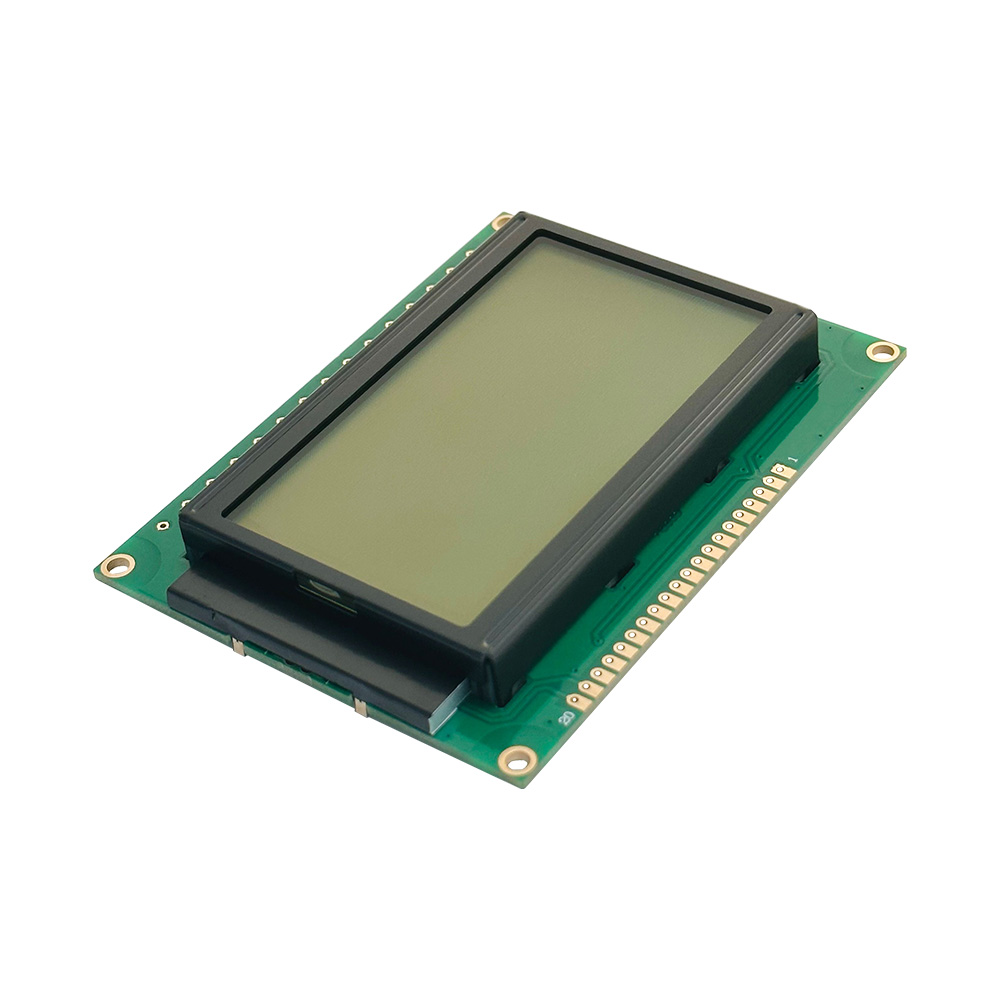

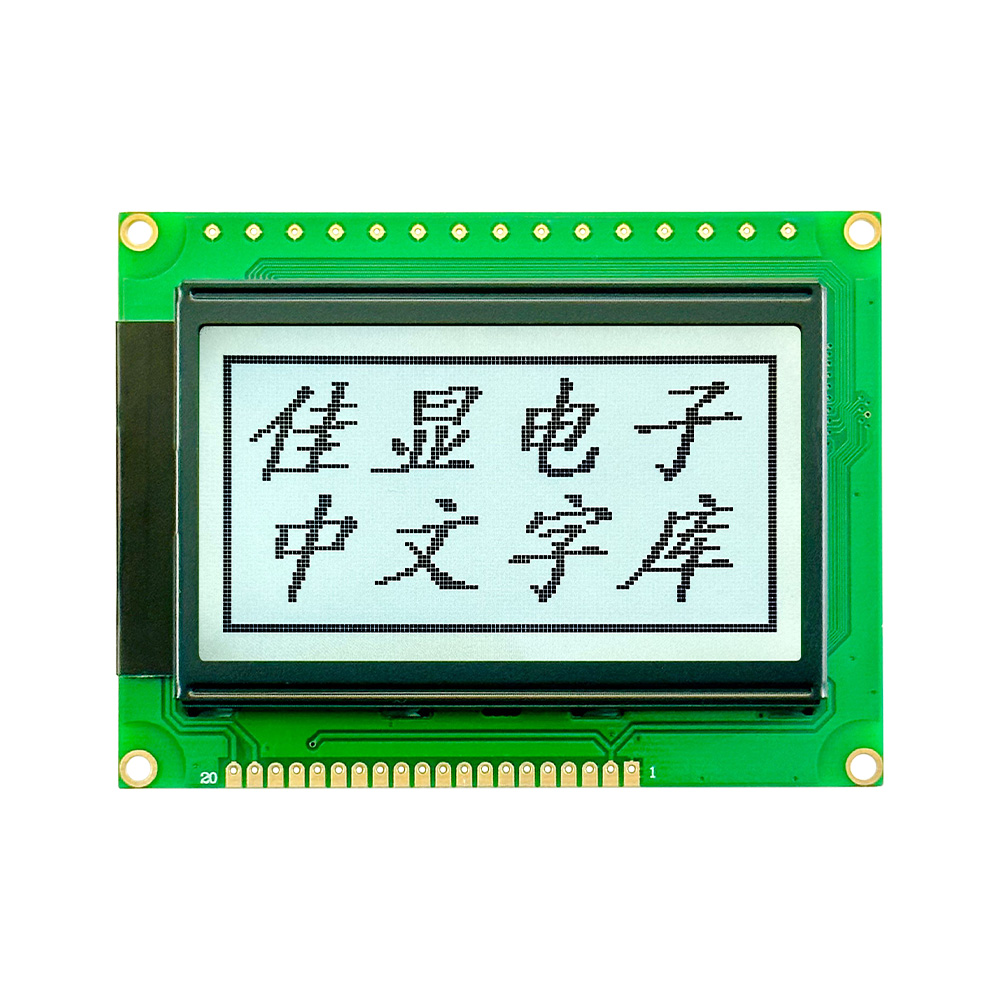

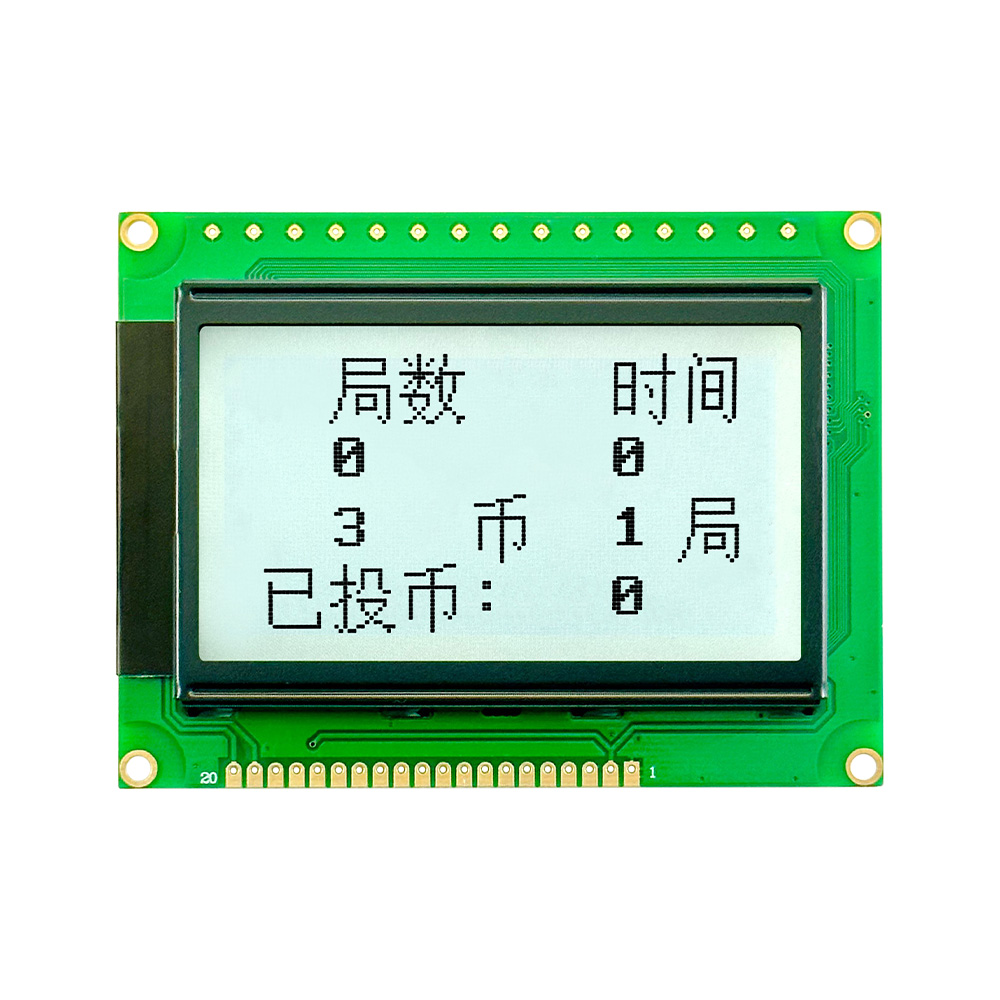

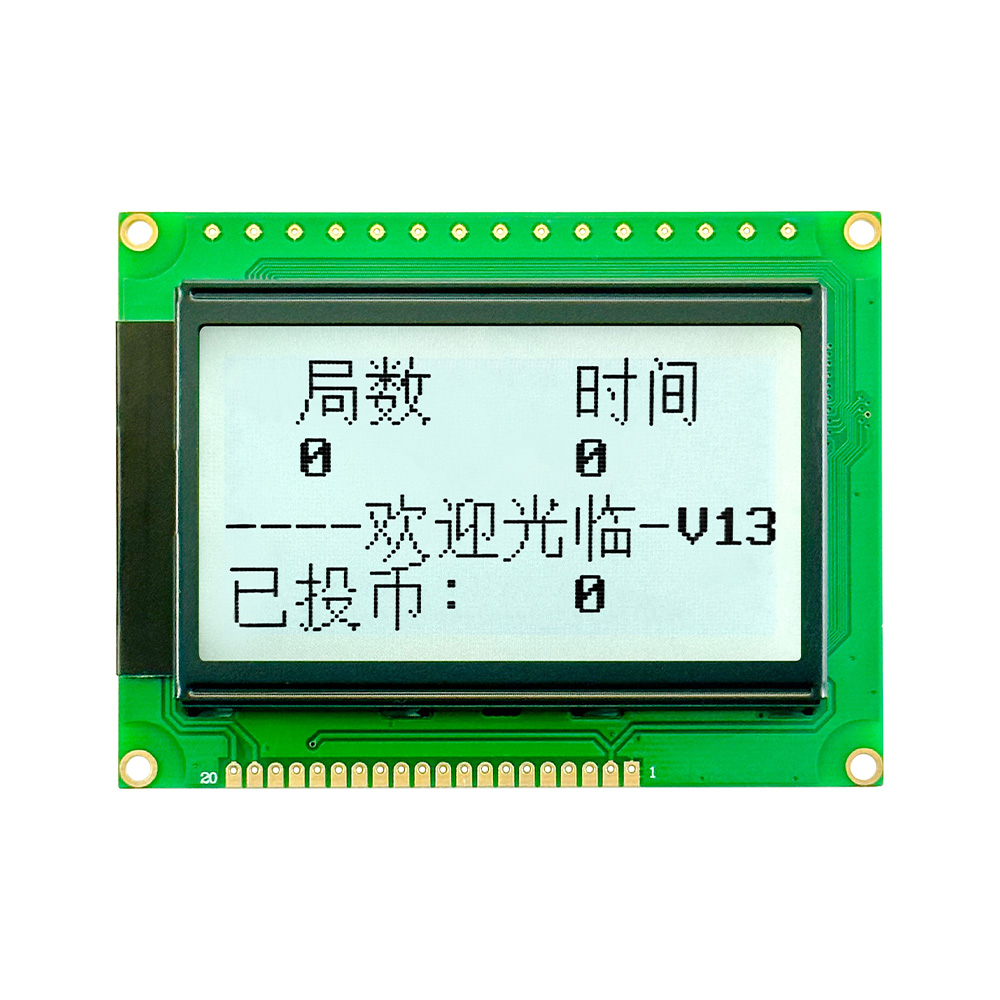

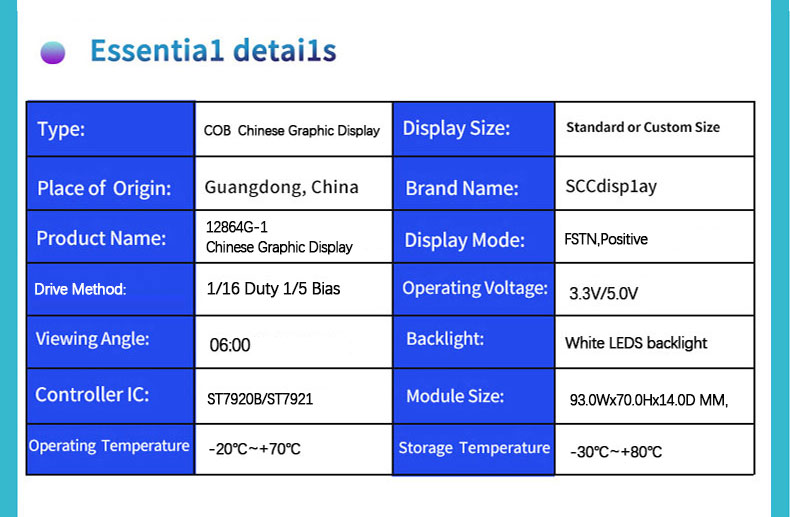

Parameters:
| Model | SJXD12864G-1 |
| Model Size | 93.0×70.0×14.0 mm |
| Field of View Size | 72.0×40.0mm |
| Display Mode | FSTN positive |
| Viewing Angle | 06:00/09:00/12:00 |
| Top |
-20℃~+70℃
|
|
Tst
|
-30℃~+80℃ |
|
Backlight
|
White LEDs backight |
|
Drive IC
|
ST7920B/ST7921 |
|
Drive Voltage
|
5.0V or 3.3V |

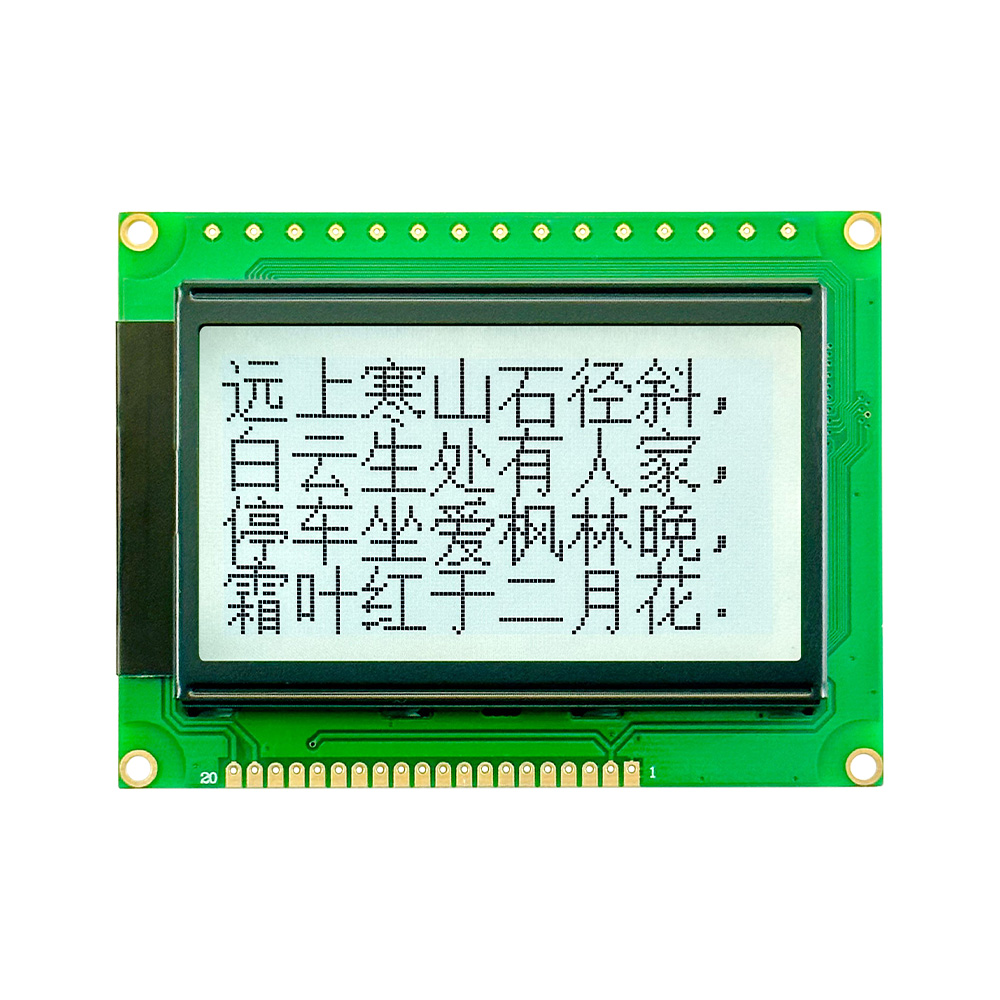

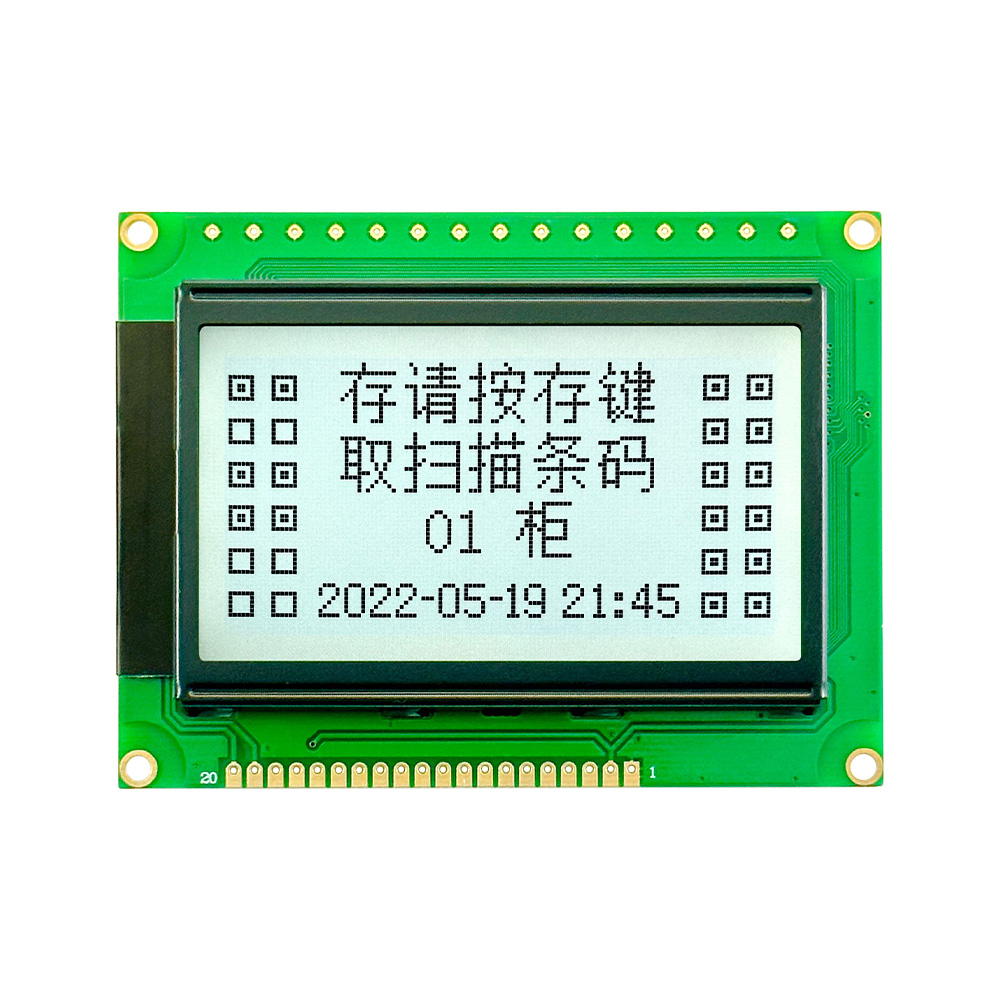

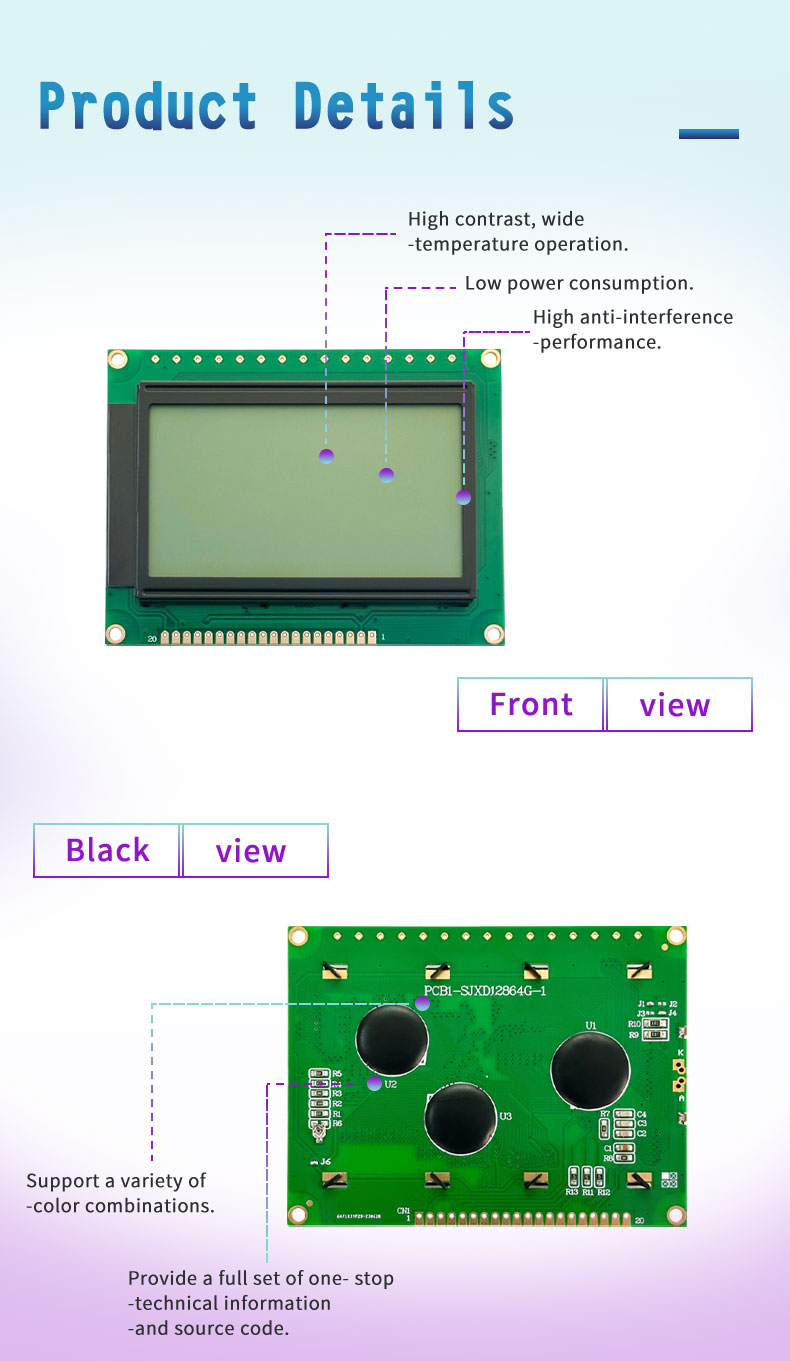

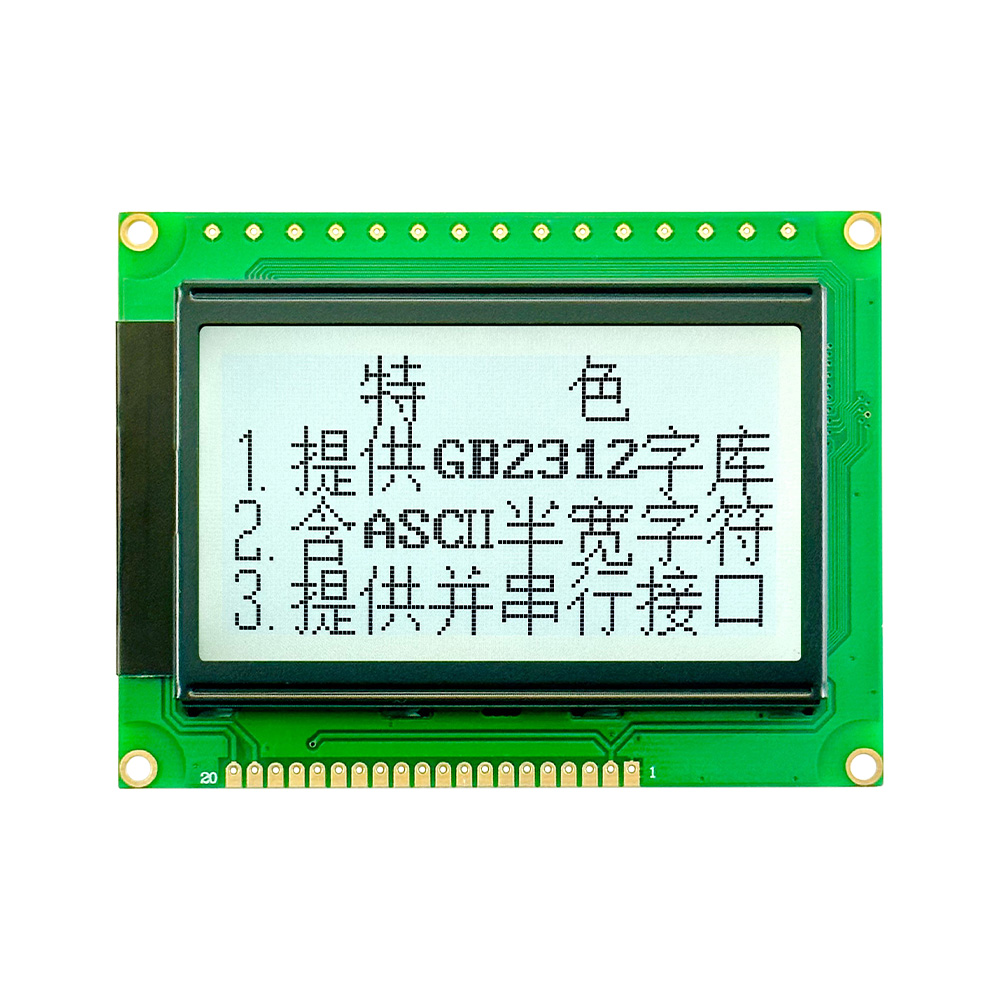

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This module is built with a 128×64 dot matrix structure, allowing detailed graphical output and multi-line information display within a compact screen size. The high-contrast monochrome technology ensures sharp visibility in typical indoor lighting conditions. It is optimized for low power operation, making it ideal for portable and continuously running devices. The display supports standard communication interfaces, enabling straightforward integration with microcontroller systems and embedded platforms. Stable driving circuitry ensures consistent refresh performance and reduces flickering during dynamic updates. Its viewing characteristics are engineered to maintain readability across multiple angles, improving usability in handheld and fixed installations.
Design Standards
Graphic Monochrome LCD Display units are manufactured according to strict industrial reliability requirements. The structure includes reinforced glass substrates and precision-aligned liquid crystal layers to ensure stable optical performance over long operational periods. Anti-electromagnetic interference design helps maintain consistent signal quality in electrically noisy environments such as industrial workshops and automation systems. Thermal durability is integrated into the design, allowing stable operation across a wide temperature range without loss of contrast or response stability. The module is engineered for long lifecycle performance to reduce maintenance needs in embedded applications.
Applications
This display is widely used in industrial control systems, measurement equipment, medical instruments, and communication devices. It is particularly suitable for applications requiring both text and simple graphic visualization, such as system status panels and diagnostic interfaces. Engineers also apply it in handheld testers, educational electronics, and automation terminals. The Graphic Monochrome LCD Display offers a balanced combination of flexibility, stability, and efficiency, making it a practical choice for modern embedded product development.

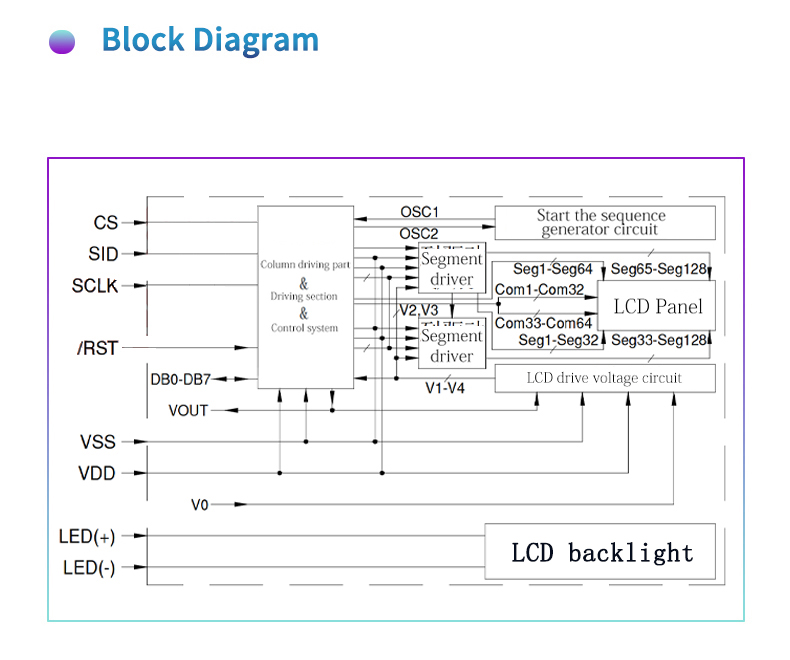

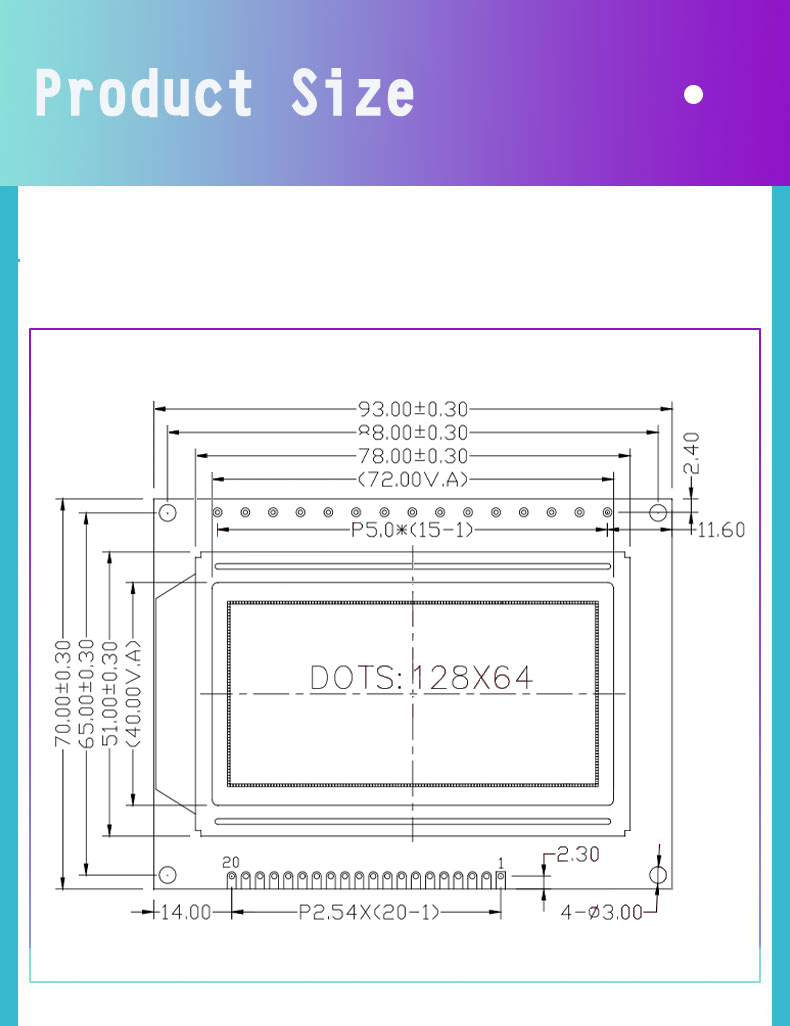

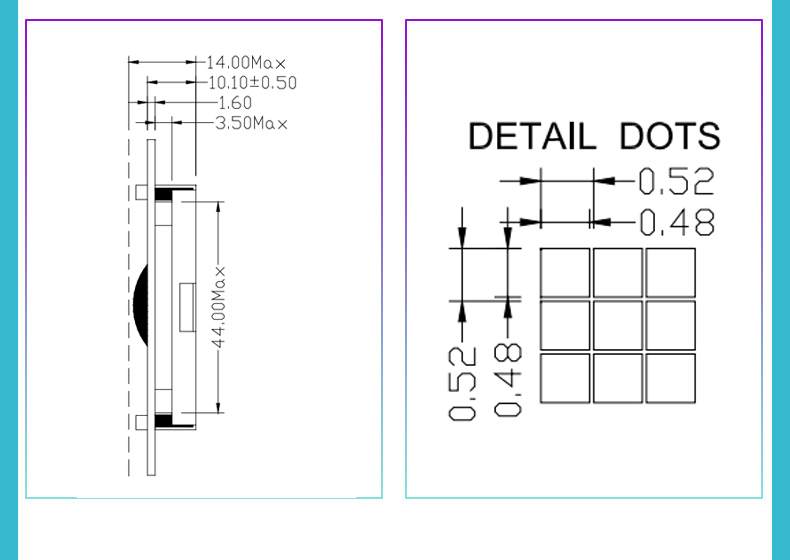

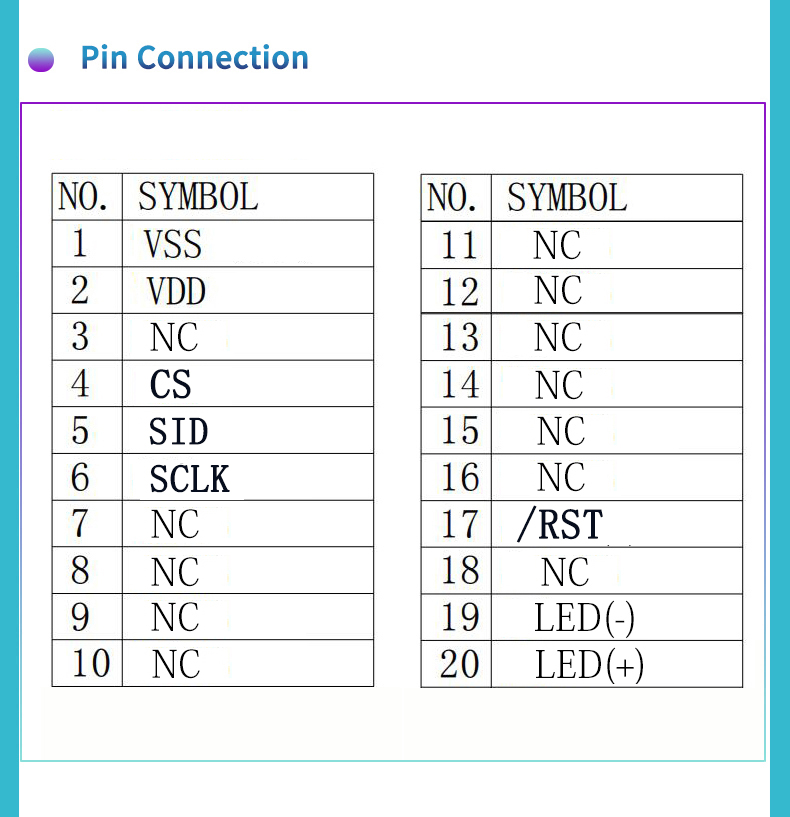

Product Size
