Basic Information

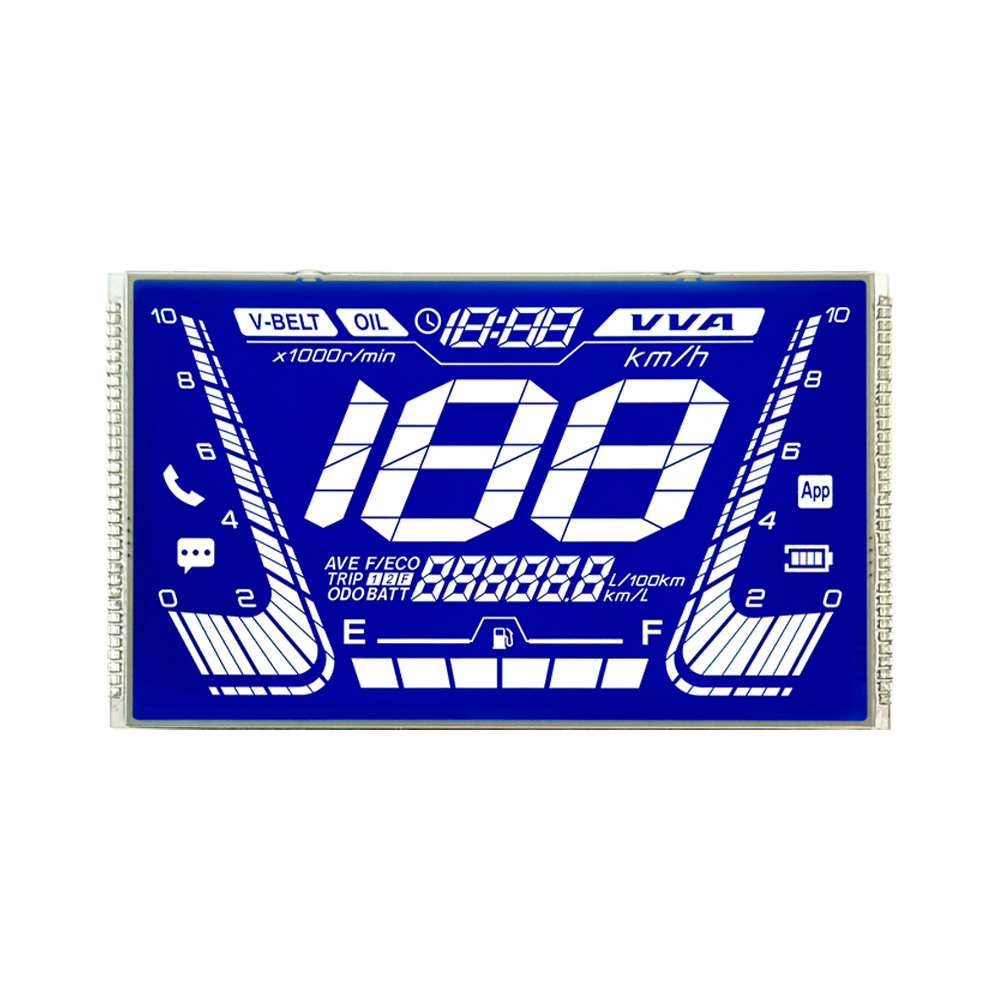

The SJXD-2023NV155 Custom Made Display Segment LCD Screen is a tailored segmented display solution designed for specialized electronic applications that require unique visual layouts and stable performance. It is developed to provide flexible customization options for segment design, allowing manufacturers to create application-specific display interfaces. With its reliable LCD technology, low power consumption, and high clarity output, this module is suitable for a wide range of industrial and consumer electronic products.
Parameters:
| Character Type | Customized |
| Model | SJXD-2023nv155 |
| Model Size | 113×66×2.8mm |
| VA Size | 105×63mm |
|
Connector
|
PIN |
|
LCD Type
|
HTN Negative |
|
Drive Conditions
|
1/4 DUTY,1/3 BIAS Vop=4.5V
|
|
Working Temperature
|
-30°C TO +80“C
|
| Storage Temperature |
-40'C TO +90°C
|
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The SJXD-2023NV155 Custom Made Display Segment LCD Screen features a fully customizable segment architecture that supports numeric, symbolic, and icon-based display configurations. It delivers high-contrast performance, ensuring clear readability under different lighting environments. The display is engineered for low power operation, making it ideal for battery-powered devices and energy-efficient systems. It supports stable electrical characteristics and reliable signal response, ensuring consistent performance during long-term operation. The compact structure allows seamless integration into various electronic products without requiring major design modifications. The module is optimized for stable visibility and consistent output, ensuring dependable operation in both indoor and controlled environments.
Design Features
This custom made segment LCD screen is designed with flexibility, durability, and precision in mind. It allows manufacturers to define custom segment patterns according to specific product requirements, enabling unique and functional display designs. The display ensures fast response time and accurate visual representation, improving user interaction and readability. Its robust construction guarantees long service life and stable performance even under continuous operation conditions. The module is also optimized for easy integration into complex electronic systems, supporting efficient product development and customization. It maintains consistent display quality across different usage scenarios.
Applications
The SJXD-2023NV155 Custom Made Display Segment LCD Screen is widely used in industrial control systems, smart home devices, medical instruments, automotive dashboards, consumer electronics, and specialized measurement equipment. It is suitable for applications requiring customized icons, special indicators, and unique display layouts. It is also commonly used in OEM and ODM projects where tailored LCD display solutions are required.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
