Basic Information

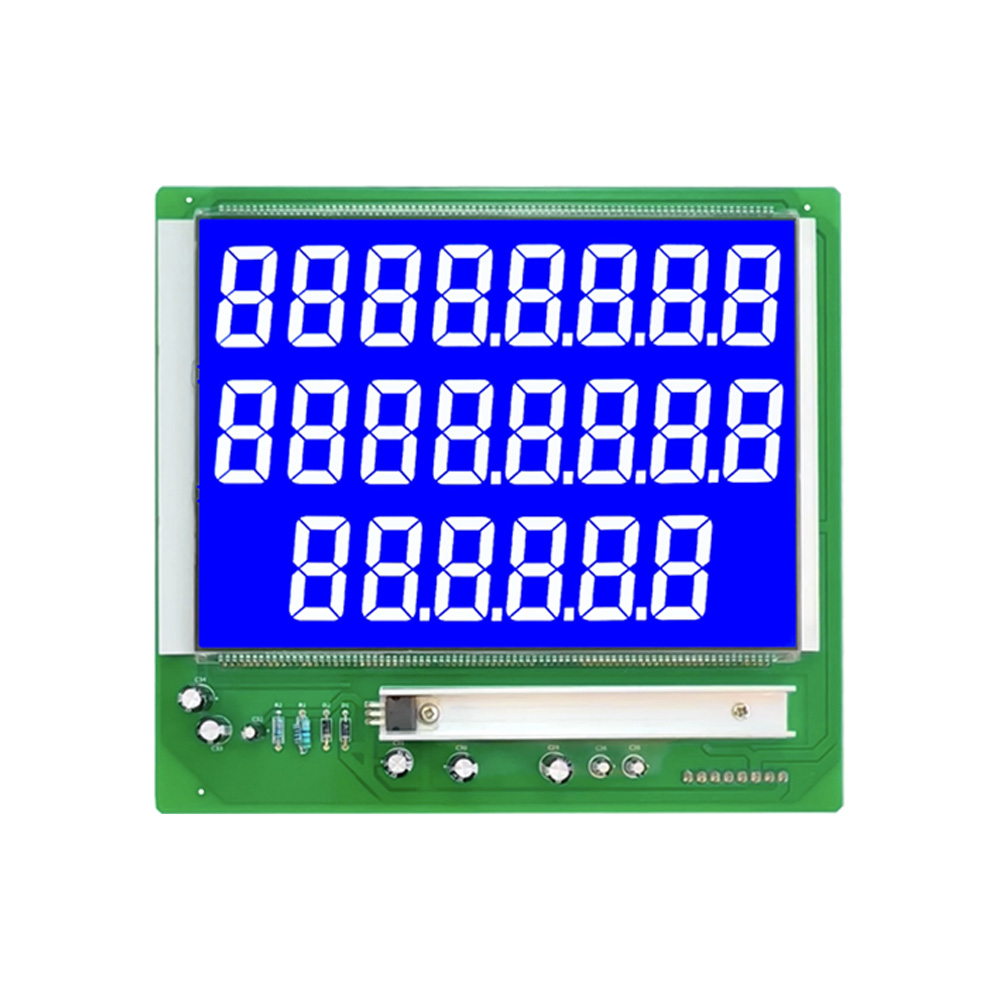

The SJXD-JYJ001LC Custom LCD Display Module is a tailored display solution designed to meet specific application requirements in modern electronic systems. It is developed to provide flexible segment configuration, stable performance, and clear visual output for a wide range of industrial and consumer devices. With its customizable design capability, this module is ideal for products that require unique display layouts beyond standard LCD configurations.
Parameters:
| Character Type | Customized |
| Model | SJXD-JYJ001LC Negative |
| Model Size | 64.4×46×9.4mm |
| VA Size | 47×32mm |
|
Connector
|
8PIN |
|
LCD Type
|
HTN |
|
Drive Conditions
|
1/1B
|
|
Working Temperature
|
-30°C--+70°C
|
| Storage Temperature |
-30°C--+80°C
|
|
Working Voltage
|
5.0 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
The SJXD-JYJ001LC Custom LCD Display Module features a fully customizable LCD structure that allows developers to define segment patterns, icons, and numeric layouts according to application needs. It provides high-contrast display performance, ensuring clear readability under different lighting conditions. The module is engineered for low power consumption, making it suitable for battery-powered and energy-efficient systems. It supports stable electrical characteristics and reliable signal response, ensuring consistent operation during long-term use. The compact structure allows seamless integration into various electronic products without requiring major design changes. The display is optimized for stable performance and clear visibility in both indoor and controlled environments.
Design Features
This custom LCD display module is designed with flexibility and reliability in mind. It supports tailored segment design, enabling unique visual interfaces for different product requirements. The display ensures fast response time and accurate visual output, improving user interaction and readability. Its durable construction guarantees long service life and stable operation even under continuous working conditions. The module is also optimized for easy integration, allowing manufacturers to incorporate it into compact and complex electronic systems. Its stable performance ensures consistent display quality across different applications and environments.
Applications
The SJXD-JYJ001LC Custom LCD Display Module is widely used in industrial control systems, smart home devices, medical instruments, automotive dashboards, consumer electronics, and measurement equipment. It is suitable for applications requiring customized icons, special indicators, and unique display layouts. It is also commonly used in OEM and ODM projects where product-specific display design is required.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
