Basic Information

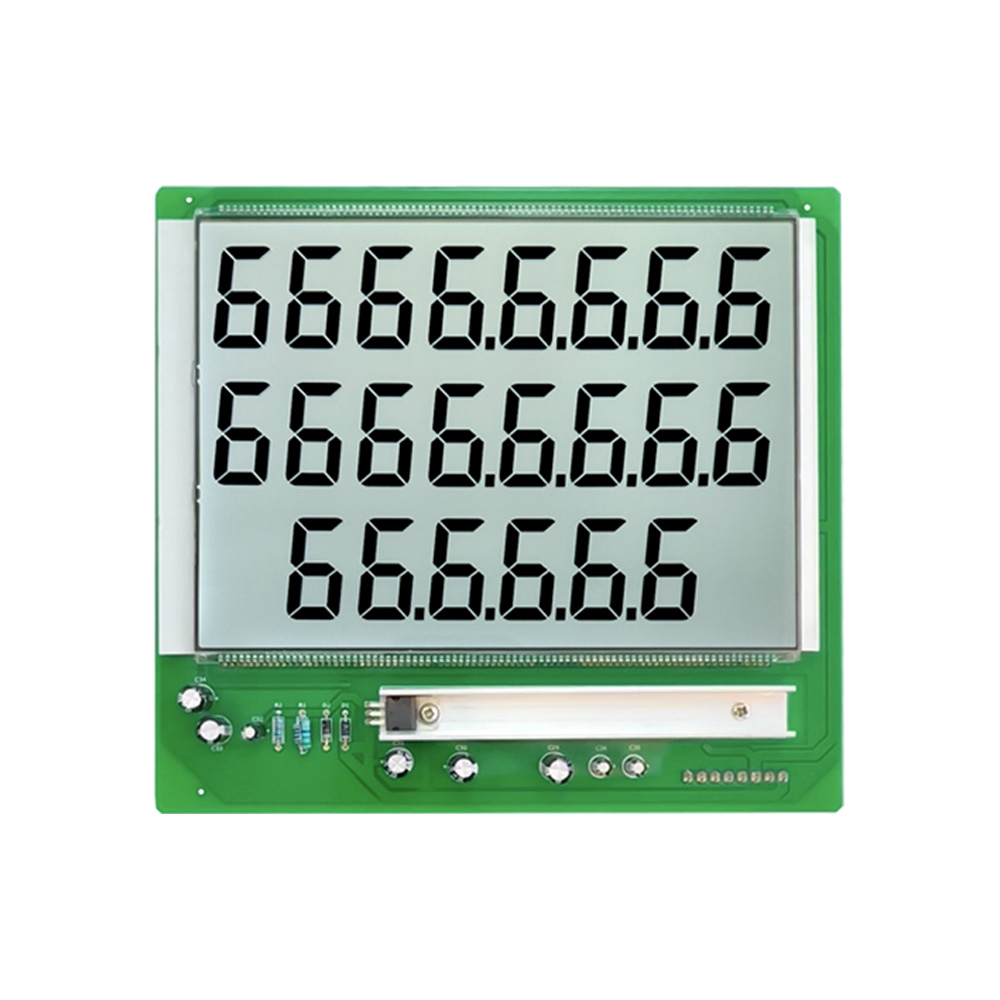

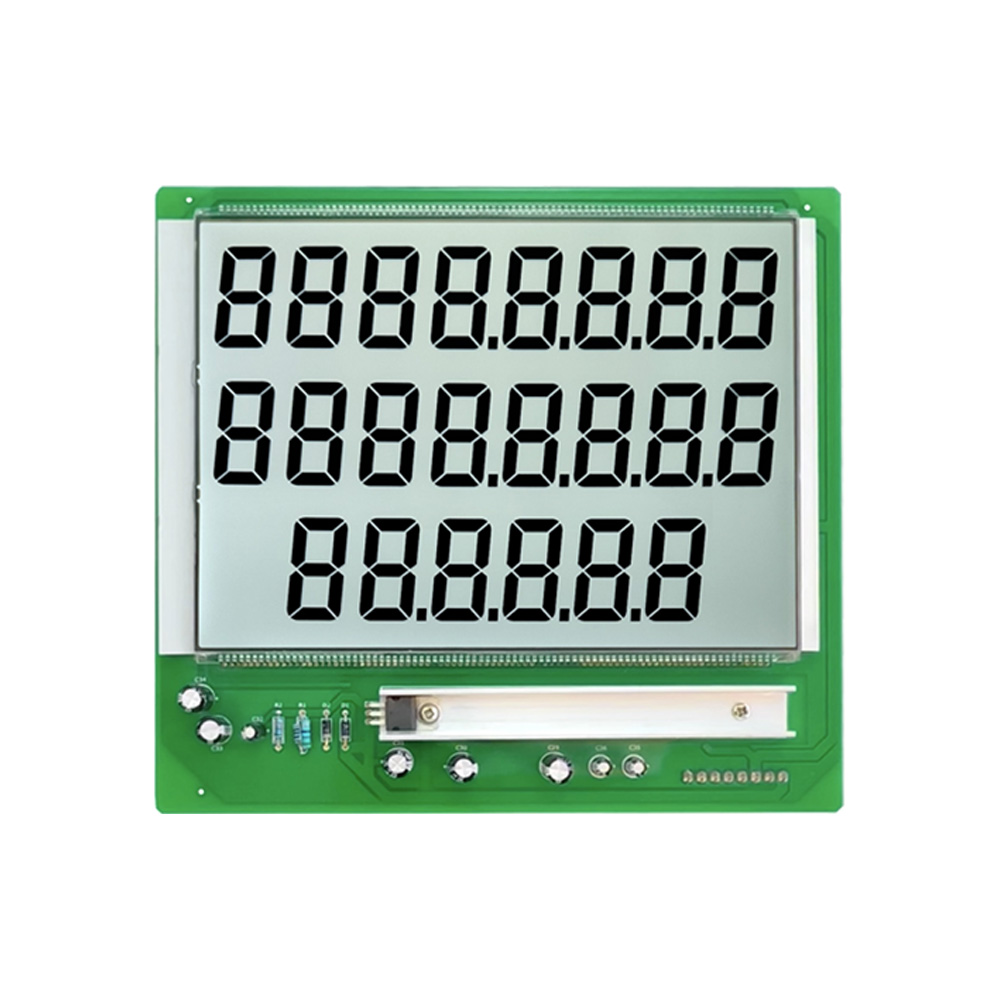

The Bespoke LCD Screen Module SJXD-JYJ001LC is a fully customized display solution designed for electronic systems that require application-specific visual interfaces. It is engineered to support tailored LCD configurations, enabling manufacturers to define unique segment layouts, icon structures, and interface designs. This makes it suitable for specialized instruments, embedded devices, and industrial equipment where standard display modules cannot meet functional or aesthetic requirements. The module emphasizes flexibility, stability, and long-term operational reliability.
Parameters:
| Character Type | Customized |
| Model | SJXD-JYJ001LC Positive |
| Model Size | 64.4×46×9.4mm |
| VA Size | 47×32mm |
|
Connector
|
8PIN |
|
LCD Type
|
HTN |
|
Drive Conditions
|
1/1B
|
|
Working Temperature
|
-30°C--+70°C
|
| Storage Temperature |
-30°C--+80°C
|
|
Working Voltage
|
5.0 V |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
This bespoke LCD screen module is built on a customizable liquid crystal display architecture that supports personalized segment patterns, symbols, and interface elements. It delivers clear and stable visual output, ensuring accurate representation of data across various electronic applications. The display provides strong contrast performance, allowing information to remain readable under standard indoor lighting conditions. It operates at low voltage, making it compatible with energy-efficient systems and battery-powered devices. The module is engineered for ultra-low power consumption, supporting continuous long-term operation in embedded environments. It maintains stable optical and electrical performance across a wide temperature range, ensuring reliable functionality in diverse operating conditions. Its flexible structural design allows seamless integration into compact, curved, or uniquely shaped device housings. The fast response of segment activation ensures real-time display accuracy without delay or flicker, even in complex customized layouts.
Design Standards
The module is manufactured according to strict industrial LCD customization standards to ensure durability, consistency, and long-term performance stability. High-quality liquid crystal materials are selected to maintain uniform optical clarity and precise segment definition across bespoke configurations. Circuit design is optimized to reduce electromagnetic interference and ensure stable signal transmission in electronic systems. The structure is reinforced to withstand mechanical stress, temperature variation, and environmental exposure typical in industrial applications. Each unit undergoes comprehensive testing to verify custom layout accuracy, segment integrity, and electrical stability. Low power engineering principles are applied to enhance efficiency and extend operational lifespan.
Applications
The bespoke LCD screen module is widely used in industrial control systems, smart meters, medical devices, automotive dashboards, and specialized instrumentation equipment. It is also suitable for embedded systems, consumer electronics, and custom interface panels requiring unique display configurations. Its combination of flexibility, stability, and low power operation makes it an ideal solution for manufacturers developing tailored electronic display products with specific visual requirements.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
