Create Custom Character LCD Display- JXD0802A-IIC （STN Negative）

Create Custom Character LCD Display refers to using the JXD0802A-IIC 8×2 LCD module to show standard text and user-defined symbols in compact devices. The module measures 58.0×32.0×19.5mm, offers a 37.7×16.0mm viewing area, and supports 3.3V/5V drive voltage, IIC/I2C communication, ST7066/AIP31066 controller options, white LED backlight, and VA negative display type. It can display custom icons, battery marks, arrows, values, menus, alarms, and prompts for meters, medical panels, appliances, smart controllers, and DIY projects.

Parameters:

• High contrast, wide-temperature operation
• Low power consumption, high anti-interference performance
• Support for multiple color combinations
• Provide a complete set of one-stop technical information and source code
• Supports customization
• Supports 1-3 day samples
• High quality and cost-effective

Key Specifications

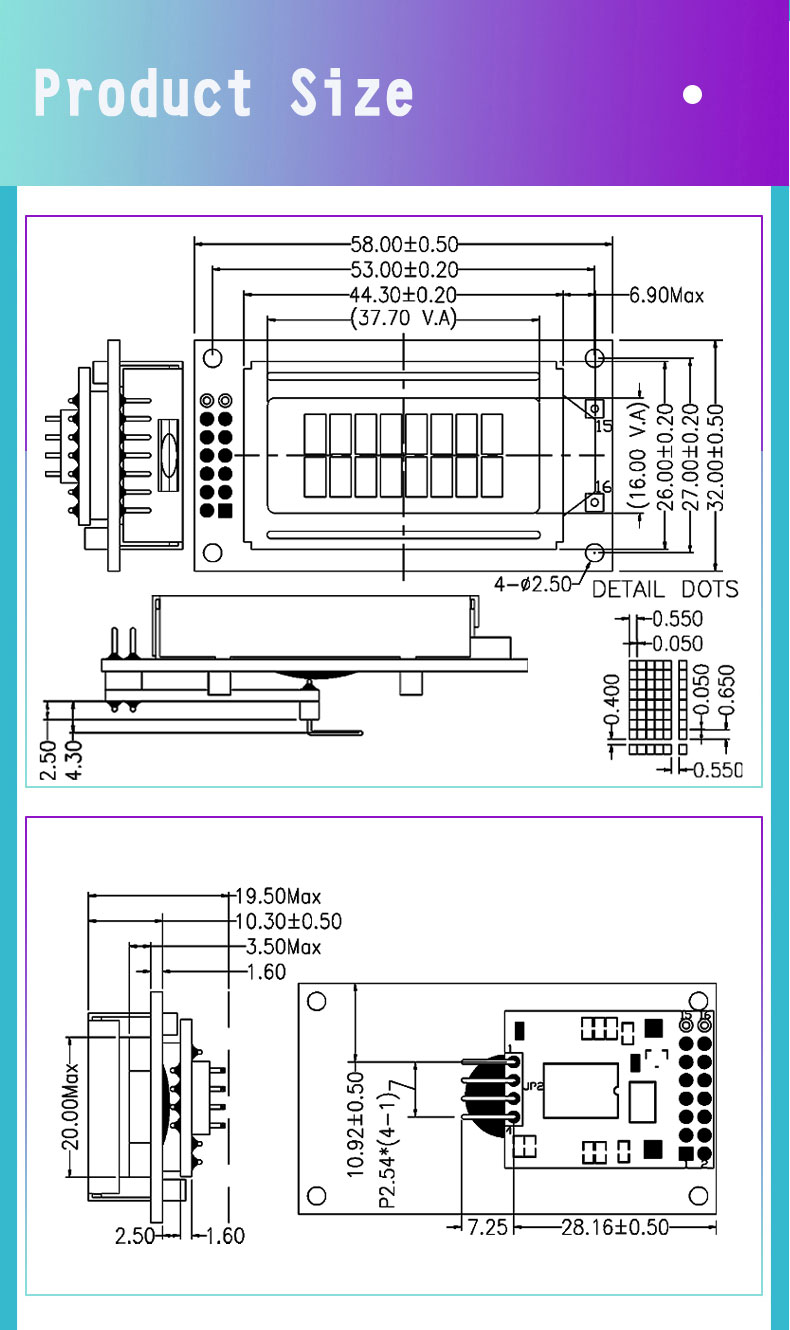

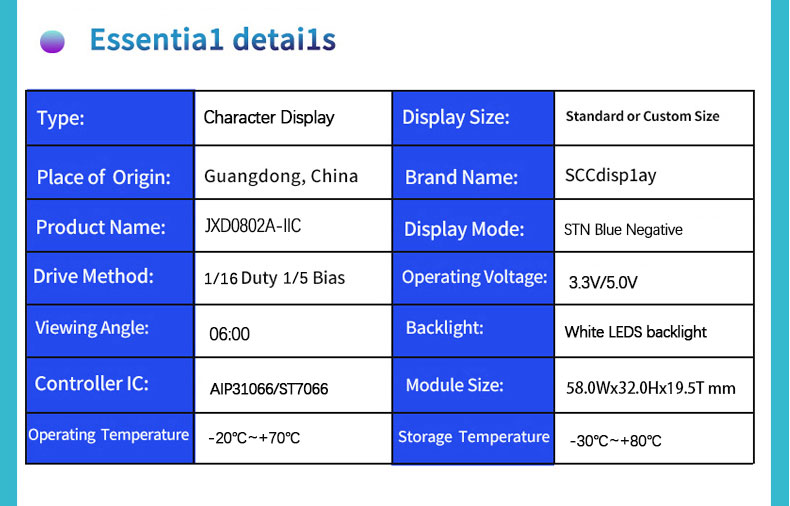

Create Custom Character LCD Display is based on the JXD0802A-IIC 8×2 character LCD module, designed for compact devices that need short text, symbols, and user-defined character output. The module measures 58.0×32.0×19.5mm and provides a 37.7×16.0mm viewing area for two-row display content. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 controller IC options, IIC/I2C communication, white LED backlight, VA negative LCD type, and 06:00 viewing direction. The module operates from -20°C to +70°C and stores from -30°C to +80°C.

Design Standards

Create Custom Character LCD Display supports flexible text presentation for projects that need more than standard letters and numbers. Engineers can define special symbols, simple icons, progress marks, arrows, battery indicators, or unit characters through controller-supported character memory and proper command setup. The IIC/I2C interface reduces wiring and keeps microcontroller connection efficient, while the VA negative display mode delivers strong contrast with white backlight illumination. The module also supports low power operation, stable communication, anti-interference performance, technical guidance, sample supply, and customization for display content, backlight color, structure, and interface needs.

Applications

Create Custom Character LCD Display is suitable for devices that need personalized symbols or compact visual feedback in a small display area. It can show sensor values, custom icons, menu marks, battery levels, warning signs, timer data, operating modes, and short user prompts. Typical uses include portable meters, access control products, medical electronics, appliance panels, smart controllers, test instruments, vending devices, educational boards, DIY electronics, and embedded equipment. Its 8×2 format and I2C communication make it practical for customized interfaces with limited panel space.

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
