Basic Information

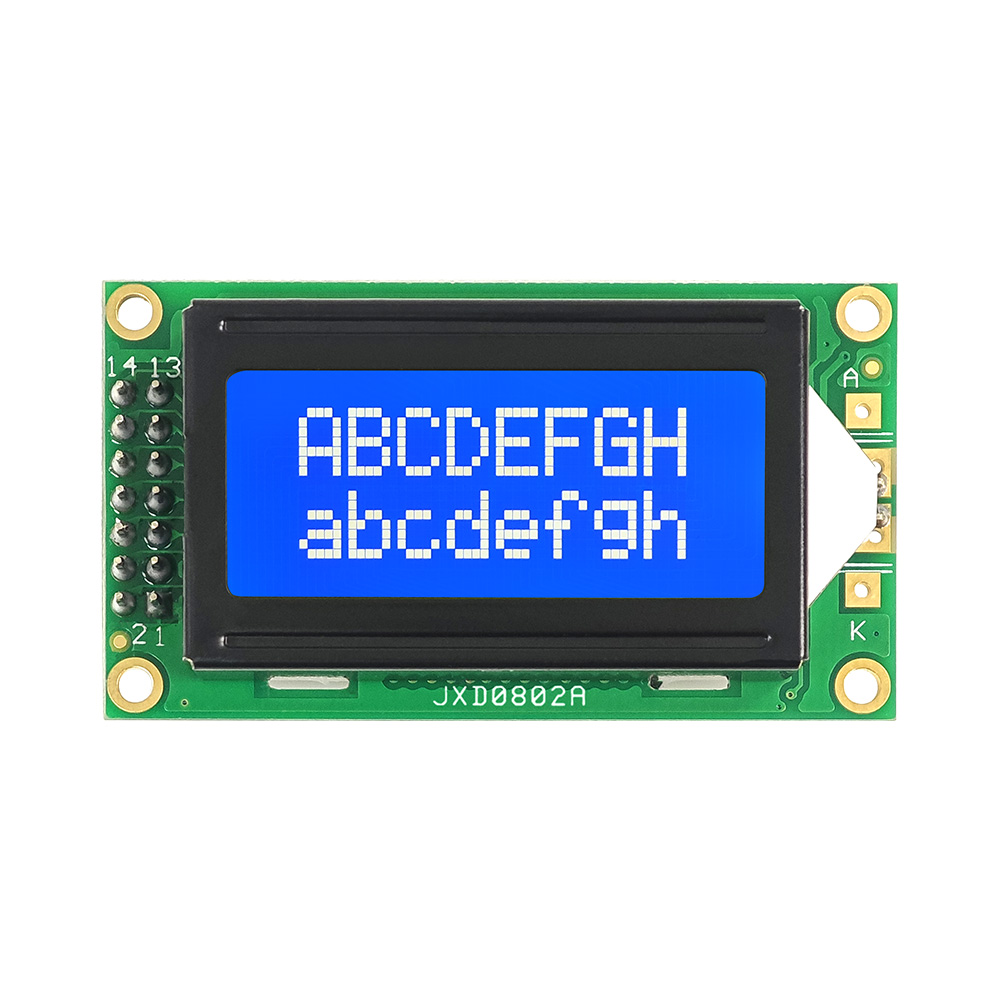

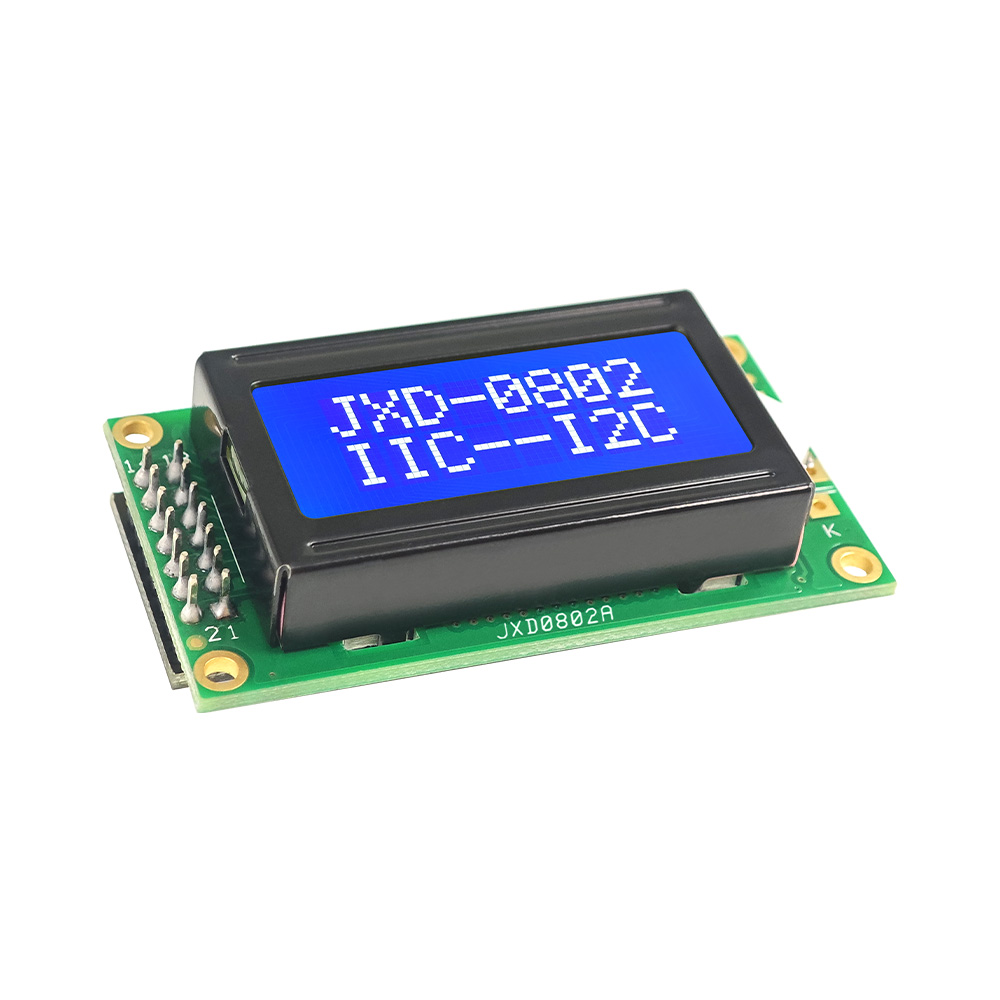

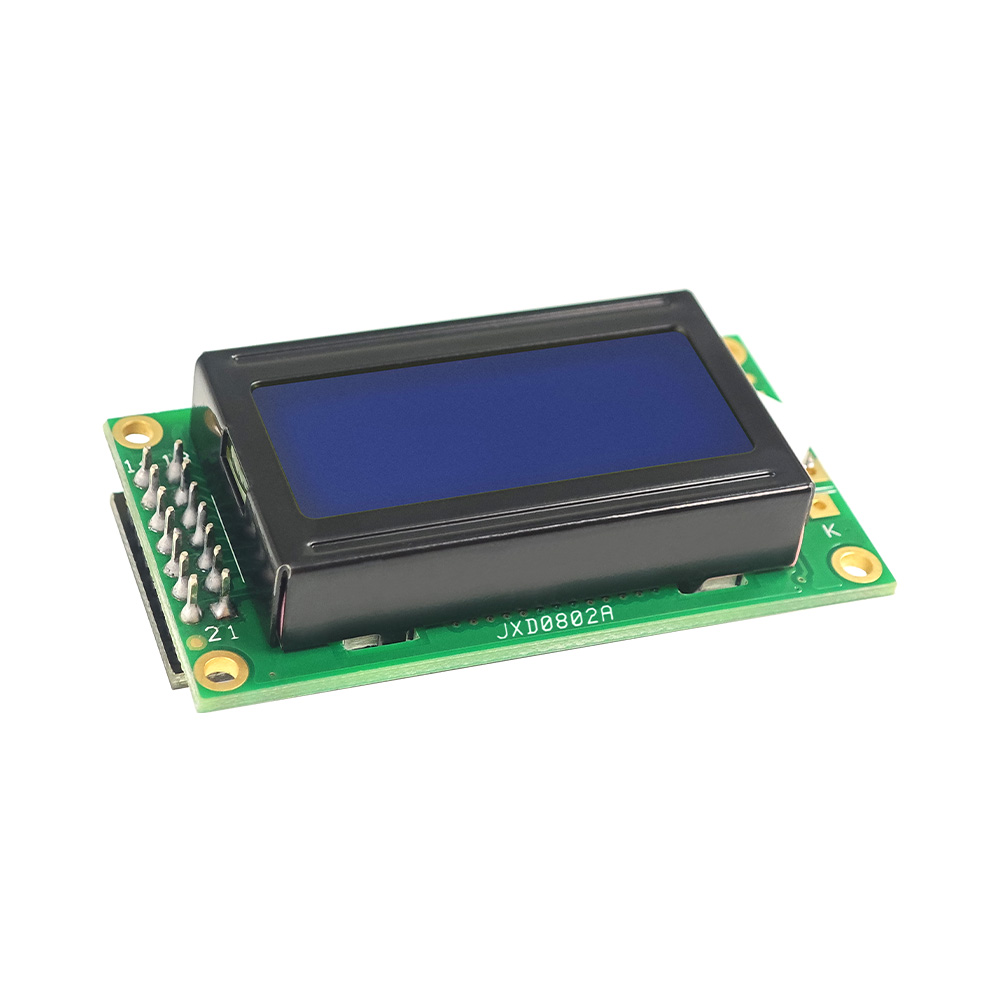

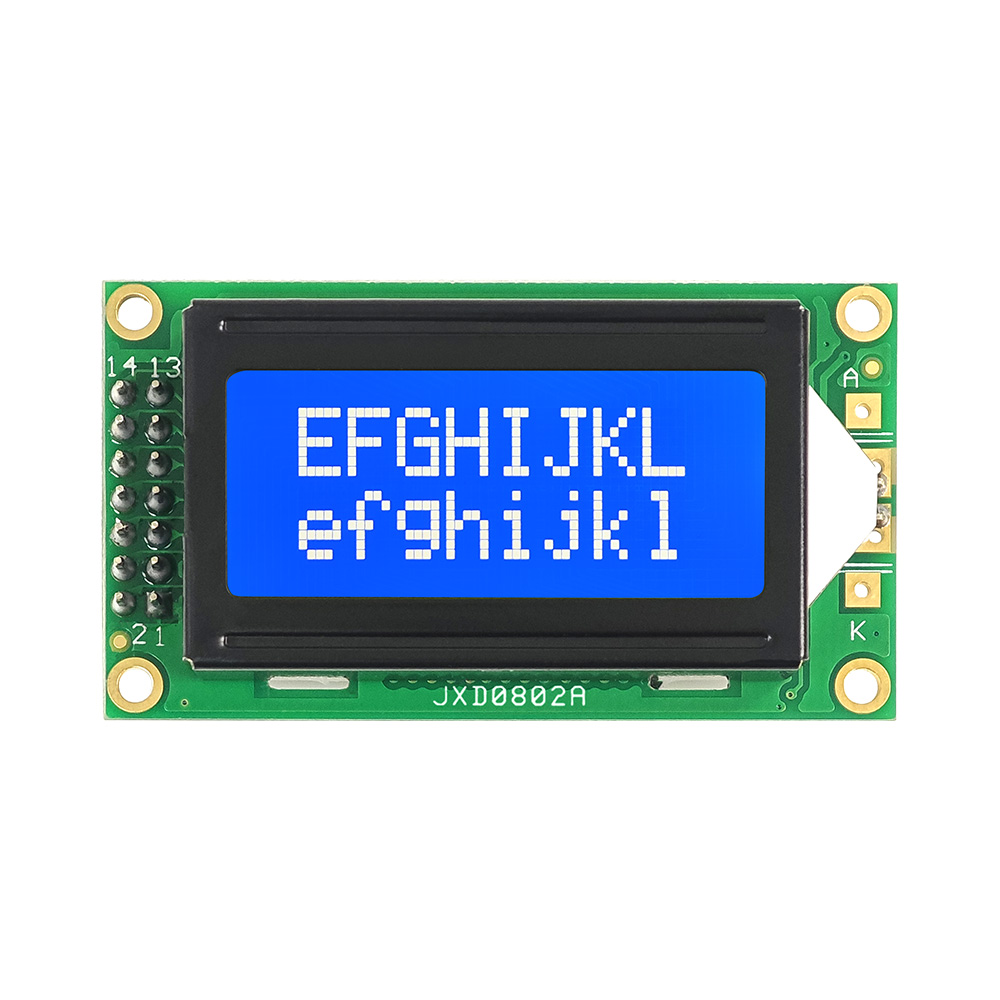

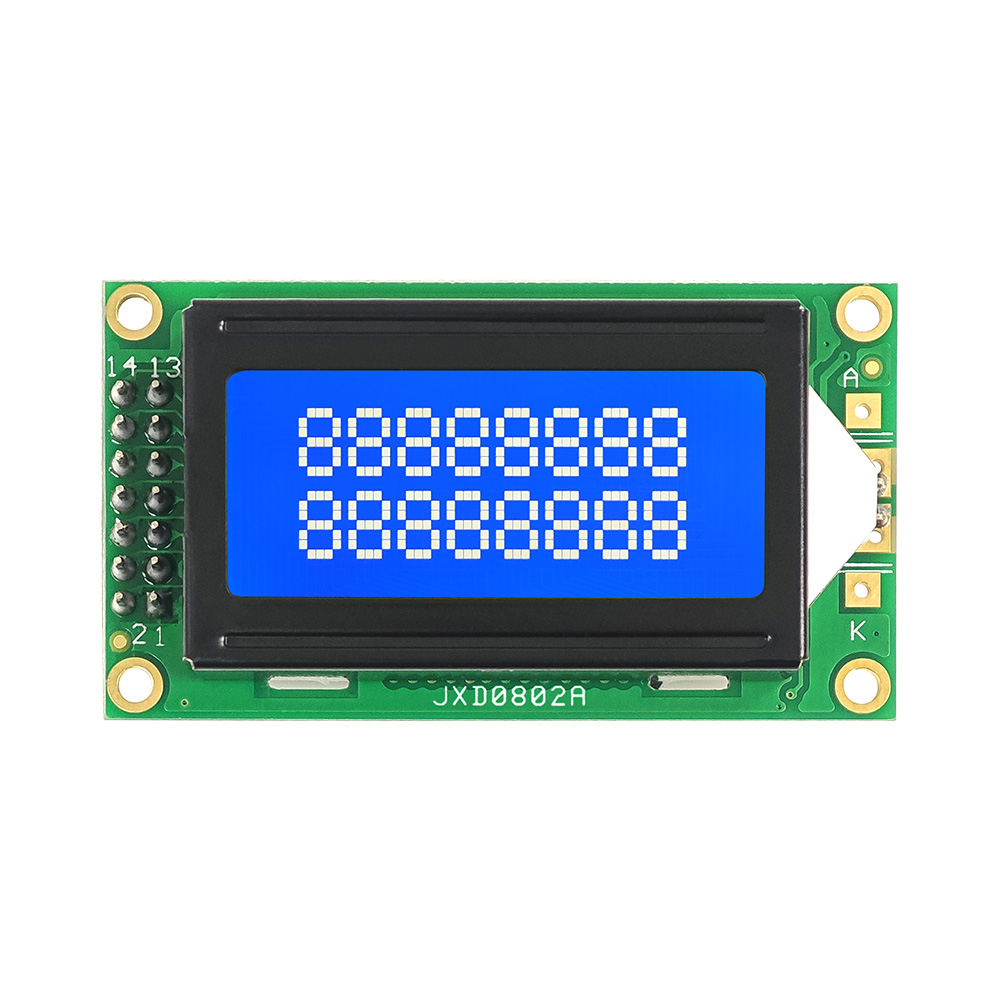

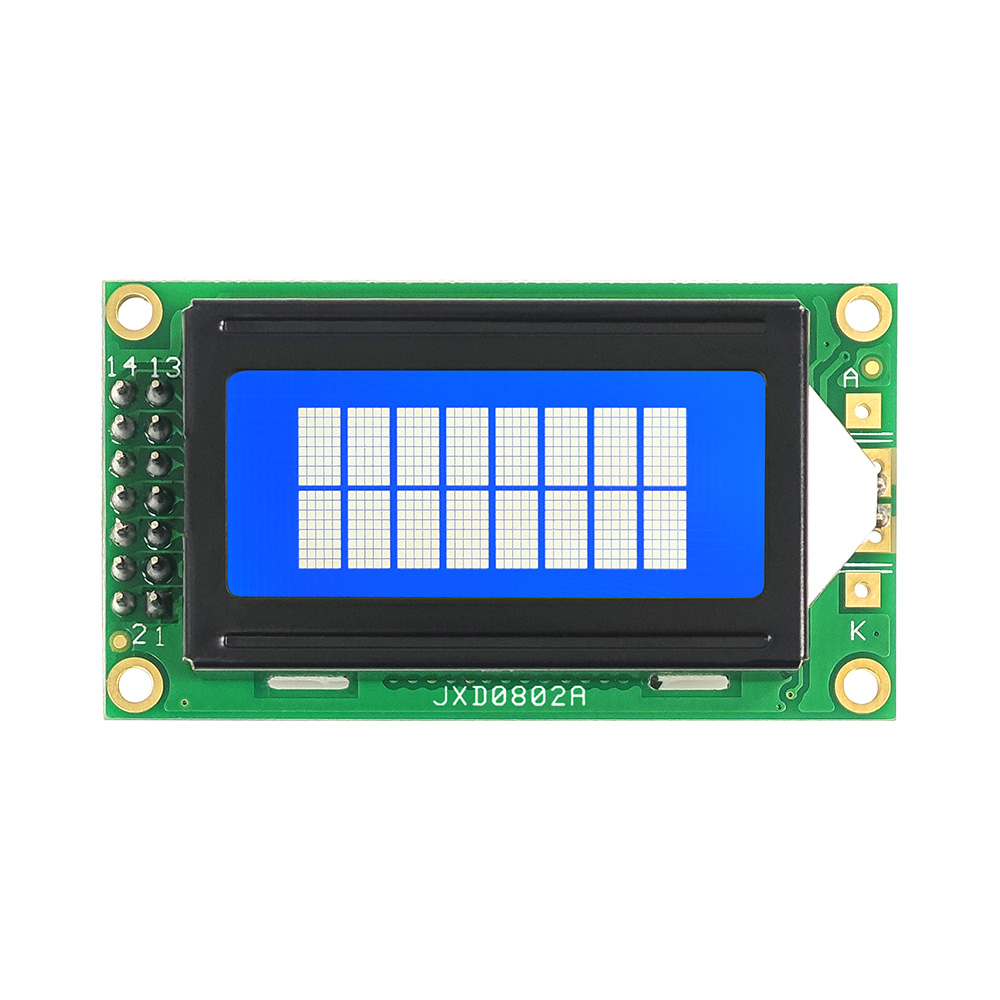

LCD Displaying Random Characters refers to an 8×2 IIC/I2C character LCD module used when stable text output and debugging are important. The JXD0802A-IIC model measures 58.0×32.0×19.5mm with a 37.7×16.0mm viewing area, supports 3.3V/5V drive voltage, ST7066/AIP31066 controller options, white LED backlight, and VA negative display type. Random symbols may relate to I2C address mismatch, timing errors, voltage instability, grounding issues, or code settings. It suits meters, panels, medical devices, smart controllers, and DIY projects.
Parameters:
| Character Type | 8X2 |
| Model | JXD0802A-IIC |
| Model Size | 58.0×32.0×19.5 MM |
| VA Size | 37.7×16.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
VA Negative
|
|

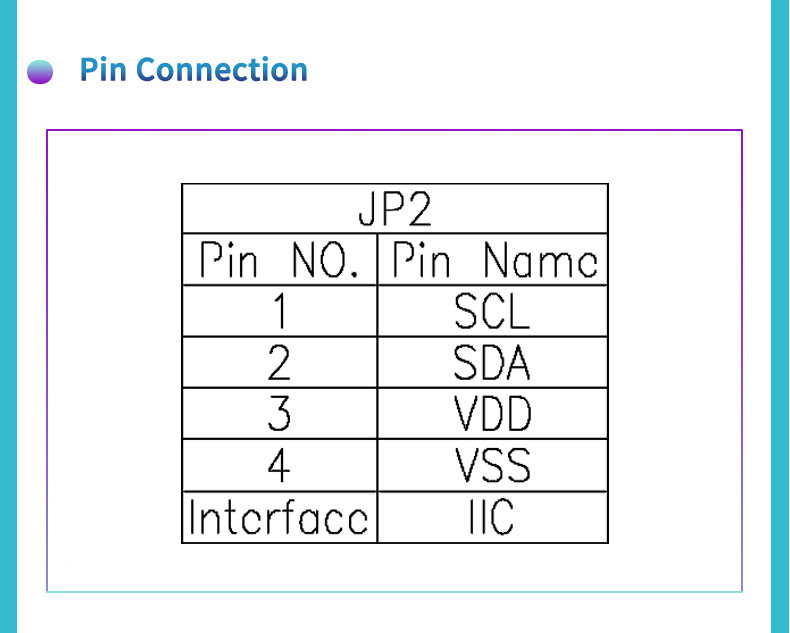

Interface
|
IIC/I2C
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |

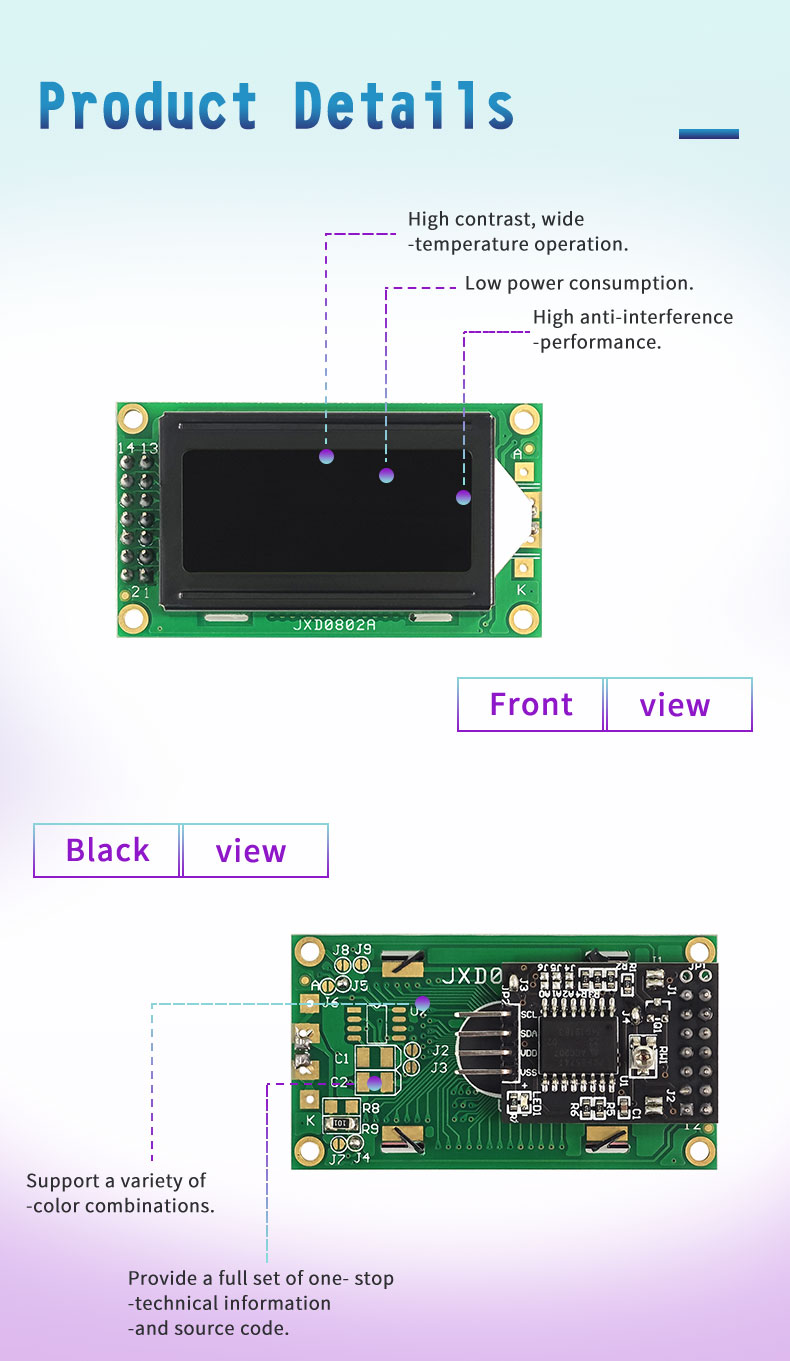

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
Key Specifications
LCD Displaying Random Characters is based on the JXD0802A-IIC 8×2 character LCD module, designed for compact two-line text and numeric output. The module measures 58.0×32.0×19.5mm with a 37.7×16.0mm viewing area, making it suitable for small panels and embedded interfaces. It supports 3.3V/5.0V drive voltage, ST7066/AIP31066 controller IC options, IIC/I2C communication, white LED backlight, VA negative LCD type, and 06:00 viewing direction. It operates from -20°C to +70°C and stores from -30°C to +80°C.
Design Standards
LCD Displaying Random Characters requires stable communication, correct initialization, and clean power conditions to maintain accurate text output. Random characters may appear when I2C addressing, command timing, grounding, voltage level, library settings, or startup sequence is not properly matched. The IIC/I2C interface reduces wiring requirements while keeping control efficient for microcontroller-based devices. The VA negative display structure and white LED backlight support strong visual contrast. The module also offers low power consumption, anti-interference performance, wide-temperature reliability, source-code support, sample availability, and customization for backlight color, display content, shell design, and operating parameters.
Applications
LCD Displaying Random Characters is suitable for product testing, debugging, and final device integration where stable character output matters. It can show sensor data, menu labels, voltage readings, battery status, timer values, warning codes, device prompts, and operating conditions. Typical uses include portable meters, equipment control panels, information display systems, medical devices, access terminals, smart controllers, home appliances, vending equipment, test instruments, educational electronics, and DIY development boards. Its 8×2 format and I2C interface make it useful for compact products that need readable text with fewer connection lines.

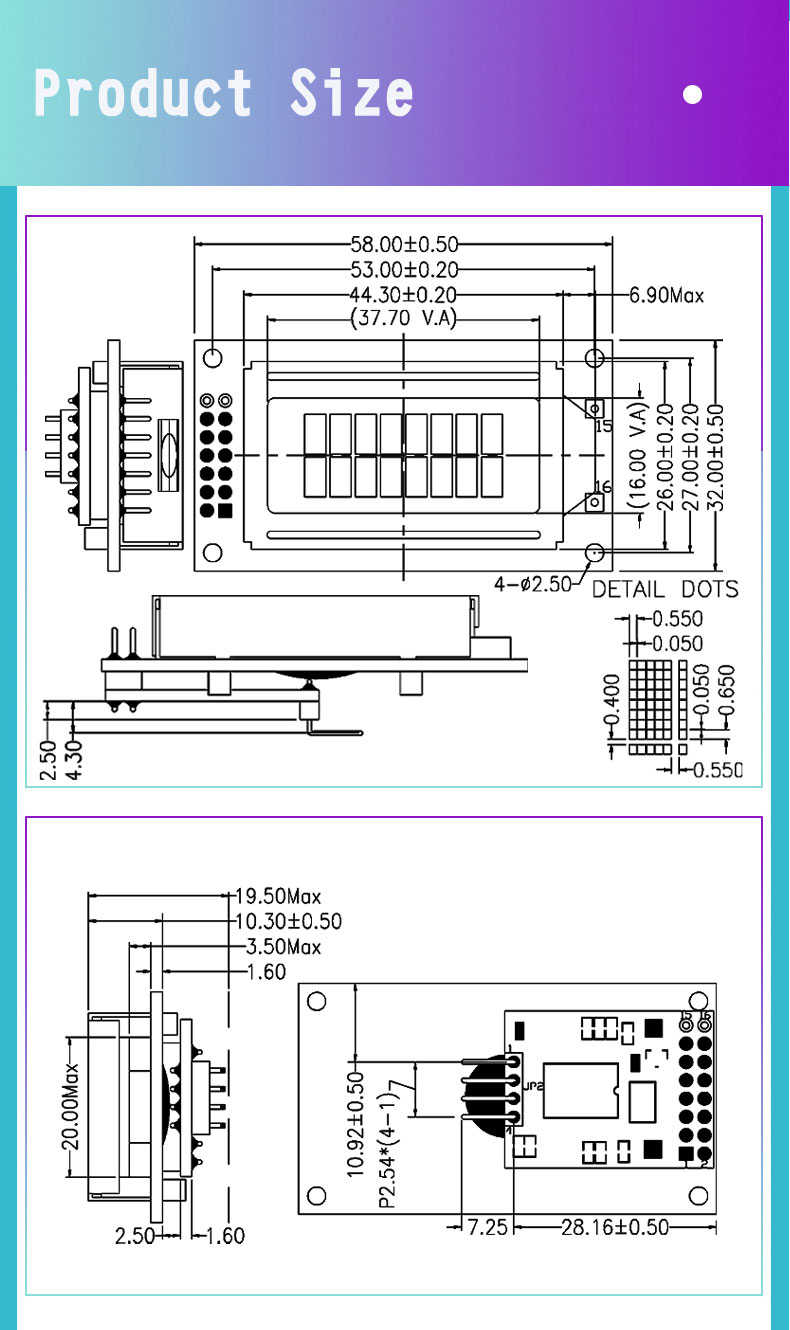

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
