Arduino LCD Display How To Fix Characters refers to using and troubleshooting character LCD modules in Arduino projects when text appears wrong, missing, shifted, or unclear. The display setup may involve checking wiring, contrast adjustment, power supply matching, controller commands, and library settings. It supports clear output for values, menus, symbols, prompts, alarms, and device status. This type of LCD solution is useful for sensor boards, learning kits, automation prototypes, measuring tools, appliance controls, classroom experiments, and embedded development.
Parameters:
| Character Type | 16X1 |
| Model | JXD1601A |
| Model Size | 80.0×36.0×12.0 MM |
| VA Size | 64.5×14.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
VA Negative
|
|
Interface
|
16PIN parallel port
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature

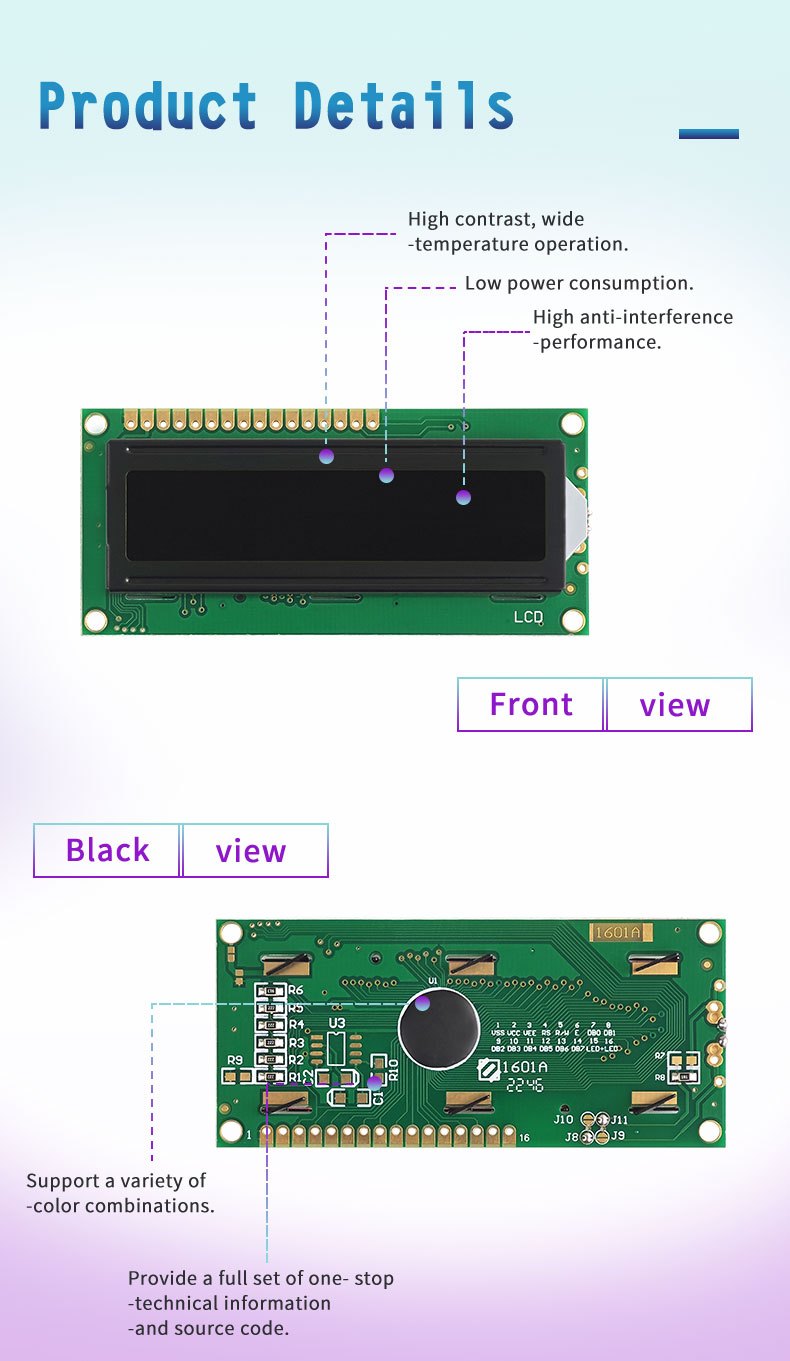

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
Arduino LCD Display How To Fix Characters is related to character LCD modules used for correcting and stabilizing text output in Arduino-based projects. The display solution supports simple alphanumeric information such as symbols, values, prompts, menu labels, and device status. It can work with common character LCD controller ICs, 3.3V/5.0V drive options, LED backlight configurations, and standard MCU connection methods. Its compact format helps developers test wiring, contrast adjustment, code commands, and character mapping during prototype development.
Design Standards
Arduino LCD Display How To Fix Characters focuses on stable text rendering, correct signal timing, and reliable communication between the display and the Arduino controller. Proper wiring, contrast setting, power supply matching, and library configuration help prevent missing blocks, unreadable symbols, random characters, or incorrect rows. The module design supports clear character positioning, predictable command response, and easy debugging during development. It can also be adapted with different backlight colors, voltage settings, display modes, and interface layouts for project-specific requirements.
Applications
Arduino LCD Display How To Fix Characters is suitable for learning kits, prototype boards, sensor displays, automation projects, and small devices that need corrected character output. It can help show temperature readings, voltage data, menu text, alarm codes, timer values, counter results, and operating instructions. Typical uses include Arduino experiments, DIY electronics, classroom demonstrations, smart appliance controls, measuring tools, access systems, laboratory devices, and embedded control panels. It is especially useful when developers need a dependable text interface for testing and troubleshooting.

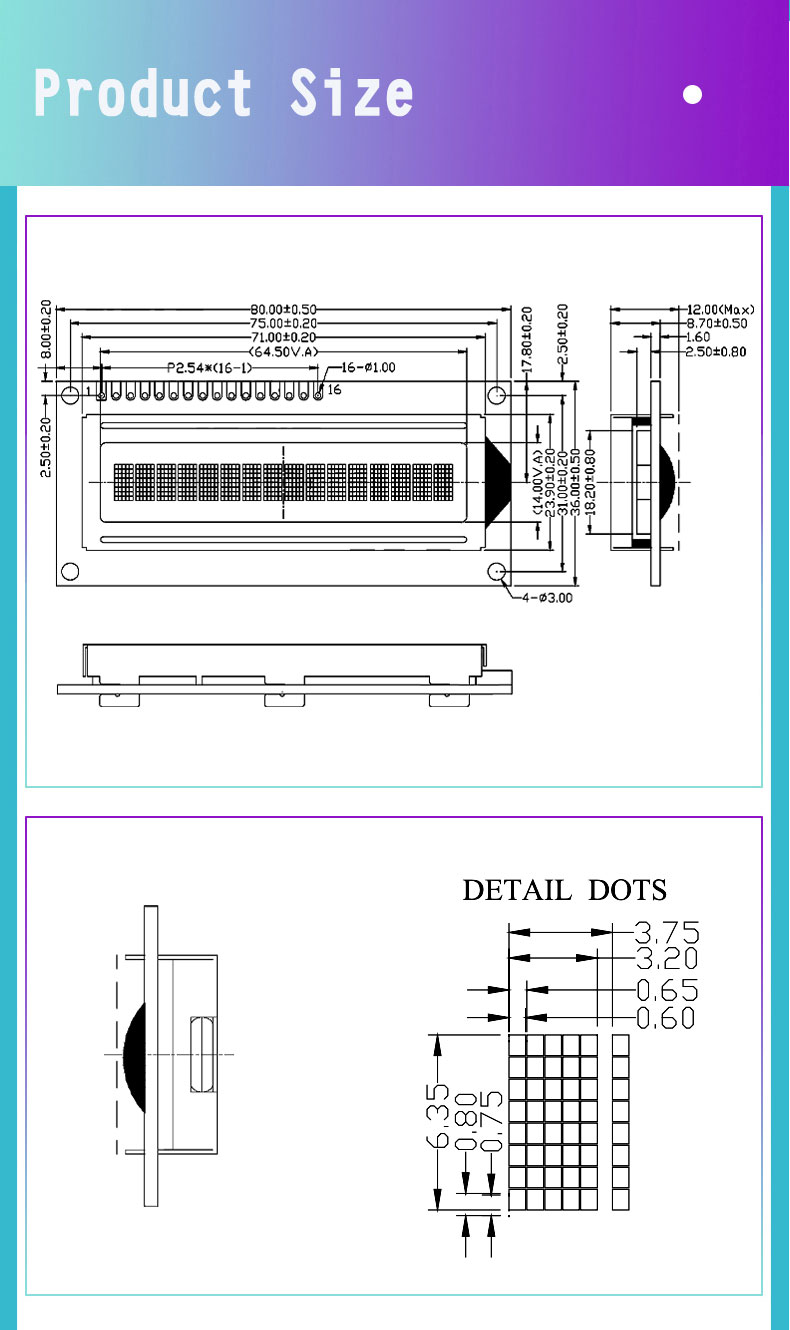

Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
