Basic Information

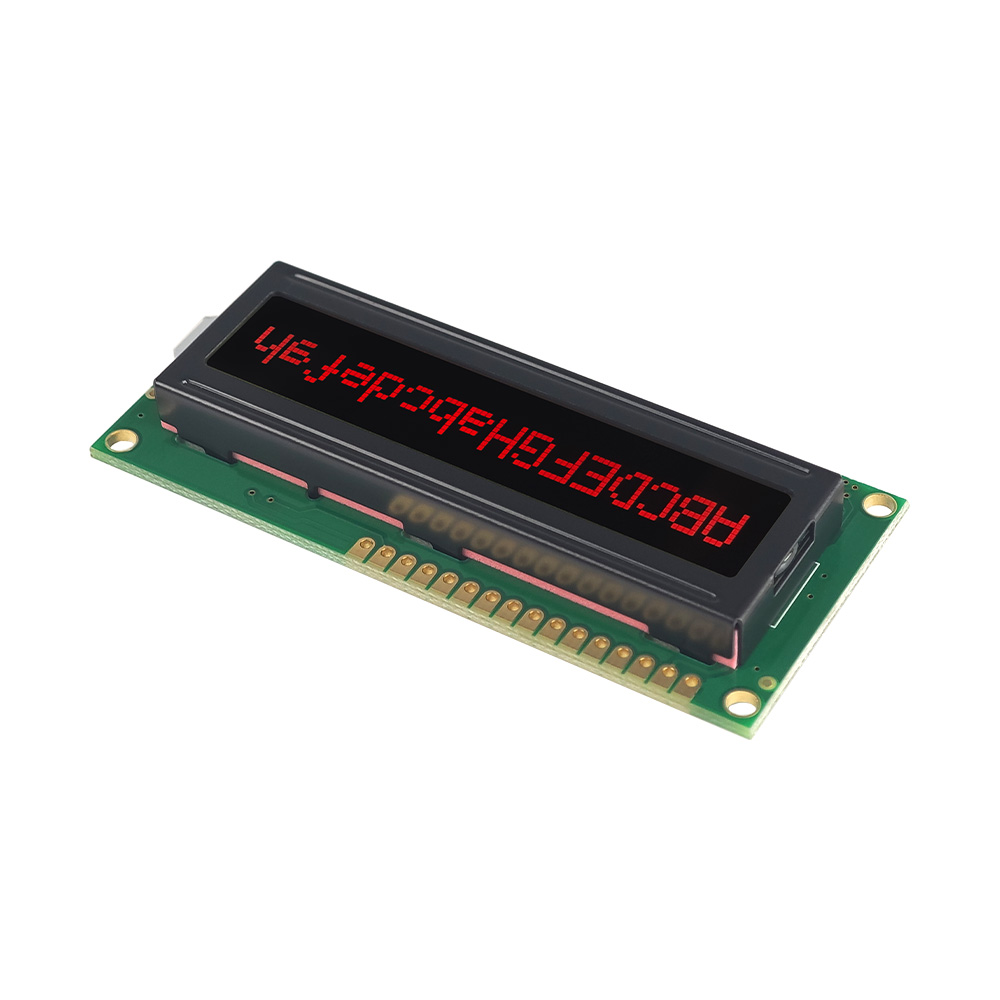

Character LCD Display Driver supports stable control for compact 16×1 character LCD modules used in embedded equipment. The JXD1601A series works with 3.3V/5V drive voltage and controller IC options such as ST7066/AIP31066, helping microcontrollers present short text, symbols, values, and status labels. It can include LED backlight configurations, standard pin connection, and customizable display details. This module fits industrial instruments, appliance panels, access systems, medical electronics, power monitors, teaching boards, testing tools, and small control terminals.
Parameters:
| Character Type | 16X1 |
| Model | JXD1601A |
| Model Size | 80.0×36.0×12.0 MM |
| VA Size | 64.5×14.0 MM |
|
Drive Voltage
|
3.3V/5.0V
|
|
Drive IC
|
ST7066/AIP31066
|
|
Backlight
|
White LED backlight
|
|
LCD Type
|
VA Negative
|
|
Interface
|
16PIN parallel port
|
| Working Temperature |
-20°C - +70°C
|
|
Storage Temperature
|
-30°C - +80°C |
Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective
- The fastest batch delivery can be achieved within 15 days
Key Specifications
Character LCD Display Driver is designed for compact character LCD modules that require stable command control and clear single-line information output. The JXD1601A series supports a 16×1 display format for short messages, status labels, values, and symbols. It works with 3.3V/5.0V drive voltage options and common controller IC solutions such as ST7066/AIP31066, helping simplify integration with microcontroller circuits. The module can include LED backlight configurations, standard pin connection, and dependable contrast performance for embedded display applications.
Design Standards
Character LCD Display Driver focuses on steady signal response, simple circuit connection, and practical compatibility with embedded hardware platforms. Its character-based architecture allows engineers to control text output with fewer software resources than graphic display systems. The design supports stable timing, low power operation, and reliable readability in compact panels. It can also be adapted for different LCD modes, backlight colors, viewing angles, operating voltage requirements, pin arrangements, and mechanical layouts, making it suitable for OEM projects that need consistent display behavior.
Applications
Character LCD Display Driver is suitable for products that need direct visual feedback through a small character screen. It can display device modes, short instructions, alarm codes, set values, counting data, sensor results, and operation status. Typical applications include industrial instruments, testing equipment, appliance control panels, power monitors, access control devices, medical electronics, vending systems, educational boards, DIY controller projects, and compact embedded terminals. Its single-line character layout works well when the product needs clear information output without a larger or more complex display.
Product Size
FAQ
Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module's performance and compatibility.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: What is this screen used for？
A: Character LCD screens are widely used in home appliances, industrial controls, medical devices, consumer electronics, and DIY projects, suitable for displaying status information, menu options, and basic data.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
